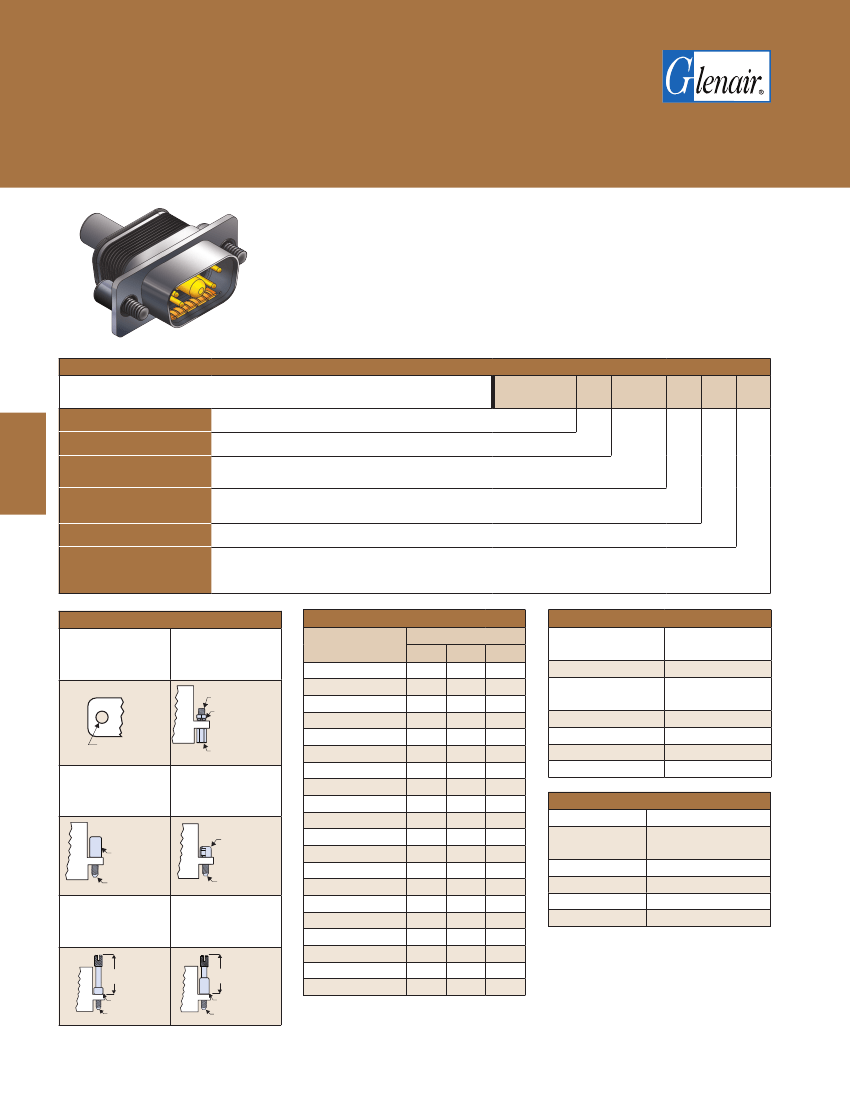

SERIES 28
HiPer-D
®
Combo Connectors
280-088P combo cable pin connectors with standard
mounting flange, integral banding platform and crimp termination
Combo HiPer-D
®
Combo-D connectors, with integral banding platform, feature
size #20 signal contacts and size #8 power or coax contacts.
Size #8 contacts are
ordered separately.
The HiPer-D
®
features a rugged machined aluminum shell
and wire grommet for environmental protection. Size #20 contacts are packaged
with connector. Terminate contacts with crimp tools purchased separately. Glass-
reinforced thermoset epoxy insulators, copper alloy retention clips. Fluorosilicone
rear grommet meets IP67 immersion requirement. 1000 VAC, 7.5 Amps (#20), up to
40 Amps with size #8 power contacts.
How To Order
Sample Part Number
Basic Part Number
280-088
P
= Pin
Contact arrangements are shown in the
adjacent table
ME
= Electroless Nickel
Z1
= Passivated Stainless Steel
G
= EMI/Gronding
MT
= Nickel-PTFE
ZM
= Nickel Over Stainless
N
= None
P
= Female Jackpost
K
= Slot Head Extended Jackscrew
T
= Slot Head Extended Captive Screwlock
A
- Less contact
280-088
P
1-5W1
ME
G
S
C
Contact
Shell Size-
Contact Arrangement
Shell Finish
Ground Option
Mating Hardware
N
= No Hardware
L
= Low Profile Hex Head Captive Jackscrew
S
= Hex Head Captive Screwlock
Mating Hardware
N
Thru-Hole
No Hardware
P
Female Jackpost
Contact Arrangements
Shell Size-
Contact Arr.
1-2W2
1-5W1
2-3W3
2-7W2
2-11W1
3-5W5
3-9W4
3-13W3
3-17W2
3-21W1
4-8W8
4-13W6
4-17W5
4-21WA4
4-25W3
4-27W2
5-24W7
5-36W4
5-43W2
5-47W1
Contact Size and Qty
#22
#20
4
5
10
5
10
15
20
7
12
17
22
25
17
32
41
46
#8
2
1
3
2
1
5
4
3
2
1
8
6
5
4
3
2
7
4
2
1
Current Rating
Test Voltage
Specifications
#20 7.5 AMPS, #8 40
AMPS
1000 VAC RMS
5000 megohms
minimum
#4-40 UNC-2A
NUT AND
LOCKWASHER
Insulation Resistance
.115/.125
(2.92/3.18)
Operating Temperature -65° C. to +200° C.
Ingress Protection
IP 67
Shock
Vibration, Random
300 g.
43.92 g.
#4-40 UNC-2B
S
Captive Screwlock,
Hex Head
L
Captive Jackscrew,
Hex Head
RETAINER
Materials and Finishes
Shell
Contacts
Insulators
Retention Clips
Grommet, O-ring
Hardware
Aluminum alloy
Copper alloy, 50
microinches gold
Thermoset epoxy
Copper alloy
Fluorosilicone rubber
300 series stainless steel
RETAINER
#4-40 UNC-2A
#4-40 UNC-2A
K
Slot-Head Extended
Jackscrew
T
Slot-Head Extended
Captive Screwlock
1.1 (28)
MAX
RETAINER
#4-40 UNC-2A
1.1 (28)
MAX
RETAINER
#4-40 UNC-2A
C-18
Rev. 09.04.20
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 28 HiPer-D catalog
Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 28
HiPer-D
®
Combo Connectors
280-088P combo cable pin connectors with standard
mounting flange, integral banding platform and crimp termination

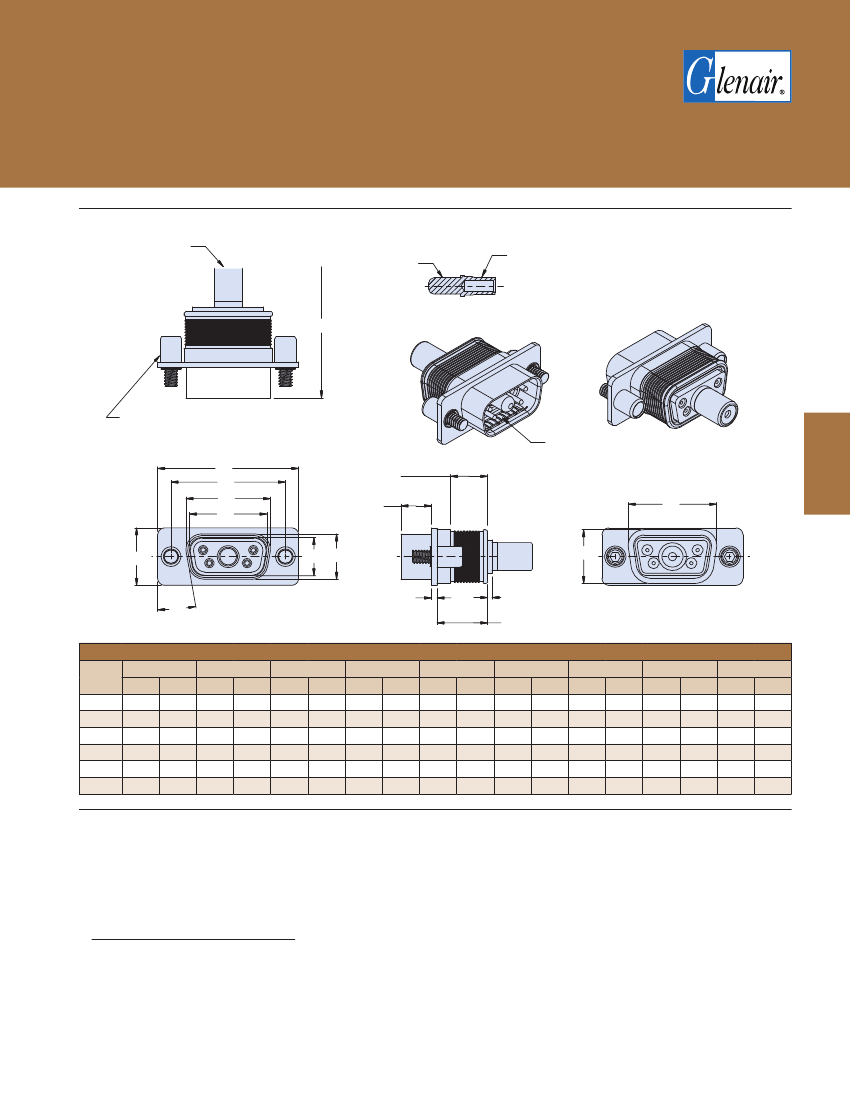

280-088P DIMENSIONS
