MCOCXO-TCR1D216.3840MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MCOCXO-TCR1D216.3840MHZ

MCOCXO-TCR1D216.3840MHZ: DescriptionHCMOS Output Clock Oscillator; CategoryPassive components oscillator; File Size49KB，2 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

MCOCXO-TCR1D216.3840MHZ Overview

HCMOS Output Clock Oscillator

MCOCXO-TCR1D216.3840MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1261221283
Reach Compliance Code	compliant
Manufacturer's serial number	MCOCXO
Oscillator type	HCMOS

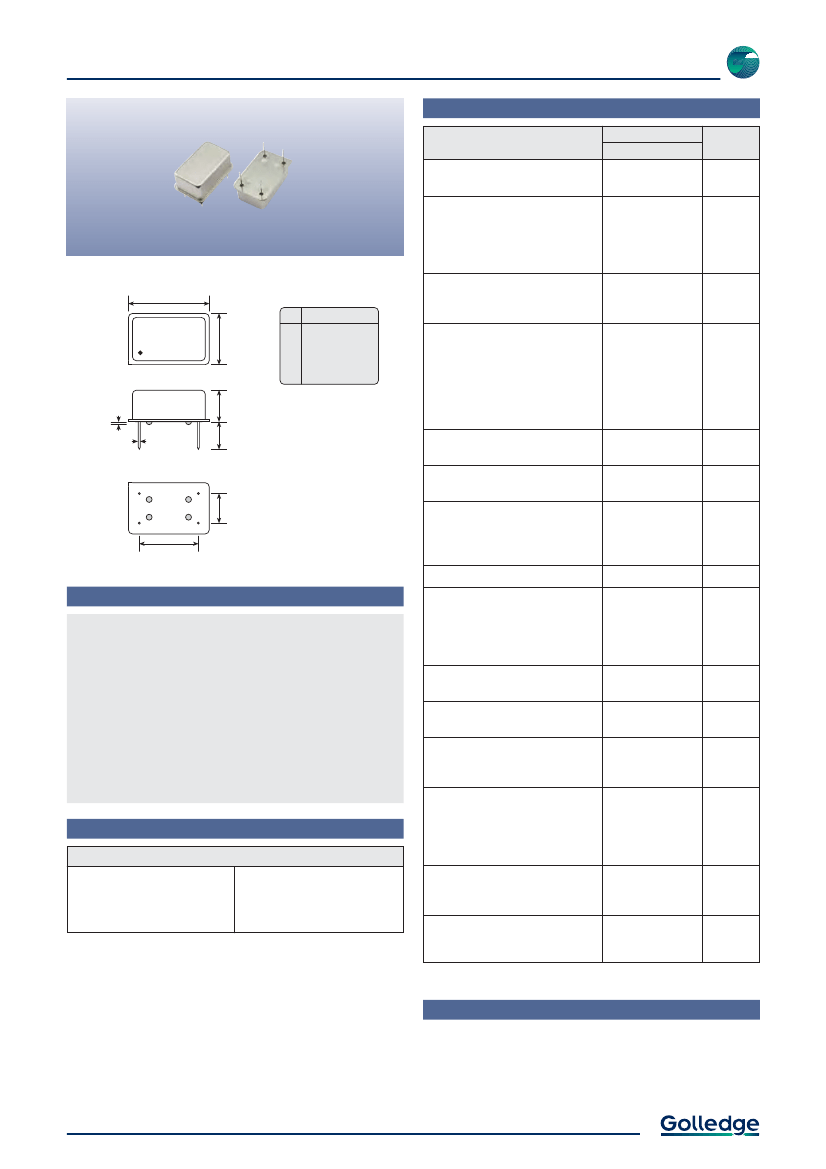

MCOCXO-TCR1D216.3840MHZ Preview

12V OCXO HCMOS Output

Specifications

MCOCXO

Product

MCOCXO

Option

Codes

Parameters

Frequency range:

10.0kHz ~ 54.0MHz

Frequency stability:

±0.7ppm max first year

±4ppm max in 10 years

±0.1ppm over V

±0.5V

±0.01ppm over 10% change in load

20.14

±0.08

12.52

±0.08

7.80

±0.20

6.35

±0.50

CONNECTION

Freq adjustment

Ground

Output

Supply

Short term stability:

5x10

-10

, 0.1 to 30s

5x10

-11

over 1s typ

Temperature stability:

±0.2ppm max, 0 to +60°C

±0.05ppm max, 0 to +60°C

±0.3ppm max, -20 to +70°C

±0.1ppm max, -20 to +70°C

±0.5ppm max, -40 to +85°C

±0.2ppm max, -40 to +85°C

Operable temperature range:

-40 to +85°C

Storage temperature range:

-65 to +125°C

0.80

0.46Ø

7.62

15.24

Scale 1:1

Output waveform:

HCMOS compatible

‘0’=+0.4V

max,

‘1’=4.5V

min

40:60 max

Rise / fall times:

7ns / 7ns max

Features

Compact 14-pin DIL package (SMD optional)

12.0V supply voltage

HCMOS compatible output

Very fast warmup

Low power consumption

Wide temperature range available

Frequency adjustment:

Control voltage (pin 1)

±4ppm min, 2.5V ±2.5V

Variable resistor (pins 1 to 7)

±4ppm min, 0 ~ 10k

Supply voltage (V

+12.0V (±0.5V)

Input current:

30mA max @ +30°C

45mA max @ -20°C

Warm up:

within spec after 30s @ 0°C

current 250mA max during 10s

Phase noise (typ @ 10MHz):

-90dBc/Hz @ 10Hz

-120dBc/Hz @ 100Hz

-130dBc/Hz @ 1kHz

-135dBc/Hz @ 10kHz

Standard Frequencies

Frequencies in MHz

10.00000

12.80000

16.00000

16.38400

19.44000

20.00000

26.00000

40.00000

50.00000

52.00000

Shock & vibration:

2,000G, 0.3ms

½-sine

10.0 ~ 2,000Hz, 10G

Package:

Through hole 14 pin DIL

25x22mm SMD carrier PCB

Formed leads SMD

Standard.

Optional - Please specify required code(s) when ordering

Ordering Information

Product name + option codes + frequency

eg:

MCOCXO-AR1 10.0MHz

MCOCXO-BV5 16.0MHz

Option code X (eg MCOCXO/X) denotes a custom spec.

Tel:

+44 1460 256 100

05 Jul 2010

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com

SM Package Options

Option D1

PAD

10.50

(max)

22.00

(max)

17.80

CONNECTION

Freq adjustment

Not connected

Supply

Output

Ground

14-pin DIL OCXOs

Option D2

9.50

±0.20

CONNECTION

Freq adjustment

Ground

Output

Supply

20.14

±0.08

0.46Ø

SOLDER PAD LAYOUT

25.40

(max)

19.50

SOLDER PAD LAYOUT

2.00

5.00

5.60

12.52

±0.08

7.62

2.50

4.00

15.24

3.50

14.30

TOP VIEW

Scale 1:1

Soldering Profile

°C

240

200

Peak temp

235°C

3°C/s max

100

Slow

cooldown

Wave soldering:

Temp peak up to 260°C 5s max (at pins)

Time

Tel:

+44 1460 256 100

02 Jul 10

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
