Converter Modules

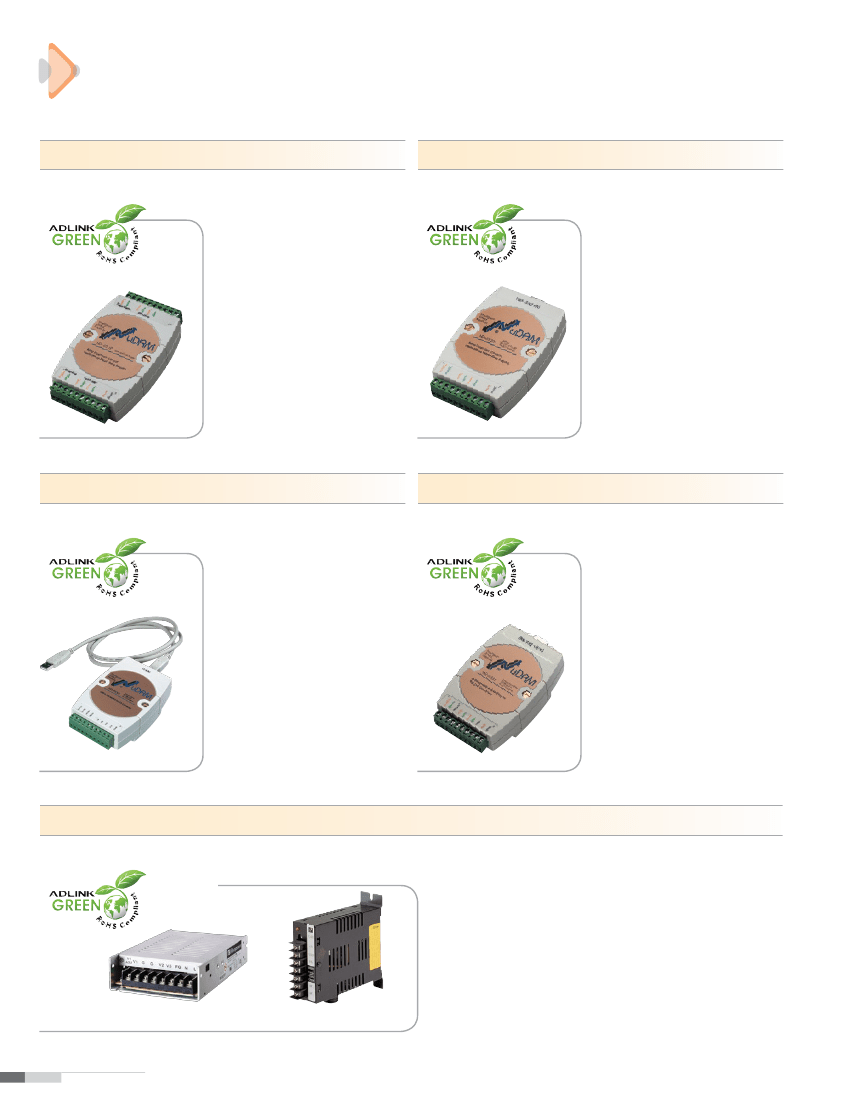

ND-6510

RS-422/RS-485 Repeater

■ Input

• RS-422

(4-wire, full-duplex)

• RS-485 (2-wire, half-duplex) protocol

■ Output

• RS-422 (4-wire, full-duplex)

• RS-485 (2-wire, half-duplex) protocol

■ Speeds:

115.2 k, 57.6 k, 38.4 k, 19.2 k,

9600, 4800, 2400, 1200

■ Auto

baud rate and data format adjustment

■ Isolation

Voltage: 2500 V

RMS

■ Surge

protector on communications signals

■ Connector:

Plug-in screw terminal block

■ Replacer

Request: Over 128 modules or

distance over 4000 feet

■ Power

Consumption: 1.104 W typical

ND-6520

RS-232 to RS-422/RS-485 Converter

■ Protocol

• RS-422

(4-wire, full-duplex)

• RS-485

(2-wire, half-duplex) protocol

■ Speeds:

115.2 k, 38.4 k, 19.2 k, 9600, 4800,

2400, 1200

■ Auto

baud rate and data format adjustment

■ Isolation

Side: RS-232 signal (TXD, RXD, GND)

■ Isolation

Voltage: 2500 Vrms

■ Surge

protector on RS-422/RS-485

communications signals

■ Connector:

Female DB-9 and plug-in

screw terminal block

■ Power

Consumption: 0.912 W typical

ND-6530

USB to RS-422/RS-485 Converter

■ Protocol

(DIP switch selectable)

• RS-232

(5-wire: RXD, TXD,

RTS, CTS, GND)

• RS-422

(4-wire: TX+, TX-, RX+, RX-)

• RS-485

(2-wire: Data+, Data-)

■ Speeds:

1200 to 115.2 kbps

■ Isolation

Voltage: 2500 V

RMS

■ USB

1.1 compliant

■ Power

Consumption: 0.795 W typical

ND-6531

Configurable Communications Controller

■ Protocol

• RS-232

(5-wire: RXD, TXD,

RTS,

CTS, GND)

• RS-422

(4-wire: TX+, TX-, RX+, RX-)

• RS-485

(2-wire: Data+, Data-)

■ Speed:

1200 to 115200 bps (RS-232 and

RS-422/RS-485 can be set to different

baud rate)

■ Convert

RS-422/RS-485 to RS-232 with

configurable address

■ Isolation

Voltage: 1000 V

■ Surge

protector on communications signals

■ Connector:

Female DB-9 and plug-in

screw terminal block

■ Power

Consumption: 1.008 W typical

NDP-243, NDP-243U2

Panel Mounting Power Supply

■ Input

Voltage

• NDP243:

85 to 132 V

or 170-264 V

switchable

• NDP-243U:

90-264 V

■ Input

Frequency: 47 to 63 Hz

■ Input

Current: 1.4 A (max.)

■ Short

Protection

NDP-243U2

NDP-243

■ Output

Voltage

• NDP-243:

+24 V

±10 %

• NDP-243U:

+24 V

1 A, +12 V

1 A,

+5 V

3 A

■ Output

Current: 3 A (max.)

• Overload

protection

• Dimensions:

5" (L) x 3.8" (W) x 1.6" (H)

■ Operating Temperature: 0˚C to +50˚C

9-3
