302H42W820MQ4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 302H42W820MQ4

302H42W820MQ4: DescriptionCeramic Capacitor, Ceramic, 3000V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.000082uF, 2527,; CategoryPassive components capacitor; File Size143KB，3 Pages; ManufacturerJohanson Dielectrics

Download Datasheet Parametric Compare View All

302H42W820MQ4 Overview

Ceramic Capacitor, Ceramic, 3000V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.000082uF, 2527,

302H42W820MQ4 Parametric

Parameter Name	Attribute value
Objectid	815293920
package instruction	, 2527
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.000082 µF
Capacitor type	CERAMIC CAPACITOR
Custom functions	Custom Sizes, Voltages, Values Available
dielectric materials	CERAMIC
high	5.59 mm
length	6.35 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Radial
positive tolerance	20%
Rated (DC) voltage (URdc)	3000 V
series	H42(X7R , 3KV)
size code	2527
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal pitch	4.32 mm
width	6.86 mm

Preview

Download Datasheet

View All

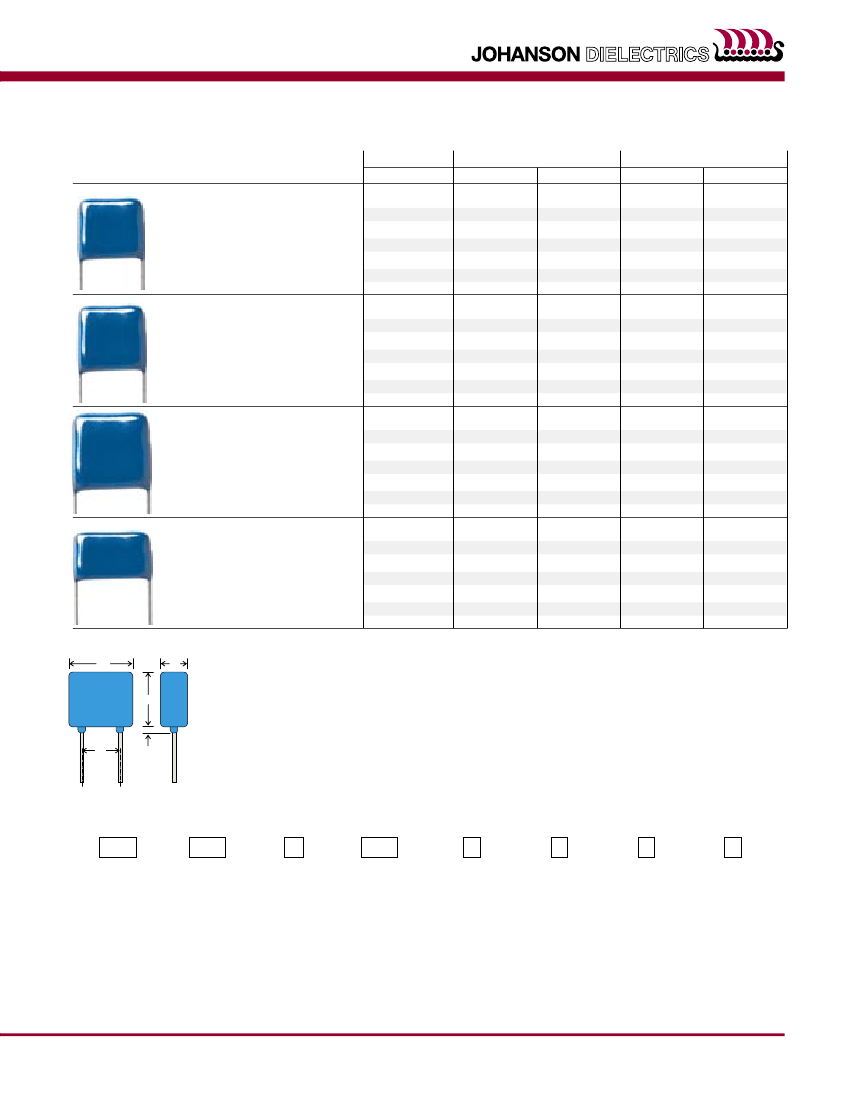

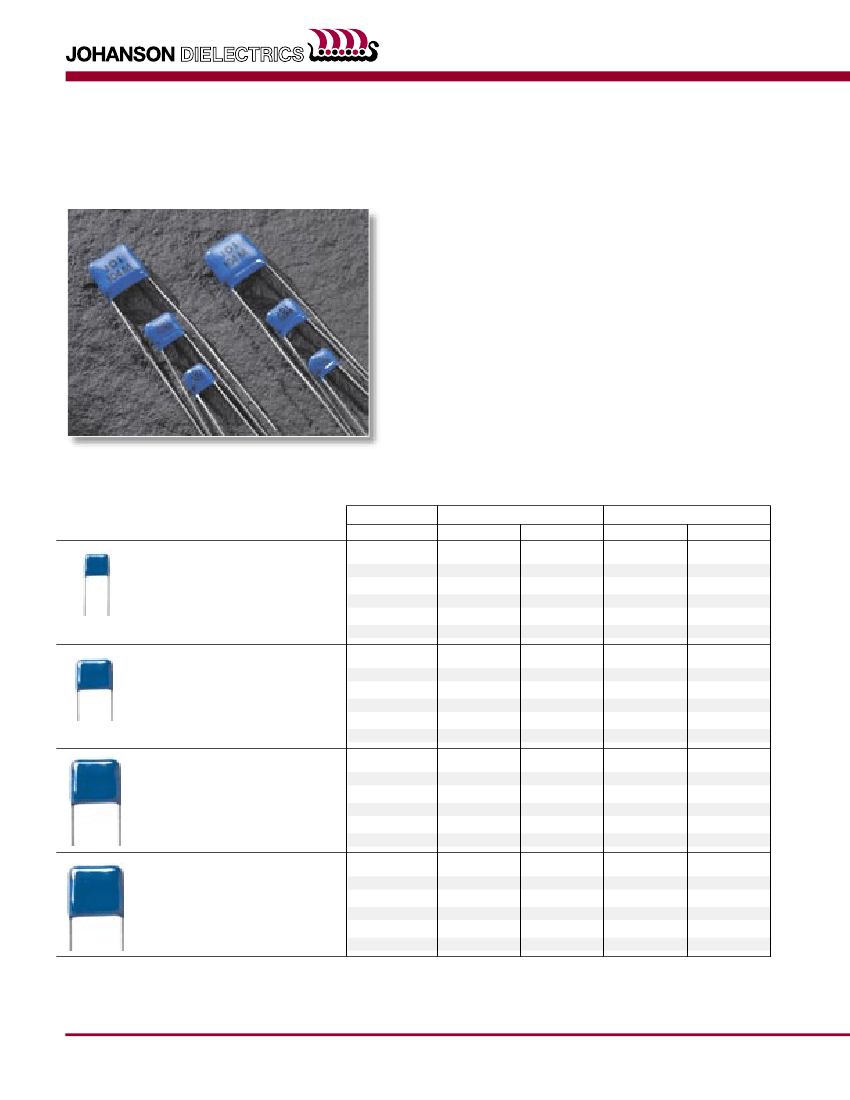

www.johansondielectrics.com

IGH

OLTAGE

ADIAL

EADED

APACITORS

EATURES

• Rated Working Voltages from 500 to 15,000 VDC

• Rugged Epoxy Coating Offers Increased Protection

• Compact MLC Designs Smaller Than Film or Disc

• DSCC Drawing & Other Screened Versions Available

• Custom Sizes, Voltages, and Values Available

PPLICATIONS

• Power Supplies

• Voltage Multipliers

• Data Isolation

• Surge Protection

• Industrial Control Circuits

• Custom Applications

APACITANCE

/ V

OLTAGE

ELECTION

In.

0.250 Max

0.220 Max

0.270 Max

0.170 ±0.03

0.025 ±.002

In.

0.370 Max

0.300 Max

0.270 Max

0.275 ±0.03

0.025 ±.002

In.

0.470 Max

0.400 Max

0.320 Max

0.375 ±0.03

0.025 ±.002

In.

0.570 Max

0.500 Max

0.320 Max

0.475 ±0.03

0.025 ±.002

(mm)

(6.35 Max)

(5.59 Max)

(6.86 Max)

(4.32 ±0.76)

(0.64 ±0.05)

(mm)

(9.40 Max)

(7.62 Max)

(6.86 Max)

(6.99 ±0.76)

(0.64 ±0.05)

(mm)

(12.0 Max)

(10.2 Max)

(8.13 Max)

(9.53 ±0.76)

(0.64 ±0.05)

(mm)

(14.5 Max)

(12.7 Max)

(8.13 Max)

(12.1 ±0.76)

(0.64 ±0.05)

RATED

VOLTAGE

NPO CAPACITANCE (MAX.)

VALUE

CODE

X7R CAPACITANCE (MAX.)

VALUE

CODE

H42

500 VDC

1000 VDC

2000 VDC

3000 VDC

4000 VDC

5000 VDC

500 VDC

1000 VDC

2000 VDC

3000 VDC

4000 VDC

5000 VDC

500 VDC

1000 VDC

2000 VDC

3000 VDC

4000 VDC

5000 VDC

500 VDC

1000 VDC

2000 VDC

3000 VDC

4000 VDC

5000 VDC

4700 pF

1500 pF

680 pF

330 pF

150 pF

100 pF

.022 µF

3300 pF

1500 pF

680 pF

330 pF

220 pF

.056 µF

4700 pF

3300 pF

1500 pF

1000 pF

470 pF

.100 µF

.010 µF

6800 pF

3300 pF

2200 pF

1000 pF

472

152

681

331

151

101

223

332

152

681

331

221

563

472

332

152

102

471

104

103

682

332

222

102

.068 µF

.022 µF

3300 pF

2200 pF

680 pF

330 pF

.220 µF

.068 µF

.015 µF

6800 pF

2200 pF

1000 pF

.470 µF

.150 µF

.047 µF

.033 µF

.010 µF

6800 pF

1.00 µF

.330 µF

.100 µF

.068 µF

.022 µF

.010 µF

683

223

332

222

681

331

224

683

153

682

222

102

474

154

473

333

103

682

105

334

104

683

223

103

H47

H51

H62

15191 Bledsoe Street, Sylmar, California 91342 • (818) 364-9800• FAX (818) 364-6100

302H42W820MQ4 Related Products

	302H42W820MQ4	501H42N682MQ3	501H42N682MQ4	501H42N683MQ3	501H42N683MQ4	102H42W100MQ4	102H42W821MQ4	102H42W822KQ4	302H42W821MQ4
Description	Ceramic Capacitor, Ceramic, 3000V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.000082uF, 2527,	Ceramic Capacitor, Ceramic, 500V, 20% +Tol, 20% -Tol, NP0, -/+30ppm/Cel TC, 0.0068uF, 2527,	Ceramic Capacitor, Ceramic, 500V, 20% +Tol, 20% -Tol, NP0, -/+30ppm/Cel TC, 0.0068uF, 2527,	Ceramic Capacitor, Ceramic, 500V, 20% +Tol, 20% -Tol, NP0, -/+30ppm/Cel TC, 0.068uF, 2527,	Ceramic Capacitor, Ceramic, 500V, 20% +Tol, 20% -Tol, NP0, -/+30ppm/Cel TC, 0.068uF, 2527,	Ceramic Capacitor, Ceramic, 1000V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.00001uF, 2527,	Ceramic Capacitor, Ceramic, 1000V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.00082uF, 2527,	Ceramic Capacitor, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0082uF, 2527,	Ceramic Capacitor, Ceramic, 3000V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.00082uF, 2527,
package instruction	, 2527	, 2527	, 2527	, 2527	, 2527	, 2527	, 2527	, 2527	, 2527
Reach Compliance Code	compliant	compli	compli	compli	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	0.000082 µF	0.0068 µF	0.0068 µF	0.068 µF	0.068 µF	0.00001 µF	0.00082 µF	0.0082 µF	0.00082 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
Custom functions	Custom Sizes, Voltages, Values Available	Custom Sizes,Voltages,Values Available	Custom Sizes,Voltages,Values Available	Custom Sizes,Voltages,Values Available	Custom Sizes,Voltages,Values Available	Custom Sizes,Voltages, Values Available	Custom Sizes,Voltages, Values Available	Custom Sizes,Voltages, Values Available	Custom Sizes, Voltages, Values Available
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
high	5.59 mm	5.59 mm	5.59 mm	5.59 mm	5.59 mm	5.59 mm	5.59 mm	5.59 mm	5.59 mm
length	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm
negative tolerance	20%	20%	20%	20%	20%	20%	20%	10%	20%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial
positive tolerance	20%	20%	20%	20%	20%	20%	20%	10%	20%
Rated (DC) voltage (URdc)	3000 V	500 V	500 V	500 V	500 V	1000 V	1000 V	1000 V	3000 V
series	H42(X7R , 3KV)	H42(NP0 , 500V)	H42(NP0 , 500V)	H42(NP0 , 500V)	H42(NP0 , 500V)	H42(X7R , 1KV)	H42(X7R , 1KV)	H42(X7R , 1KV)	H42(X7R , 3KV)
size code	2527	2527	2527	2527	2527	2527	2527	2527	2527
Temperature characteristic code	X7R	NP0	NP0	NP0	NP0	X7R	X7R	X7R	X7R
Temperature Coefficient	15% ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C
Terminal pitch	4.32 mm	4.32 mm	4.32 mm	4.32 mm	4.32 mm	4.32 mm	4.32 mm	4.32 mm	4.32 mm
width	6.86 mm	6.86 mm	6.86 mm	6.86 mm	6.86 mm	6.86 mm	6.86 mm	6.86 mm	6.86 mm
Objectid	815293920	-	-	-	-	815293788	815293811	815293864	815293932
