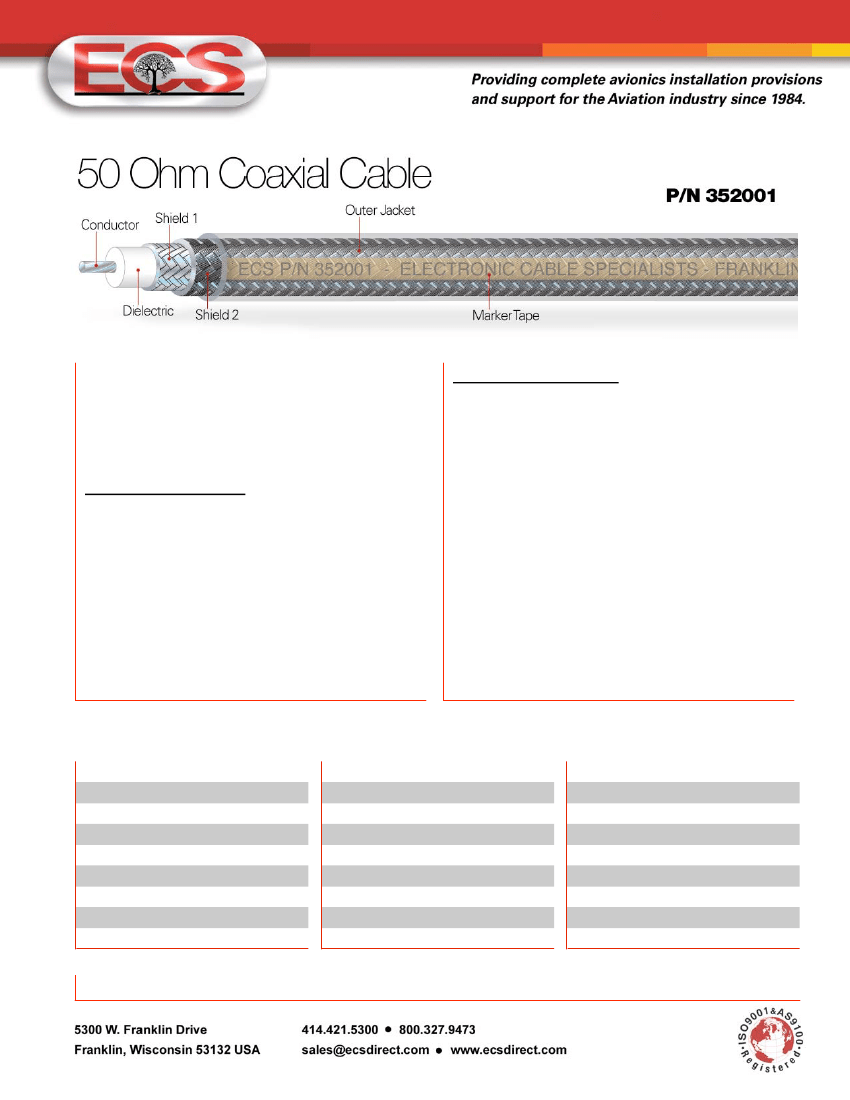

Conductor:
20 AWG stranded silver plated copper
Dielectric:
High temperature flouropolymer
Shield 1:
Silver plated copper braid
Shield 2:
38 AWG silver plated copper braid
Jacket:
Clear high temperature flouropolymer
(laser markable)
Physical Characteristics
Outer Diameter:
0.162 in. nominal
Bend Radius:
0.81 in. nominal
Weight:
2.7 lbs/100 ft nominal
Temperature Range:
-55° to +200° C
Skydrol Resistant:
Yes
Electrical Characteristics
Impedance:
50.0 Ohms nominal
Capacitance:
25.5 pF/ft nominal
DC Resistance:
8.5 Ohms/1000 ft nominal
Time Delay:
1.25 ns/ft nominal
Attenuation:
1 GHz 11.7 dB/100 ft;
(nominal)
2 GHz 16.3 dB/100 ft;
3 GHz 20.0 dB/100 ft;
5 GHz 26.1 dB/100 ft
Environmental:
• ECS avionics cables are designed to meet, or exceed,
burn requirements as set forth in Federal Aviation
Regulations 14 CFR Part 25.869(a)(4) Amdt 25-113,
Appendix F Part I(a)(3).
• They are manufactured with materials which, when
subjected to flames or high temperatures, will not
outgas deadly hydrogen chloride produced by
conventional PVC cables.
Connector Types for Cable 352001
Connector Type
TNC 90°
TNC 90° Extended
TNC 90° Long
TNC Straight
TNC Panel Mount
TNC Bulkhead
C 90°
C Straight
Connector P/N
Connector Type
BNC 90°
BNC 90° Extended
BNC 90° Long
BNC Straight
BNC Bulkhead
N 90°
N Straight
N Bulkhead
Connector P/N
Connector Type
ARINC 404 Size 1
ARINC 600 Size 1
ARINC 600 Size 1RF
ARINC 600 Size 5
SMA 90°
SMA Straight
HN 90°
Connector P/N
CTR3522
CTRE3522
CTRL3522
CTS3522
N/A
BTS3522
CCR3522
CCS3522
CBR3522
CBRE3522
CBRL3522
CBS3522
BBS3522
CNR3522
CNS3522
BNS3522
LM3522
L35122
M35122
P3522
CSR3522
CSS3522
CHR3522
Cage Code:
66197 •
Issue Date:
9/21/09
ECS-P/N 352001 © 2009 ECS, Inc. All Rights Reserved. Printed in USA.
