COMPONENTS PRODUCT INFORMATION
NEW
Board-to-Cable Connector for High-speed Transmission
CONNECTOR
HD Series Connector
MB-0247-1
June 2012
RoHS Compliant
40 position
30 position

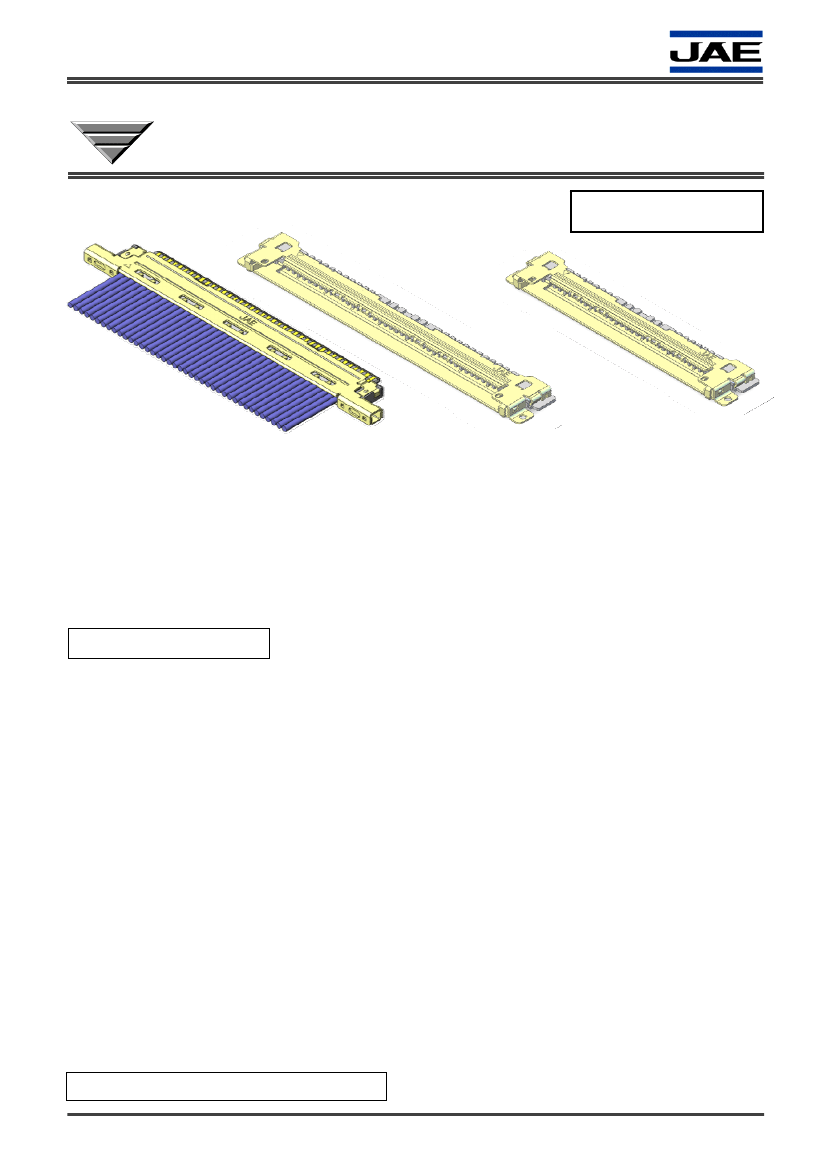

JAE has recently developed the HD Series of connectors (HD1: 40 pos. HD2: 30 pos.) for
notebook PC LCD interface applications. The HD Series connectors are compatible with
LVDS transmission and LED backlight as standardized in the VESA
®
16:9 Wide Notebook
Panel Standard, and are licensed products for the Dai-ichi Seiko Co., Ltd. (I-PEX)
CABLINE
®
-VS.
Features
Products licensed by Dai-ichi Seiko Co., Ltd. (I-PEX)
Fully compatible with the Dai-ichi Seiko., Ltd. (I-PEX) CABLINE
®
-VS
Compatible with LVDS transmission
HD1: 40 position (receptacle and plug); HD2: 30 position (receptacle)
Pb-free
Halogen-free
Note: CABLINE-VS is a registered trademark of Dai-ichi Seiko Co., Ltd. (I-PEX)
LICENSED BY DAI-ICHI SEIKO CO., LTD.(I-PEX)
JAE PMK Div. Proprietary. Copyright © 2012，Japan Aviation Electronics Industry, Ltd.
1/8
MB-0247-1
General Specifications
Number
of Contacts:
40 (HD1), 30 (HD2)
Applicable
Cable:
AWG#32 to 36 (Discrete cable)
AWG#36 to 44 (Micro-coaxial cable)
Rated
Current:
1.0A per contact AC/DC [AWG#32]
1.0A per contact AC/DC [AWG#34]
0.8A per contact AC/DC [AWG#36]
0.3A per contact AC/DC [AWG#40]
0.24A per contact AC/DC [AWG#42]
0.1A per contact AC/DC [AWG#44]
Rated
Voltage:
AC, DC each 100V per contact
Operating
temperature:
-40 Deg. C to 85 Deg. C
Pitch:
0.5mm
Dielectric
Withstanding Voltage:
AC250V r.m.s. per minute
Contact
Resistance*:
AWG#32: 140m
max.
AWG#34: 180m
max.
AWG#36: 275m
max.
AWG#40: 600m
max.
AWG#42: 700m
max.
AWG#44: 1080m
max.
Insulation
Resistance: 1000M
min.
*Values include the following conductor resistance of
100mm cable.
AWG#32: 60m
max.
AWG#34: 100m
max.
AWG#36: 160 to 195m
max.
AWG#40: 485 to 520m
max.
AWG#42: 585 to 620m
max.
AWG#44: 1000m
max.
Materials / Finishes
Board Side Receptacle Connector HD1S040HA1, HD2S030HA1
Component
Contact
Insulator
Shell
Plug Connector HD1P040MA1
Component
Contact
Insulator
Base shell
Material / Finish
Copper alloy / Au plating over Ni
Heat resistance plastic / No finish
Copper alloy / Au plating over Ni
Material / Finish
Copper alloy / Au plating over Ni (contact area)
Heat resistance plastic / No finish
Copper alloy / Au plating over Ni
Cover Shell for Plug HD1P040-CSH2-10000
Component
Cover shell
Material / Finish
Copper alloy / Au plating over Ni
2/8
JAE PMK Div. Proprietary. Copyright © 2012，Japan Aviation Electronics Industry, Ltd.
MB-0247-1
Ordering Information

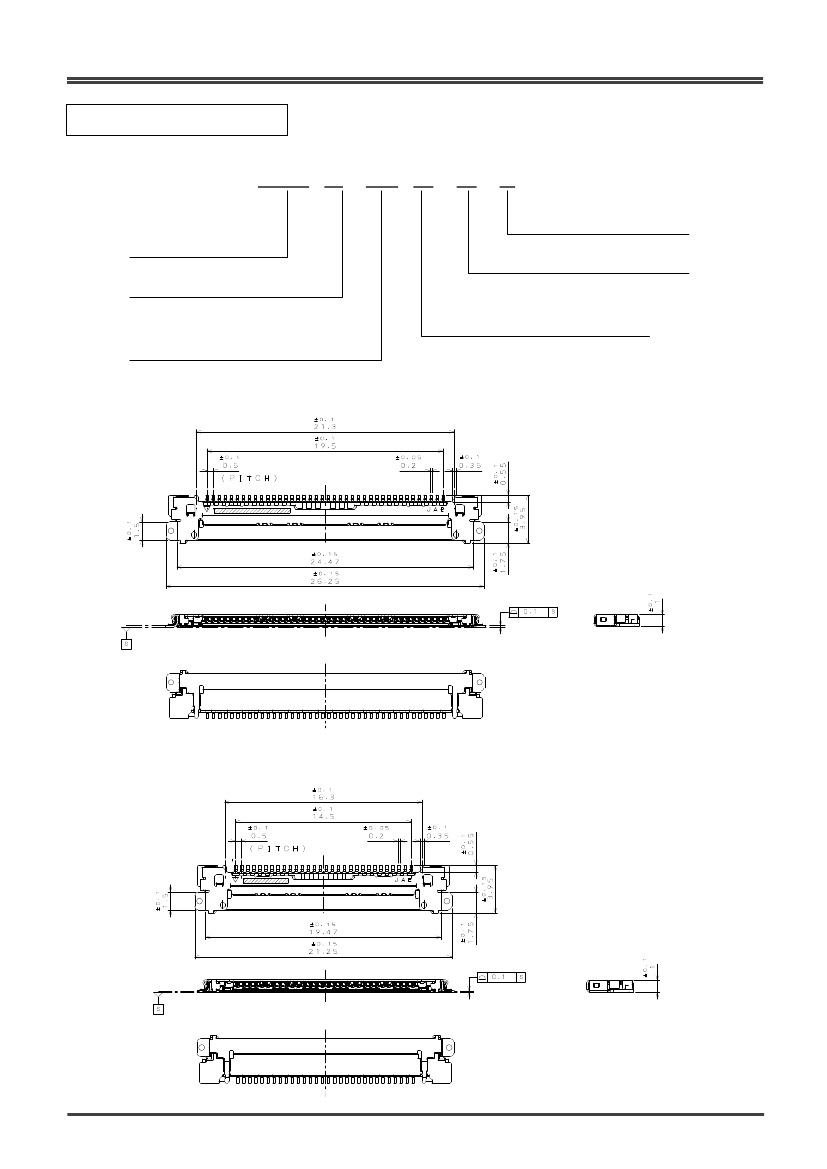

Board Side Receptacle Connector (SJ110381, SJ110547)
HD* S *** H A 1
Series
HD1: 40 pos.
HD2: 30 pos.
S: Socket type
No. of Contacts
040: 40pos. 030: 30pos.
Type of Termination
H: Mounted on board
1: Modification code
Finishes A: Au plating
HD1S040HA1 (SJ110381)
Unit: mm
HD2S030HA1 (SJ110547)
JAE PMK Div. Proprietary. Copyright © 2012，Japan Aviation Electronics Industry, Ltd.
3/8
MB-0247-1

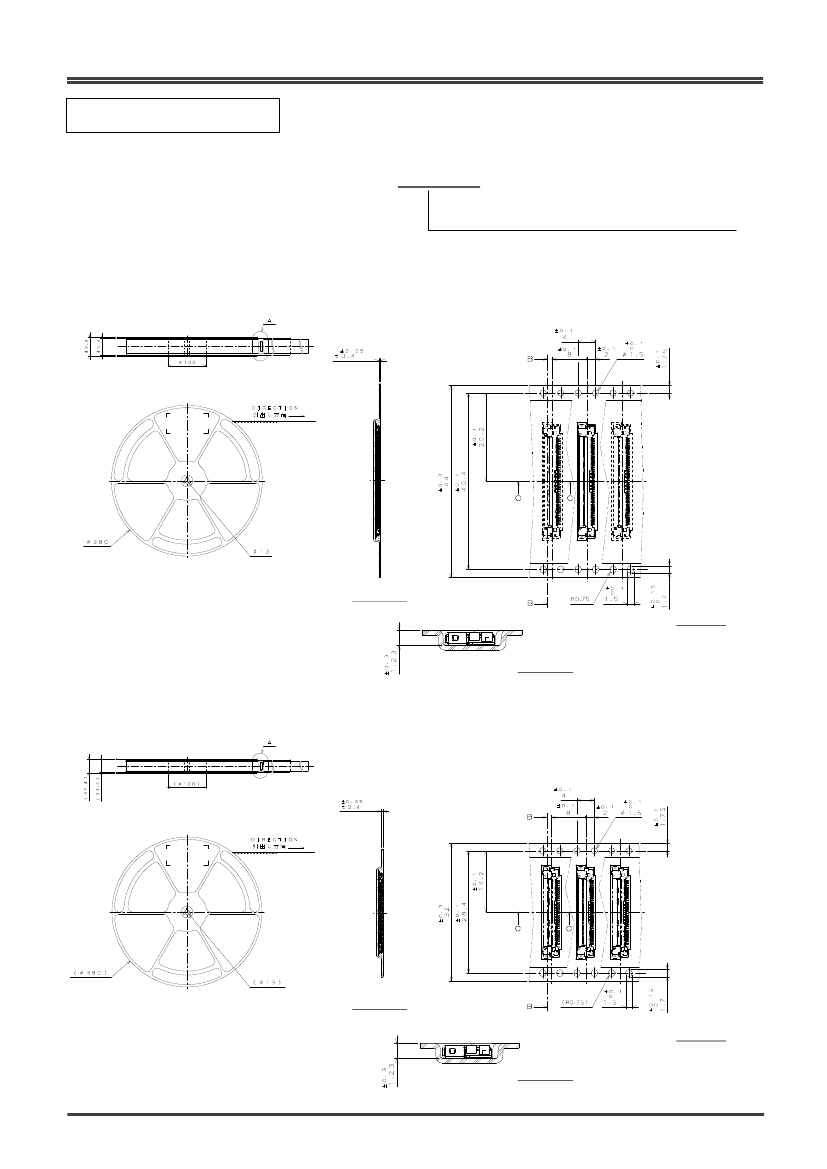

Ordering Information
Board Side Connector (Embossed packaging)
(SJ110382, SJ110548)
HD* S *** H A 1 R6000
R: Embossed packaging of 6000 pcs.
HD1S040HA1R6000 (SJ110382)
Unit: mm
SECT. B-B
DETAIL A
SECT. C-C
HD2S030HA1R6000 (SJ110548)
SECT. B-B
DETAIL A
SECT. C-C
JAE PMK Div. Proprietary. Copyright © 2012，Japan Aviation Electronics Industry, Ltd.
4/8
MB-0247-1

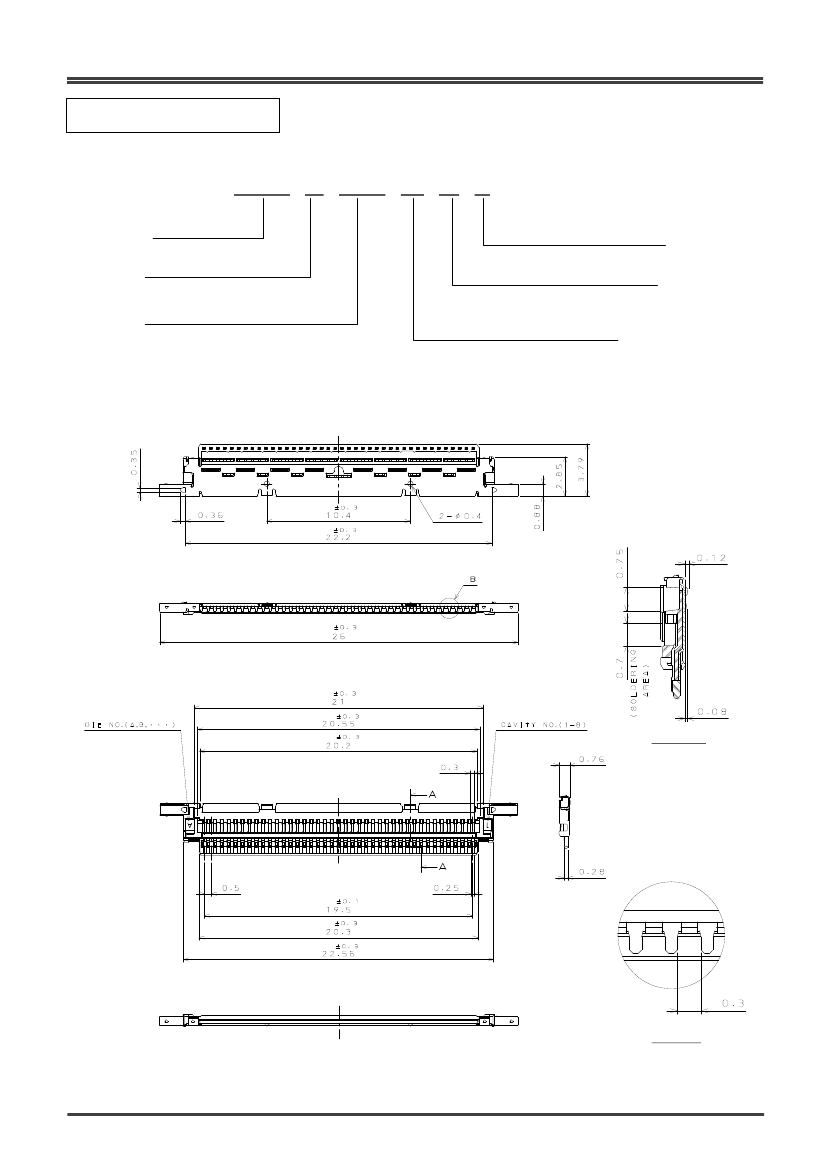

Ordering Information
Plug Connector (SJ111088)
HD1 P 040 M A 1
Series
P: Plug type
No. of Contacts: 40 pos.
1: Modification code
Finishes A: Au plating
Type of Termination
M: Cable connection
Unit: mm
SECT. A-A
DETAIL B
JAE PMK Div. Proprietary. Copyright © 2012，Japan Aviation Electronics Industry, Ltd.
5/8
