ISD300-1212
ISD300
OPTICAL DATA TRANSMISSION
Online data sheet
ISD300-1212 | ISD300
OPTICAL DATA TRANSMISSION
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
Ordering information
Type

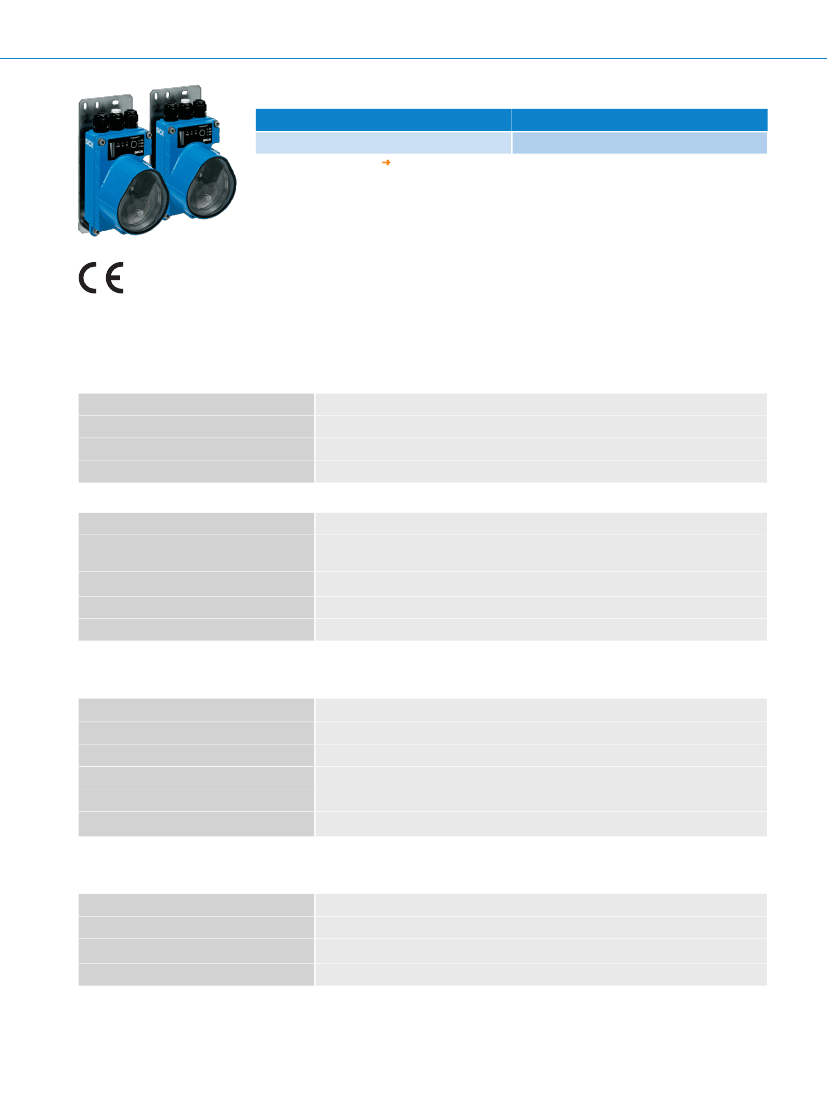

ISD300-1212
Other models and accessories
www.sick.com/ISD300
Part no.
6024760
Detailed technical data
Performance
Transmission range
Light source
Typ. light spot size (distance)
Aperture angle
0.2 m ... 200 m
LED, infrared (880 nm)
1.75 m (at 100 m)
Ca. ± 0.5°
Interfaces
Data transmission rate
Switching output
Data interface
Switching input
Signal delay
1)
1.5 Mbit/s
0 V ... 2 V: interference-free operation
V
S
–2 V: reduced system reserve
RS-485/PROFIBUS DP
1)
0 V ... 2 V: sender deactivated
≤ 1.5 µs, + 1 Tbit
RS-485 on request.
Mechanics/electronics
Supply voltage V
s
Housing material
Connection type
Weight
Current consumption
Frequency
1)
DC 18 V ... 30 V
Metal
Terminals
Approx. 1.2 kg
≤ 0.2 A
F2
1)
A pair of devices with numbers ending in 1 and 2 are required to create a data transfer section.
Ambient data
Enclosure rating
Protection class
Electromagnetic compatibility (EMC)
Ambient temperature
1)
IP 65
I
EN 61000-6-2 / EN 61000-6-4
1)
Storage: –30 °C ... +70 °C
This is a Class A device. This device can cause radio interference in living quarters.
2
DISTANCE SENSORS | SICK
Online data sheet | 2016-05-02 22:08:07
Subject to change without notice
OPTICAL DATA TRANSMISSION
Ambient temperature operation
Max. rel. humidity (not condensing)
1)
ISD300-1212 | ISD300
–5 °C ... +50 °C
90 %, Non-condensing
This is a Class A device. This device can cause radio interference in living quarters.
Dimensional drawing
(Dimensions in mm (inch))
ISD300 RS-485/PROFIBUS, ISD300 RS-422/Interbus, ISD300 DH+/RIO, ISD300 DeviceNet/CANopen
89.25
(3.51)
86
(3.39)
58
(2.28)
28
(1.10)
max. 120
(4.72)
10
(0.39)
1
2
170
(6.70)
3
4
67
(2.64)
67
(2.64)
5
(0.22)
5.5
(0.39)
43
(1.69)
① M16
gland
② Control
panel
③ Sender
lens
④ Center
of optical axis
⑤ Receiver
lens
Connection type
ISD300 RS-485/PROFIBUS
COM –
COM A
+ COM –’ +’
B COM A’ B’
OUT/
WARN
PE GND V
in
IN
PE GND V
in
2016-05-02 22:08:07 | Online data sheet
Subject to change without notice
10
10
(0.39)
190
(7.48)
DISTANCE SENSORS | SICK
3
ISD300-1212 | ISD300
OPTICAL DATA TRANSMISSION
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
Connection diagram
Terminals, general
V
in
GND
PE
OUT/WARN
IN
L+
M
Shield
Q
Switch. input
Terminals, PROFIBUS
A, –
B, +
COM
A’, –’
B’, +’
A wire
B wire
Pot. balance
A wire
B wire
Adjustment possible
ISD300 RS-485/PROFIBUS, ISD300 RS-422/Interbus, ISD300 DH+/RIO, ISD300 DeviceNet/CANopen
PWR Tx
Rx
AUT
MAN
ADJ
BUF ERPA BOFF
6
7 8
⑥ Display
for signal level
⑦ Operating
mode selector switch
⑧ LED
operating indicator
Recommended accessories
Other models and accessories
www.sick.com/ISD300
Brief description
Type
Part no.
Plug connectors and cables
Head A: cable
Head B: cable
Cable: PROFIBUS DP, drag chain use, PUR, shielded
Head A: cable
Head B: cable
Cable: CANopen, DeviceNet, drag chain use, shielded
Wire shield Al-Pt film, overall shield C-screen tin-plated
Head A: male connector, M12, 5-pin, straight, B-coded
Head B: cable
Cable: PROFIBUS DP, drag chain use, PUR, halogen-free, shielded, 5 m
Wire shield Al-Pt film, overall shield C-screen tin-plated
Head A: female connector, M12, 5-pin, straight
Cable: CANopen, DeviceNet, shielded
Head A: female connector, M12, 5-pin, straight, B-coded
Head B: -
Cable: PROFIBUS DP, shielded
LTG-2102-MW
6021355
LTG-2804-MW
6028328
STL-1205-G05MQ
6026005
DOS-1205-GA
6027534
DOS-1205-GQ
6021353
4
DISTANCE SENSORS | SICK
Online data sheet | 2016-05-02 22:08:07
Subject to change without notice
OPTICAL DATA TRANSMISSION
Brief description
Head A: male connector, M12, 5-pin, straight, A-coded
Cable: CANopen, DeviceNet, shielded
Head A: male connector, M12, 5-pin, straight, B-coded
Head B: -
Cable: PROFIBUS DP, shielded
ISD300-1212 | ISD300
Type
STE-1205-GA
Part no.
6027533
STE-1205-GQ
6021354
2016-05-02 22:08:07 | Online data sheet
Subject to change without notice
DISTANCE SENSORS | SICK
5
