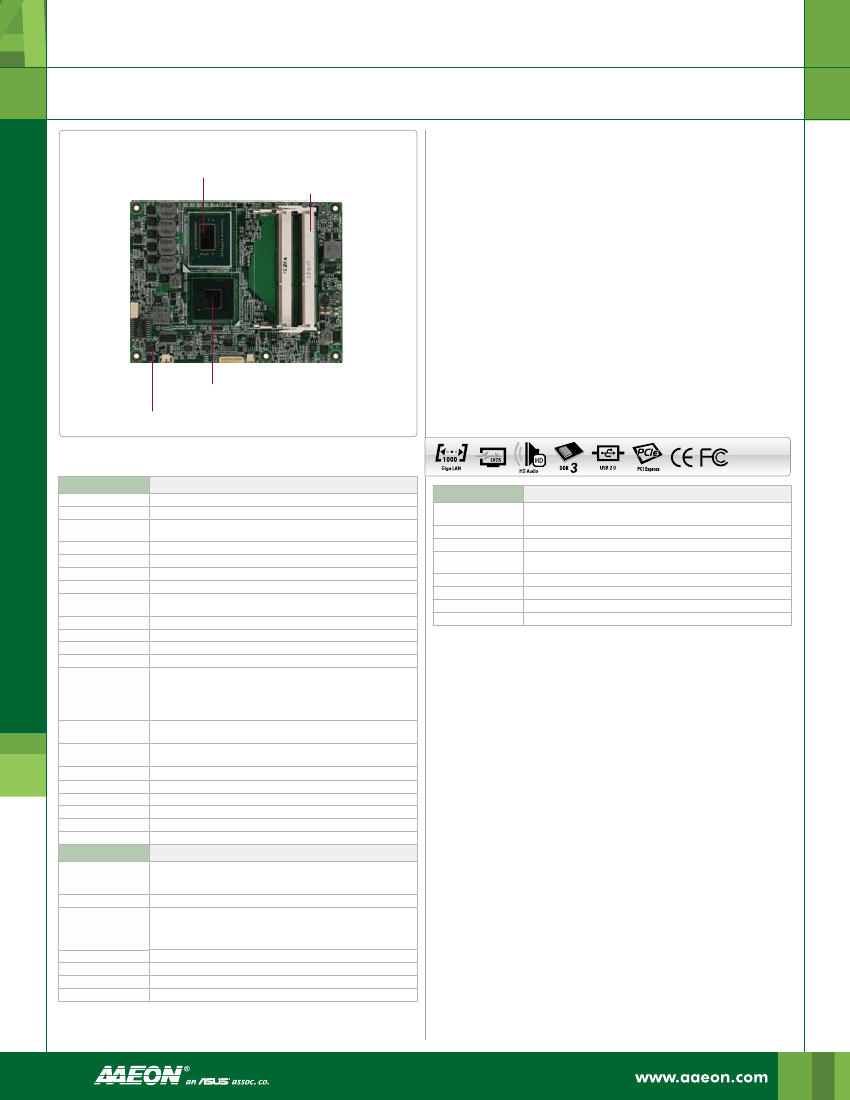

COM-QM77 Rev. B
06
COM Express CPU Modules
Specifications
System
Form Factor
Processor
System Memory
Chipset
I/O Chipset
Ethernet
TPM
BIOS
EEPROM
Wake On Lan
Watchdog Timer
H/W status Monitoring
COM Express Basic module, Pin-out Type 6, COM. 0 Rev. 2.0
Onboard Intel® Core™ i7/i5/i3/Celeron® Processor (FCBGA1023)
204-pin DDR3 SODIMM x 2, Max. 16GB (DDR3 1333/1600),support dual-channel
function
Intel® QM77/HM76
Intel® QM77/HM76
Intel® 82579LM, 10/100/1000Base-TX
v1.2 (optional)
AMI BIOS
SPI type, 16MB ROM
Atmel® AT24C02, save BIOS and Configuration data (Optional)
Yes
ITE8518E-L, 255 levels
Supports CPU Temperature Monitoring
PCI-Express [x16] x 1
PCI-Express [x1] x 7
LPC bus x 1
SMBus x 1
UART x 2 (TX/RX only)
+12V only
2-pin wafer for RTC battery
Intel® i3-3217UE 1.6GHz, DDR3 4GB
2.23A@+12V (w/ ECB-917T)
4.92" (L) x 3.74"(W) (125mm x 95mm)
0.66lb (0.3kg)
32°F ~ 140°F (0°C ~ 60°C)
-40°F ~ 176°F (-40°C ~ 80°C)
0% ~ 90% relative humidity, non-condensing
83,000
Supports HDMI/ DP, CRT or HDMI/ DP/ DVI simultaneous/ three view displays
Intel® Core™ i7/i5/i3/Celeron® processor integrated
DirectX 11, OpenGL *3.1, OpenCL* 1.1
Integrated hardware MPEG2 decoder
Shared system memory up to 512MB/ DVMT 5.0
Up to 2560 x 2048 for CRT (two display), 2048 x 1536 for three displays
Up to 1920 x 1200 (UXGA) for LCD/HDMI
Up to 2560 x 1600 for DP
Up to 2548 x 1536 for DVI
Up to 24-bit dual-channel LVDS
Supports HDMI x 2
Supports DVI x 2
Supports DisplayPort™ x 2
Expansion interface
Power Requirement
Power Consumption
Board Size
Gross Weight
Operating Temperature
Storage Temperature
Operating Humidity
MTBF (Hours)
COM Express Type 6 CPU Module with Onboard Intel® Core™ i7/i5/i3/Celeron® Processor
Features
2nd/3rd Generation Onboard Intel® Core™ i7/ i3/
Celeron® Processor
DDR3 SODIMM
■
■
Onboard
Intel® Core™ i7/ i5/ i3/ Celeron® Processor
(FCBGA1023)
■
■
Intel® QM77/HM76 PCH
■
■
Dual-channel SODIMM DDR3 1333/1600 Memory, Max. 16 GB
■
■
Gigabit Ethernet (iAMT 8.0 Support)
■
■
CRT, Up to 24-bit Dual-channel LVDS LCD, DisplayPort™
■
■
SATA 6.0Gb/s x 2 + SATA 3.0Gb/s x 2
■
■
USB3.0 x 4, USB2.0 x 8
■
■
PCI-Express [x16] x 1, PCI-Express [x1] x 7
■
■
COM Express Basic Module, Pin-out Type 6,
COM.0 Rev. 2.0
Intel® QM77 PCH
Intel® 82579LM Gigabit Ethernet
I/O
Storage
Serial Port
Parallel Port
USB
PS/2 Port
IrDA
Audio
GPIO
SATA 3.0Gb/s x 2
SATA 6.0Gb/s x 2
UART x 2 (TX/RX only)
—
USB2.0 x 8
USB3.0 x 4
—
—
High definition audio
Up to 4 in and 4 out
Packing List
•
M2.5 Screw x 5
•
Product CD
•
COM-QM77 Rev. B
Display
Chipset
Memory
Resolution
LCD Interface
HDMI
DVI
DisplayPort
06-1

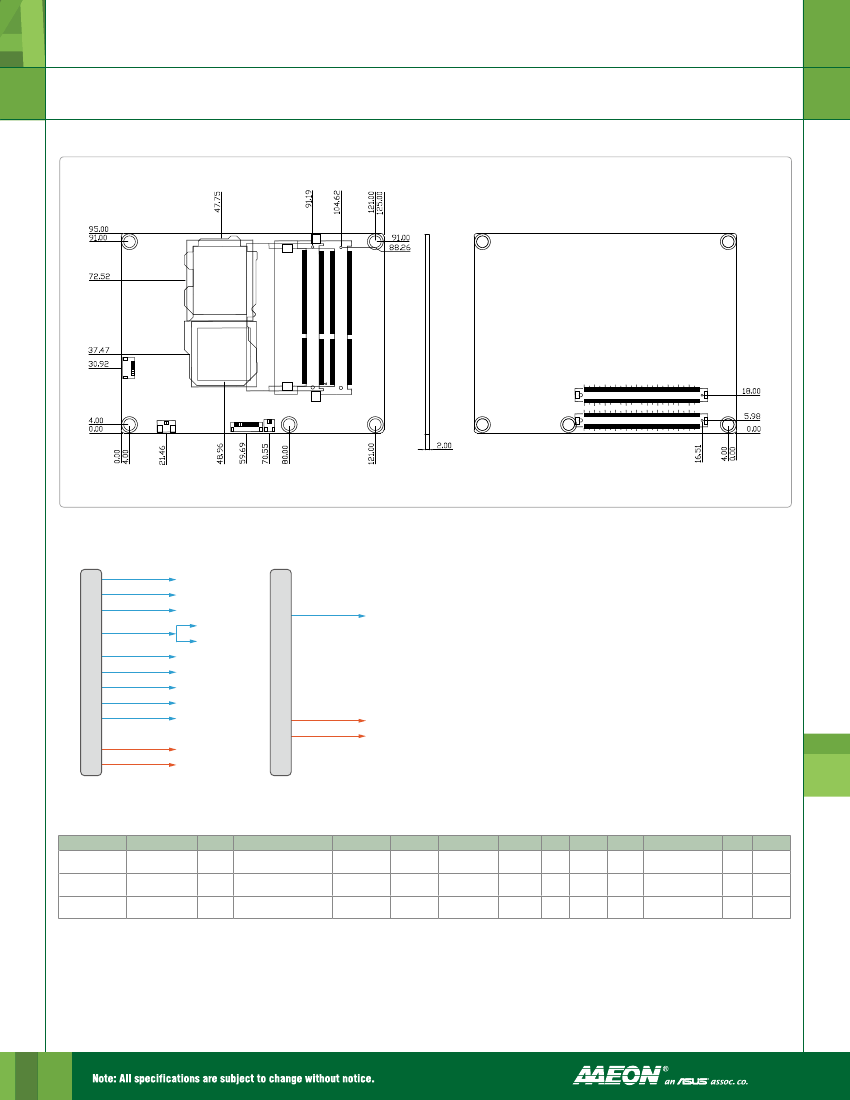

COM-QM77 Rev. B
Dimension
Unit: mm
Block Diagram
TX/RX x 2
LPC
SMbus
SATA
Intel® 82579LM
DIO
USB 2.0
HDA
PCI Express
LCD
Analog
SATA2.0 x 2
SATA3.0 x 2
GbE
8-bits
USB2.0 x 8
Audio
PCIe[x1] x 7
18/24-bit LVDS
CRT
Optional Accessories
•
TF-ECB-917T-A10
COM Express Type 6 Carrier Board, Mini-ITX, Dual Gigabit Ethernet, 2.1CH Audio, 4 COM, USB3.0, PCI-
Express, AT/ATX, Rev. A1.0
Ordering Information
Part Number
COM-QM77-B10
COM-QM77-B10-01
COM-QM77-B10-02
I/O Interface
I/O Interface
USB 3.0
USB3.0 x 4
•
PER-A122
Heat Spreader, For COM-QM77, Onboard CPU
•
PER-A115
AB Row
Display Interface
CD Row
Display Interface
PEG
DDI
PCIe[x16]
DDI x 2
CPU Cooler, 45W, for COM Express Basic Size. To be used with Heat Spreader
COM Express Type
6 (COM.0 Rev.2.0)
6 (COM.0 Rev.2.0)
6 (COM.0 Rev.2.0)
Chipset
QM77
QM77
HM76
CPU
3rd Generation Intel® Core™ i7-
3555LE/2.5GHz (FCBGA1023)
3rd Generation Intel® Core™ i7-
3517UE/1.7GHz (FCBGA1023)
3rd Generation Intel® Core™ i3-
3217UE/1.6GHz (FCBGA1023)
Memory
DDR3 SODIMM x 2
Max.16GB
DDR3 SODIMM x 2
Max.16GB
DDR3 SODIMM x 2
Max.16GB
Display
CRT, LVDS,
HDMI, DP, DVI
CRT, LVDS,
HDMI, DP, DVI
CRT, LVDS,
HDMI, DP, DVI
LVDS
24-bit Dual Channel
24-bit Dual Channel
24-bit Dual Channel
Storage
SATA3 x 2
SATA2 x 2
SATA3 x 2
SATA2 x 2
SATA3 x 2
SATA2 x 2
LAN
GbE x 1
GbE x 1
GbE x 1
USB
USB3.0 x 4
USB2.0 x 8
USB3.0 x 4
USB2.0 x 8
USB3.0 x 4
USB2.0 x 8
UART
2 (TX/RX)
2 (TX/RX)
2 (TX/RX)
Expansion Slot
PCI-E [16] x 1,PCI-E [1] x 7
Power
12V
Temp.
0°C ~ 60°C
0°C ~ 60°C
0°C ~ 60°C
PCI-E [16] x 1, PCI-E [1] x 7 12V
PCI-E [16] x 1, PCI-E [1] x 7 12V
06-2
