General Description
KR Electronics part number 3131-16.6 is a 16.6 MHz bandpass
filter. The filter has a minimum 1 dB bandwidth of 29.8 MHz.
Other center frequencies and bandwidths available. Please con-
sult the factory.
www.krfilters.com
Features
16.6 MHz Center Frequency
29.8 MHz min 1 dB Bandwidth
Sharp Transition to Stopband
High Stopband Rejection >80 dB
50
Source and Load
SMA Connectors
Typical Performance
Overall Response
(10 dB/div)
KR Electronics, Inc.
91 Avenel Street
Avenel, NJ 07001
© 2014, KR Electronics, Inc.
3131-16.6, 16.6 MHz Bandpass, Rev 0, February 14, 2014
Web
Email
Phone
Fax
www.krfilters.com
sales@krfilters.com
(732) 636-1900
(732) 636-1982
Page 1
KR Electronics, Inc.
KR Electronics, Inc.
Typical Performance
www.krfilters.com
Passband Amplitude & Group Delay
(1 dB/div & 200 nsec/div)
KR Electronics, Inc.
91 Avenel Street
Avenel, NJ 07001
© 2014, KR Electronics, Inc.
3131-16.6, 16.6 MHz Bandpass, Rev 0, February 14, 2014
Web
Email
Phone
Fax
www.krfilters.com
sales@krfilters.com
(732) 636-1900
(732) 636-1982
Page 2
KR Electronics, Inc.
KR Electronics 3131-16.6
Specifications
Parameter
Filter type
Center Frequency
Insertion Loss
1 dB Bandwidth
3 dB Bandwidth
40 dB Bandwidth
Rejection at 0.83 MHz
Rejection at 50.5 MHz
Source and Load
Specification
Bandpass
16.6 MHz
1 dB max
29.8 MHz min
32.4 MHz typical
39.8 MHz typical
80 dB min
80 dB min
50
www.krfilters.com
Notes
<0.5 dB typical
1.71 MHz to 31.55 MHz

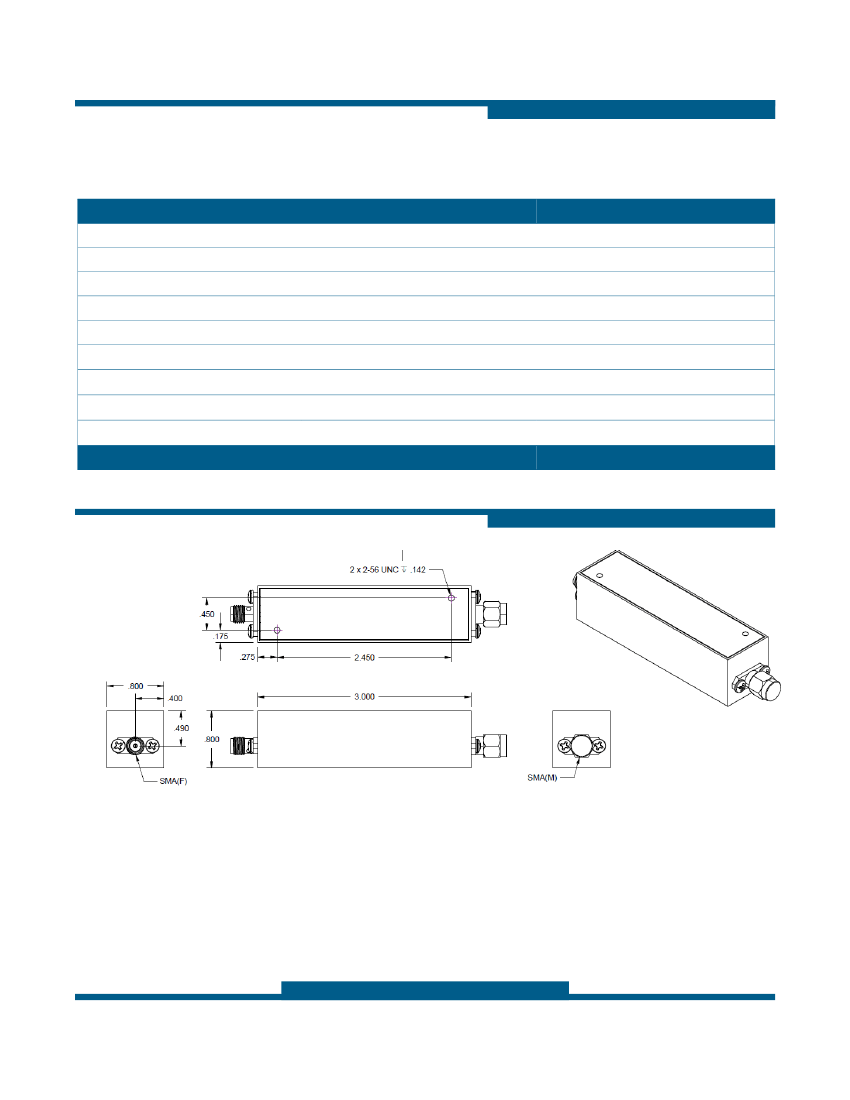

Physical Dimensions
