M3E61XAX155.520 datasheet, PDF

M3E61XAX155.520: DescriptionOscillator, 19.4MHz Min, 155.52MHz Max, 155.52MHz Nom,; CategoryPassive components oscillator; File Size87KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M3E61XAX155.520 Overview

Oscillator, 19.4MHz Min, 155.52MHz Max, 155.52MHz Nom,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	102374385
Reach Compliance Code	unknown
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	155.52 MHz
Minimum operating frequency	19.4 MHz
Nominal operating frequency	155.52 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	METAL
Encapsulate equivalent code	GWDIP4/14,.6
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	90 mA
Nominal supply voltage	3.3 V
surface mount	YES

SAMPLING

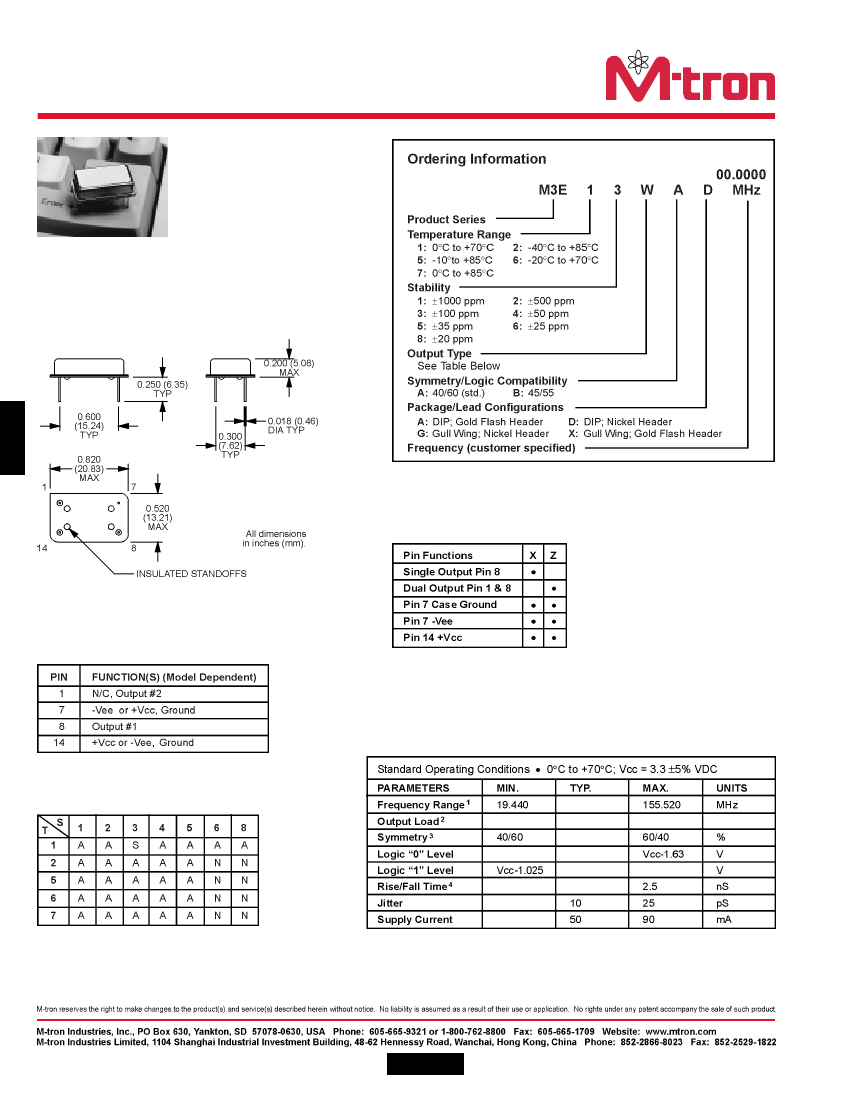

M3E Series ECL/PECL Oscillators

M3E Series ECL/PECL Clock Oscillators, 100

KH Compatible with Optional Complementary

Outputs

M3E ECL/PECL Output Type

See page 135 for gull wing configuration.

Pin Connections

Electrical Specifications

*Available Stabilities vs. Temperature

* Contact the factory for other temperature and stability combinations.

A = Available

N = Not Available

S = Standard

Higher frequencies available by special order. Contact factory.

Internally terminated outputs. See load circuit diagram #5 on page 137.

Symmetry is measured at Vcc-1.3 V level.

Rise/Fall times are measured between Vcc-1.025 and Vcc-1.63.

See page 136 for suggested soldering conditions.
