UPS2W470MRD1CA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UPS2W470MRD1CA

UPS2W470MRD1CA: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 450V, 20% +Tol, 20% -Tol, 47uF,; CategoryPassive components capacitor; File Size56KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

UPS2W470MRD1CA Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 450V, 20% +Tol, 20% -Tol, 47uF,

UPS2W470MRD1CA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	763899836
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	20 mm
dielectric materials	ALUMINUM
length	40 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	450 V
ripple current	175 mA
series	PS(RADIAL)
Terminal pitch	10 mm

Preview

Download Datasheet

View All

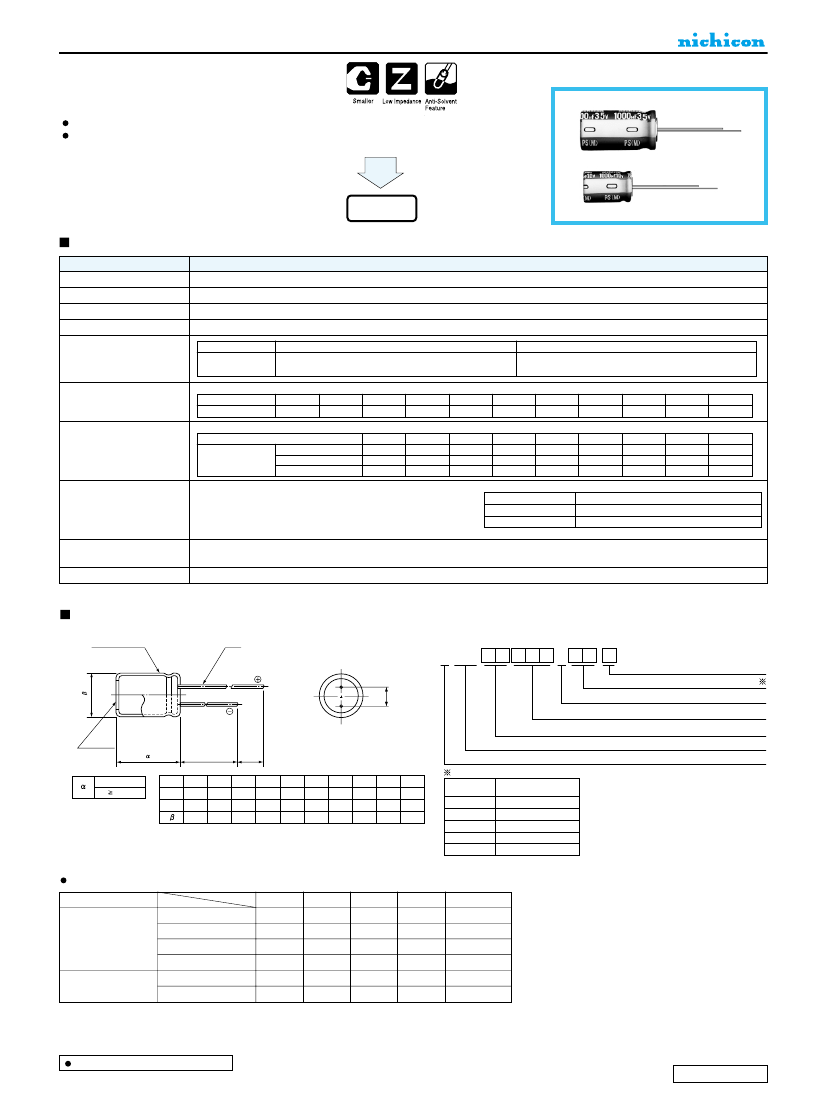

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Sized, Low Impedance,

For Switching Power Supplies

series

(Through 100V only)

Wide temperature range type, miniature sized.

Compliant to the RoHS directive (2011/65/EU).

Smaller

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Performance Characteristics

– 55 to +105˚C (6.3 to 100V), – 40 to +105˚C (160 to 400V), – 25 to +105˚C (450V)

6.3 to 450V

0.47 to 15000µF

± 20% at 120Hz, 20˚C

Rated voltage (V)

6.3 to 100

After 1 minute's application of rated voltage, leakage current

is not more than 0.03CV or 4 (µA) , whichever is greater.

160 to 450

CV < 1000 :

= 0.1CV+40 (µA)max. (1 minute's)

CV > 1000 :

= 0.04CV+100 (µA)max. (1 minute's)

Measurement frequency : 120Hz at 20˚C

Leakage Current

Leakage current

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF

Tangent of loss angle (tan

)

Rated voltage (

tan

(

MAX.

)

6.3

0.24

0.20

0.16

6.3 · 10

—

0.14

16 · 25

—

0.12

35 · 50

—

0.10

0.09

100

0.08

250

—

160 to 250 315 · 350 400 · 450

0.15

0.20

0.25

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25˚C / Z+20˚C

Impedance ratio

Z– 40˚C / Z+20˚C

(MAX.)

Z– 55˚C / Z+20˚C

63 · 100 160 · 200

—

Capacitance change

tan

Leakage current

315 · 350

—

400

—

450

—

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20˚C after D.C. bias plus rated ripple

current is applied for 3000 hours (2000 hours for

φD=

5 to 10) at

105˚C, the peak voltage shall not exceed the rated voltage.

Within ±20% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Shelf Life

Marking

After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C

5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

Printed with white color letter on dark brown sleeve.

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 25V 470

9 10 11

Size code

UP S 1 E 4 7 1 MPD

MAX.

Configuration

0.5

φD

Capacitance tolerance (±20%)

Rated capacitance (470µF)

Pressure

relief vent

(φ6.3up)

Rated voltage (25V)

Series name

L+

MAX.

MIN

φD

φd

2.0

0.5

6.3

2.5

0.5

MIN

(mm)

Type

Configuration

6.3

8 · 10

12.5 to 18

20 to 25

Pb-free leadwire

Pb-free PET sleeve

(L < 20) 1.5

(L 20) 2.0

3.5

0.6

0.5

5.0

0.6

0.5

12.5

5.0

0.6

0.5

7.5

0.8

0.5

7.5

0.8

0.5

10.0

1.0

0.5

10.0

1.0

12.5

1.0

•

Please refer to page 20 about the end seal configuration.

Frequency coefficient of rated ripple current

Cap.(µF)

Frequency

50Hz

—

0.30

0.57

0.75

0.80

0.90

120Hz

0.17

0.50

0.71

0.87

1.00

300Hz

0.40

0.65

0.82

0.96

1.25

1.10

1kHz

0.65

0.80

0.90

0.98

1.40

1.13

10kHz or more

1.00

1.60

1.15

0.47 to 4700

6.3 to 100

100 to 220.

330 to 680.

.1000

to 15000

160 to 450

0.47 to 2200

330 to 470.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next pages.

CAT.8100C
