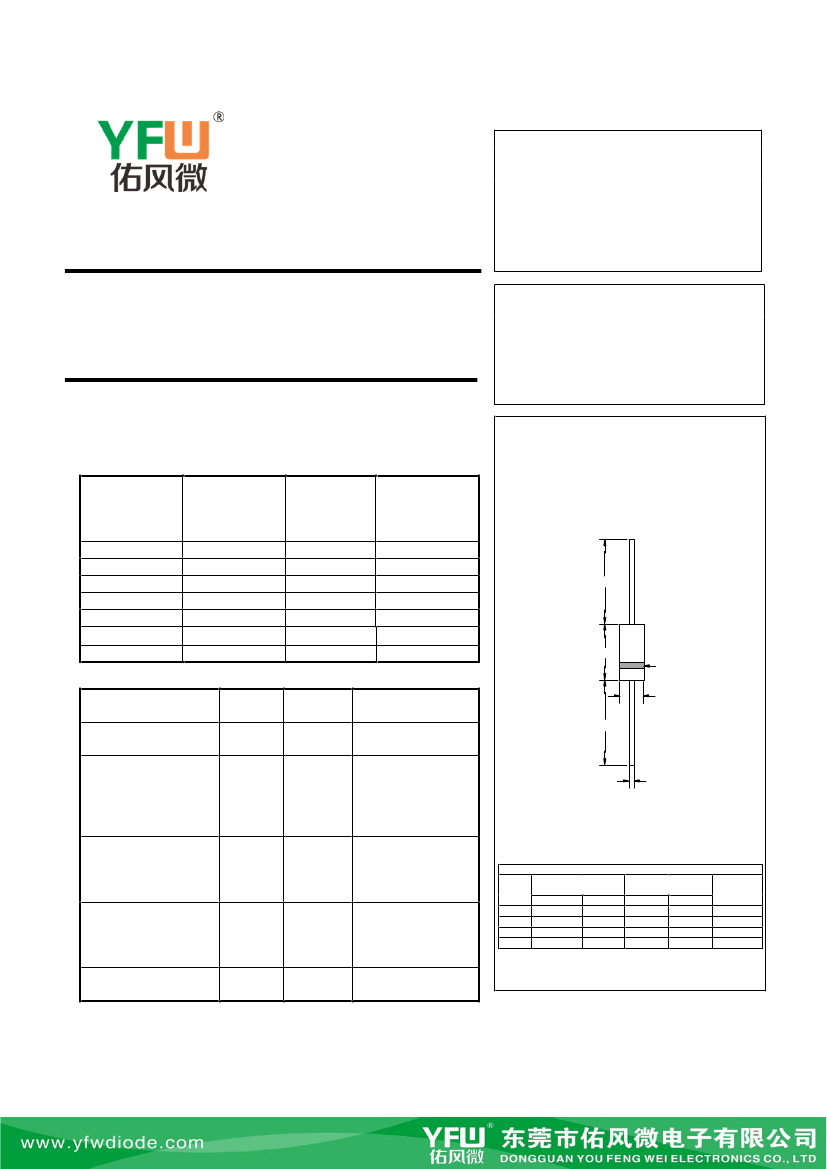

SF11

THRU

SF18

Features

•

High reliability

High current capability

Low forward voltage drop

High surge capability

Maximum Ratings

•

Operating Temperature: -55°C to +125°C

Storage Temperature: -55°C to +150°C

For capacitive load, derate current by 20%

Maximum

Recurrent

Peak Reverse

Voltage

50V

100V

150V

200V

300V

400V

600V

Maximum

RMS

Voltage

35V

70V

105V

140V

210V

280V

420V

Maximum DC

Blocking

Voltage

50V

100V

150V

200V

300V

400V

600V

1.0 Amp Super Fast

Rectifier

50 to 600 Volts

DO-41

Part Number

SF11

SF12

SF13

SF14

SF15

SF16

SF18

Cathode

Mark

Electrical Characteristics @ 25°C Unless Otherwise Specified

Average Forward

F(AV)

1.0A

= 55°C

Current

Peak Forward Surge

FSM

30A

8.3ms, half sine

Current

Maximum

Instantaneous

= 1.0A;

Forward Voltage

= 25°C

SF11-SF14

0.95V

SF15-SF18

1.3V

Maximum DC

= 25°C

5.0uA

Reverse Current At

100uA

= 100°C

Rated DC Blocking

Voltage

Typical Junction

Measured at

Capacitance

SF11-SF14

1.0MHz, V

=4.0V

30pF

SF15-SF18

25pF

=0.5A, I

=1.0A,

Maximum Reverse

35nS

Recovery Time

=0.25A

Pulse Test: Pulse width 300 usec, Duty cycle 1%.

DIMENSIONS

INCHES

MIN

.166

.080

.028

1.000

MIN

4.10

2.00

.70

25.40

DIM

MAX

.205

.107

.034

---

MAX

5.20

2.70

.90

---

NOTE
