5267-06A-X

Description
6 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector
File Size29KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

5267-06A-X Overview

6 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

5267-06A-X Parametric

Parameter NameAttribute value
Contact materialsNOT SPECIFIED
Terminal spacing2.5 mm
Total number of contacts6
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
OptionsGENERAL PURPOSE
Manufacturer Series35301
Contact surface matchingNOT SPECIFIED
Contact coated terminalsNOT SPECIFIED
Connection TypeDual board connector
Connector male and femalePin
collocation informationMULTIPLE MATING PARTS AVAILABLE
Installation methodstraight
Installation typeBOARD
Number of load rows1
Terminal typewelding
UL flammability code94V-0
This document was generated on 07/09/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
99-99-0990
Active
KK® Interconnect System - Molex
2.50mm Pitch SPOX™ Wire-to-Board Header, Vertical, Shrouded, 6 Circuits, Tin (Sn)
Plating, with Swaged PC Tails
Documents:
3D Model
Drawing (PDF)
Product Specification PS-5264-001 (PDF)
Packaging Specification SPK-5267-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series

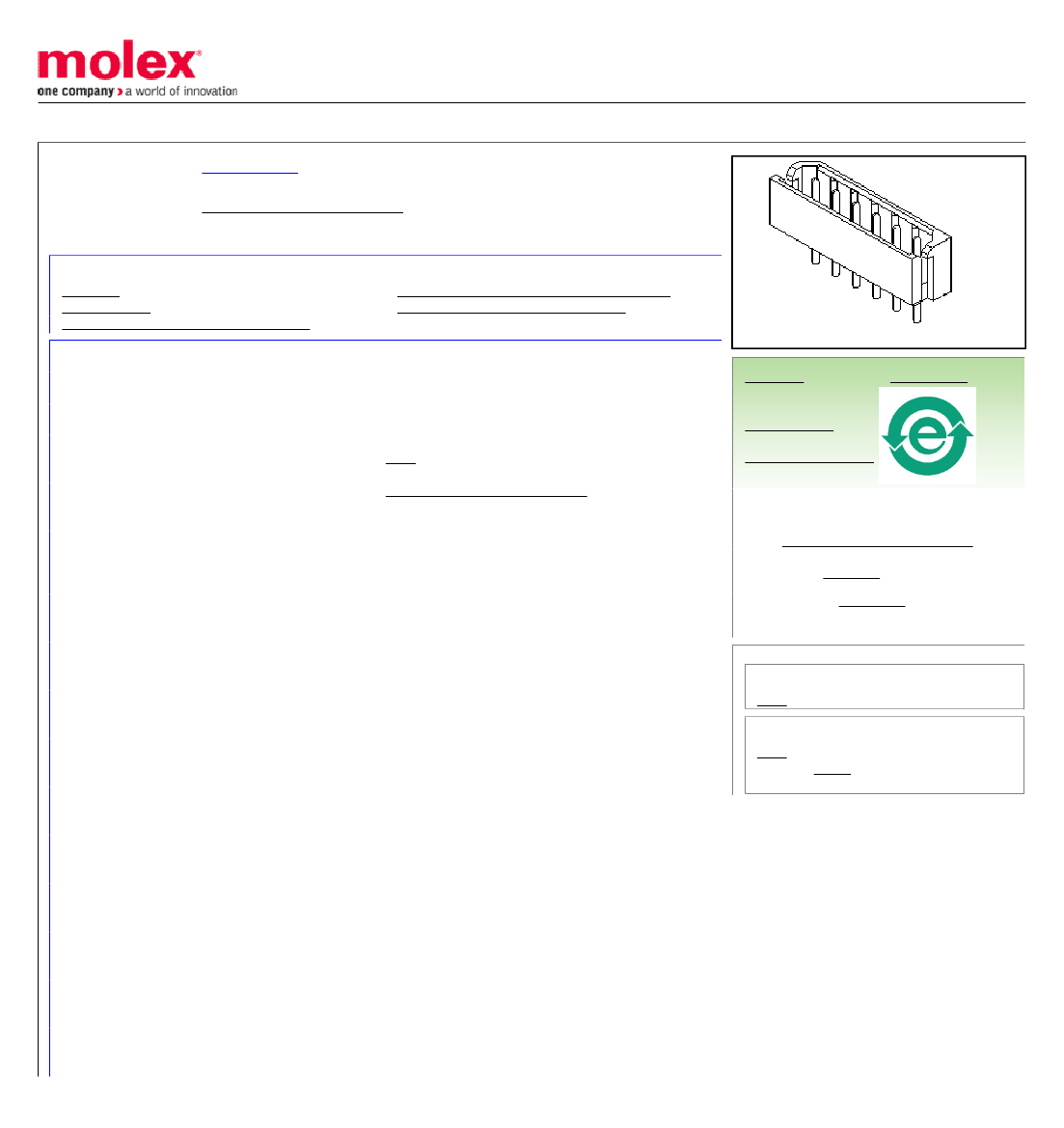

image - Reference only
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Low-Halogen
China RoHS
General
Product Family
Series
Application
Overview
Product Name
UPC
PCB Headers
5267
Signal, Wire-to-Board
KK® Interconnect System - Molex
SPOX™
800753577015
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
6
6
Natural
30
No
94V-0
No
No
None
Yes
Tin
Tin
Nylon
532.600/mg
1
Vertical
3.50mm
No
Yes
1.60mm
Bag
2.50mm
4.064µm
4.064µm
Yes
No
Fully
No
No
-40°C to +105°C
Through Hole
Search Parts in this Series
5267Series
Mates With
5264 SPOX™ Wire-to-Board Crimp
Housing, 42219 SPOX™ IDT Receptacle
Housing
