REVISION E
PTT-1XX-01-X-6
(No OF POS x .07874[2.000])
.0394 1.000
06
.000[.00]
.015[.38]

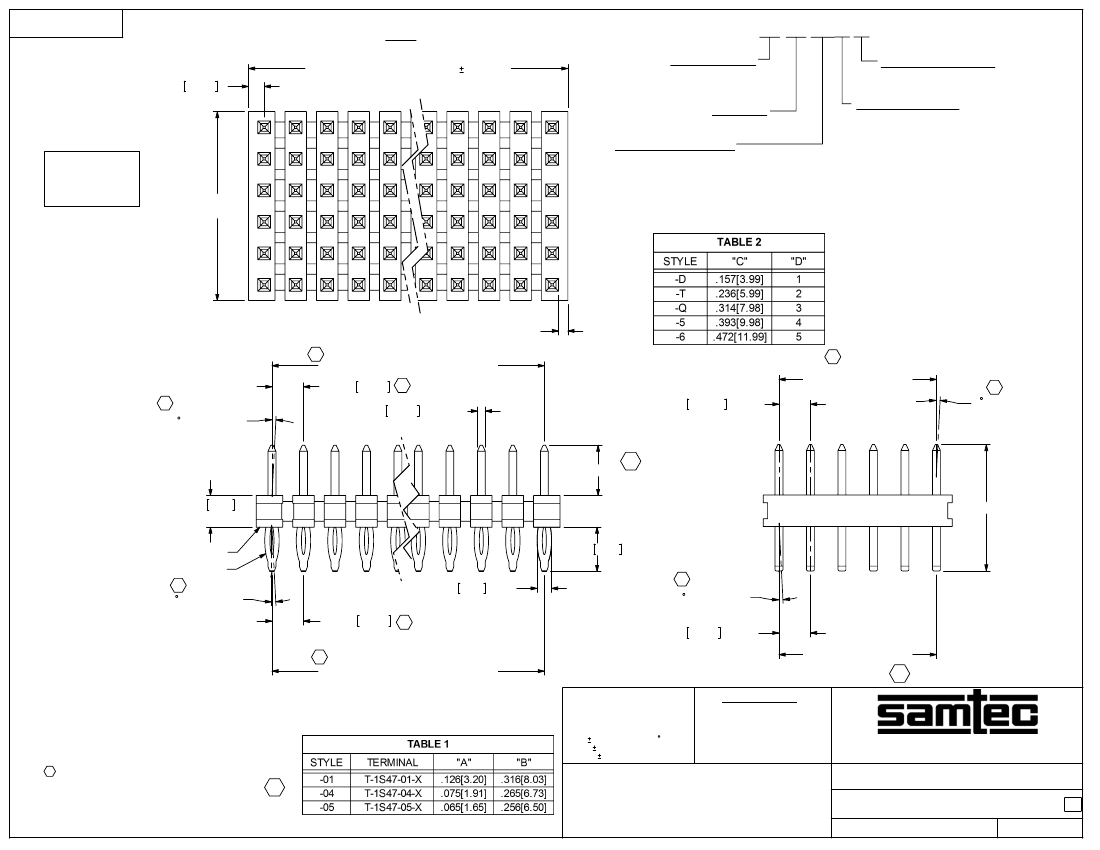

FIG 1
PTT-1XX-XX-XX-X-XXX
No OF POSITIONS
-03 THRU -50
-02 THRU -50 -D ONLY
(PER ROW)
LEAD STYLE
SEE TABLE 1
PLATING SPECIFICATION
-S: 30µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL (USE T-1S47-XX-S)
-SM: 30µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL (USE T-1S47-XX-S)
-L: 10µ" GOLD IN CONTACT AREA,
MATTE TIN TAIL (USE T-1S47-XX-L)
POLARIZATION OPTION
-XXX INDICATES POSITION
TO BE OMITTED
ROW SPECIFICATION
-D: DOUBLE (USE TMMC-XX-D),(SEE FIG 5)
(2 POSITION MINIMUM)
-T: TRIPLE (USE TMMH-XX-T),(SEE FIG 4)
(3 POSITION MINIMUM)
-Q: QUAD (USE TMMH-XX-Q),(SEE FIG 3)
(4 POSITION MINIMUM)
-5: 5 ROW (USE TMMH-XX-5),(SEE FIG 2)
(5 POSITION MINIMUM)
-6: 6 ROW (USE TMMH-XX-6),(SEE FIG 1)
(6 POSITION MINIMUM)
DO NOT
SCALE FROM
THIS PRINT
"C"
REF
01
SEE NOTE 5
C2
((No OF POS - 1) x .07874[2.000])
.0787 2.000
C3
C8
"D" EQUAL SPACES
@ .07874[2.000]
.07874 2.0000 (TYP)
C7
C1
2 MAX SWAY
(EITHER DIRECTION)
.0197 0.500 SQ REF
2 MAX SWAY
(TYP)
(EITHER DIRECTION)
"A"
.079 2.01
REF
TMMH-XX-6
T-1S47-XX-X
C4
C12
"B" REF
.111 2.82
.036 0.91 REF
.0787 2.000
C6
C5
C9
2 MAX SWAY
(EITHER DIRECTION)
2 MAX SWAY
(EITHER DIRECTION)
.07874 2.000 (TYP)
"D" EQUAL SPACES
@ .07874[2.000]
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
((No OF POS - 1) x .07874[2.000])
PROPRIETARY NOTE
C10
NOTES:
1. C REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM CUT FLASH: .015.
C11
3. MINIMUM PUSHOUT FORCE: 1.0 LB PER PIN.
4. PART MAY BE CUT TO POSITION USING CARBIDE BLADES.
5. MINIMUM END WALL THICKNESS: .010[.25].
6. PARTS TO BE BULK PACKAGED.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
*
*
INSULATOR: L.C.P.
TERMINAL: PHOS BRONZE
2MM PRESS FIT TERMINAL STRIP
* = NOT TOOLED
PTT-1XX-XX-XX-X-XXX
12/17/2000
E
F:\DWG\MISC\MKTG\PTT-1XX-XX-XX-X-XXX-MKT.SLDDRW
BY:
CHAD F
SHEET
1
OF
2
REVISION E
PTT-1XX-01-X-5

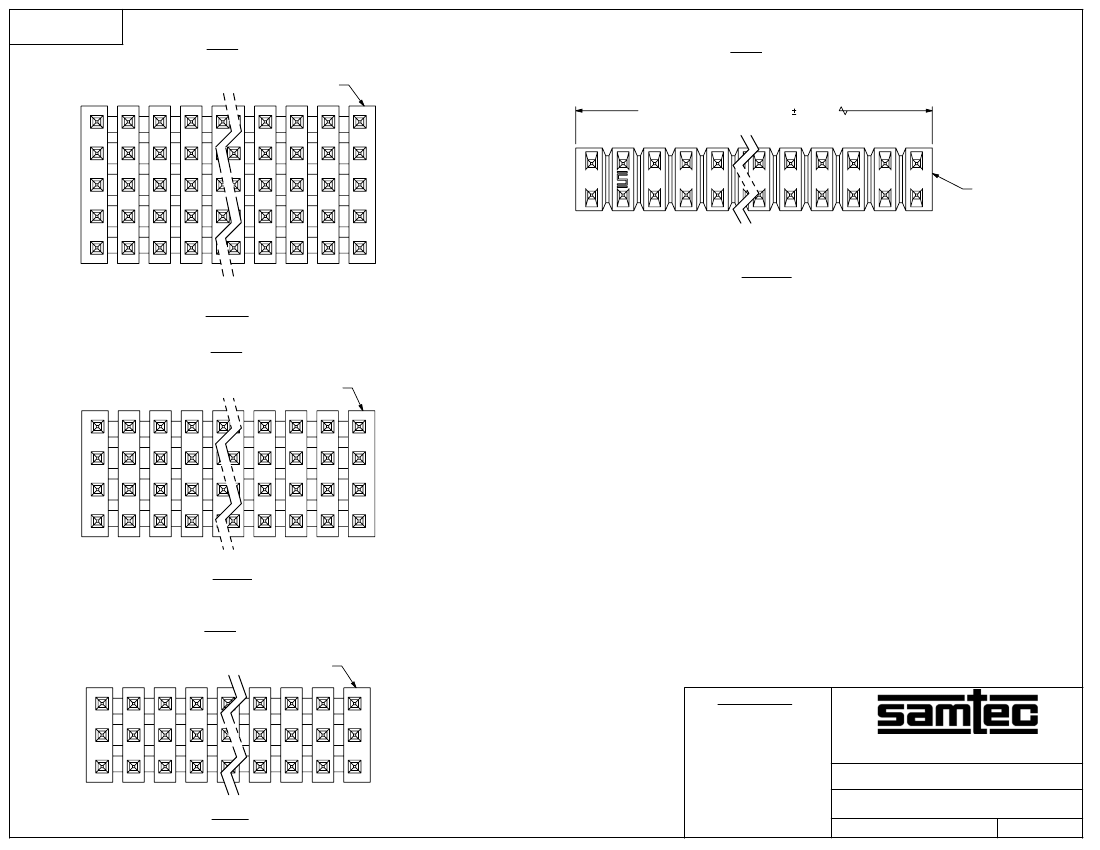

SAME AS FIG. 1 EXCEPT AS SHOWN
05
TMMH-XX-5
FIG 2
PTT-1XX-01-X-D
SAME AS FIG. 1 EXCEPT AS SHOWN
.005[.13]
.010[.25]
FIG 5
(No OF POS x .07874[2.000])
02
TMMC-XX-D
01
01
DOUBLE
5 ROW
PTT-1XX-01-X-4
SAME AS FIG. 1 EXCEPT AS SHOWN
FIG 3
04
TMMH-XX-Q
01
QUAD
PTT-1XX-01-X-3
SAME AS FIG. 1 EXCEPT AS SHOWN
03
TMMH-XX-T
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 4
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
01
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
2MM PRESS FIT TERMINAL STRIP
TRIPLE
F:\DWG\MISC\MKTG\PTT-1XX-XX-XX-X-XXX-MKT.SLDDRW
PTT-1XX-XX-XX-X-XXX
12/17/2000
SHEET
2
OF
2
BY:
CHAD F
