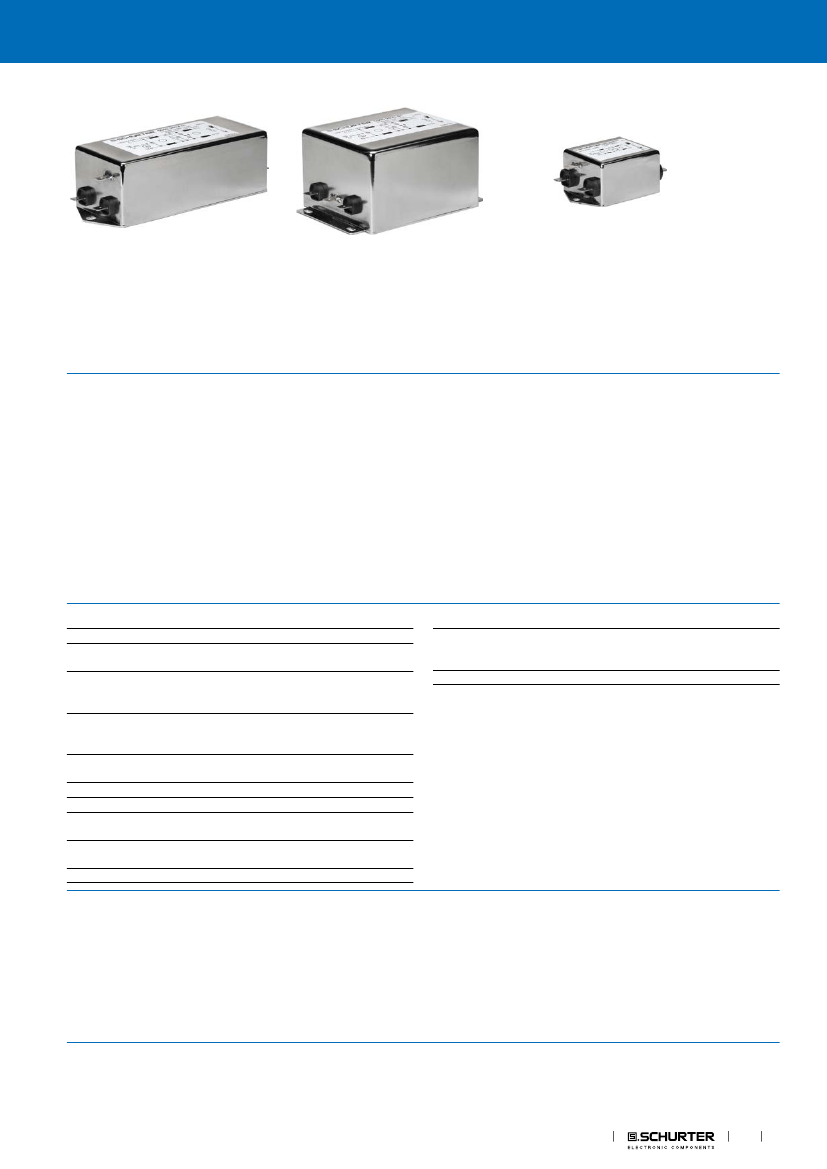

1-Phase Line Filters

https://www.schurter.com /PG84

FMBB NEO

AC Filter 2-Stage, Broad Band Attenuation

Quick connect terminals 6.3x0.8 mm

Case MB

Quick connect terminals 6.3x0.8 mm

Case MF

Quick connect terminals 6.3x0.8 mm

Case 09

Approvals and Compliances

Description

- Line filter in standard and medical version

- 2 stage

- 3 Designs:

C) high symmetrical and asymmetrical noise attenuation

D) Excellent high frequency noise attenuation

F) Excellent low frequency noise attenuation

See below:

Characteristics

Unique Selling Proposition

-

Broad band attenuation

3 Filter designs for various applications

Completely closed steel housing

Wide temperature range

- Designed for current applications of 1 - 36 A

- Protection against interference voltage from the mains

Possible interferences generated in the equipment are strongly attenu-

ated

- Especially designed for industrial applications such as: Frequency Con-

verters, Stepper Motor Drives, UPS-Systems, Inverters

- Suitable for use in equipment according to IEC/UL 62368-1

Suitable for use in medical equipment according to IEC/UL 60601-1 (1

MOOP, 1 MOPP)

Other versions on request

Weblinks

- Version with wire connection

- Version with varistor for overvoltage protection

pdf data sheet, html datasheet, General Product Information, Approvals,

Distributor-Stock-Check, Detailed request for product, Microsite

Technical Data

Ratings IEC

Ratings UL/CSA

Leakage Current

1 - 36 A @ Ta 40 °C / 250 VAC; 50 Hz

1 - 30 A @ Ta 40 °C / 125/250 VAC;

60 Hz

standard < 0.5 mA (250 V / 60 Hz)

medical (M5) < 5 µA resp. (M80) < 80

µA (250 V / 60 Hz)

1.7 kVDC between L-N

2.75 kVDC between L/N-PE

Test voltage (2 sec)

-40 °C to 100 °C

40/100/21 acc. to IEC 60068-1

IP20 IEC 60529

Suitable for appliances with protection

class I acc. to IEC 61140

Quick connect terminal 6.3 x 0.8 mm

Bolt and nut M4

Nickel plated steel

Line Filter

Standard and Medical Version, IEC

60939, UL 1283, CSA C22.2 no. 8

Technical Details

> 200'000 h acc. to MIL-HB-217 F

MTBF

Dielectric Strength

Allowable Operation Tempe-

rature

Climatic Category

IP-Protection

Protection Class

Terminal

Material: Housing

Approvals and Compliances

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in

Details about

Approvals

SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national

and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF

16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agree-

ments by SCHURTER.

EMC Products

1

FMBB NEO

Approvals

https://www.schurter.com /PG84

1-Phase Line Filters

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: FMBB NEO

Approval Logo

Certificates

VDE Approvals

UL Approvals

Certification Body

VDE

UL

Description

Certificate Number: 40030410

UL File Number: E72928

Product standards

Product standards that are referenced

Organization

Design

Designed according to

Standard

IEC 60939

IEC 60127-6

UL 1283

CSA C22.2 no. 8

Description

Passive filters for suppressing electromagnetic interference

Miniature fuses. Part 6. Fuse-holders for miniature fuse-links

Electromagnetic interference filters

Electromagnetic interference (EMI) filters

Application standards

Application standards where the product can be used

Organization

Design

Designed for applications acc.

Standard

IEC/UL 62368-1

IEC 60601-1

Description

Audio/video, information and communication technology equipment - Part

1: Safety requirements

Medical electrical equipment - Part 1: General requirements for basic

safety and essential performance

Compliances

The product complies with following Guide Lines

Identification

Details

CE declaration of conformity

Initiator

SCHURTER AG

Description

The CE marking declares that the product complies with the applicable

requirements laid down in the harmonisation of Community legislation on

its affixing in accordance with EU Regulation 765/2008.

The UKCA marking declares that the product complies with the applicable

requirements laid down in the British Amendment of Regulation (EC)

765/2008.

Directive RoHS 2011/65/EU, Amendment (EU) 2015/863

The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March

2007. It is similar to the EU directive RoHS.

On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,

Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as

"REACH") entered into force.

Suitable for use in medical equipment according to IEC/UL 60601-1 (1

MOOP, 1 MOPP)

UKCA declaration of conformity

SCHURTER AG

RoHS

China RoHS

REACH

SCHURTER AG

Medical Equipment

SCHURTER AG

2

EMC Products

1-Phase Line Filters

https://www.schurter.com /PG84

FMBB NEO

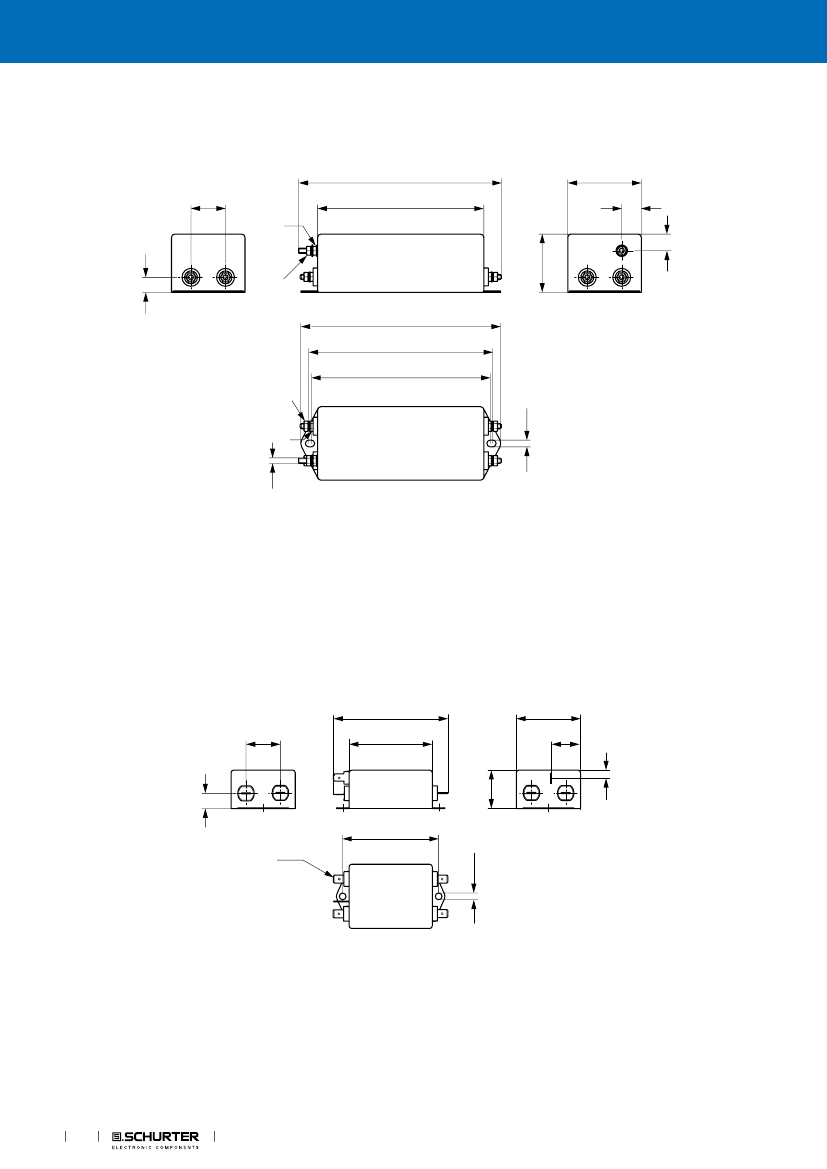

Dimension [mm]

Case 09 with quick connect terminals

max. 77

27

max. 52

max. 31

max. 46

17.5

12

60.4

±0.5

4.8

±0.3

(2x)

6.3x0.8

(5x)

1)

2)

1) Line

2) Load

Case MB with quick connect terminals

max. 156

27

max. 131

max. 58

15.2

7.5

12

max. 156

144

140

6.3x0.8

(5x)

1)

2)

±0.5

5.3

±0.3

1) Line

2) Load

EMC Products

(2x)

max. 46

13

3

FMBB NEO

https://www.schurter.com /PG84

1-Phase Line Filters

Case MB with bolt and nut M4

max. 160

27

4)

max. 46

max. 131

max. 58

15.2

12

5)

max. 156

144

±0.5

140

±0.5

4)

M4

(4x)

1)

2)

1) Line

2) Load

3) Nut torque 0.8...1 Nm, keep lock-nut fastened

4) Lock-nut do not unscrew

5) PE: M4x16, 1.2...1.5 Nm, keep lock-nut fastened

Case MC with quick connect terminals

max. 90

27

max. 66

max. 31

5.3

±0.3

(2x)

3)

max. 51

21

12

75

±0.5

(5x)

1)

2)

5.3

±0.3

(2x)

6.3x0.8

1) Line

2) Load

4

EMC Products

6

13

1-Phase Line Filters

https://www.schurter.com /PG84

FMBB NEO

Case MD with quick connect terminals

max. 90

27

max. 66

max. 51

11.4

12

75

±0.5

(5x)

1)

2)

5.3

±0.3

(2x)

6.3x0.8

1) Line

2) Load

Case ME with quick connect terminals

max.41

10.4

max. 112

27

max. 87

max. 52

12

max. 115

104.5

±0.5

97.5

±0.5

5.3

±0.3

(2x)

6.3x0.8

(5x)

1)

2)

1) Line

2) Load

EMC Products

max. 46

13

5

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1236802682
Reach Compliance Code	compliant
filter type	SINGLE PHASE EMI FILTER
