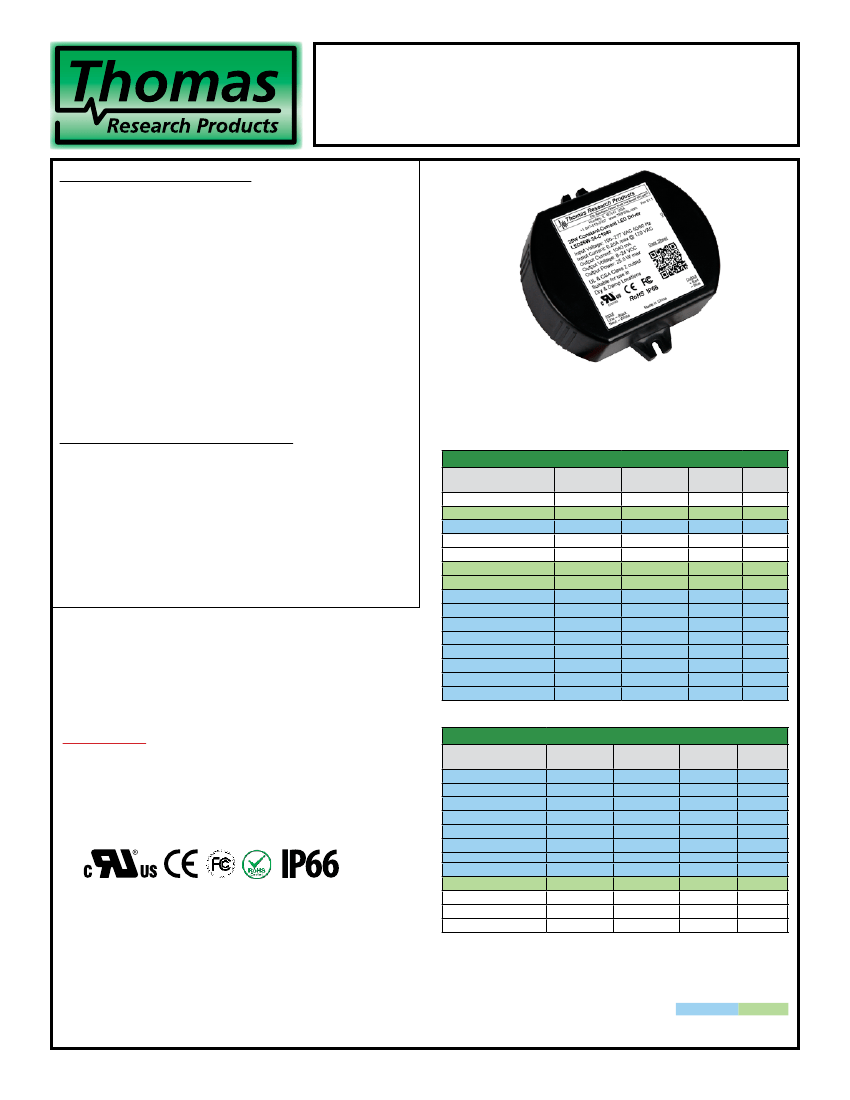

LED-25W Series– Fixed Output and Dimmable
Switch Mode LED Drivers
Constant Current & Constant Voltage with Isolation
Black Magic Thermal Advantage™ Plastic Housing
Electrical Specifications
Input Voltage Range:
Input Over-Voltage:
Frequency:
Power Factor:
Inrush Current:
Input Current:
Maximum Power:
Current Accuracy:
Load Regulation:
THD:
Leakage Current:
Hold Up Time:
Protection:
100-277 Vac Nom. (90-305 V Min/Max)
Can endure 320Vac for 48 Hrs, 350Vac for 2 Hrs
50/60 Hz Nom. (47-63 Hz Min/Max)
>0.90 @ full load, 100V through 277V
<15.0 Amps max @ 230 Vac, cold start 25ºC
0.25 Amps max @ 120 Vac
25W
± 1% Over input line variation
± 3%
< 20% @ full load
_
400 µA Typical
Half Cycle
Output Over-Voltage, Output Over-Current, and
Output Short Circuit Protection with Auto Recovery
Environmental Specifications
Minimum Starting Temp:
Maximum Case Temp.
Storage Temperature:
Humidity:
Cooling:
Vibration Frequency:
Sound Rating:
MTBF:
EMC:
-30ºC
90°C
-40ºC to +85ºC
5% to 95%
Convection
5 to 55 Hz/2g, 30 minutes
Class A
482,000 Hours at full load and 40ºC ambient conditions
per MIL-217F Notice 2
FCC 47CFR Part 15 Class B compliant
• Total Power: 25 Watts
• Input Voltage: 100-277 Vac Nom.
• UL Dry & Damp Location Rated
• High Power Factor
• UL8750 and Class 2 Compliant, as noted
• UL Sign Components Manual (S.A.M. Models)
Constant Current
Model Number
LED25W-72-C0350-XX
LED25W-40-C0350-XX
LED25W-28-C0350-XX
LED25W-62-C0400-XX
LED25W-56-C0450-XX
LED25W-40-C0500-XX
LED25W-40-C0620-XX
LED25W-36-C0700-XX
LED25W-28-C0850-XX
LED25W-24-C1040-XX
LED25W-20-C1250-XX
LED25W-18-C1400-XX
LED25W-16-C1560-XX
LED25W-14-C1750-XX
LED25W-12-C2080-XX
Output Current Output Voltage Max. Output Typical
(mA ±3%)
Range
(Vdc)
Power
(W)
Efficiency
350
350
350
400
450
500
620
700
850
1040
1250
1400
1560
1750
2080
24-72
13-40
10-28
21-62
19-56
13-40
13-40
12-36
10-28
8-24
7-20
6-18
6-16
5-14
4-12
25
14
9.8
24.8
25
20
24.8
25
23.8
25
25
25
25
24.5
25
86%
84%
83%
85%
84%
84%
84%
84%
83%
83%
83%
82%
82%
82%
81%
-XX
indicates dimming options are available. See options at left. Blank = fixed current output
Ordering Options:
-D:
0-10V & Resistance dimmable version comes with an extra two wires +Purple/-Gray on
the output side. “-D” 0-10V Dimming is compatible with most quality 0-10V wall dimmers.
See page 3 for additional specifications.
Constant Voltage
Model Number
LED25W-12
LED25W-14
LED25W-16
LED25W-18
LED25W-20
LED25W-24
LED25W-28
LED25W-36
LED25W-40
LED25W-56
LED25W-62
LED25W-72
-PD: PWM Dimmable version comes with an extra two wires +Purple/-Gray on the output side.
“-PD” version is PWM Dimmable via a positive 10% to 100% Duty Cycle, 200Hz to 1KHz,
0-10V Pulse. See page 4 for additional specifications.
Sign Components Manual
•
Output Voltage Output Current
(Vdc ±5%)
Range
(mA)
12
14
16
18
20
24
28
36
40
56
62
72
520-2080
438-1750
390-1560
360-1400
313-1250
260-1040
213-850
175-700
155-620
113-450
100-400
88-350
Max. Output
Power
(W)
25
24.5
25
25
25
25
23.8
25
24.8
25
24.8
25
Typical
Efficiency
81%
82%
82%
82%
83%
83%
83%
84%
84%
84%
85%
86%
•
E332160
•
Indicates S.A.M.
Note:
LED drivers are designed and intended to operate LED loads only.
Non-LED loading may be outside the specified design limits of our
LED drivers, and therefore cannot be covered by any warranty.
If you desire to use our LED drivers to operate non-LED loads
please contact us to discuss compatibility.
Specifications subject to change without notice.
Class 2:
US/Canada
US Only
Rev 9-11-15
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
LED25W Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 2 of 4

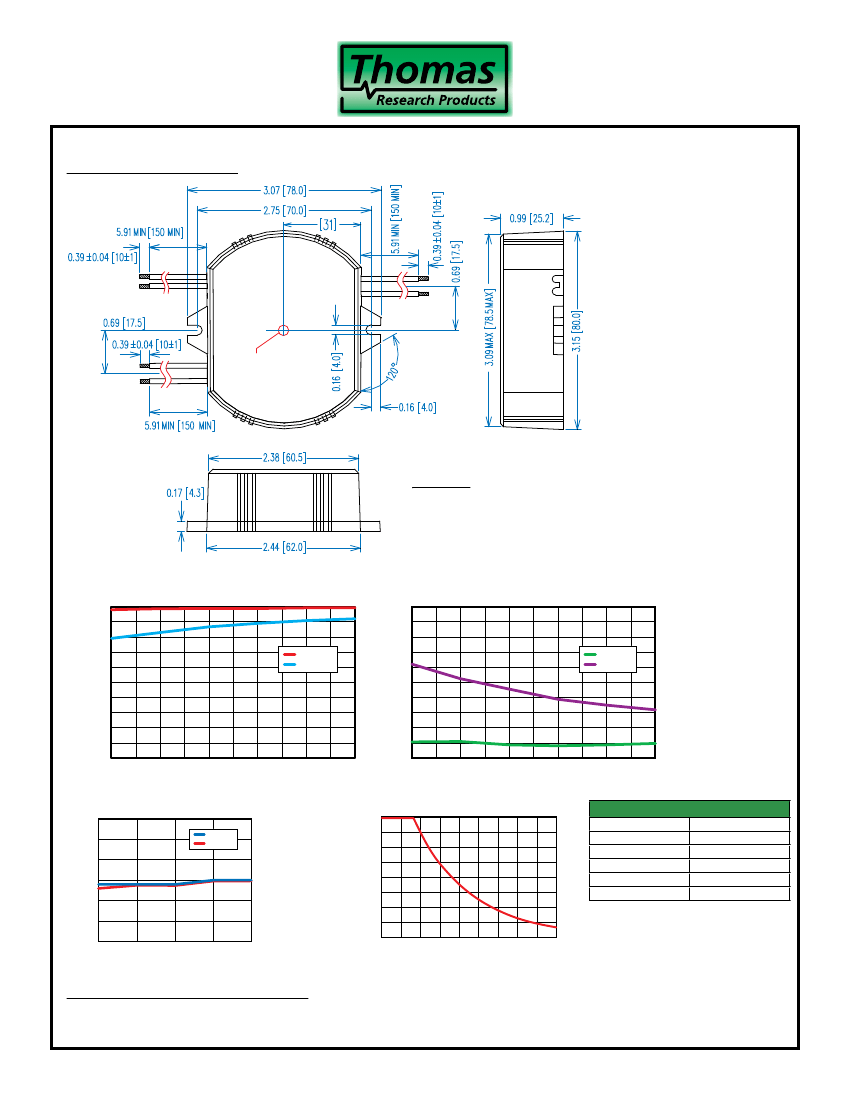

Dimensions - IN [mm]
Dimming
Purple (+)
Gray (-)
Output
Red (+)
Blue (-)
Tc = 90°C max
Input
White (N)
Black (L)
WIRE SPECS:
Input Leads:
18 AWG, rated 600 V, 105C, min.
Output Leads:
18 AWG, rated 300 V, 105C, min.
Dimming Leads:
22 AWG, rated 300 V, 105C.
All wires are stranded with solder dipped ends.
1.00
0.90
0.80
0.70
0.60
Power Factor / Load
20%
18%
16%
120Vac
277Vac
14%
12%
10%
8%
6%
4%
2%
0%
50%
THD / Load
0.50
0.40
0.30
0.20
0.10
0.00
50%
60%
70%
Load
80%
90%
100%
THD
120Vac
277Vac
PF
60%
70%
Load
80%
90%
100%
100%
95%
Typical Efficiency / Load
Lifetime
(kHrs)
120Vac
277Vac
130
115
90
75
60
45
30
15
Lifetime / Case Temperature
Safety and EMC Compliance
UL/CUL
CE
FCC, 47CFR Part 15
EN61000-3-2
EN61000-3-3
EN61000-4-5
UL8750, CSA-C22.2
EN 61347
Class B
Class C
2kV
Efficiency
90%
85%
80%
75%
70%
60%
Normalized Output Voltage
70%
80%
90%
100%
0
45
50
Case Hotspot Temperature
(°C)
55
60
65
70
75
80
85
90
UL Conditions of Acceptability
See website for additional information
Note:
Life calculations are based on reliability with confidence using
a 90% confidence level and <5% failure rate. At a confidence
level of 90% it is expected that <5% of the parts will fail at
the rated life provided. (Failure is defined as a driver drifting
outside specification, rather than fail to operate)
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
LED25W Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 3 of 4
“-D” Option: 0-10VDC and Resistance Dimming
Parameters
Source Current out of 0-10V Purple Wire
Absolute Voltage Range on 0-10V (+) Purple Wire
Minimum
0 mA
-2.0 V
Typical
—
—
Maximum
2 mA
+15 V
Typical Dimming Circuit
Dim(+) Purple
LED25W-XX-CXXXX-D
IP710 Wall Dimmer
Dim(-) Gray
(Dimmer must be current-sink type control)
100
90
80
70
60
50
40
30
20
10
0
Output Current / 0-10VDC Dimming Control Voltage
Output Current %
0V
1V
2V
3V
Purple-to-Gray Voltage
(Vdc)
4V
5V
6V
7V
8V
9V
10V
Notes:
1.
2.
3.
4.
0-10V dimmable version comes with an extra two wires +Purple/-Gray on the output side.
Compatible with most 0-10V dimmers. Recommended dimmer is Leviton IP710 or equivalent
0-10V dimmable version is not intended to dim below about 5% @ 0V or 10% @ 1.0V
0-10V dimmable version output will be 100% with Purple/Gray open and minimum with Purple/Gray Shorted.
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
LED25W Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 4 of 4
“-PD” Option: PWM Dimming
Parameters
Absolute Maximum Voltage Range on PWM Input (Purple Wire)
Input LOW Level Voltage Range (Purple Wire)
Input HIGH Level Voltage Range (Purple Wire)
Sink Current into PWM Input (Purple Wire)
PWM Input Signal Frequency
PWM Input Signal Positive Duty Cycle
Minimum
-2.0V
-2.0
+9.0
0mA
200Hz
0%
Typical
10V
0V
10V
—-
—-
10-90%
Maximum
+28V
+7.5V
28V
1.2mA
1000Hz
100%
PWM Positive Dimming Typical Circuit
PWM (+) Purple
LED25W-XX-CXXXX-PD
PWM In
PWM (-) Gray
100
90
80
70
60
50
40
30
20
10
0
Output Current / Positive Duty Cycle
Output Current %
0%
10%
20%
30%
Positive Duty Cycle
40%
50%
60%
70%
80%
90%
100%
Notes:
1. PWM Dimmable version comes with an extra 2 wires +Purple/-Gray on the output side.
2. Below 10% Duty cycle proper dimming operation is not assured. Unit is not intended to turn off at <10% Duty Cycle.
3. PWM dimmable version output will be 100% with Purple/Gray open and minimum with Purple/Gray Shorted.
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
