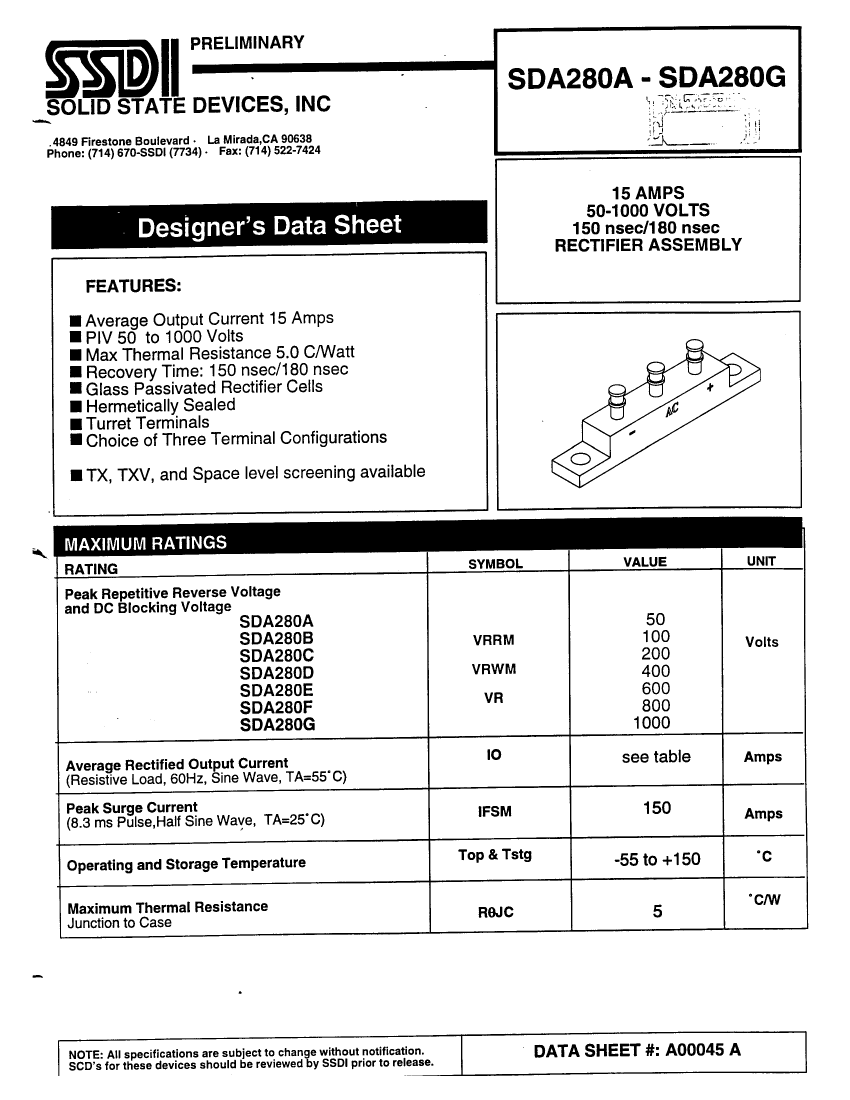

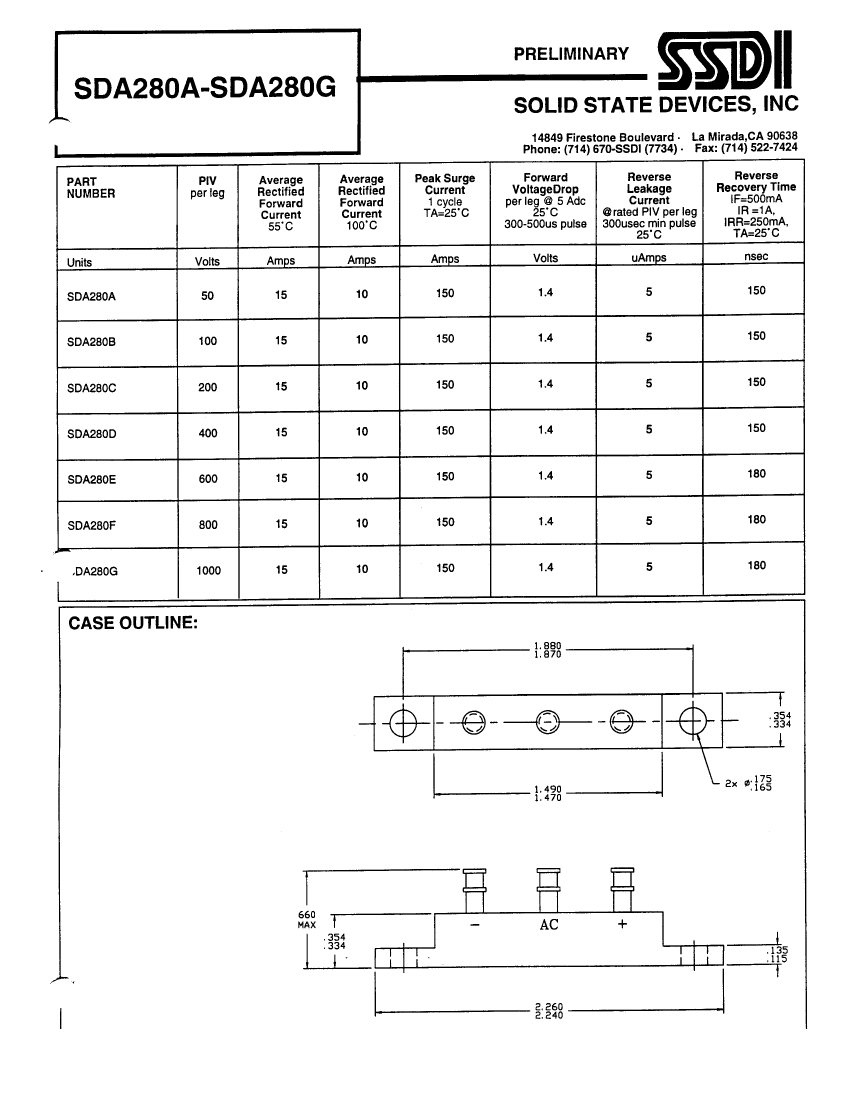

SDA280A datasheet, PDF - EEWORLD Datasheet

SDA280A: DescriptionRectifier Diode, 1 Phase, 2 Element, 15A, 50V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size272KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

SDA280A Overview

Rectifier Diode, 1 Phase, 2 Element, 15A, 50V V(RRM), Silicon,

Parameter Name	Attribute value
Objectid	1467492515
package instruction	R-XUFM-X3
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V
JESD-30 code	R-XUFM-X3
Maximum non-repetitive peak forward current	150 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	15 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER

	SDA280A	SDA280B
Description	Rectifier Diode, 1 Phase, 2 Element, 15A, 50V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 15A, 100V V(RRM), Silicon,
Objectid	1467492515	1467492518
package instruction	R-XUFM-X3	R-XUFM-X3
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V	1.4 V
JESD-30 code	R-XUFM-X3	R-XUFM-X3
Maximum non-repetitive peak forward current	150 A	150 A
Phase	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Maximum output current	15 A	15 A
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	100 V
Maximum reverse recovery time	0.15 µs	0.15 µs
surface mount	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER
