LSC3TSM3-32.768K,10/C

Description
CMOS Output Clock Oscillator, 0.03MHz Min, 400MHz Max, 0.032768MHz Nom,
CategoryPassive components    oscillator
File Size84KB，2 Pages
ManufacturerSTATEK CORPORATION
Websitehttp://www.statek.com/
Download Datasheet Parametric View All

LSC3TSM3-32.768K,10/C Overview

CMOS Output Clock Oscillator, 0.03MHz Min, 400MHz Max, 0.032768MHz Nom,

LSC3TSM3-32.768K,10/C Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1953030451
Reach Compliance Codeunknown
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; TR, 7/13 INCH; TRAY
maximum descent time50 ns
Frequency Adjustment - MechanicalNO
frequency stability100%
JESD-609 codee0
Installation featuresSURFACE MOUNT
Number of terminals4
Maximum operating frequency400 MHz
Minimum operating frequency0.03 MHz
Nominal operating frequency0.032768 MHz
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
Oscillator typeCMOS
Output load10 pF
Package body materialCERAMIC
Encapsulate equivalent codeDILCC4,.18,200
physical size10.29mm x 4.7mm x 1.91mm
power supply3.3 V
Certification statusNot Qualified
longest rise time50 ns
Maximum slew rate0.0028 mA
Maximum supply voltage3.63 V
Minimum supply voltage2.97 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry55/45 %
Terminal surfaceTin/Lead (Sn/Pb)

LSC3TSM3-32.768K,10/C Preview

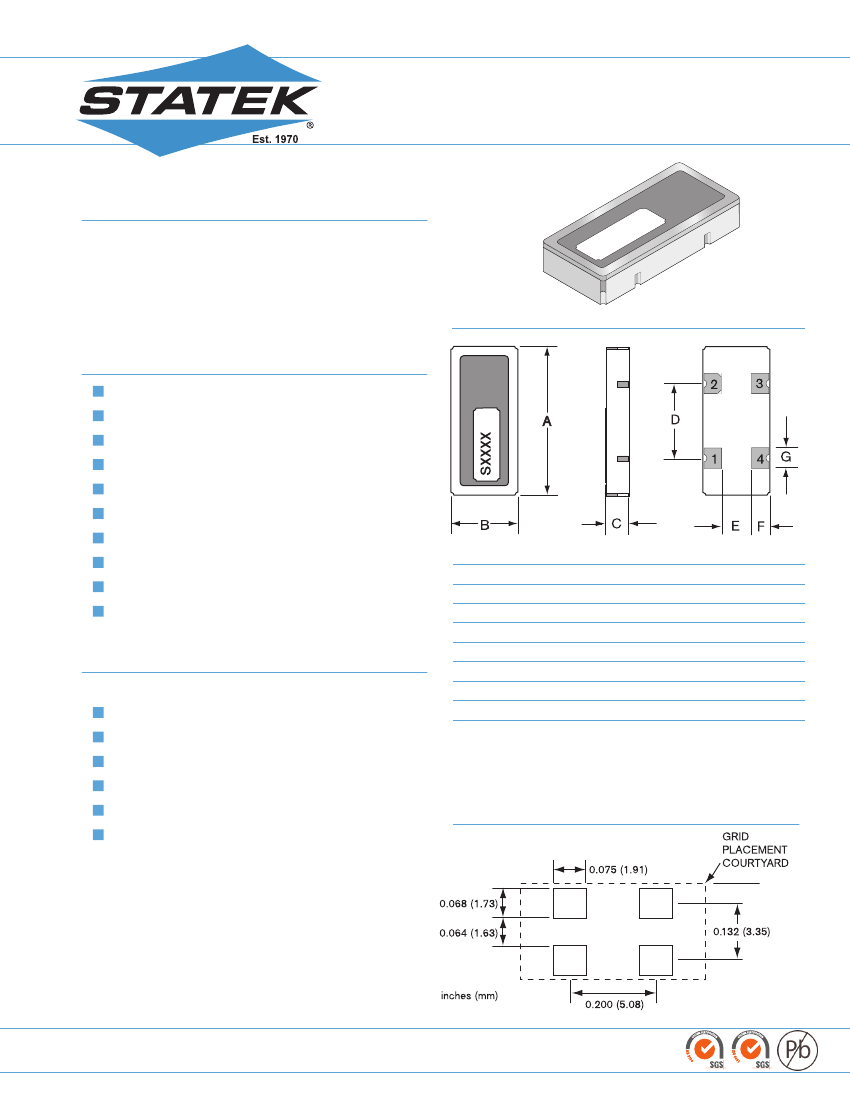

LSC OSCILLATOR
30 kHZ to 400 kHz
Low Power Surface Mount Crystal Oscillator
DESCRIPTION
The LSC oscillator is designed especially for
applications requiring low power consumption. The
design consists of a Statek miniature Tuning Fork quartz
crystal and a CMOS compatible integrated circuit in a
ceramic package.
FEATURES
XX
XX
S
PACKAGE DIMENSIONS
Ultra-low power consumption
Typical start-up time of 500ms
Low aging
CMOS compatible
Typical rise and fall times of 25ns
5 V operation standard
3.3 V operation also available
Optional Tri-State output
Low cost solution
Designed, manufactured, and tested in the USA
APPLICATIONS
TYPICAL
DIM
A
B
C*
D
E
F
G
inches
0.400
0.180
0.065
0.200
0.080
0.050
0.055
mm
10.16
4.57
1.65
5.08
2.03
1.27
1.40
MAXIMUM
inches
0.405
0.185
0.070
0.205
0.085
0.058
0.063
mm
10.29
4.70
1.77
5.21
2.16
1.47
1.60
Industrial, Computer & Communications
General purpose clock oscillator
Data logger
Remote sensor
Real time clock
Medical test and diagnostics
Portable field communication
Termination material is Au over Ni (SM1), solder dip
(SM3) also available.
*SM1 Termination; SM3 = 0.075 in. (1.91mm) Max.
SUGGESTED LAND PATTERN
10153 - Rev F
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
SPECIFICATIONS: LSC 30 kHz to 400 kHz
ABSOLUTE MAXIMUM RATINGS
Specifications are typical at 25 C unless otherwise noted.
Specifications are subject to change without notice.
O
Supply Voltage V
DD
Storage Temperature
Process Temperature
-0.5 V to 7 V
-55
O
C to +125
O
C
260
O
C 20 sec.
Supply Voltage
1
Calibration Tolerance
_
5 V
+
10%
_
3.3 V
+
10%
+
_
+
_
+
_
ELECTRICAL CHARACTERISTICS
LSC 32.768 kHz
10 ppm (0.001%)
25 ppm (0.0025%)
100 ppm (0.01%)
Typ.
MAX.
Typ.
MAX.
(0.0025%)
(0.004%)
(0.007%)
(0.01%)
All parameters are measured at 25ºC with a 10MΩ and
10pF load with
V
DD
3.3 V.
SYMBOL PARAMETER
V
OH
V
OL
SYM
t
r
t
f
Output Voltage Lo
Duty Cycle
Fall Time (10%-90%)
45
Rise Time (10%-90%)
MIN.
TYP. MAX. UNIT
V
0.4
55
50
50
V
%
nsec.
nsec.
0
50
Frequency Stability Over Temperature
2
0
O
C to +50
O
C
-10
O
C to+70
O
C
Voltage Coefficient
Aging, first year
Shock
Vibration
Operating Temp. Range
+
_
+
_
25 ppm
40 ppm
+
_
70 ppm
+
_
100 ppm
+
_
Output Voltage Hi V
DD
-0.4 V
DD
1 ppm/V
+
_
2 ppm
5000 g, 0.3 ms,1/2 sine
20 g RMS, 10 - 2000 Hz
-10
O
C to +70
O
C (Commercial)
-40
O
C to +85
O
C (Industrial)
-55
O
C to +125
O
C (Military)
PIN CONNECTIONS
Pin
1
2
3
4
Connection
Output Enable or NC
Ground
Output
V
DD
1. Contact the factory for lower voltage.
2. Does not include calibration tolerance. Positive variations small compared
to negative variations.
PACKAGING OPTIONS
LSC
Current Consumption*
* VDD = 3.3 V and 10pF load.
-Tray Pack
-16mm tape, 7” or 13” reels
(Reference tape and reel data sheet 10109)
2.8
µA
(32.768 kHz)
8.0
µA
(100.0 kHz)
TRISTATE/DISABLE OPTIONS (T/N)
TRISTATE/DISABLE OPTION T
FUNCTION TABLE
Statek offers two enable/disable options: T and N. The T-
version has a Tri-State output and continues oscillating
internally when the output is put into the high Z state. The
N-version does not have PIN 1 connected internally and so
has no Tri-State/Disable capability. The following table
describes the Tri-State/Disable option T.
Tri-State (Pin 1 High*)
Output
Frequency Output
Disable (Pin 1 Low)
High Z State
Oscillates
Lower than Normal
Internal Osc.
Oscillates
Current
Normal
*
When PIN 1 is allowed to float, it is held high by an internal pull-up resistor.
HOW TO ORDER LSC SURFACE MOUNT CRYSTAL OSCILLATORS
LSC
3
S
“S” if special
or custom
design.
Blank if Std.
+
T
T = Tri-State
Blank = Pin 1
no connection
SM3
Blank = SM1
= Gold Plated
(Lead Free)
SM3 = Solder Dipped
SM5 = Solder Dipped
(Lead Free)
32.768K
Frequency
K = kHz
,
100
Calibration
Tolerance
@ 25
O
C
(in ppm)
/
I
Temp. Range:
C = -10
O
C to +70
O
C
I
= -40
O
C to +85
O
C
M = -55
O
C to +125
O
C
S = Customer Specified
3 = 3.3 V
Blank = 5 V (Std.)
10153 - Rev F
STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256
www.statek.com
