Mixed Signal Oscilloscopes
MSO4000B, DPO4000B Series Datasheet
Key features
Wave Inspector
®
controls provide easy navigation and automated
search of waveform data
41 automated measurements, and FFT analysis for simplified
waveform analysis
16 digital channels (MSO series)
Mixed signal design and analysis (MSO series)
Automated triggering, decode, and search on parallel buses
Per-channel threshold settings
Multichannel setup and hold triggering
MagniVu
™
High-speed acquisition provides 60.6 ps fine timing
resolution on digital channels

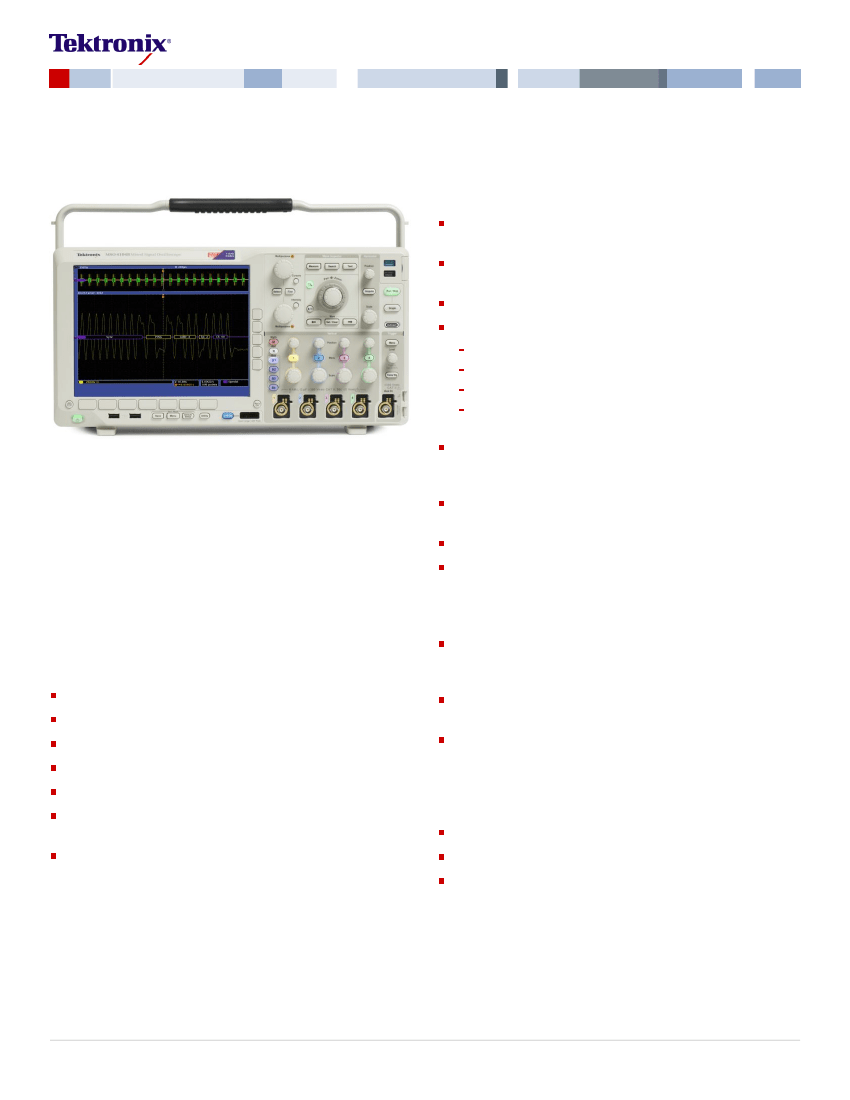

With the MSO/DPO4000B Mixed Signal Oscilloscope Series, you can
analyze up to 20 analog and digital signals with a single instrument to
quickly find and diagnose problems in complex designs. Bandwidths up to
1 GHz and up to 5X oversampling on all channels ensure you have the
performance you need to see fast-changing signal details. To capture long
windows of signal activity while maintaining fine timing resolution, the MSO/
DPO4000B Series offers deep record length of up to 20M points standard
on all channels. And with Wave Inspector
®
controls for rapid waveform
navigation, automated serial and parallel bus analysis, limit and mask
testing, and automated power analysis – your Tektronix oscilloscope
provides the feature-rich tools you need to simplify and speed debug of
your complex design.
Optional serial triggering and analysis - automated serial triggering,
decode, and search options for I
2
C, SPI, USB, Ethernet, CAN, LIN,
FlexRay, RS-232/422/485/UART, MIL-STD-1553, and I
2
S/LJ/RJ/TDM
TekVPI
®
probe interface supports active, differential, and current
probes for automatic scaling and units
10.4 in. (264 mm) bright XGA color display
Small footprint and lightweight – Only 5.8 in. (147 mm) deep and 11 lb.
(5 kg)
Connectivity
Two USB 2.0 host ports on the front panel and two on the rear panel
for quick and easy data storage, printing, and connecting a USB
keyboard
USB 2.0 device port on the rear panel for easy connection to a PC or
direct printing to a PictBridge
®
-compatible printer
Integrated 10/100/1000BASE-T Ethernet port for network connection
and video out port to export the oscilloscope display to a monitor or
projector
Key performance specifications
1 GHz, 500 MHz, 350 MHz, and 100 MHz bandwidth models
2 and 4 analog channel models
Up to 5 GS/s sample rate on all channels
Up to 20 mega-point record length on all channels
>50,000 wfm/s maximum waveform capture rate
Standard passive voltage probes with less than 4 pF capacitive loading
and 500 MHz or 1 GHz analog bandwidth
Suite of advanced triggers
Optional application support
Power analysis
Limit and mask testing
HDTV and custom video analysis
www.tektronix.com 1
Datasheet
Comprehensive features speed every stage
of debug
These oscilloscopes offer a robust set of features to speed every stage of
debugging your design – from quickly discovering an anomaly and
capturing it, to searching your waveform record for the event and analyzing
its characteristics and your device’s behavior.
A complete set of triggers - including runt, timeout, logic, pulse width/glitch,
setup/hold violation, serial packet, and parallel data - help you quickly find
your event. With up to a 20M point record length, you can capture many
events of interest, even thousands of serial packets, in a single acquisition
for further analysis while maintaining high resolution to zoom in on fine
signal details.
From triggering on specific packet content to automatic decode in multiple
data formats, the oscilloscope provides integrated support for the industry's
broadest range of serial buses - I
2
C, SPI, USB, Ethernet, CAN, LIN,
FlexRay, RS-232/422/485/UART, MIL-STD-1553, and I
2
S/LJ/RJ/TDM. The
ability to decode up to four serial and/or parallel buses simultaneously
means you gain insight into system-level problems quickly.
To further help troubleshoot system-level interactions in complex
embedded systems, the oscilloscope offers 16 digital channels in addition
to its analog channels. Since the digital channels are fully integrated into
the oscilloscope, you can trigger across all input channels, automatically
time correlating all analog, digital, and serial signals. The MagniVu
™
high-
speed acquisition on these channels enables you to acquire fine signal
detail (up to 60.6 ps resolution) around the trigger point for precision timing
measurements. MagniVu is essential for making accurate timing
measurements for setup and hold, clock delay, signal skew, and glitch
characterization.
Discover
To debug a design problem, first you must know it exists. Every design
engineer spends time looking for problems in their design, a time-
consuming and frustrating task without the right debug tools.
The industry’s most complete visualization of signals provides fast insight
into the real operation of your device. A fast waveform capture rate –
greater than 50,000 waveforms per second – enables you to see glitches
and other infrequent transients within seconds, revealing the true nature of
device faults. A digital phosphor display with intensity grading shows the
history of a signal’s activity by intensifying areas of the signal that occur
more frequently, providing a visual display of just how often anomalies
occur.
Discover
‒
Fast waveform capture rate - over 50,000 wfm/s - maximizes the probability
of capturing elusive glitches and other infrequent events.
Capture
Discovering a device fault is only the first step. Next, you must capture the
event of interest to identify root cause.
Accurately capturing any signal of interest begins with proper probing. Low-
capacitance probes are included with the oscilloscope, one for each analog
channel. These industry-first high-impedance passive voltage probes have
less than 4 pF of capacitive loading to minimize the affect of the probe on
your circuit's operation, offering the performance of an active probe with the
flexibility of a passive probe.

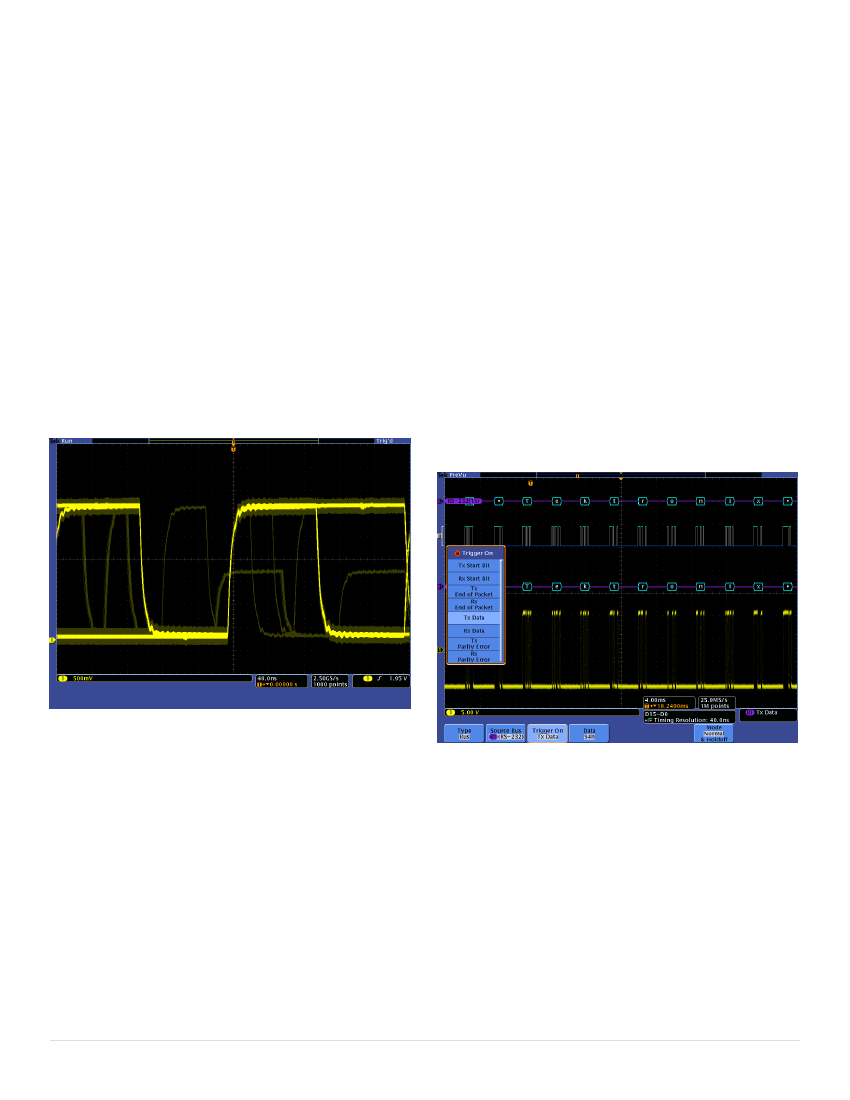

Capture - Triggering on a specific transmit data packet going across an RS-232 bus. A
complete set of triggers, including triggers for specific serial packet content, ensures you
quickly capture your event of interest.
2 www.tektronix.com
Mixed Signal Oscilloscopes — MSO4000B, DPO4000B Series
Search
Finding your event of interest in a long waveform record can be time
consuming without the right search tools. With today’s record lengths
pushing beyond a million data points, locating your event can mean
scrolling through thousands of screens of signal activity.
The innovative Wave Inspector
®
controls give you the industry’s most
comprehensive search and waveform navigation capability. These controls
speed panning and zooming through your record. With a unique force-
feedback system, you can move from one end of your record to the other in
just seconds. User marks allow you to mark any location that you may want
to reference later for further investigation. Or, automatically search your
record for criteria you define. Wave Inspector will instantly search your
entire record, including analog, digital, and serial bus data. Along the way it
will automatically mark every occurrence of your defined event so you can
quickly move between events.

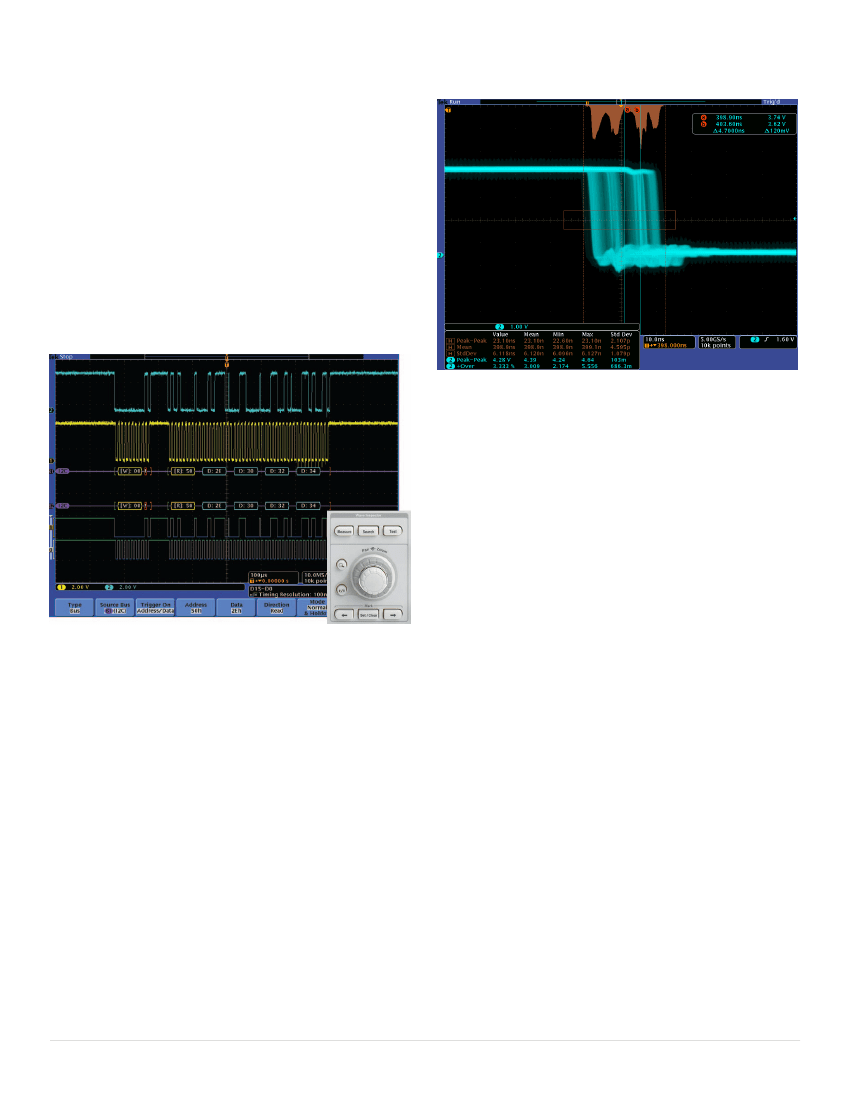

Analyze – Waveform histogram of a falling edge showing the distribution of edge position
(jitter) over time. Included are numeric measurements made on the waveform histogram
data. A comprehensive set of integrated analysis tools speeds verification of your
design's performance.
Mixed domain analysis
Working with RF signals? Be sure to check out the MDO4000 Series - the
world's first Mixed Domain Oscilloscope. Built on the MSO4000B
oscilloscope platform, the MDO4000 Series offers a built-in spectrum
analyzer (up to 6 GHz). This combination offers you the ability to capture
time-correlated analog, digital, and RF signals in a single instrument. For
more information on the MDO4000 Series, please visit
www.tektronix.com/
mdo4000.
Wave Inspector
®
navigation and search
Search
‒
I
2
C decode showing results from a Wave Inspector search for Address value
50. Wave Inspector controls provide unprecedented efficiency in viewing and navigating
waveform data.
With long record lengths, a single acquisition can include thousands of
screens of waveform data. Wave Inspector
®
, the industry’s best tool for
navigation and search, enables you to find events of interest in seconds.
Analyze
Verifying that your prototype’s performance matches simulations and meets
the project’s design goals requires analyzing its behavior. Tasks can range
from simple checks of rise times and pulse widths to sophisticated power
loss analysis and investigation of noise sources.
The oscilloscope offers a comprehensive set of integrated analysis tools
including waveform- and screen-based cursors, automated measurements,
advanced waveform math including arbitrary equation editing, FFT
analysis, and trend plots for visually determining how a measurement is
changing over time. Specialized application support for serial bus analysis,
power supply design, and video design and development is also available.
For extended analysis, National Instrument’s LabVIEW SignalExpress
®
Tektronix Edition provides over 200 built-in functions including time and
frequency domain analysis, limit testing, data logging, and customizable
reports.
www.tektronix.com 3
Datasheet
Search marks
The
Search
button allows you to automatically search through your long
acquisition looking for user-defined events. All occurrences of the event are
highlighted with search marks and are easily navigated to, using the front-
panel
Previous
(←) and
Next
(→) buttons. Search types include edge,
pulse width/glitch, timeout, runt, logic, setup and hold, rise/fall time, parallel
bus, and I
2
C, SPI, USB, Ethernet, CAN, LIN, FlexRay, RS-232/422/485/
UART, MIL-STD-1553, and I
2
S/LJ/RJ/TDM packet content.
Wave Inspector controls provide unprecedented efficiency in viewing, navigating, and

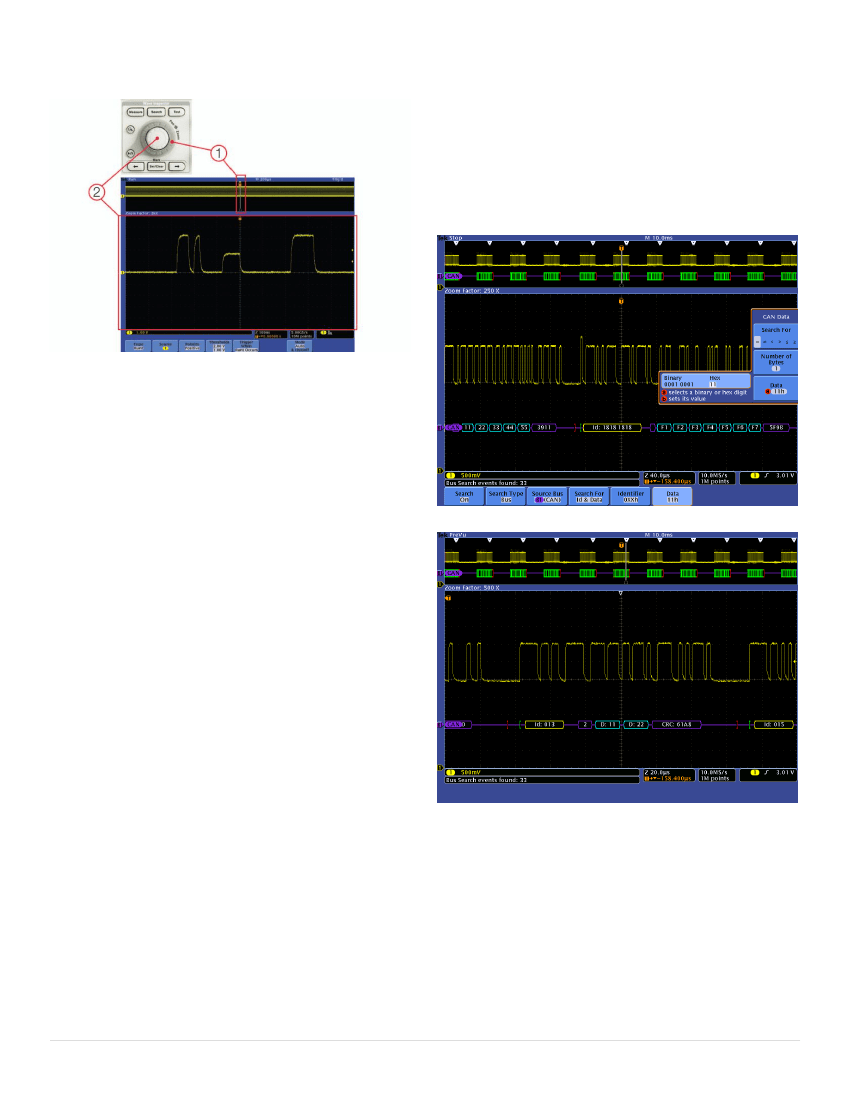

analyzing waveform data. Zip through your long record by turning the outer pan control
(1). Get details from the beginning to end in seconds. See something of interest and want
to see more details? Just turn the inner zoom control (2).
Zoom and pan
A dedicated, two-tier front-panel control provides intuitive control of both
zooming and panning. The inner control adjusts the zoom factor (or zoom
scale); turning it clockwise activates zoom and goes to progressively higher
zoom factors, while turning it counterclockwise results in lower zoom
factors and eventually turning zoom off. No longer do you need to navigate
through multiple menus to adjust your zoom view. The outer control pans
the zoom box across the waveform to quickly get to the portion of waveform
you are interested in. The outer control also utilizes force-feedback to
determine how fast to pan on the waveform. The farther you turn the outer
control, the faster the zoom box moves. Pan direction is changed by simply
turning the control the other way.
Search step 1: You define what you would like to find.
Play/Pause
A dedicated
Play/Pause
front-panel button scrolls the waveform across the
display automatically while you look for anomalies or an event of interest.
Playback speed and direction are controlled using the intuitive pan control.
Once again, turning the control further makes the waveform scroll faster
and changing direction is as simple as turning the control the other way.
User marks
Press the
Set Mark
front-panel button to place one or more marks on the
waveform. Navigating between marks is as simple as pressing the
Previous
(←) and
Next
(→) buttons on the front panel.
Search step 2: Wave Inspector automatically searches through the record and marks
each event with a hollow white triangle. You can then use the Previous and Next buttons
to jump from one event to the next.
4 www.tektronix.com
Mixed Signal Oscilloscopes — MSO4000B, DPO4000B Series

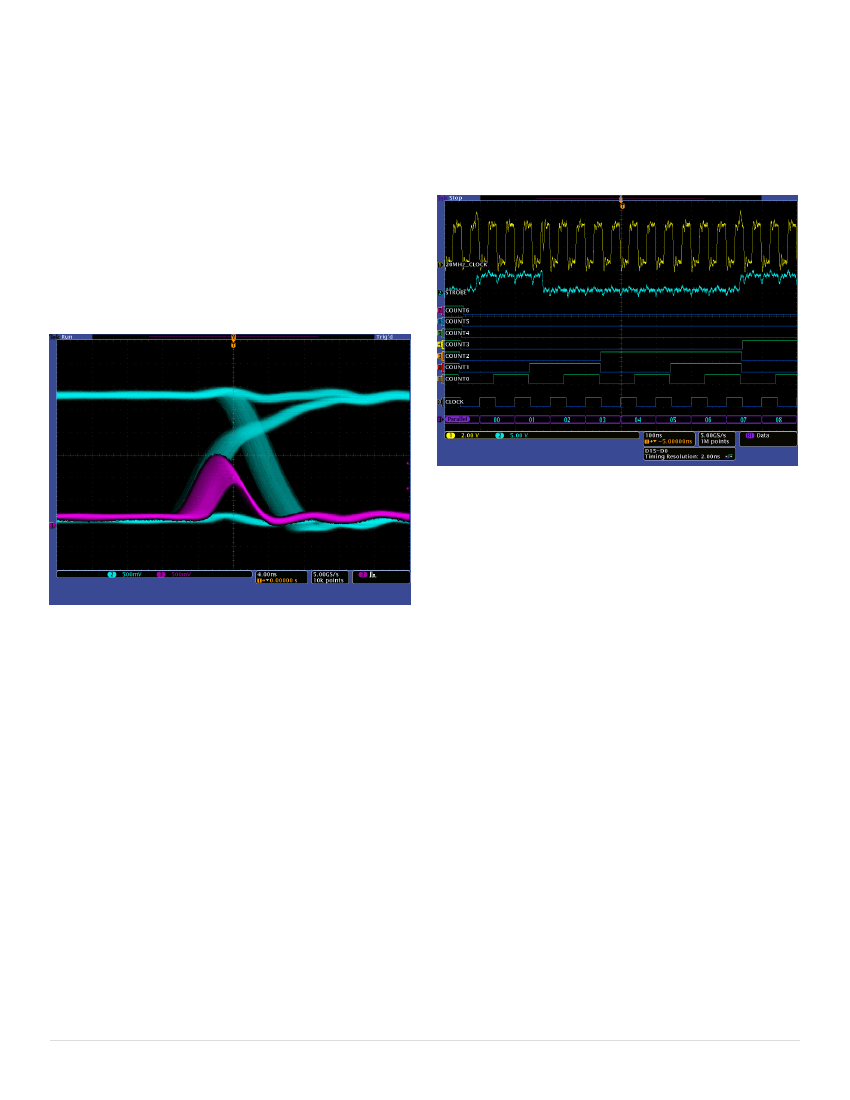

Digital phosphor technology
Digital phosphor technology provides you with fast insight into the real
operation of your device. Its fast waveform capture rate – greater than
50,000 wfm/s – gives you a high probability of quickly seeing the infrequent
problems common in digital systems: runt pulses, glitches, timing issues,
and more.
Waveforms are superimposed with one another and waveform points that
occur more frequently are intensified. This quickly highlights the events that
over time occur more often or, in the case of infrequent anomalies, occur
less often.
You can choose infinite persistence or variable persistence, determining
how long the previous waveform acquisitions stay on-screen. This allows
you to determine how often an anomaly is occurring.
Mixed signal design and analysis (MSO
series)
The MSO models provide 16 digital channels which are tightly integrated
into the oscilloscope's user interface. This simplifies operation and makes it
possible to solve mixed-signal issues easily.
The MSO Series provides 16 integrated digital channels enabling you to view and
analyze time-correlated analog and digital signals.
Color-coded digital waveform display
This oscilloscope has redefined the way you view digital waveforms. One
common problem shared by both logic analyzers and mixed-signal
oscilloscopes is determining if data is a one or a zero when zoomed in far
enough that the digital trace stays flat all the way across the display. Color-
coded digital traces display ones in green and zeros in blue.
The multiple transition detection hardware shows you a white edge on the
display when the system detects multiple transitions. White edges indicate
that more information is available by zooming in or acquiring at faster
sampling rates. In most cases zooming in will reveal the pulse that was not
viewable with the previous settings. If the white edge is still present after
zooming in as far as possible, this indicates that increasing the sample rate
on the next acquisition will reveal higher frequency information than the
previous settings could acquire.
Digital phosphor technology enables greater than 50,000 wfms/s waveform capture rate
and real-time intensity grading.
Accurate high-speed probing
The TPP Series probes, included standard with every MSO/DPO4000B
Series oscilloscope, provide up to 1 GHz of analog bandwidth, and less
than 4 pF of capacitive loading. The extremely low capacitive loading
minimizes adverse affects on your circuits and is more forgiving of longer
ground leads. And, since the probe bandwidth matches or exceeds your
oscilloscope bandwidth, you can see the high-frequency components in
your signal which is critical for high-speed applications. The TPP Series
passive voltage probes offer all the benefits of general-purpose probes like
high dynamic range, flexible connection options, and robust mechanical
design, while providing the performance of active probes. In addition, a low-
attenuation, 2X version of the TPP probes is available for measuring low
voltages. Unlike other low-attenuation passive probes, the TPP0502 has
high bandwidth (500 MHz) as well as low capacitive loading (12.7 pF).
www.tektronix.com 5
stm32/stm8
京公网安备 11010802033920号
EEWORLD
