LQG15HZ56NG02J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LQG15HZ56NG02J

LQG15HZ56NG02J: DescriptionInductance; CategoryPassive components inductor; File Size69KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LQG15HZ56NG02J Overview

Inductance

LQG15HZ56NG02J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
Reach Compliance Code	compli
Samacsys Confidence	2
Samacsys Status	Released
Samacsys PartID	3449144
Samacsys Pin Cou	2
Samacsys Part Category	Induc
Samacsys Package Category	Othe
Samacsys Footprint Name	0402 (1005) T=0.5±0.05mm
Samacsys Released Date	2019-10-01 12:21:37
Is Samacsys	N
DC Resistance	0.82 Ω
Nominal inductance(L)	0.056 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	8
Maximum rated current	0.25 A
Guideline	AEC-Q200
self resonant frequency	800 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	2%
Base Number Matches	1

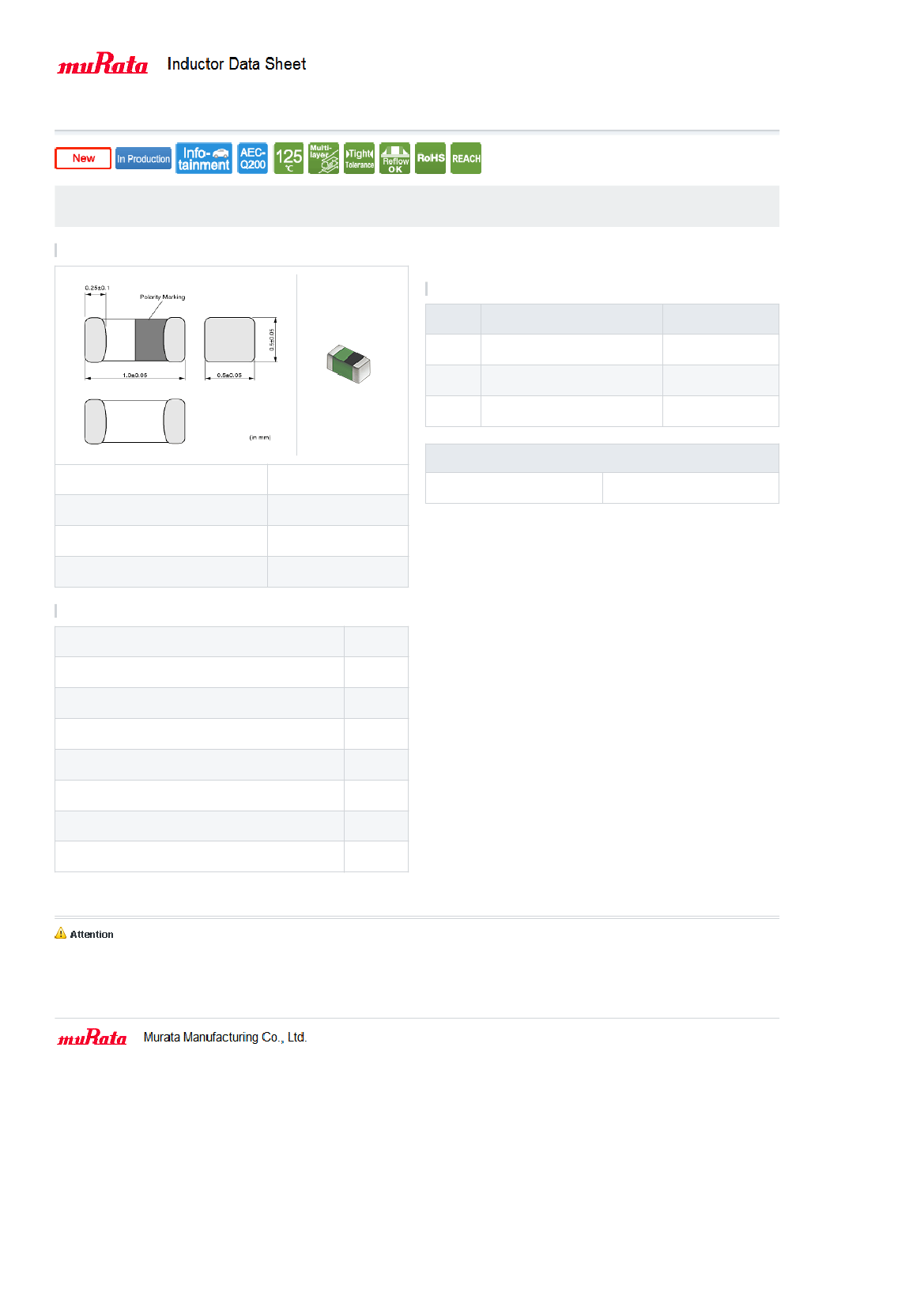

Preview

Download Datasheet

View All

LQG15HZ56NG02#

# indicates a package specification code.

< List of part numbers with package codes >

LQG15HZ56NG02D , LQG15HZ56NG02J , LQG15HZ56NG02B

Shape

References

Packaging

code

Specifications

φ180mm Paper taping

φ330mm Paper taping

Packing in bulk

Minimum quantity

10000

50000

1000

Mass (Typ.)

L size

W size

T size

Size code in inch (mm)

1.0 ±0.05mm

0.5 ±0.05mm

0402 (1005)

1 piece

0.001g

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not included)

56nH ±2%

100MHz

250mA

0.82Ω

100MHz

800MHz

-55∼125℃

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/04/21

LQG15HZ56NG02J Related Products

	LQG15HZ56NG02J	LQG15HZ56NG02D	LQG15HZ56NG02B	LQG15HZ56NG02
Description	Inductance	Inductance	Inductance	Inductance
Is it Rohs certified?	conform to	conform to	conform to	-
Maker	Murata	Murata	Murata	-
Reach Compliance Code	compli	compli	compli	-
Samacsys Confidence	2	2	2	-
Samacsys Status	Released	Released	Released	-
Samacsys PartID	3449144	3449143	3449145	-
Samacsys Pin Cou	2	2	2	-
Samacsys Part Category	Induc	Induc	Induc	-
Samacsys Package Category	Othe	Othe	Othe	-
Samacsys Footprint Name	0402 (1005) T=0.5±0.05mm	0402 (1005) T=0.5±0.05mm	0402 (1005) T=0.5±0.05mm	-
Samacsys Released Date	2019-10-01 12:21:37	2019-10-01 12:21:37	2019-10-01 12:21:37	-
Is Samacsys	N	N	N	-
DC Resistance	0.82 Ω	0.82 Ω	0.82 Ω	-
Nominal inductance(L)	0.056 µH	0.056 µH	0.056 µH	-
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	-
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-
Number of functions	1	1	1	-
Number of terminals	2	2	2	-
Maximum operating temperature	125 °C	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
Minimum quality factor (at nominal inductance)	8	8	8	-
Maximum rated current	0.25 A	0.25 A	0.25 A	-
Guideline	AEC-Q200	AEC-Q200	AEC-Q200	-
self resonant frequency	800 MHz	800 MHz	800 MHz	-
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-
shield	NO	NO	NO	-
surface mount	YES	YES	YES	-
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	-
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	-
Test frequency	100 MHz	100 MHz	100 MHz	-
Tolerance	2%	2%	2%	-
Base Number Matches	1	1	1	-
