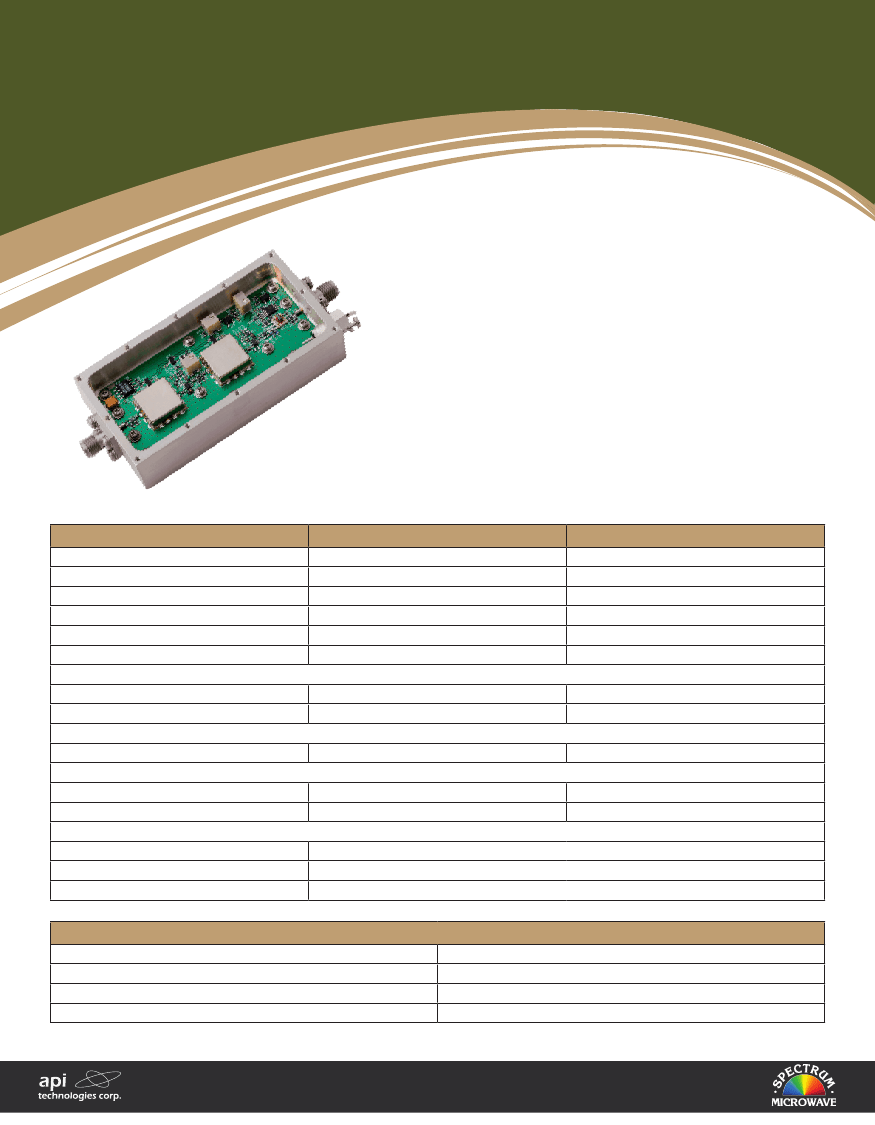

Automatic Gain Controlled Amplifier
200-400 MHz
Model BXMF1038
FEATURES
• Automatic Output Control
• Customizable
• High RF Input Damage Protection
• Group Delay +/- 1 ns
The Model BXMF1038 allows the user to anticipate receiver power
levels and automatically adjust the output power to a desired level.
With optional gain stages from 25 to 40 dB, this modular family of
Low Phase Noise AGCs can be used for multiple applications from 50
MHz to 2000 MHz. Designed for rugged military environments, these
units can be customized with an optional time delay adjustment
feature as well as a phase modulation compression to accommodate
for peak power variations. These AGCs are also designed to
minimize group delay with Group Delay performance of as low as
+/-1 ns typical.
Parameter
Frequency Range
Nominal Output Power
Input Dynamic Range
Noise Figure
1 dB Compression Point
Aquisition Time (10% / 90% rise time)
Input VSWR
Output VSWR
Group Delay
Bias Voltage
Bias Current
Housing Size
RF Connectors
Operate Case Temp. (Min. / Max. Values)
Typical
200-400 MHz
-35 dBm
-55 to 0 dBm
8 dB
+13 dBm
Adjustable
1.75:1
1.75:1
+/- 1 ns
+5 volts
125 mA
3.00” L x 1.50” W x 0.780” H
Gold Plated Pins or SMA Female
-40°C to +50°C
Min. / Max.
200-400 MHz
-35 dBm
-55 to 0 dBm
11 dB
+12 dBm
50-2000 µs
2.0:1
2.0:1
-
+5 volts
125 mA
Maximum (No Damage) Ratings
Storage Temperature
Operating Temperature (Case)
DC Voltage @ 25°C
Input Drive @ 25°C
-65°C to +125°C
-40°C to +85°C
+8 VDC
+24 dBm
Rev 2.24.12
apitech.com
• 888.553.7531 •
spectrummicrowave.com
