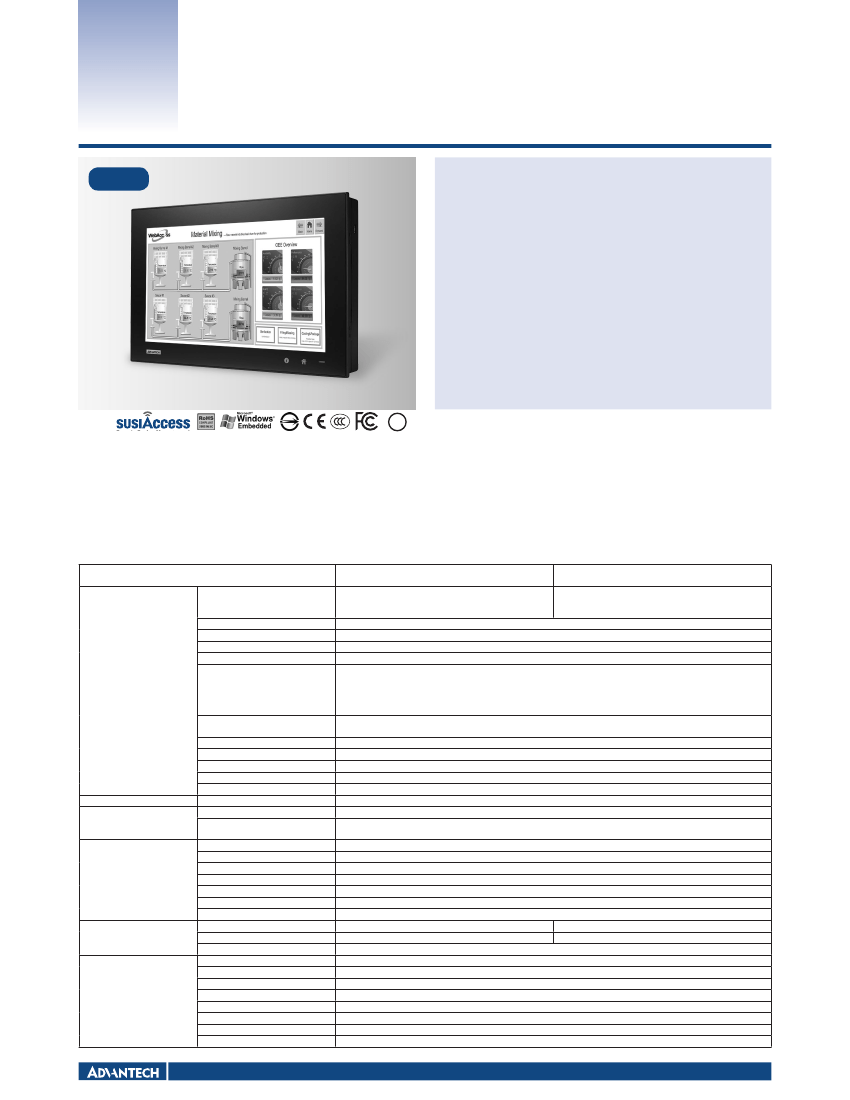

PPC-4151W

NEW

15.6" Fanless Wide Screen Panel PC

with Intel Core i5/i3/Celeron Processor

Features

15.6" WXGA entirely flat panel with Projected capacitive touchscreen

High performance Intel Core i CPU with Fanless design

PCIe x1 or PCI expansion support

Automatic data flow control over RS-485

Wide Range DC 9-32V support

Dual Gigabit Ethernet, support IEEE1588

3 x Independent display

Introduction

The PPC-4151W is a new generation Panel PC with WXGA (1366 x 768) screen. The most important, system equips with high performance Intel Core i CPU but the heat can be

dispatched easily by high efficiency fanless thermal design. This makes HMI a big step forward to consolidate performance and reliability in one system. Besides, with rich I/O as 5

x COM, 5 x USB and dual Gigabit ethernet make it easier to connect to devices and be integrated into machine building industry. In addition, PCIe/PCI expansion to add on field bus

or proprietary card makes more application possibility. The last but not least, the multi touch screen makes the HMI more intuitive, brings you the best operate experience.

Specifications

CPU

Memory

2nd Cache Memory

Storage

HDD

Processor system

I/O Ports

PPC-4151W-P5AE

PPC-4151W-R3AE

PPC-4151W-PCAE

Intel 4th Generation Core i CPU

i5-4300U, 2C, 3M, up to 2.9GHz

i3-4010U,2C,3M

Celeron 2980U, 2C, 2M, 1.6GHz

SO-DIMM x 1, DDR3L1333/1600, Max 8GB

3 MB / 2 MB

mSATA*1

1 x 2.5" SATA HDD Bay

5 x Serial ports: 4 x RS-232, 1 x RS-422/485 with isolation 1K V

4 x USB 3.0 ports in rear side, 1 x USB 2.0 in right side

1 x Line-out, 1x MIC-in

1 x DB15 VGA

1 x Display Port (1.2)

1 x MINI PCIe,

1 x PCIe x1 or 1 x PCI(either one)

2 x 10/100/1000 Mbps Ethernet, Intel I211-AT, Intel I218LM

2 x 1W

255 timer levels; setup by software

419.7 x 269 x 59 mm

5.8 Kg

Win 7/Win 8/Win 8.1/Linux

DC 9-32V

i5-4300U: 56W, i3-4010U:56W

Celeron 2980U: 45W (8G DDR3L, USB x 4, COM x 4, USB mouse, 2.5" HDD 500G, Win7 64bit, Burn-in 7.0 )

15.6" TFT LCD (LED Backlight)

1366 x 768

16.7M

85 (left), 85 (right), 85 (up), 85 (down)

300

Yes (by BIOS)

50, 000 hrs (typ.)

Projected Capacitive multi touch 10 point

Resistive single touch

88 % ± 2 %.

80 % ± 5 %

USB interface

0 ~ 50° C (32 ~ 122° F) for SSD, 0~45° C for HDD

-20 ~ 60° C (-4 ~ 140° F)

10 ~ 95% @ 40° C (non-condensing)

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64

BSMI, CE, FCC Class B

CB, CCC, BSMI, UL

IP65 compliant

Bus Expansion

Network (LAN)

Speaker

Watchdog Timer

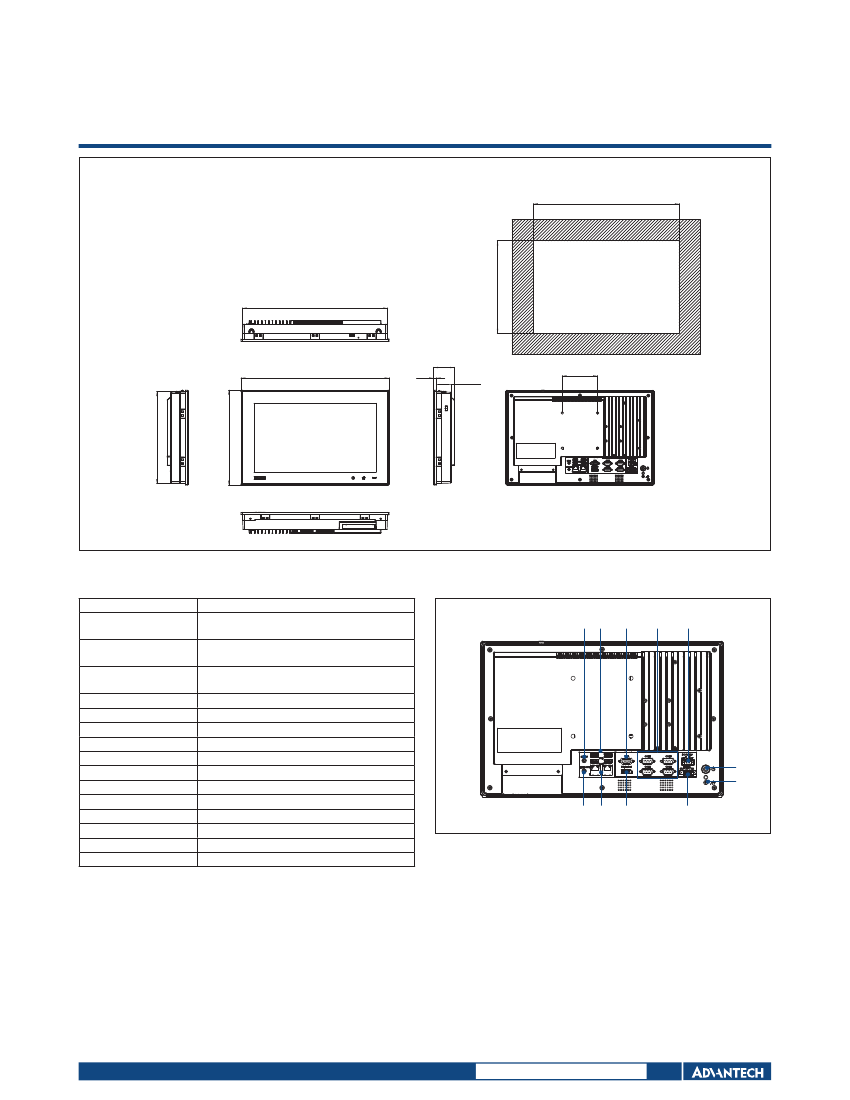

Dimensions

Weight

OS Support

Input Voltage

Power consumption

Display Type

Max. Resolution

Colors

Viewing Angle

Luminance(cd/m2)

Brightness Control

Backlight Lifetime

Touch Type

Light Transmission

Controller

Operating Temperature

Storage Temperature

Relative Humidity

Shock

Vibration

EMC

Safety

Front Panel Protection

OS support

Power supply

LCD Display

Touchscreen

Environment

Panel PCs

All product specifications are subject to change without notice

Last updated : 5-May-2015
