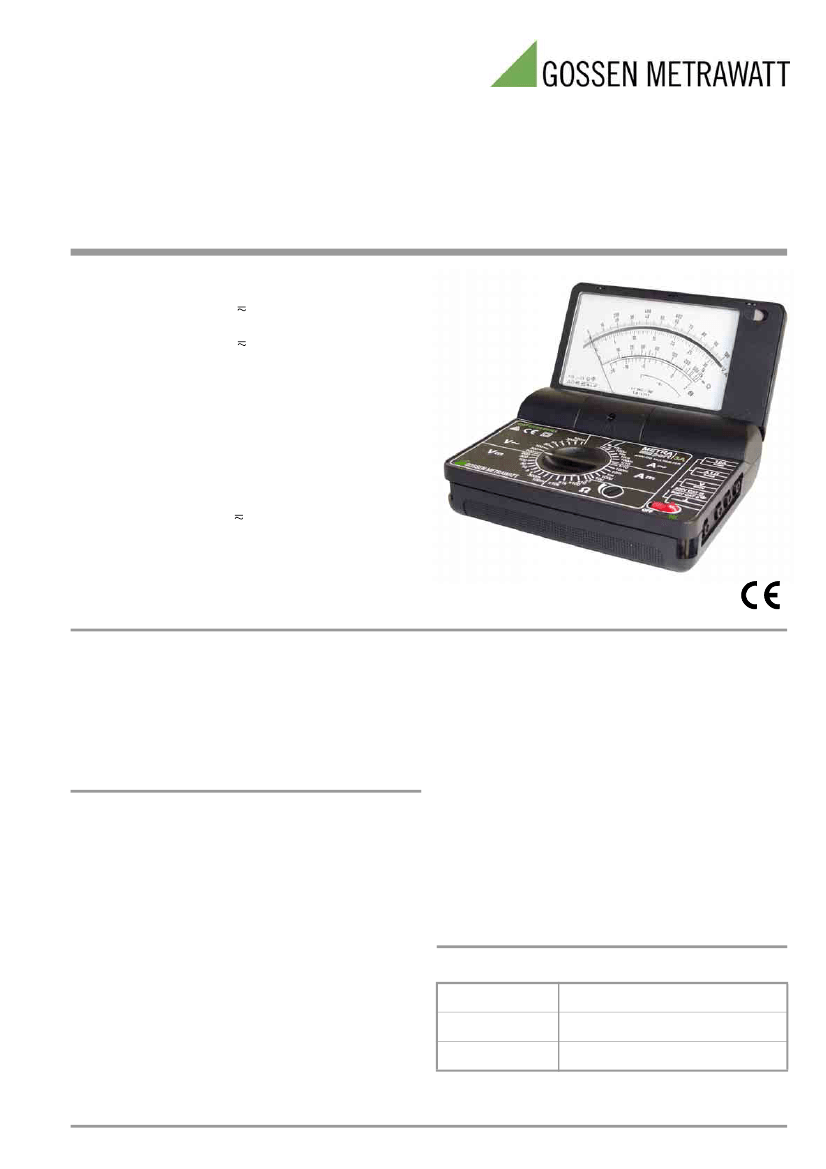

METRAport 3A Folding Analog Multimeter

Preview

Download Datasheet

View All

METRAport



Folding Analog Multimeter

3-349-302-03

1/4.04

•

9 voltage measuring ranges,

100 mV, 300 mV, 1 V, 3 V, 10 V, 30 V, 100 V, 300 V and 600 V

7 current measuring ranges,

µA,

100

µA,

1mA, 10 mA, 100 mA, 1A and 10 A

5 resistance measuring ranges:

Ω

... 2 kΩ/ 10

Ω

... 20 kΩ/

100

Ω

... 200 kΩ/ 1 kΩ ... 2 MΩ/ 10 kΩ ... 20 MΩ

9 level measuring ranges:

-40 dB ... +62 dB

High input resistance of 10 MΩ

for no-load voltage measurement

Reflective scale in folding lid which can be tilted for easy

reading and provides transport protection as well,

accuracy class 1.5 =

Overload protection: 600 V

in all functions and range settings

Automatic battery shutdown when instrument is folded closed

•

300 V CAT III

600 V CAT II

IEC/EN 61010-1, second edition

Several well coordinated safety devices protect the instrument

against damage caused by incorrect operation and overloading

within the specified overload limit values:

• Oversized precision resistors

•

Fuse link in combination with protective rectifier diodes

Overvoltage arrester / positive temperature coefficient

resistors (PTCs)

The instrument can be operated independent of mains current

with a commercially available 9 V flat cell battery. Long battery

service life is assured thanks to the minimal current consumption

of the instrument’s electronic components.

The multimeter’s rugged design provides for outstanding

protection where harsh mechanical stressing prevails. When

folded together, the instrument is provided with extra mechanical

protection for the measuring device, as well as for the display unit.

The connector jacks are protected against accidental contact.

Suitable measurement cables with 4 mm test probes are included

as standard equipment.

Applications

The multimeter is equipped with an indicator display and an

electronic amplifier. It can be used in a wide variety of practical

electronics applications, for example in R&D, manufacturing,

equipment operation, in the test lab and for service calls, as well

as for training and vocational education.

Description

The multimeter has 46 measuring ranges for direct and

alternating voltages of up to 600 V, alternating voltage levels from

-40 to +62 dB, direct and alternating current of up to 10 A and

resistances of up to 20 MΩ. It has a constant input resistance of

10 MΩ in all voltage measuring ranges.

The multimeter is calibrated in RMS values for periodic sinusoidal

quantities. It makes use of full-wave rectification for the evaluation

of the arithmetic mean value.

All measuring ranges can be selected with the central measuring

range selector switch. The ranges are laid out in a clear-cut

fashion around the selector switch.

The measuring device and the display unit are enclosed in two

separate housing components which are connected to each

other by means of a hinge which can be snapped into various

positions. In this way, the ideal angle for ease of reading can be

selected with the instrument in any position.

Applicable Regulations and Standards

IEC/EN 61010-1:2001

VDE 0411-1:2002

DIN EN 61326

VDE 0843, part 20

DIN EN 60529

DIN VDE 0470, part 1

Safety requirements for electrical equipment for

measurement, control and laboratory use

Electrical equipment for control technology and

laboratory use – EMC requirements

Test instruments and test procedures

– Degrees of protection provided by enclosures (IP code)
