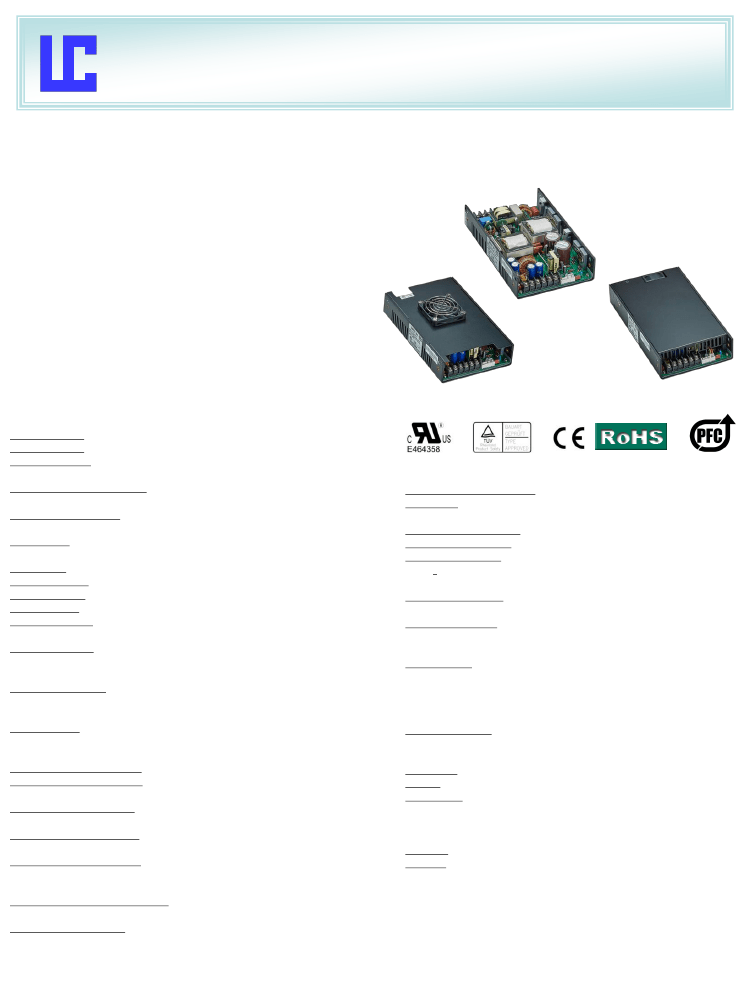

ULTRA LEVEL TECH CO., LTD.
www.ultralevel.com.tw
Tel:+886-2-29180118
Fax:+886-2-29181465
We Supply the Power Customers Need
ISO9001
PRL1301 SINGLE OUTPUT SERIES 300W ~ 600W AC TO DC ACTIVE
PFC SWITCHING POWER SUPPLY SPECIFICATION
FEATURES:
◆
600W high power density (Max. 9.3 watts per cubic inch) with 1U
height
◆
Design meets IEC/EN/UL60950-1 Latest Edition
◆
Active Power Factor Corrected to EN61000-3-2 class D
◆
Peak Power 900W within 500uS Duty Duration
◆
High Quality & Reliable Component Usage
◆
U-Chassis & Enclosed with built-in fan Mechanical Options
◆
Output Voltages for single output from 3 ~ 60Vdc
◆
Full Range AC Input
F type: 8(L)☓5(W)
☓
2 (H) inches
E type: 9(L)☓5(W)
☓1.6(H)
inches
U type: 8(L) x 5(W) x 1.6(H) inches
PRODUCT SPECIFICATIONS:
Input Voltage:
90 ~ 264Vac full range, 47 ~ 63Hz.
Input Current:
8.5A at 90Vac full load.
Inrush Current:
70A peak maximum.(Measuring at 230VAC and full load
cold start.)
Power Factor Correction:
Power factor correction meets EN61000-3-2
class D
Transient Response:
Output voltage returns to within 1% in less than
2.5mS for a 50% load change and the peak transient does not excess 5%.
Overshoot:
Turn-on and turn-off overshoot should not exceed 5% over
nominal voltage.
Efficiency:
80% minimum (Measuring at 115V and full load).
Turn On Delay:
2 second maximum at 115 VAC.
Hold Up Time:
16ms minimum at 115Vac and 75% of rated maximum load.
Adjustability:
Output user adjustable +/-5% minimum.
Remote On-Off:
Designated as RSW on the CN3, Requires a low signal to
inhibit output.
Remote Sense:
Designated as RS+ and RS- on the CN3, max. 0.5V
compensation for cable losses with respect to the main output voltage under
15V units.
Power Supply On:
When the Bi-color LED emit green light that indicates
the supply is operating. When any protection is occurred or RSW is applied
a low signal, the Bi-color LED will emit orange light.
Power Good:
Designated as PG on CN3. This signal will go high 100-500
ms after the output reaches the regulation limit. It goes low at least 1 ms
before loss of regulation and has ability to sink 100mA.
Input Fusing Protection:
One T10A/250V fuse inserted in primary.
Input Voltage Protection:
Power shut down under 80 +/-10Vac, and
recovered over 90Vac.
Over-Power Protection:
Total power limits at 110-140% of the rated output
current and recovers automatically.
Short Circuit Protection:
Short circuit can be continuous without damage
and recovers automatically
Over Voltage Protection:
Output is protected against over voltage. Unit
latching down will occur when output exceed 130% max., and recycle AC
input to reset
Over-Temperature Protection:
Power supply protected in the event of
excessive operating ambient 110±5 degree C, and automatic recovery.
Switching Frequency:
60kHz PFC, 28 kHz PWM
Operating Temperature:
0℃ to 50℃ ambient.
Vibration:
Frequency 5 to 50 Hz, Acceleration +/-7.35 M/ (SxS) on
X,Y and Z Axis
Storage Temperature:
-20℃ to 85℃.
Operating Humidity:
5% to 90% RH, Non-condensing.
Storage Humidity:
5% to 95% RH, Non-condensing.
EMC :
Meet CE(EN 55022 & EN 55024),FCC(Part 15 Subject J
class B, CISPR 22 class B).
Safety Regulation:
Approved UL60950-1, EN60950 and CB
certificate available.
Leakage Current:
The AC leakage current shall not exceed 3.5mA
when the power supply is connected to a supply voltage equal to
the upper limit of the rated voltage range.
HI-POT Test:
The power supply shall withstand for 3 Sec without
breakdown the application of a 1500 VAC supply voltage applied
between both input line and chassis (10mA ac cut off current).
Isolating transformers shall withstand 3000VAC applied between
primary and secondary windings and primary to core 1500VAC.
Grounding Test:
Apply 25 A current from the ground pin of the
three prong plug to the far most earthed connection point. The
maximum allowable resistance measured during the test is 0.1ohm.
Warranty:
2 years.
MTBF:
100000 Hrs (according to MIL-HBK-217F) at 30
℃
.
Enclosure:
U Type: 8(L) x 5(W) x 1.6(H) inches
E Type: 9(L)☓5(W)
☓1.6(H)
inches
F Type: 8(L)☓5(W)
☓
2 (H) inches
Burn in:
45 +/- 5 degree C for 1 hour @230Vac with full load.
Weight:
Maximum weight is 1600g.
Copy Right Ultra Level Tech Co., Ltd 2015, All Right Reserved. Specifications subject to change without notice.
ULTRA LEVEL TECH CO., LTD.
www.ultralevel.com.tw
Tel:+886-2-29180118
Fax:+886-2-29181465
We Supply the Power Customers Need
ISO9001
OUTPUT VOLTAGE / CURRENT RATING CHART:
Measured at output power connector.
Model Name
PRL1301-05
PRL1301-10
PRL1301-12
PRL1301-15
PRL1301-18
PRL1301-24
PRL1301-28
PRL1301-36
PRL1301-48
PRL1301-54
Output Range
3– 5V
6– 10V
11– 13V
13.5– 16V
17 – 21V
22 – 25V
26 – 30V
31 – 40V
41 – 50V
51– 60V
Preset
Voltage
5V
10 V
12 V
15 V
18V
24V
28V
36V
48V
54V
Max. Output Current/Power
100A
60A
600W
600W
600W
600W
600W
600W
600W
600W
Regulation
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
+/- 1%
Ripple &
Noise
80mV
1%
1%
1%
1%
1%
1%
1%
1%
1%
Note:
•PRL1301 series are designated as PRL1301x-y where x can be E (enclosed type with end side built-in fan), U (U-chassis) or F (with top
cover and a built-in fan),y can be 05, 10, 12, 15, 18, 24, 28, 36, 48 or 54.
•Providing peak power to 900W within 500uS for all models, longer duty duration need contact manufacture.
•All output range are covered in agencies certification and the preset voltage will be set as standard models if any request is not preset
output then should contact us in advance.
•For models U chassis type which need external forced airflow min. 25 CFM to achieve maximum power.
•1% minimum load is required to maintain the ripple and regulation.
•Output is fully isolated
•Ripple and noise is measured from 10KHZ to 20MHz bandwidth at output terminals with parallel 0.1µF ceramic and 22µF electrolytic
capacitors.

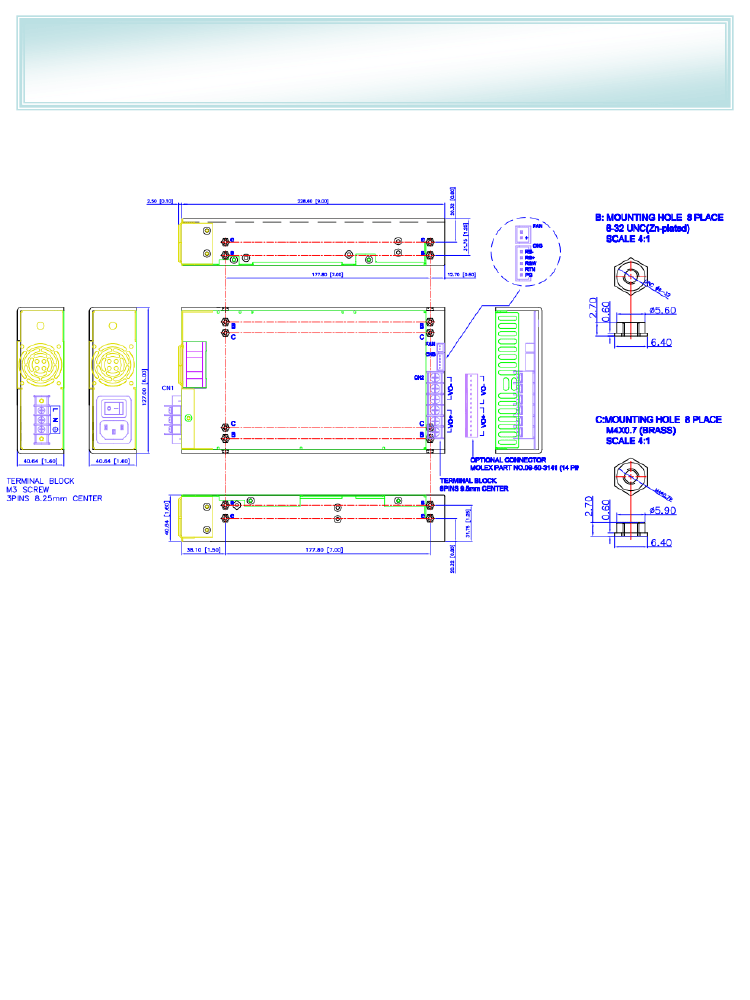

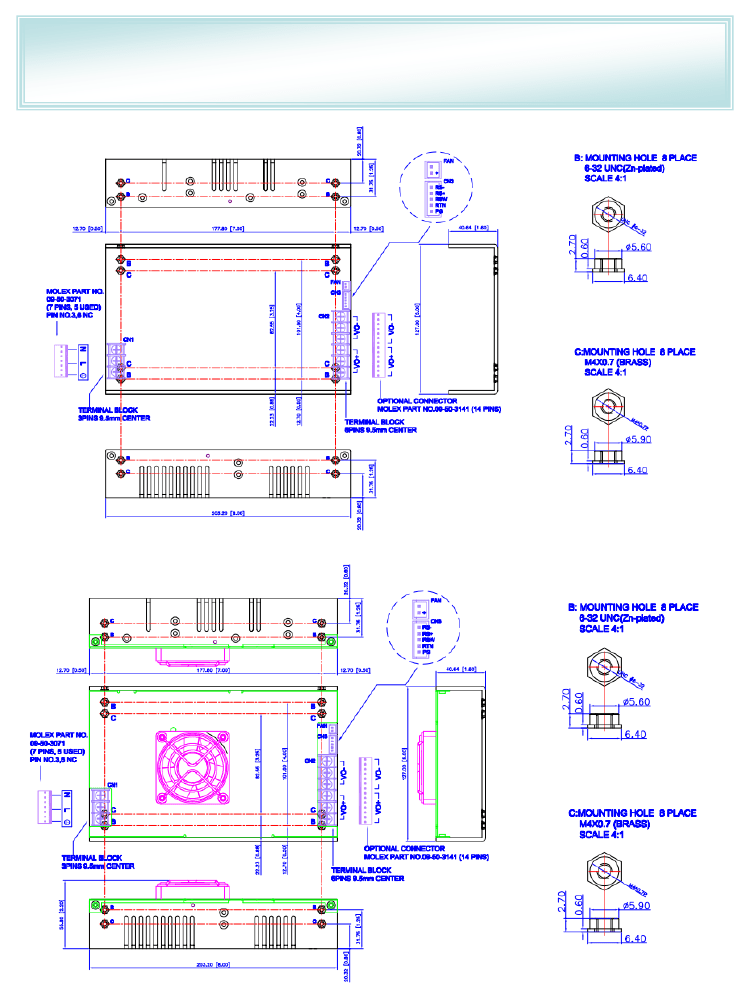

OUTLINE DRAWING:
Input Connector (CN1):
Mating Molex Part No. 09-50-3071 or equivalent (7 pin,5 used)
Howder Terminal block Part No. HD-121-3P
Output Connector (CN2):
Howder Terminal block Part No. HD-121-6P
Mating Molex Part No. 09-50-3141 (14 pin)
Output Pin Assignment:
(See table in right).
Mounting Inserts:
6-32, M4 4Places individually with maximum penetration 0.15” on bottom
side and 0.25” on both side
Logic signal connector (CN3):
Mating JST XHP-3 or equivalent (CHYAO SHIUNN JS-1001-05)
Mating Pins: JST SXH-002T-P0.6 FOR AWG 30 TO 26
PIN1: RS- PIN2: RS+ PIN3: RSW PIN4: RTN PIN5: P.G
Howder
Pins 1 ~ 3: VO+
Pins 4 ~ 6: VO-
Molex
Pins 1 ~ 7: VO+
Pins 8~ 14: VO-
Copy Right Ultra Level Tech Co., Ltd 2015, All Right Reserved. Specifications subject to change without notice.
