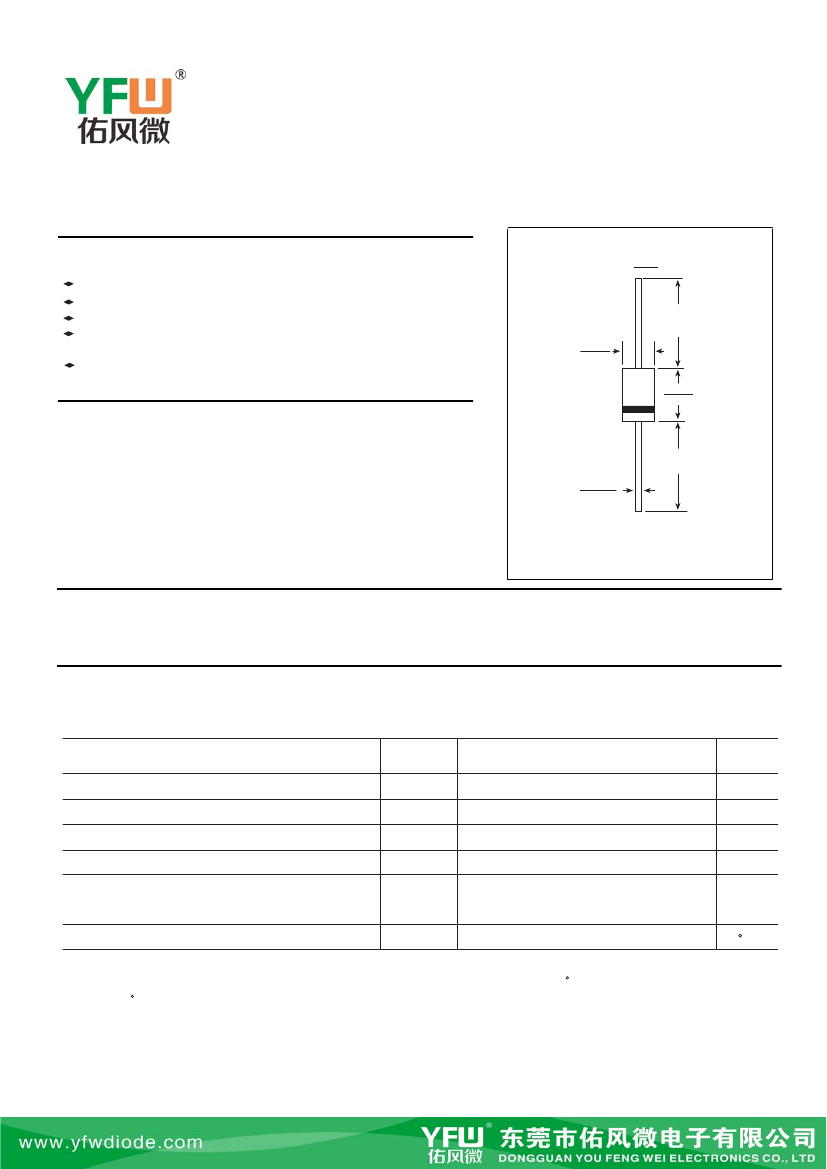

5000W Transient Voltage Suppressors
Features
5000w peak pulse power capability
Excellent clamping capability
Low incremental surge resistance
Fast response time:typically less than 1.0ps from 0v to
V
BR
for unidirectional and 5.0ns ror bidirectional types.
High temperature soldering guaranteed:
265°C/10S/9.5mm lead length at 5 lbs tension
5KP5.0~5KP110CA
R-6
1.0 (25.4)
MIN.
0.360(9.1)
0.340(8.6)
DIA.
0.360(9.5)
0.340(8.6)
Mechanical Data
Case
: R-6 molded plastic body over passivated junction
Terminals
: Plated axial leads, solderable per MIL-STD-750, Method 2026
Polarity
: Color band denotes cathode except for bidirectional types
Mounting Position
: Any
Weight
: 0.072 ounce,2.05 grams
Dimensions in inches and (millimeters)
0.052(1.3)
0.035(0.9)
DIA.
1.0 (25.4)
MIN.
Available in unidirectional only
Devices For Bidirectional Applictions
For bidirectional use suffix C or CA for types 5KP5.0 thru 5KP110 (e.g. 5KP5.0CA,5KP110CA)Electrical
characteristics apply in both directions.
Maximum Ratings And Electrical Characteristics
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
Peak power dissipation
Peak pulse reverse current
(Note 1)
(Note 1, Fig.3)
Pppm
Ippm
P
M(AV)
I
FSM
V
F
T
STG
,T
J
VALUE
Minimum 5000
See Table 1
8.0
400
3.5
-55 to + 175
UNITS
Watts
Amps
Watts
Amps
Volts
C
Steady state power dissapation (Note 2)
Peak forward surge current
(Note 3)
Maximum instantaneous forward voltage at 100A
for unidirectional only
(Note 3)
Operating junction and storage temperature range
Notes:
1.10/1000μs
waveform non-repetitive current pulse,per Fig.3 and derated above Ta=25 C per Fig.2
2.T
L
=75 C,lead lengths 9.5mm,Mounted on copper pad atea of (20x20mm)Fig.5
3.Measured
on 8.3ms single half sine-wave or equivalent square wave,duty cycle=4 pulses per minute maximum.
Electrical Characterisitics
(at T
A
=25°C unless otherwise noted)
Device Type
5KP36
5KP36A
5KP40
5KP40A
5KP43
5KP43A
5KP45
5KP45A
5KP48
5KP48A
5KP51
5KP51A
5KP54
5KP54A
5KP58
5KP58A
5KP60
5KP60A
5KP64
5KP64A
5KP70
5KP70A
5KP75
5KP75A
5KP78
5KP78A
5KP85
5KP85A
5KP90
5KP90A
5KP100
5KP100A
5KP110
5KP110A
Maximum
Breakdown Voltage
Maximum
Reverse
V
(BR)
Test Stand-off
Peak Pulse
Leakage
(Volts)
(NOTES 1)
Current Voltage
Reverse Current
V
WM
atV
WM
I
T
(mA)
I
PPM(NOTE2)
(Volts) I
D(NOTE3)
(μA)
MIN
MAX
(Amps)
40.00
40.00
44.40
44.40
47.80
47.80
50.00
50.00
53.30
53.30
56.70
56.70
60.00
60.00
64.40
64.40
66.70
66.70
71.10
71.10
77.80
77.80
83.30
83.30
86.70
86.70
94.40
94.40
100.00
100.00
111.00
111.00
122.00
122.00
48.90
44.20
54.30
49.10
58.40
52.80
61.10
55.30
65.20
58.90
69.30
62.70
73.30
66.30
78.70
71.20
81.50
73.70
86.90
78.60
95.10
86.00
102.00
92.10
106.00
95.80
115.00
104.00
122.00
111.00
136.00
123.00
149.00
135.00
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
36.00
36.00
40.00
40.00
43.00
43.00
45.00
45.00
48.00
48.00
51.00
51.00
54.00
54.00
58.00
58.00
60.00
60.00
64.00
64.00
70.00
70.00
75.00
75.00
78.00
78.00
85.00
85.00
90.00
90.00
100.00
100.00
110.00
110.00
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
64.3
58.1
71.4
64.5
76.7
69.4
80.3
72.7
85.8
77.4
91.1
82.4
96.3
87.1
103.0
93.6
107.0
96.8
114.0
103.0
125.0
113.0
134.0
121.0
139.0
126.0
151.0
137.0
160.0
146.0
179.0
162.0
196.0
177.0
Maximum
Clamping
Voltage at
I
PPM
Vc(Volts)
77.8
86.1
70.1
77.6
65.2
72.1
62.3
68.8
58.5
64.7
54.9
60.7
52.0
57.5
48.6
53.5
46.8
51.7
43.9
48.6
40.0
44.3
37.4
41.4
36.0
39.7
33.2
36.5
31.3
34.3
28.0
30.9
25.6
28.3
Maximum
Temperature
Coefficient
of V
(BR)
(%/ C)
0.104
0.104
0.105
0.105
0.105
0.105
0.106
0.106
0.106
0.106
0.107
0.107
0.107
0.107
0.107
0.107
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.110
0.110
0.110
0.110
0.112
0.112
NOTES:
1.V
(BR)
measured after I
T
applied for 300μs,I
T
=square wave pulse or equivalent
2.Surge current waveform per Fig.3 and derated per Fig.2
3.All items and symbols are consistent with ANSI/IEEE C62.35

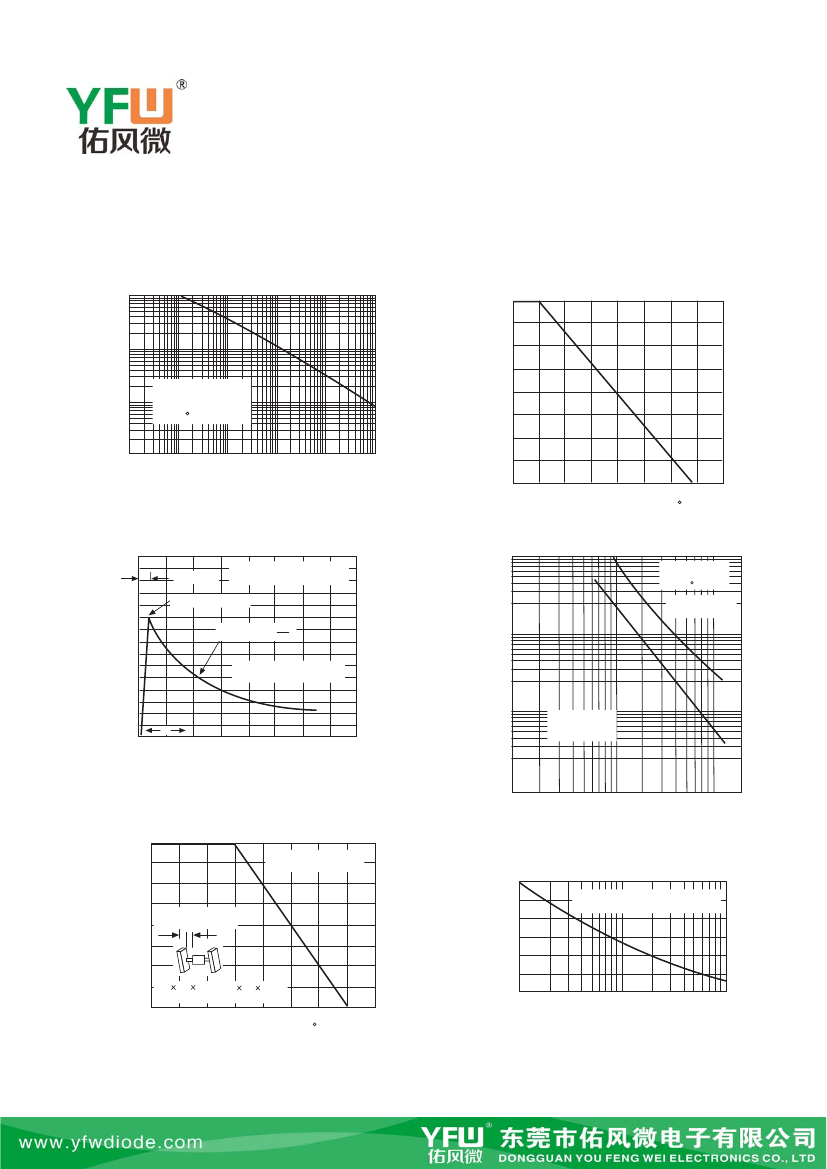

Ratings And Characteristic Curves
5KP5.0 THRU 5KP110
100
PEAK PULSE POWER(Ppp
M
)or CURRENT(Ipp
M
)
DERATING IN PERCENTAGE,%
FIG. 1-PEAK PULSE POWER RATING CURVE
Ppp
M
,PEAK PULSE POWER,kw
FIG. 2-PULSE DERATING CURVE
100
10
75
1.0
NON-REPETITIVE
PULSE WAVEFORM
SHOWN in FIG.3
T
A
=25 C
50
25
0.1
0.1μs
1.0μs
10μs
100μs
1.0ms
10ms
td,PULSE WIDTH,sec.
0
0
25
50
75
100
125
150
175
200
T
A
,
AMBIENT TEMPERATURE,( C)
FIG. 4-TYPICAL JUNCTIONAL CAPACITANCE
FIG.3-PULSE WAVEFORM
150
100,000
PULSE WIDTH (td) is DEFINED
as the POINT WHERE the PEAK
CURRENT DECAYS to 50% of Ipp
M
Ipp
M
,PEAK PULSE CURRENT,%
tr=10μsec
f=1.0MHz
Vsig=50mVp-p
T
J
=25 C
PEAK VALUE Ipp
M
100
C
J
,JINCTION CAPACITANCE,pF
MEASURED at
ZERO BIAS
10,000
HALF VALUE
I
PPM
2
10/1000μsec WAVEFORM
as DFINED by R.E.A.
50
1,000
0
0
td
1.0
2.0
3.0
4.0
MEASURED at
ATAND-OFF
VOLTAGE,V
WM
t,TIME,ms
100
1
10
100
200
V
(BR)
,BREAKDOWN VOLTAGE,VOLTS
FIG.5-STEADY STATE POWER DERATING CURVE
8
PM
(AV)
,STEADY STATE POWER
DISSIPATION,WATTS
60Hz RESISTIVE
OR INDUCTIVE LOAD
I
FSM
,PEAK FORWARD SURAGE
CURRENT AMPERES
6
400
350
300
250
200
150
100
FIG.6-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
4
L=0.375” (9.5mm)
lLEAD LENGTHS
2
1.6 1.6 0.040”(40 40 1mm)
COPPER HEAT SINKS
0
0
25
50
75
100
125
150
175
200
1.0
10
100
T
L
,LEAD TEMPERATURE, C
NUMBER OF CYCLES AT 60Hz
