8X-2-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 8X-2-RC

8X-2-RC: DescriptionRESISTOR, NETWORK, FILM, ISOLATED, 1 W, THROUGH HOLE MOUNT; CategoryPassive components; File Size237KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

8X-2-RC Overview

RESISTOR, NETWORK, FILM, ISOLATED, 1 W, THROUGH HOLE MOUNT

8X-2-RC Parametric

Parameter Name	Attribute value
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
Number of functions	4
Number of terminals	8
Processing package description	SIP, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR PACKAGE
Terminal shape	FLAT
terminal coating	TIN SILVER COPPER
Installation features	THROUGH HOLE MOUNT
Rated temperature	70 Cel
Manufacturer Series	4600X
deviation	2 %
Craftsmanship	METAL GLAZE/THICK FILM
Network Type	ISOLATED
Resistor type	FILM
Operating Voltage	100 V
Number of components	1
Temperature Coefficient	100
The first resistive element	22000 ohm
Component power consumption	0.3000 W
Rated power P	1 W
Temperature coefficient tracking	50 ppm/Cel

Preview

Download Datasheet

View All

Ro VER LEA

H S SI D F

CO ON RE

M SA E

PL R

IA E

Features

■

Lead free version available (see How to

Order “Termination” option)

RoHS compliant (lead free version)*

Low profile is compatible with DIPs

Wide assortment of pin packages

enhances design flexibility

Ammo-pak packaging available

■

Recommended for rosin flux and solvent

clean or no clean flux processes

Marking on contrasting background for

permanent identification

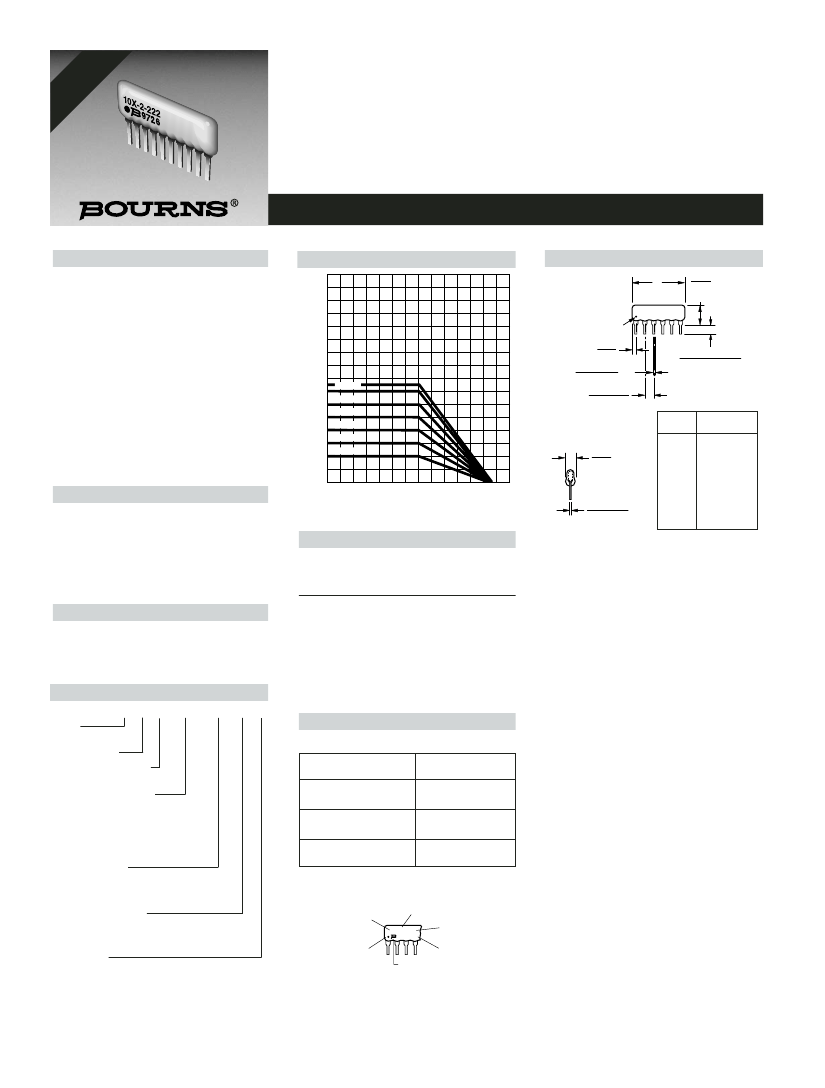

4600X Series - Thick Film Conformal SIPs

Product Characteristics

Resistance Range

......................10 ohms to 10 megohms

Maximum Operating Voltage..........100 V

Temperature Coefficient of Resistance

Ω

to 2.2 MΩ................±100 ppm/°C

below 50

Ω

......................±250 ppm/°C

above 2.2 MΩ..................±250 ppm/°C

TCR Tracking .........................50 ppm/°C

maximum; equal values

Resistor Tolerance ................See circuits

Insulation Resistance

..................10,000 megohms minimum

Dielectric Withstanding Voltage

.............................................200 VRMS

Operating Temperature

.................................-55 °C to +125 °C

Environmental Characteristics

TESTS PER MIL-STD-202.........∆R MAX.

Short Time Overload..................±0.25 %

Load Life ....................................±1.00 %

Moisture Resistance ..................±0.50 %

Resistance to Soldering Heat ....±0.25 %

Terminal Strength.......................±0.25 %

Thermal Shock...........................±0.25 %

Physical Characteristics

Flammability .........Conforms to UL94V-0

Body Material........................Epoxy resin

Standard Packaging

....................Bulk, Ammo-pak available

How To Order

Package Power Temp. Derating Curve

Product Dimensions

MAXIMUM

3.50

3.00

2.50

2.00

4614X

1.50

1.00

.50

4612X

4610X

4608X

4606X

4604X

5.08

(.200)

MAX.

PIN #1

REF.

MAX. 1.24

BOTH ENDS (.049)

.508

.050

TYP.

(.020

.002)

2.54

.07

(.100

.003*)

TYP.

NON-ACCUM.

WATTS

3.43 +.38/ -.508

(.135 +.015/ -.020)

2.49

MAX.

(.098)

125

AMBIENT TEMPERATURE (

C )

.254

.050

MAX.

(.010

.002)

Count

A Maximum

mm (Inches)

10.11 (.398)

12.65 (.498)

15.19 (.598)

17.73 (.698)

20.27 (.798)

22.81 (.898)

25.35 (.998)

27.89 (1.098)

30.43 (1.198)

32.97 (1.298)

35.51 (1.398)

Package Power Ratings (Watts)

Ambient

Temperature

Pkg.

0.50

0.63

0.75

0.88

1.00

1.13

4610X

4611X

4612X

4613X

4614X

Ambient

Temperature

1.25

1.38

1.50

1.63

1.75

Maximum package length is equal to 2.54mm (.100") times the

number of pins, less .005mm (.002").

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

Pkg.

4604X

4605X

4606X

4607X

4608X

4609X

46 06 X - 101 - 222 __ __

Model

(46 = Conformal SIP)

Number of Pins

Physical Configuration

(X = Thick Film Low Profile)

Electrical Configuration

• 101 = Bussed

• 102 = Isolated

• 104 = Dual Terminator

• AP1 = Bussed Ammo**

• AP2 = Isolated Ammo**

• AP4 = Dual Ammo**

Resistance Code

• First 2 digits are significant

• Third digit represents the number of

zeros to follow.

Resistance Tolerance

• Blank = ±2 % (see “Resistance Tolerance”

on next page for resistance range)

• F = ±1 % (100 ohms - 5 megohms)

Terminations

• All electrical configurations EXCEPT 104 & AP4:

LF = Tin-plated (lead free)

• ONLY electrical configurations 104 & AP4:

L = Tin-plated (lead free)

• Blank = Tin/Lead-plated

Consult factory for other available options.

**Available for packages with 10 pins or less.

Typical Part Marking

Represents total content. Layout may vary.

Part Number

4606X-101-RC

4608X-102-RC

4610X-104-RC/RC

Part Number

6X-1-RC

8X-2-RC

10X-4-RC/RC

RC = ohmic value, 3-digit resistance code.

NUMBER OF PINS

CIRCUIT

6X-2-222

YYWW

PIN ONE

INDICATOR

RESISTANCE

CODE

DATE CODE

MANUFACTURER'S

TRADEMARK

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

8X-2-RC Related Products

	8X-2-RC	10X-4-RC
Description	RESISTOR, NETWORK, FILM, ISOLATED, 1 W, THROUGH HOLE MOUNT	RESISTOR, NETWORK, FILM, ISOLATED, 1 W, THROUGH HOLE MOUNT
Maximum operating temperature	125 Cel	125 Cel
Minimum operating temperature	-55 Cel	-55 Cel
Number of functions	4	4
Number of terminals	8	8
Processing package description	SIP, ROHS COMPLIANT	SIP, ROHS COMPLIANT
Lead-free	Yes	Yes
EU RoHS regulations	Yes	Yes
state	ACTIVE	ACTIVE
packaging shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Terminal shape	FLAT	FLAT
terminal coating	TIN SILVER COPPER	TIN SILVER COPPER
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Rated temperature	70 Cel	70 Cel
Manufacturer Series	4600X	4600X
deviation	2 %	2 %
Craftsmanship	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Network Type	ISOLATED	ISOLATED
Resistor type	FILM	FILM
Operating Voltage	100 V	100 V
Number of components	1	1
Temperature Coefficient	100	100
The first resistive element	22000 ohm	22000 ohm
Component power consumption	0.3000 W	0.3000 W
Rated power P	1 W	1 W
Temperature coefficient tracking	50 ppm/Cel	50 ppm/Cel
