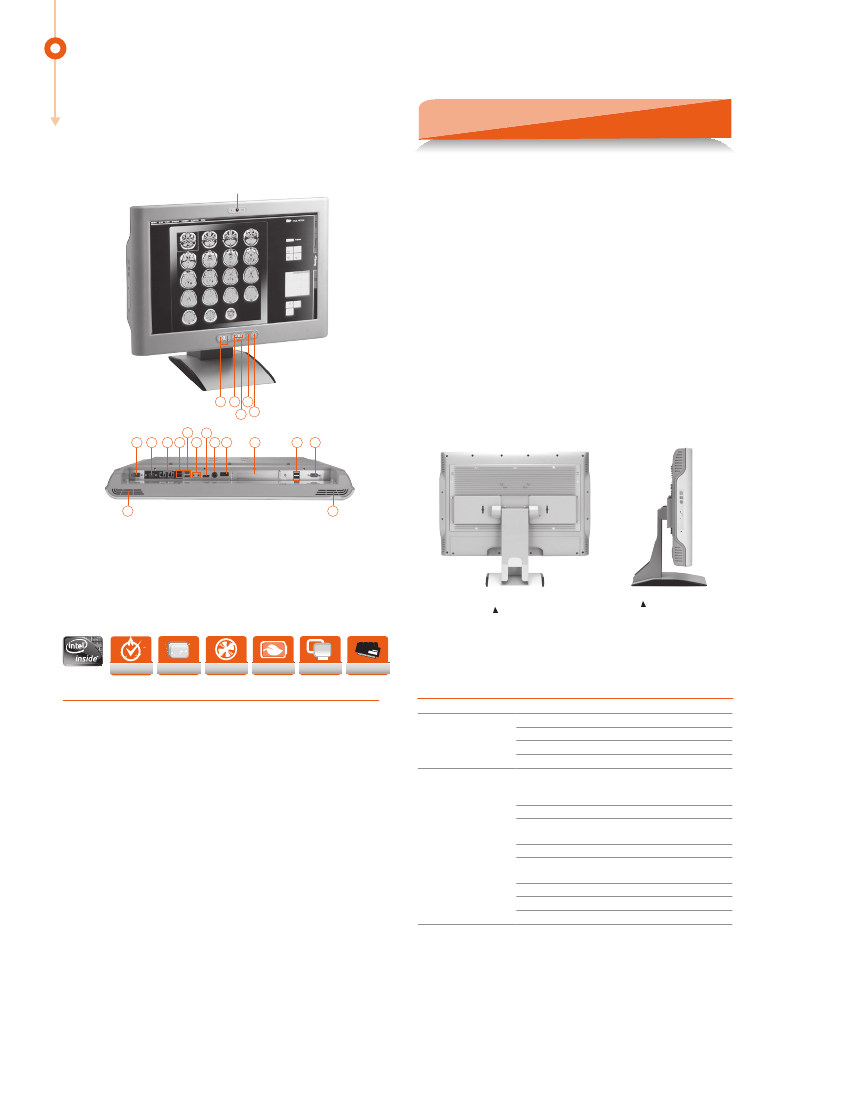

MPC225-873
22" TFT Fanless Medical Grade Panel
Computer with Intel® Core™ i7/i5/i3 &
Celeron® Processor
Camera
Features
●
22" (250 nits) WSXGA TFT LCD
●
Socket rPGA988B 3rd generation Intel® Core™ i7/i5/i3
(Ivy Bridge) & Celeron® processor
●
Intel® QM77 chipset
●
Isolated COM, USB and Ethernet ports
●
USB 3.0 supported
●
Water/dust-proof design (front bezel: IP65, full enclosure:
IPX1)
●
1 PCI or PCIe x4 expansion slot and 2 PCIe Mini Card slots
●
Optional Bluetooth/Wi-Fi (802.11 a/b/g/n)
●
Built-in 5 mega pixels camera
●
Touch screen on/off key for clean usage
●
UL60601-1, EN60601-1, CE & FCC class B certified
●
Supports optional wall mount, VESA arm and desktop stand
1
11 13
9 10 12 14 15
2 3
4 5
16
17 18
7
8
6
1. Brightness Adjust buttons
2. Volume adjust buttons
3. Power LED
4. MIC
5. Touch on/off button
6. Speaker (R)
7. COM 2 (RS-232)
8. Isolated COM 1
(RS-232/422/485)
9. Isolated Ethernet x 2
10. Isolated USB x 2
11. USB 3.0 x 2
12. Audio (Line-out/Mic-in)
19
13. DisplayPort
14. Power connector
15. Power switch
16. PCI or PCIe slot
17. USB 2.0 x 2
18. COM 3 (RS-232)
19. Speaker (L)
Rear view
Slim design
DDR3
IP65
IPX1
Fanless
Low Power
DualView
DDR3
Introduction
The MPC225-873 is a 22-inch slim TFT fanless medical grade panel computer, which
is well-suited for applications like medical image processing and medical measuring
instrument. Especially designed for the medical environment, it adopts IPX1 waterproof
design which protects the entire system from outside liquid, preventing system from
crashing. The Isolated COM/USB/LAN port design provides electric leakage protection in
medical environment. Powered by socket rPGA988B 3rd Generation Intel® Core™ i7/i5/i3
processor and PCI expansion slot, the MPC225-873 is definitely the best choice for your
medical computing platform.
This medical panel platform complies with UL60601-1, EN60601-1, CE, FCC Class B
certifications to ensure medical operation safety. It is outfitted with 22-inch wide
view angle WSXGA TFT LCD display. Additionally, the MPC225-873 offers flexible CPU
selection with socket type which reduces cost, increases convenience over onboard
CPU, and still maintains a fanless operation as well as long product life cycle. For
expansion capability, the unit supports one PCI or PCIe x4 slot and two mini card slots
for video capture card, data acquisition card, Wi-Fi, mSATA and more. The built-in 5
mega pixels camera, microphone and stereo speakers allow medical professionals to
execute remote operation. Bluetooth is an available option for wireless connection with
medical peripheral devices. Optional Wi-Fi (802.11 a/b/g/n) allows wireless real-time
connection of patient record for assessment. To improve patient treatment accuracy, the
optional RFID (radio frequency identification) offers an efficient way to validate patient
identification and give proper treatment.
Specifications
Front Bezel
LCD Panel
Plastic ABS
Display Type
Brightness (cd/m
2
)
Resolution
Viewing Angle (H/V)
CPU
22" WSXGA TFT
250 nits
1680 x 1050
178°/178°
Socket rPGA988B 3rd generation
Intel® Core™ i7/i5/i3 & Celeron®
processor, TDP up to 35W
Intel® QM77
2 x 204-pin DDR3 SO-DIMM max.
up to 16 GB
AMI UEFI BIOS with OA 3.0 built
1 x 2.5" SATA HDD
1 x mSATA SSD (optional)
1 x Super Multi drive (optional)
255 levels, 0~255 sec.
Intel® HD Graphic
Main System
Chipset
System Memory
BIOS
Storage
Optical Drive
Watchdog Timer
Onboard Graphics
649
* All specifications and photos are subject to change without notice.
Specifications
I/O Connector
2 x RS-232 (COM 2/3)
1 x RS-232/422/485 (COM 1 w/ isolated 4KV)
2 x 10/100/1000Mbps Ethernet (isolated 4KV)
2 x USB 2.0 (isolated 4KV)
2 x USB 2.0
2 x USB 3.0
1 x Audio (Line-out)
1 x Audio (Mic-in)
1 x DisplayPort
1 x PCI or 1 x PCIe x4 slot (optional)
2 x PCIe Mini Card slot
2 x 2W
1 x 5M pixels camera
5-wire resistive type
LCD brightness up/down, audio volume up/down, touch off/on
External 24VDC with AC/DC medical grade power adapter
573.5 mm (22.57") (W) x 75.9 mm (2.98") (D) x 398.9 mm
(15.7") (H)
730 mm (28.74") (W) x 240 mm (9.45") (D) x 650 mm (25.59") (H)
10.58 kg (23.32 lb)/15.16 kg (33.42 lb)
Operating temperature: 0°C ~ +40°C (+32°F ~ +104°F)
Storage temperature: 0°C ~ +40°C (+32°F ~ +104°F)
Relative humidity: 20% ~ 90% @ 40°C; non-condensing
CE, FCC class B, EN60601-1, UL60601-1
Ordering Information
MPC225-873-UL-NP-DRW 22" WXGA fanless medical touch panel computer with
Intel® Core™ processor, 5-wire reisitive touch screen,
super multi drive, AC-DC 150W medical grade power
adapter (screw type connector), EMI class B, UL60601-1 and
EN60601-1 certified
MPC225-873-UL-NP w/o 22" WXGA fanless medical touch panel computer with
DRW
Intel® Core™ processor, 5-wire resistive touch screen,
AC-DC 150W medial gradepower adapter (screw type
connector), EMI class B, UL60601-1 and EN60601-1 certified
* Specification and certifications are based on options and may vary.
**Super Multi drive includes DVD-R, DVD-RW and DVD-RAM.
Overview
Fanless
Touch Panel
Computers
Expansion Interface
Speaker
Camera
Touchscreen
Function Key
Power Supply
Dimensions
Packing Dimensions
Weight (net/gross)
Environment
Optional Accessories
E202003330
E202003329
E228170100
VM-101 VESA ARM (clamp type)
VM-105 VESA ARM (wall mount type)
22" stand kit
Heavy-duty
Fanless Touch
Panel Computers
Optional OS Installation
Windows® XP
Windows® 7
WES7
Windows® 8.1
WE8S
Industrial
Touch Panel
Computers
Certificate
Industrial Touch
panel Monitors
Infotainment
Touch Panel
Computers
6

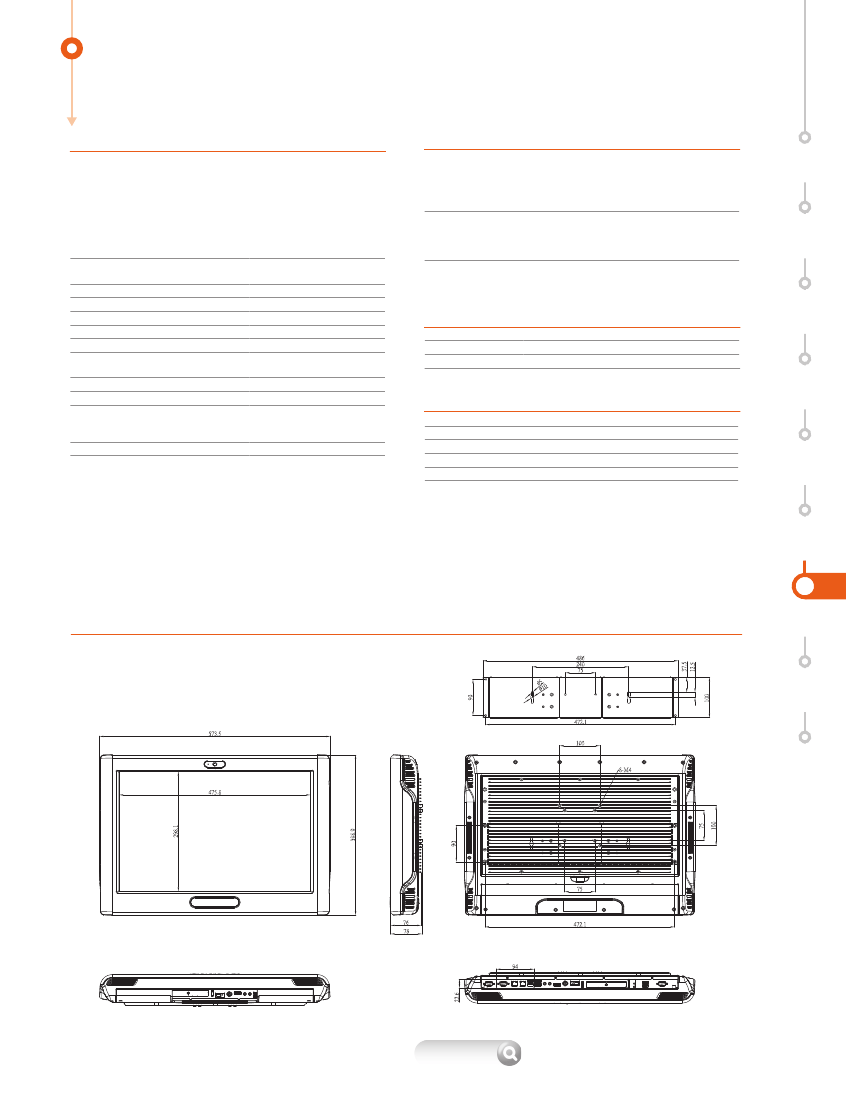

Dimensions
Healthcare
& Medical
Solutions
Open
Frame Panel
Computers
Accessories
* All specifications and photos are subject to change without notice.
