| ABB
NF
Contactor Relays
Overview
..................................................................................................................................... 3
Ordering Details
– NF Contactor Relays................................................................................................................... 4
– NF..Z Additional Coils .................................................................................................................. 5
Technical Data
............................................................................................................................ 6
Main Accessory Fitting Details
................................................................................................... 9
Accessory Ordering Details and Technical Data
...................................................................... 10
Terminal Marking and Positioning
............................................................................................ 13
Dimensions
................................................................................................................................ 15
ABB |
1
1SBC 101 148 S0201
2
| ABB
1SBC 101 134 S0201

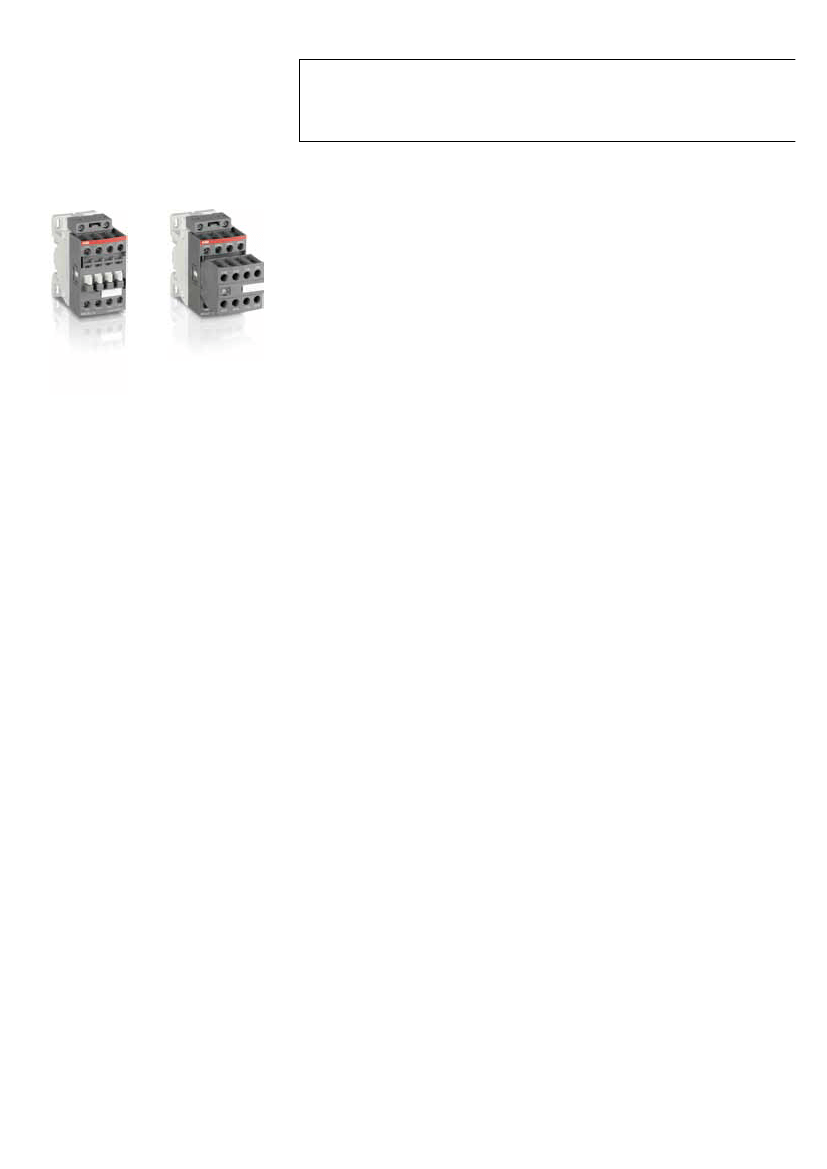

Contactor
Relays
AC / DC control voltage
NF22E
NF31E
NF40E
4 N.O.
NF44E
NF53E
NF62E
NF71E
NF80E
8 N.O.
2 N.O. + 2 N.C. 3 N.O. + 1 N.C.
4 N.O. + 4 N.C. 5 N.O. + 3 N.C. 6 N.O. + 2 N.C. 7 N.O. + 1 N.C.
Control Circuit Switching
Rated operational current
AC-15
IEC
DC-13
UL/CSA
Pilot Duty
240 V
400 V
690 V
24 V
400 V
4A
3A
2A
6 A / 144 W
0.15 A / 60 W
A600, Q600

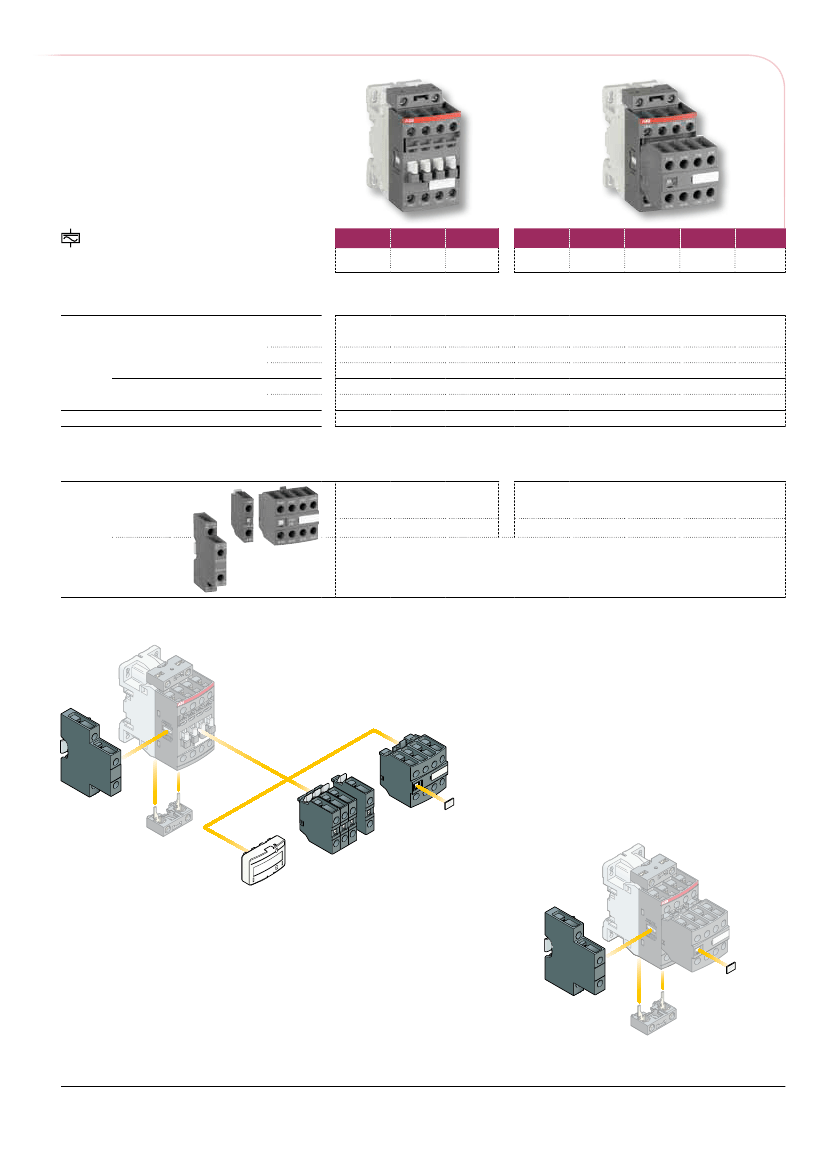

Main Accessories
Front mounting
1-pole
CA4-10
or
CA4-01,
CC4-10
or
CC4-01
4-pole
CA4
–
–
2-pole
CAL4
Auxiliary
contact
blocks
Side mounting
1-stack contactor relay
CA4
4-pole auxiliary contact block
CAL4
2-pole auxiliary
contact block
Top or bottom mounted
coil terminal block
CA4, CC4
1-pole auxiliary contact block
BX4
Protective cover
BX4-CA
Protective cover
2-stack contactor relay
BX4-CA
Protective cover
CAL4
2-pole auxiliary
contact block
Top or bottom mounted
coil terminal block
1SBC 101 131 S0201
ABB |
3
NF
Contactor Relays
AC / DC Operated - with Screw Terminals
Application
cULus
CE
Catalogue Page 1SBC 101 077 S0201
NF
contactor relays are used for switching auxiliary and control circuits.
Description
–
NF
contactor relays include an electronic coil interface accepting a wide control voltage
U
c
min. ...
U
c
max.
Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC
–
NF
contactor relays can manage large control voltage variations. One coil (i.e. 100...250 V 50/60 Hz - DC) can
be used for different control voltages used worldwide without any coil change
–
NFZ
contactor relays equipped with a
Z
coil type allow direct control by 24 V DC 500 mA PLC-output and obtain
a reduced holding coil consumption.
NFZ
contactor relays withstand short dips and voltage interruptions (SEMI F47-0706 compliance)
–
NF
contactor relays have built-in surge protection and do not require additional surge suppressors
– The contactor relays have mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 and
include the "Mechanically Linked" symbol on their side
– 8-pole contactor relays are mounted with a non-removable auxiliary contact block (2
nd
stack).

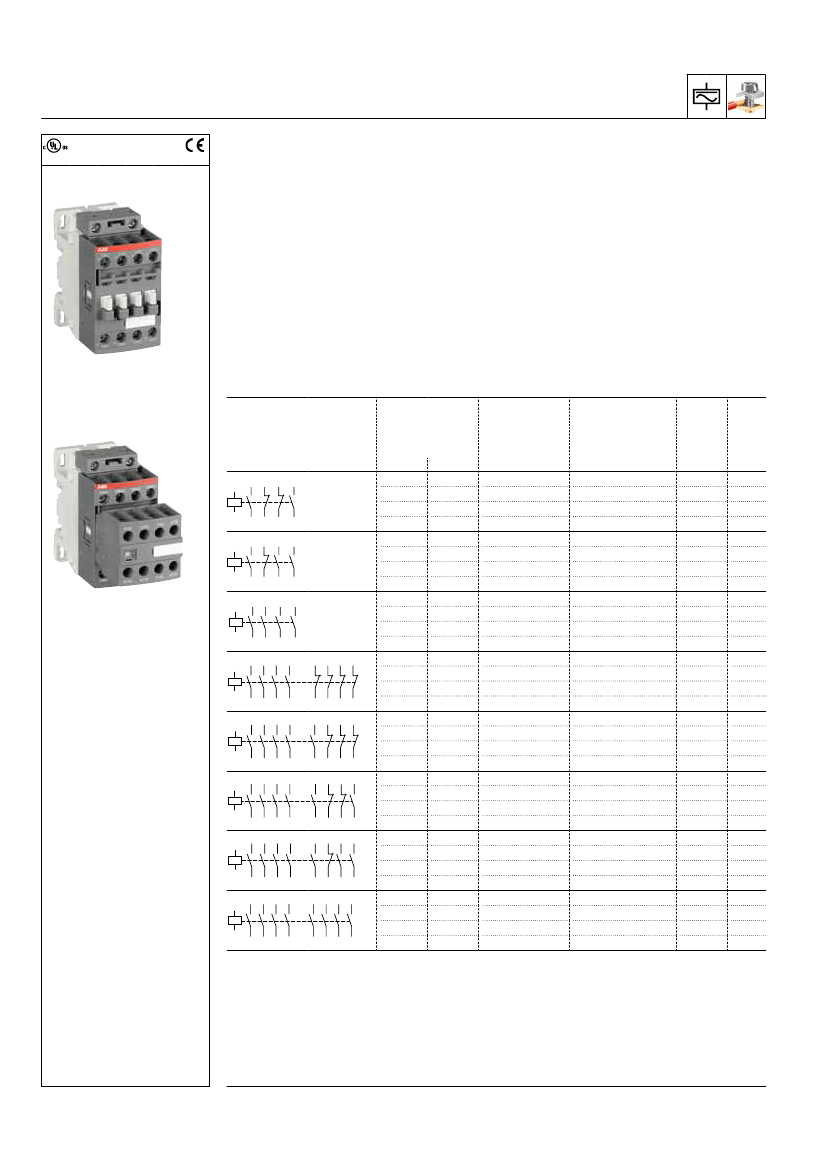

NF22E
Ordering Details
Number of contacts
1
st
stack
2
nd
stack
Control voltage
U
c
min. ... U
c
max.
Pack
(ing)
V 50/60 Hz
24...60
48...130
100...250
250...500
24...60
48...130
100...250
250...500
24...60
48...130
100...250
250...500
24...60
48...130
100...250
250...500
24...60
48...130
100...250
250...500
24...60
48...130
100...250
250...500
24...60
48...130
100...250
250...500
24...60
48...130
100...250
250...500
V DC
20...60
48...130
100...250
250...500
20...60
48...130
100...250
250...500
20...60
48...130
100...250
250...500
20...60
48...130
100...250
250...500
20...60
48...130
100...250
250...500
20...60
48...130
100...250
250...500
20...60
48...130
100...250
250...500
20...60
48...130
100...250
250...500
1 piece
kg
0.310
0.270
0.270
0.310
0.310
0.270
0.270
0.310
0.310
0.270
0.270
0.310
0.360
0.320
0.320
0.360
0.360
0.320
0.320
0.360
0.360
0.320
0.320
0.360
0.360
0.320
0.320
0.360
0.360
0.320
0.320
0.360
Type
Order code
Weight
A1
13
NO
21
NC
31
NC
43
NO
A2
NO
14
NC
22
NC
32
NO
44
A1
13
NO
21
NC
33
NO
43
NO
A2
NO
14
NC
22
NO
34
NO
44
NF44E
A1
13
NO
23
NO
33
NO
43
NO
A2
NO
14
NO
24
NO
34
NO
44
A1
13
NO
23
NO
33
NO
43
NO
51
NC
61
NC
71
NC
81
NC
A2
NO
14
NO
24
NO
34
NO
44
NC
52
NC
62
NC
72
NC
82
A1
13
NO
23
NO
33
NO
43
NO
53
NO
61
NC
71
NC
81
NC
A2
NO
14
NO
24
NO
34
NO
44
NO
54
NC
62
NC
72
NC
82
A1
13
NO
23
NO
33
NO
43
NO
53
NO
61
NC
71
NC
83
NO
A2
NO
14
NO
24
NO
34
NO
44
NO
54
NC
62
NC
72
NO
84
A1
13
NO
23
NO
33
NO
43
NO
53
NO
61
NC
73
NO
83
NO
A2
NO
14
NO
24
NO
34
NO
44
NO
54
NC
62
NO
74
NO
84
A1
13
NO
23
NO
33
NO
43
NO
53
NO
63
NO
73
NO
83
NO
A2
NO
14
NO
24
NO
34
NO
44
NO
54
NO
64
NO
74
NO
84
NFZ22E-21
NF22E-12
NF22E-13
NF22E-14
NFZ31E-21
NF31E-12
NF31E-13
NF31E-14
NFZ40E-21
NF40E-12
NF40E-13
NF40E-14
NFZ44E-21
NF44E-12
NF44E-13
NF44E-14
NFZ53E-21
NF53E-12
NF53E-13
NF53E-14
NFZ62E-21
NF62E-12
NF62E-13
NF62E-14
NFZ71E-21
NF71E-12
NF71E-13
NF71E-14
NFZ80E-21
NF80E-12
NF80E-13
NF80E-14
1SBH 136 001 R2122
1SBH 137 001 R1222
1SBH 137 001 R1322
1SBH 137 001 R1422
1SBH 136 001 R2131
1SBH 137 001 R1231
1SBH 137 001 R1331
1SBH 137 001 R1431
1SBH 136 001 R2140
1SBH 137 001 R1240
1SBH 137 001 R1340
1SBH 137 001 R1440
1SBH 136 001 R2144
1SBH 137 001 R1244
1SBH 137 001 R1344
1SBH 137 001 R1444
1SBH 136 001 R2153
1SBH 137 001 R1253
1SBH 137 001 R1353
1SBH 137 001 R1453
1SBH 136 001 R2162
1SBH 137 001 R1262
1SBH 137 001 R1362
1SBH 137 001 R1462
1SBH 136 001 R2171
1SBH 137 001 R1271
1SBH 137 001 R1371
1SBH 137 001 R1471
1SBH 136 001 R2180
1SBH 137 001 R1280
1SBH 137 001 R1380
1SBH 137 001 R1480
4
