SB01W05S datasheet, PDF - EEWORLD Datasheet

SB01W05S: Description0.1 A, 50 V, 2 ELEMENT, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size57KB，2 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

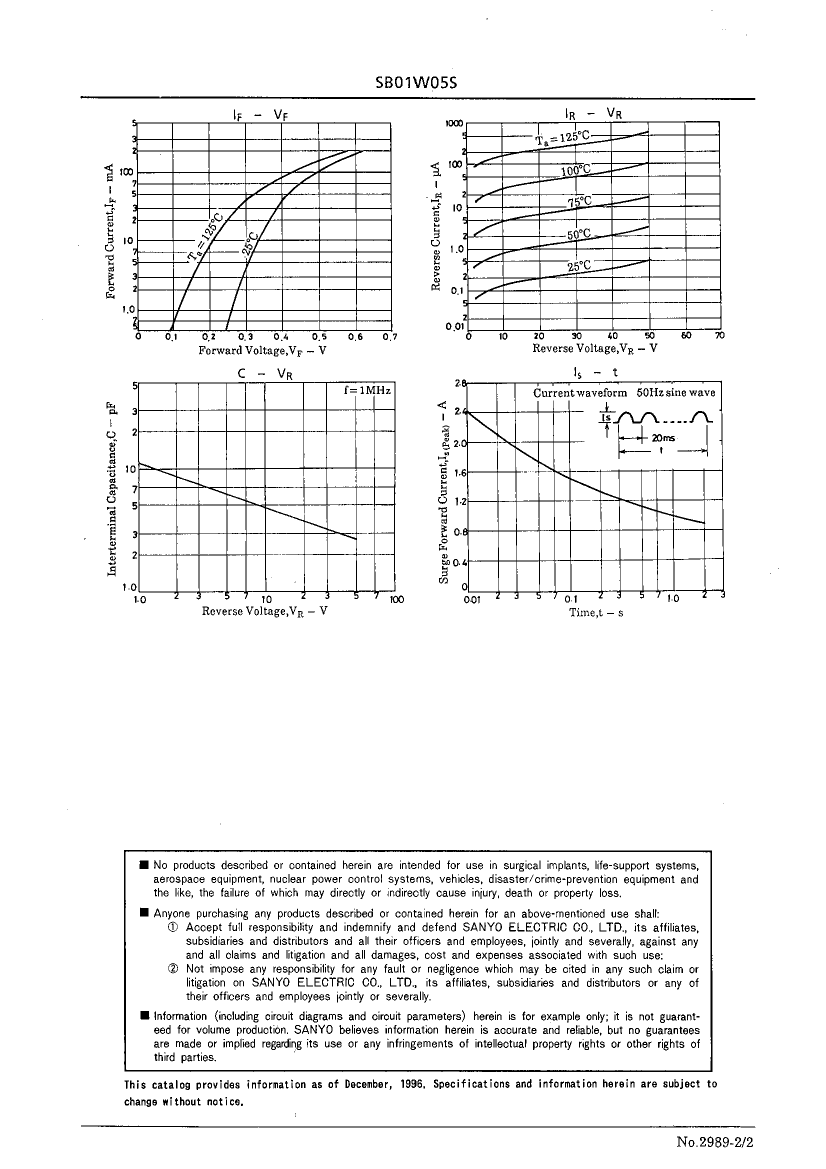

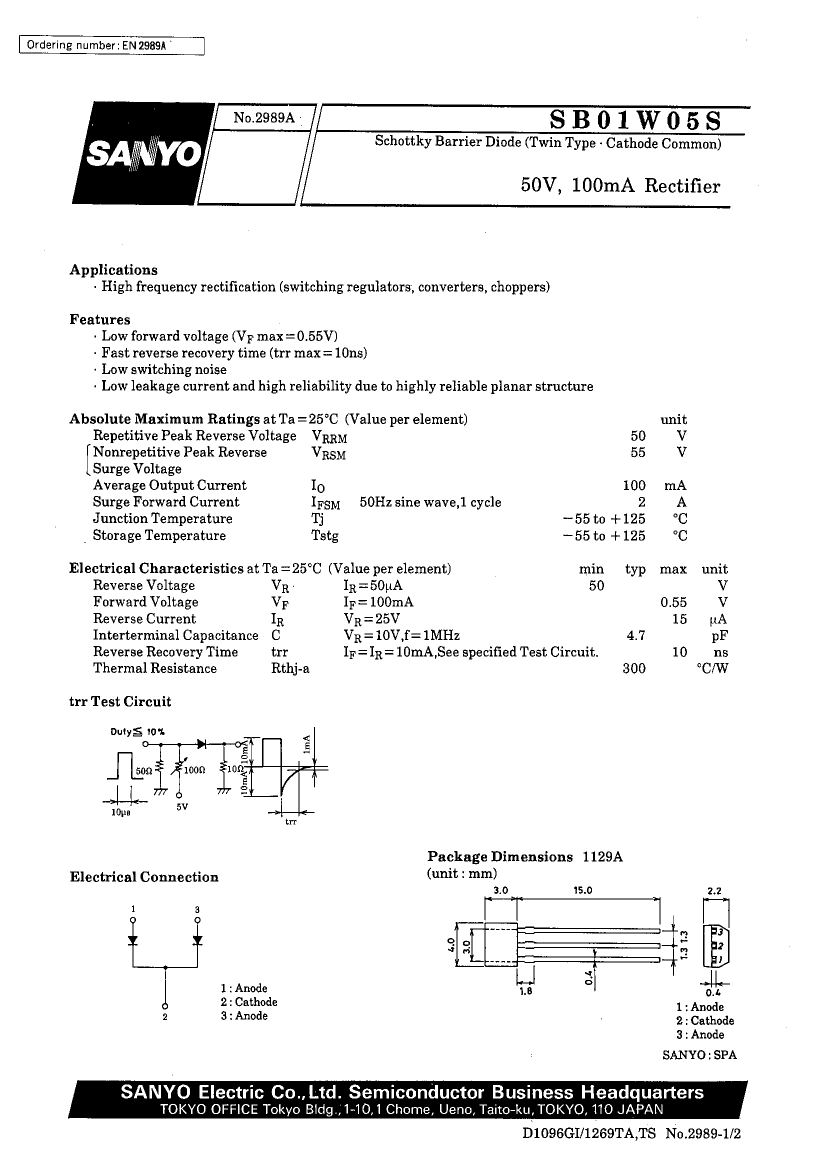

SB01W05S Overview

0.1 A, 50 V, 2 ELEMENT, SILICON, SIGNAL DIODE

Parameter Name	Attribute value
Maker	SANYO
package instruction	R-PSIP-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	HIGH RELIABILITY
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V
JESD-30 code	R-PSIP-T3
Maximum non-repetitive peak forward current	2 A
Number of components	2
Number of terminals	3
Maximum operating temperature	125 °C
Maximum output current	0.1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse recovery time	0.01 µs
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
