88E2040 Overview

XFI, RXAUI with rate matching

Marvell Alaska 88E2010/40 NBASE-T Ethernet Transceivers

Low cost, low power 1- or 4-port NBASE-T Ethernet Transceivers

PRODUCT OVERVIEW

The Marvell® Alaska® 88E2010/40 is a new family of Ethernet transceivers compliant with

the NBASE-T Alliance specification for 2.5G and 5G data rate over Cat5e cables.

Manufactured with 28nm process, the devices enable a lower cost, extremely low-power

dissipation. The devices use Digital Signal Processing (DSP) technology to enable the

repurposing of low-cost Cat5e Ethernet cables for data rates as high as 5Gbps, supplanting

the use of optical technology for applications such as 802.11ac Access Point backhaul,

Switches, Servers, Workstations and high-end PCs. The devices support Category 6

(screened or unscreened), Category 6a (Augmented) and Category 7 type cables, as well as

Category 5e type cables for distances up to 100m. The devices support a variety of host

interfaces (2500BASE-X, 5000BASE-R, SGMII), as well as 10G host interfaces such as

USXGMII interface and XFI/RXAUI with Rate-Matching. The transceiver family also features

full-back-ward compatibility with lower-speed legacy Ethernet (1000/100/10Mbps) on the

line side.

The Marvell Alaska 88E2010/40 also incorporates the Marvell advanced Virtual Cable Tester

(VCT) technology for cable fault detection and proactive cable performance monitoring.

With advanced digital signal processing (DSP) technology, the transceiver can proactively

monitor the performance of a cable and determine cable length and type. It can detect

opens and shorts, and report the location of a fault.

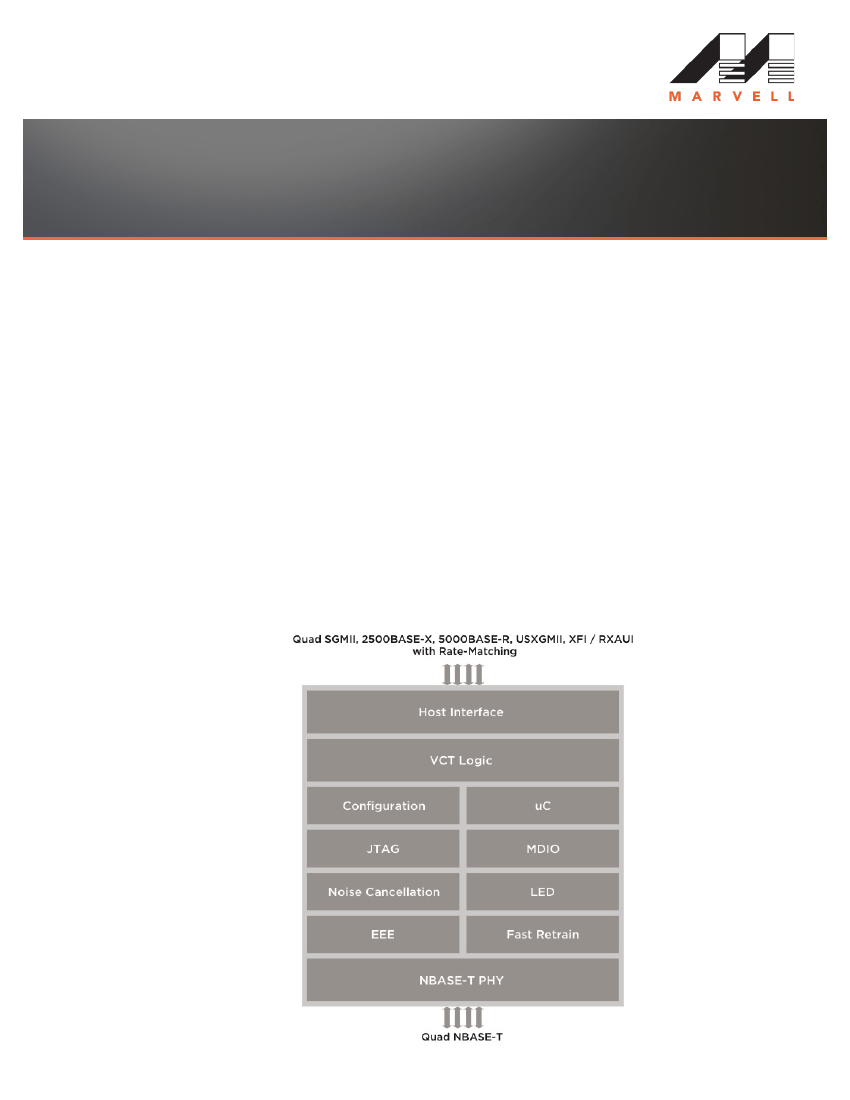

BLOCK DIAGRAM OF 88E2040 QUAD TRANSCEIVER

	88E2040	88E2010
Description	XFI, RXAUI with rate matching	XFI, RXAUI with rate matching
