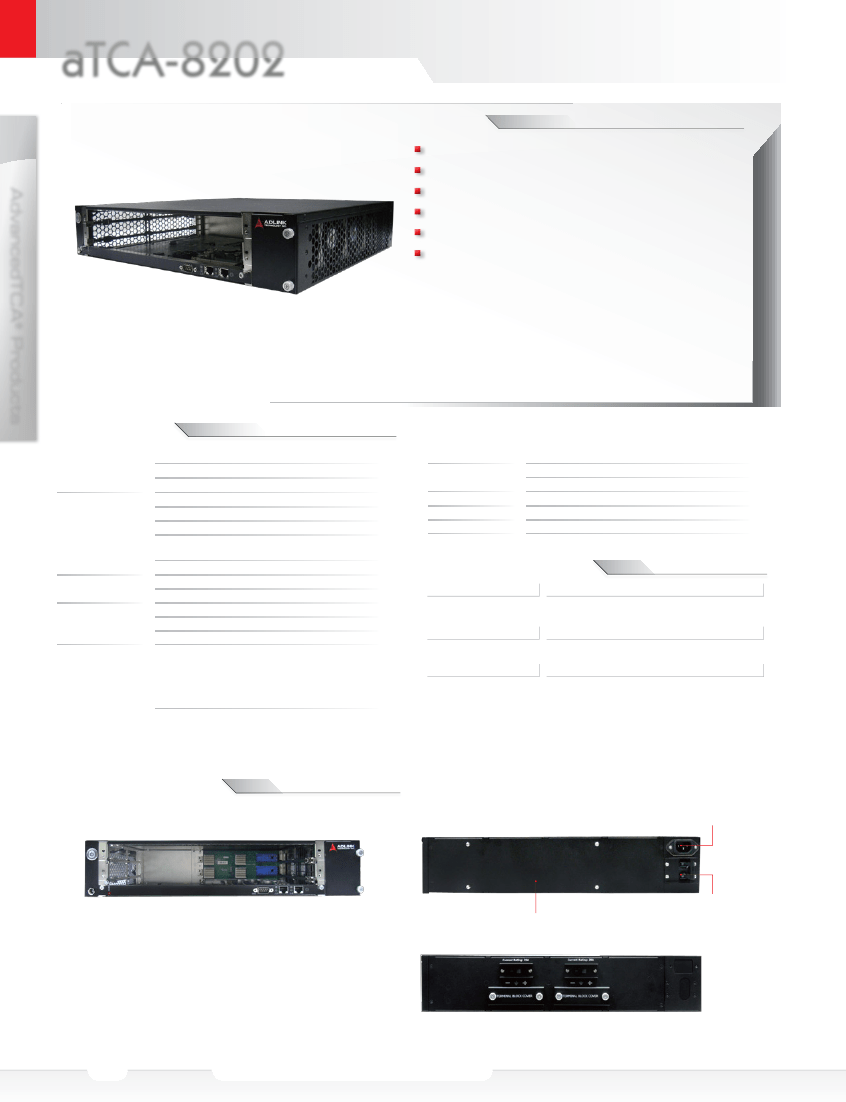

aTCA-8202
AdvancedTCA
®
Products
2U 2-slot AdvancedTCA
®
Shelf
Features
19” rackmount with 2U height and 15.3” depth
Built-in Layer 2 Base Interface switch
Dedicated Shelf Management Hub slot
Dual-bussed IPMB
No rear transition module (RTM) support
AC & DC versions
Specifications
Mechanical
Specification
Shelf Management
19” rackmount, 2U height, 15.3” depth
Up to two standard AdvancedTCA
®
blades
Dedicated shelf management hub
aCMM-2200 Shelf Management Hub
Supports multiple management interfaces:
- Command Line Interface (CLI)
- Two 10/100/1000BASE-T Gigabit Ethernet ports and one
serial console for management access
- Built-in Layer 2 GbE switch for Base Interface connectivity
Single hot-swappable IPMC controlled fan tray module
Right-to-left transverse airflow (push cooling)
Dual-star topology Base Interface
Dual-star topology Fabric Interface
Dual-bussed IPMB
DC version:
-40 V DC to -72 V DC
Nominal -48 V DC
Single power entry module
Carries up to 650 W (A or B)
AC version:
Built-in 650 W AC to -48 V DC power supply unit
AC input: 85 - 264 V AC, 47 - 63 Hz
Weight
Temperature
Humidity
Dimensions
Compliance
Certifications
11.5kg (including power supply)
Operating: 0°C to 50°C
Storage: -20°C to 80°C
5% to 95%, non-condensing
432 x 87 x 386.4 mm (W x H x D)
AdvancedTCA
®
Specification PICMG
®
3.0 R2.0
CE, FCC, designed for NEBS Level 3
Cooling System
Backplane
Ordering Information
Model Number
aTCA-8202/AC
Description/Configuration
2U 2-slot Rackmount AdvancedTCA
®
shelf with
single aCMM-2200 Shelf Management Hub, built-in
650 W AC to -48 V DC power supply unit
2U 2-slot Rackmount AdvancedTCA
®
shelf with
single aCMM-2200 Shelf Management Hub
(DC power)
Power Input
aTCA-8202/DC/NRTM

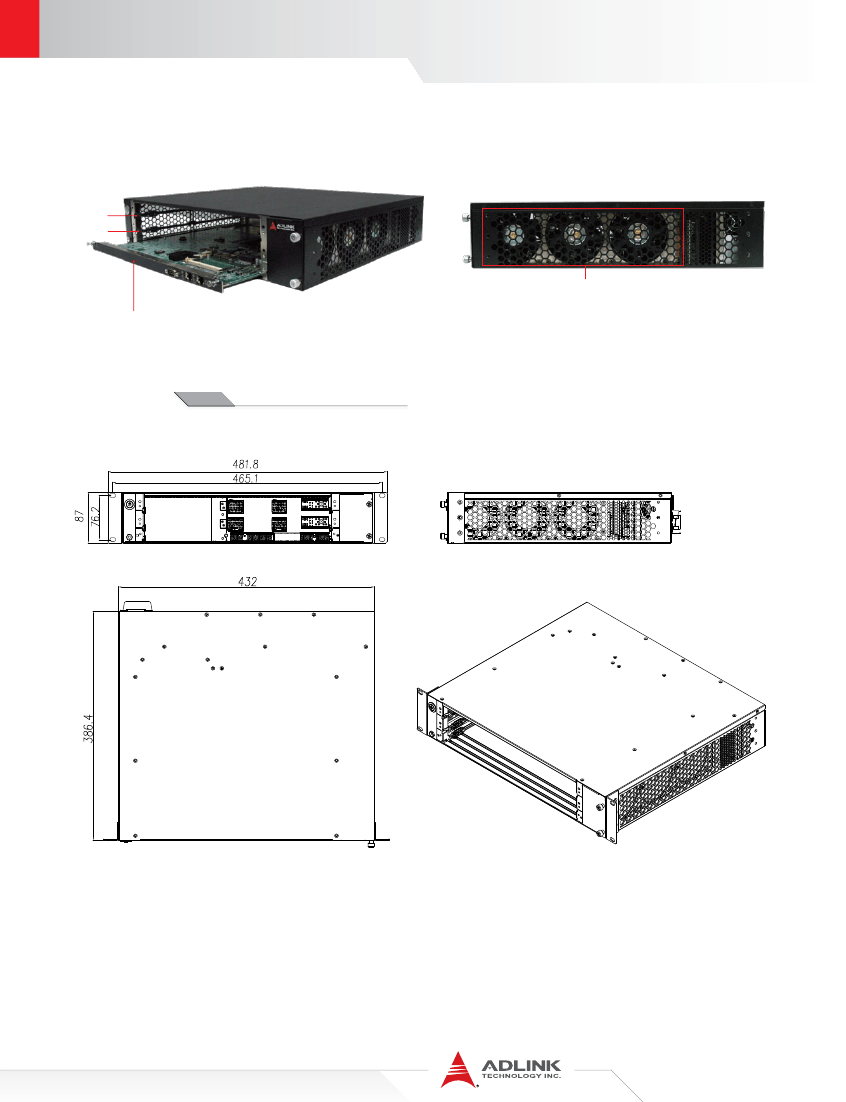

Mechanical Layout
AC version:
AC inlet with filter
Front View
Built-in 650W AC-to-DC48V PSU
DC version:
Circuit breaker
Rear View
1-21
