8Y-25.000MCXT-T

Description
Parallel - Fundamental Quartz Crystal,
CategoryPassive components    Crystal/resonator
File Size966KB,1 Pages
ManufacturerTXC Corporation
Websitehttp://www.txccrystal.com/
Environmental Compliance
Download Datasheet Parametric View All

8Y-25.000MCXT-T Overview

Parallel - Fundamental Quartz Crystal,

8Y-25.000MCXT-T Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid7190727607
package instructionSMD, 4 PIN
Reach Compliance Codeunknown
Other featuresTR
Ageing3 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level1 µW
frequency stability0.005%
frequency tolerance100 ppm
load capacitance32 pF
Installation featuresSURFACE MOUNT
Nominal operating frequency25 MHz
Maximum operating temperature60 °C
Minimum operating temperature-10 °C
physical sizeL2.0XB1.6XH0.5 (mm)/L0.079XB0.063XH0.02 (inch)
Series resistance100 Ω
surface mountYES

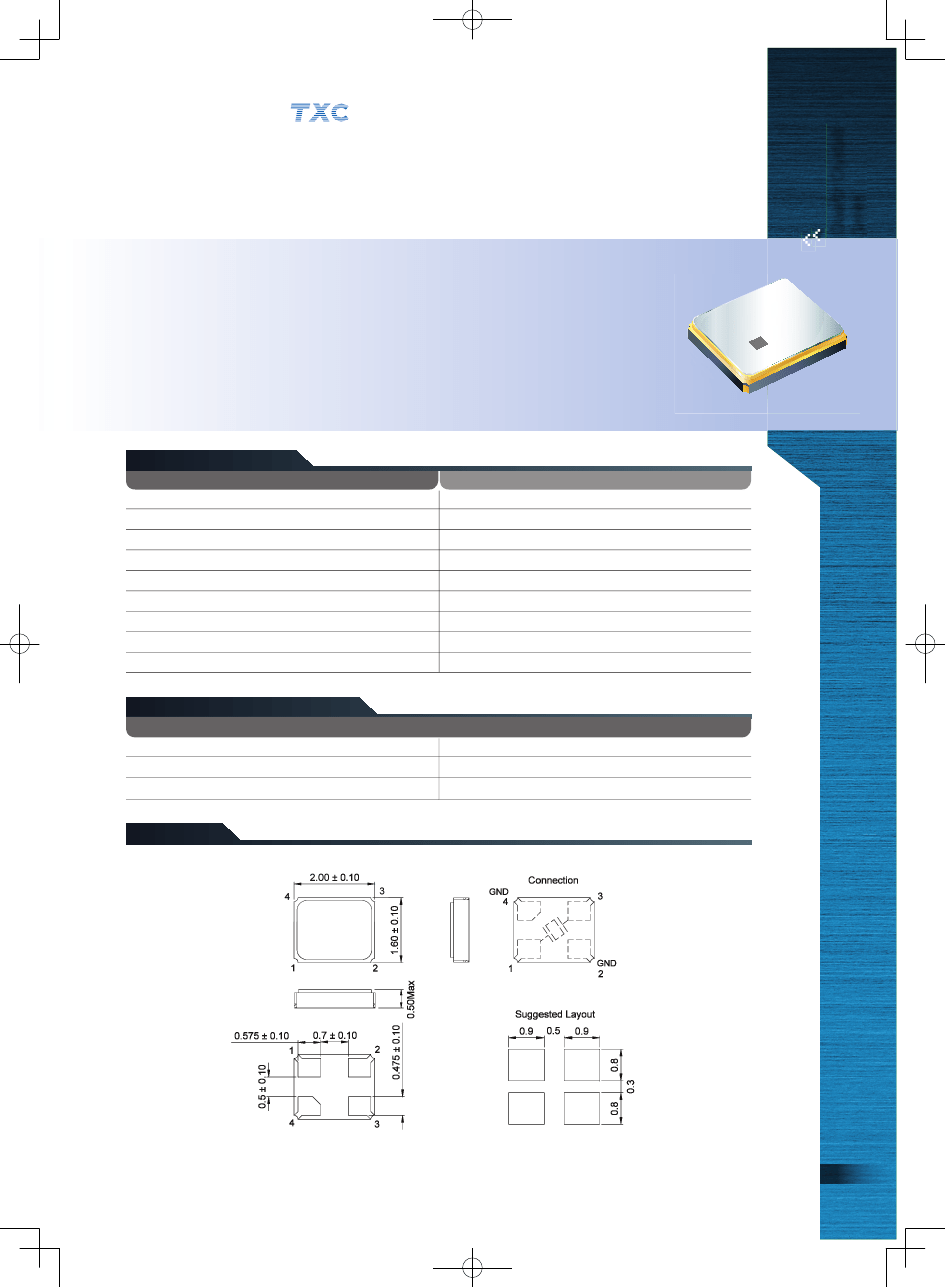

Think of Frequency Think of
come visit our site http://www.txccorp.com
Features
Extremely small SMD type crystal units.
High precision and high frequency stability.
Excellent heat resistance and environmental characteristics.
Applications in PDA, DSC, DVC, PC, etc.
RoHS Compliant / Pb Free.
4
38 0 3
T c
Electrical Specifications
Item / Type
Frequency Range
Frequency Tolerance (at 25
)
Frequency Stability Over Operating Temperature Range
Operating Temperature Range
Shunt Capacitance (C0)
Drive Level
Load Capacitance
Aging (at 25
)
Storage Temperature Range
8Y
16 ~ 54 MHz
±
10 ppm,
±
20 ppm, or specify
±
10 ppm,
±
20 ppm, or specify
-10 ~ + 70
, or specify
3 pF Max.
1 ~ 200
μ
W ( 50
μ
W typical)
8 pF, 10 pF, 12 pF, or specify
±
3 ppm / year Max.
- 40 ~ + 85
Equivalent Series Resistance(ESR)
Fundamental
16 ~ 19.2 MHz
19.2 ~ 30 MHz
30 ~ 54 MHz
200
Ω
Max.
100
Ω
Max.
80
Ω
Max.
Dimensions
Units: mm
Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com
Quartz Crystals
Series
3
SMD Seam
Sealing Crystals
2.0 x 1.6 x 0.5 mm 8Y Series
