8Z-25.000MBBI-B: DescriptionParallel - Fundamental Quartz Crystal, 25MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size964KB，1 Pages; ManufacturerTXC Corporation; Websitehttp://www.txccrystal.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

8Z-25.000MBBI-B Overview

Parallel - Fundamental Quartz Crystal, 25MHz Nom, SMD, 4 PIN

8Z-25.000MBBI-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1975549036
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	BULK
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	16 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L2.55XB2.05XH0.55 (mm)/L0.1XB0.081XH0.022 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

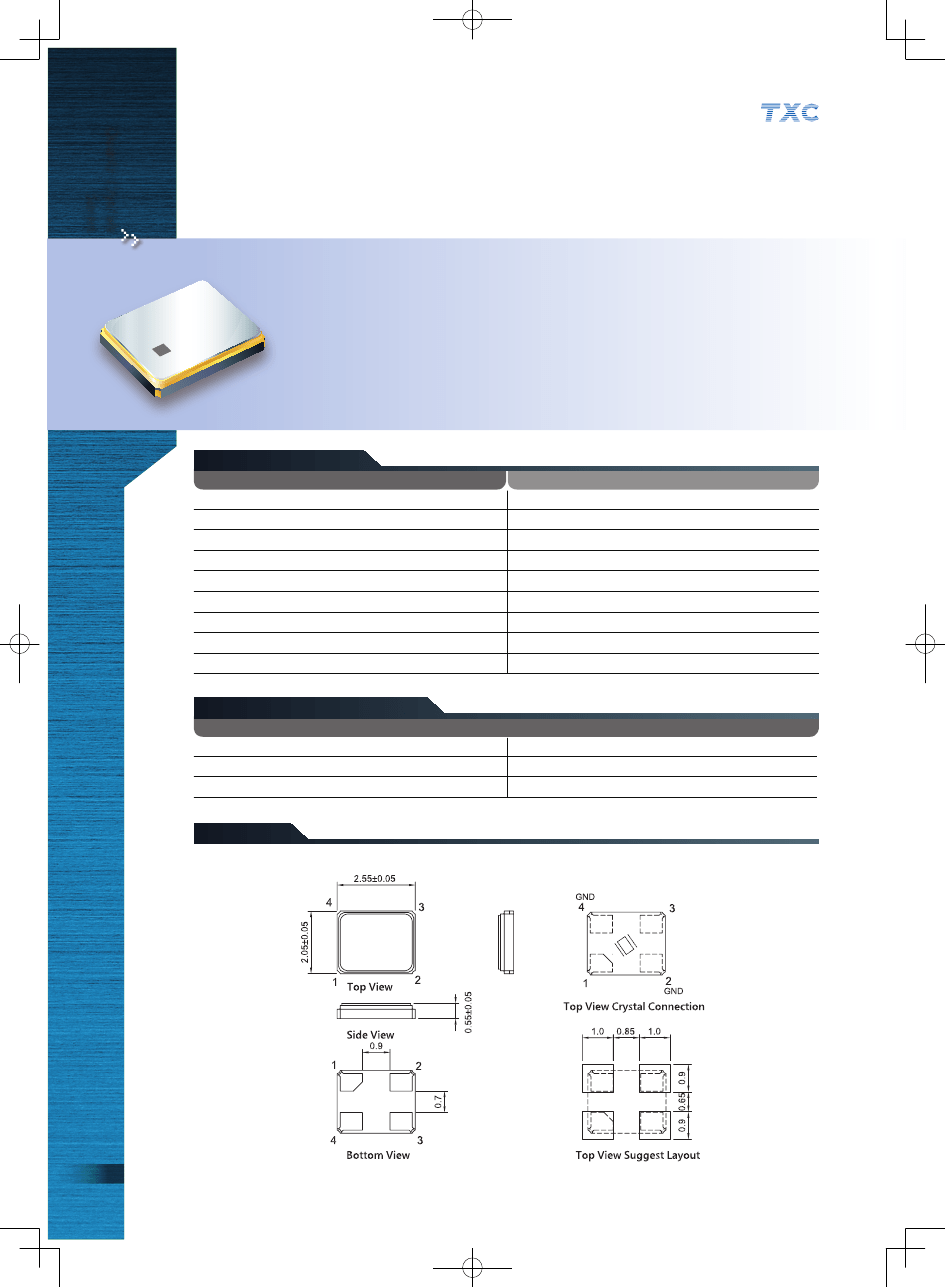

SMD Seam

Sealing Crystals

2.55 x 2.05 x 0.55 mm 8Z Series

Features

Think of Frequency Think of

come visit our site http://www.txccorp.com

Quartz Crystals

Series

Remark : Speciﬁcation subject to change without prior notice. Please conﬁrm with our sales. http://www.txccorp.com

0

48 01

T

Mu

．

igh precision and high frequency stability.

H

．

Excellent heat resistance and environmental characteristics.

．

Applications in PDA, DSC, DVC, and PC.

．

RoHS Compliant / Pb Free.

Electrical Specifications

Item / Type

Frequency Range

Frequency Tolerance (at 25

℃

)

Frequency Stability Over Operating Temperature Range

Operating Temperature Range

Shunt Capacitance (C0)

Drive Level

Load Capacitance

Aging (at 25

℃

)

Storage Temperature Range

8Z

12 ~ 54 MHz

±

10 ppm,

±

30 ppm, or specify

±

10 ppm,

±

30 ppm, or specify

-10 ~ +70

℃

, or specify

3 pF Max.

1 ~200

μ

W Max. (100uW typical)

8 pF, 10 pF, 12 pF, or specify

±

3 ppm / year Max.

- 40 ~ + 85

℃

Equivalent Series Resistance(ESR)

Fundamental

12 ~ 13 MHz 150

Ω

Max.

14 ~ 30 MHz 100

Ω

Max.

30 ~ 54 MHz

60

Ω

Max.

Dimensions

Units: mm

4

8Z-25.000MBBI-B Related Products

	8Z-25.000MBBI-B	8Z-25.000MBGQ-B
Description	Parallel - Fundamental Quartz Crystal, 25MHz Nom, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 25MHz Nom, SMD, 4 PIN
Is it Rohs certified?	conform to	conform to
Objectid	1975549036	1975548971
package instruction	SMD, 4 PIN	SMD, 4 PIN
Reach Compliance Code	compliant	compliant
Other features	BULK	BULK
Ageing	3 PPM/YEAR	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	1 µW	1 µW
frequency stability	0.005%	0.005%
frequency tolerance	50 ppm	50 ppm
JESD-609 code	e4	e4
load capacitance	16 pF	10 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	25 MHz	25 MHz
Maximum operating temperature	70 °C	85 °C
Minimum operating temperature	-20 °C	-40 °C
physical size	L2.55XB2.05XH0.55 (mm)/L0.1XB0.081XH0.022 (inch)	L2.55XB2.05XH0.55 (mm)/L0.1XB0.081XH0.022 (inch)
Series resistance	100 Ω	100 Ω
surface mount	YES	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
