VS-5020-BEJ-KX2-1350M00000 Overview

Oscillator

VS-5020-BEJ-KX2-1350M00000 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid109883106
Reach Compliance Codecompliant
JESD-609 codee4
Terminal surfaceGold (Au) - with Nickel (Ni) barrier

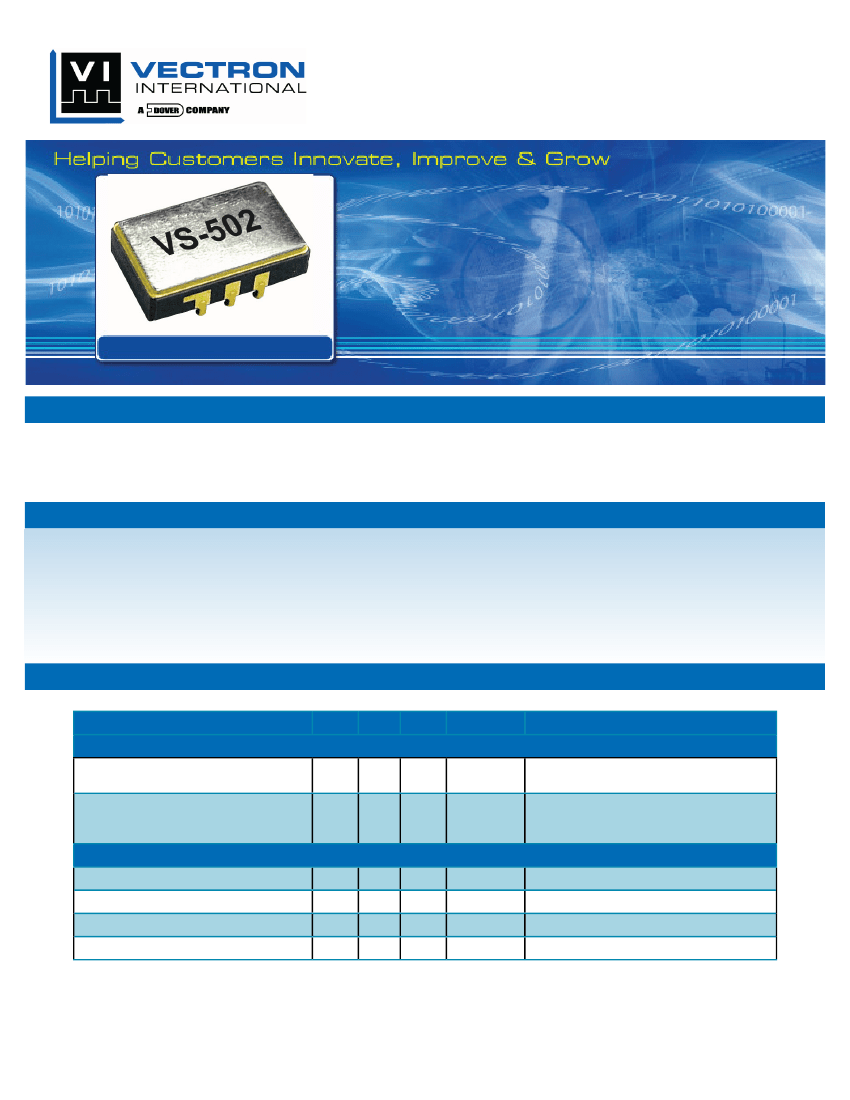

VS-502
Voltage Controlled SAW Oscillator
VS-502
Description
The VS-502 is a SAW based voltage controlled oscillator that operates at the fundamental frequency of the internal SAW
resonator. This direct approach enables this series to achieve low phase noise and jitter performance at high output frequencies
and over wide operating temperature range. The oscillator is housed in a hermetically sealed J-lead surface mount package
o ered on tape and reel. As an option, it has an output disable to facilitate on-board testing.
Features
Ultra low jitter
Low phase noise
Small low pro le
Frequency Range: 300 MHZ to 1350 MHZ
Applications
• Point to Point / Point to Multi Point Radios
• Instrumentation
• Test & Measurement
Performance Speci cations
Parameter
vs. operating temperature range
(referenced to +25°C)
Absolute Pull Range
Min
Typ
±200
±50
±32
±20
Max
Units
ppm
ppm
ppm
ppm
Condition
-40… +85°C
Frequency Stabilities
Supply Voltage (Vs)
Supply voltage
Supply voltage
Supply voltage
Current (No Load)
11.4
4.75
3.135
12.0
5.0
3.3
55
12.6
5.25
3.465
70
VDC
VDC
VDC
mA

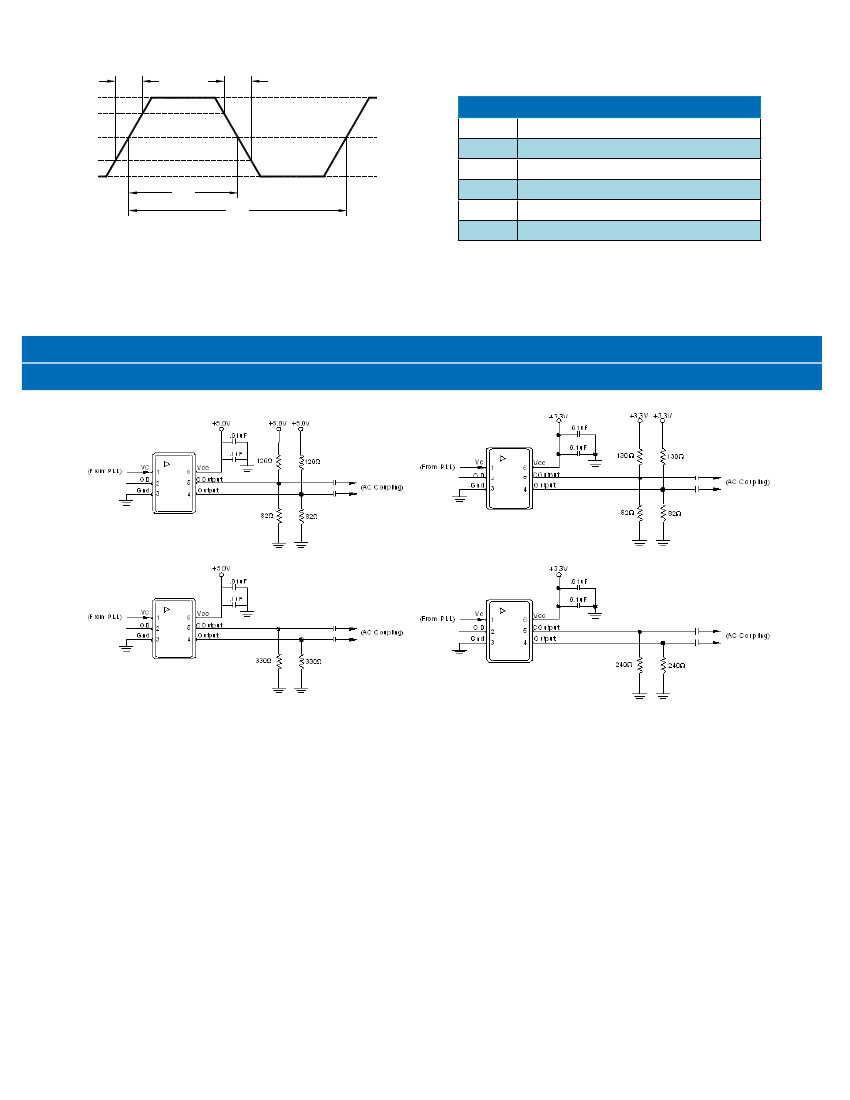

Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
