222210465332 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 222210465332

222210465332: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 350 V, 3300 uF, CHASSIS MOUNT, ROHS COMPLIANT; CategoryPassive components capacitor; File Size133KB，8 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

222210465332 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 350 V, 3300 uF, CHASSIS MOUNT, ROHS COMPLIANT

222210465332 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2077348498
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	3300 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	42 mΩ
leakage current	2.314 mA
Manufacturer's serial number	104PHL-ST
Installation features	CHASSIS MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	350 V
ripple current	11200 mA
surface mount	NO
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

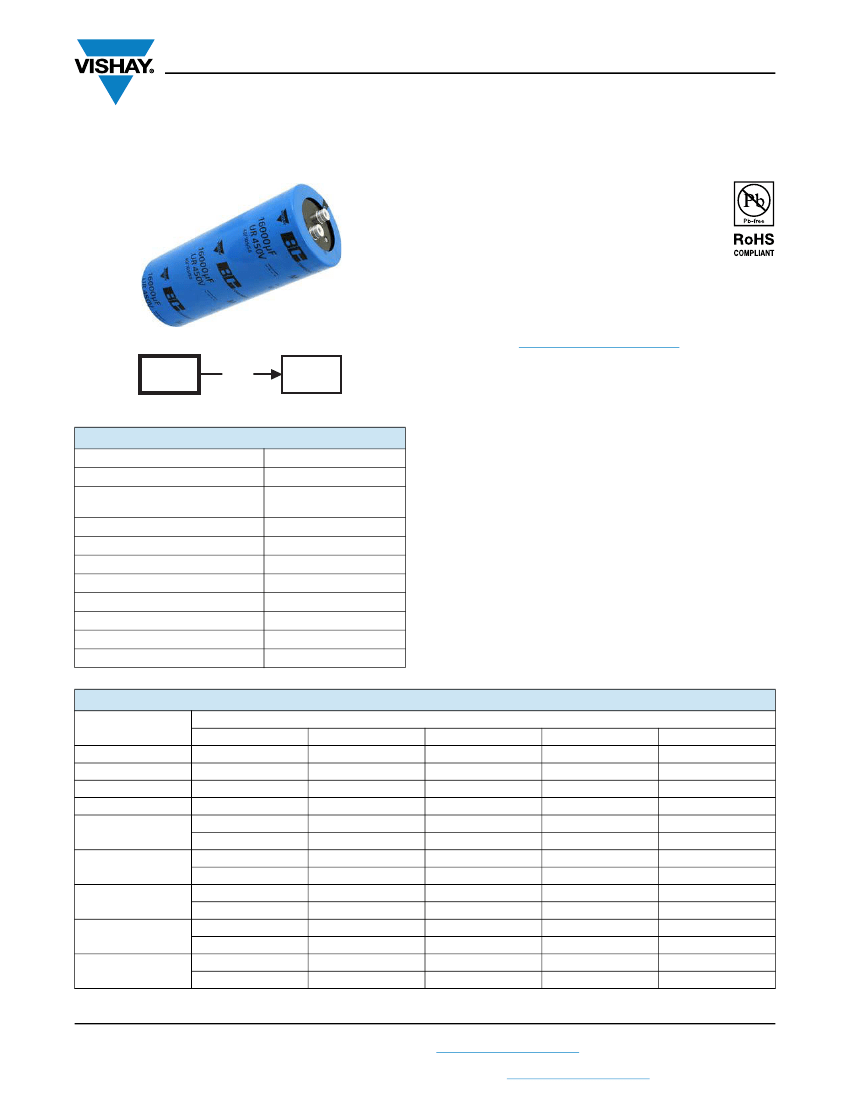

104 PHL-ST

www.vishay.com

Vishay BCcomponents

Aluminum Capacitors

Power High Ripple Current Long Life Screw Terminals

FEATURES

•

104

PHL-ST

°C

Fig. 1

Long useful life: 5000 h at +105 °C

High reliability

Available in case sizes up to Ø 90 mm x 220 mm

Polarized aluminum electrolytic capacitors,

non-solid electrolyte

Large types, cylindrical aluminum case, insulated with a

blue sleeve

Also available in bolt version (104 PHL-STB)

Pressure relief in the sealing

Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Telecom and industrial, high temperature systems

Smoothing and filtering

Standard and switched mode power supplies

Energy storage in pulse systems

Traction (subway, metro, light rail)

102

PHR-ST

APPLICATIONS

•

QUICK REFERENCE DATA

DESCRIPTION

Nominal case size (Ø D x L in mm)

Rated capacitance range



(E6 series), C

Tolerance on C

Rated voltage range, U

Category temperature range

Endurance test at 105 °C

Useful life at 105 °C

Shelf life at 0 V, 105 °C

Based on sectional specification

Climatic category IEC 60068

VALUE

35 x 60 to 90 x 220

150 μF to 33 000 μF

± 20 %

200 V to 450 V

-40 °C to 105 °C

2000 h

5000 h

1000 h

IEC 60384-4/EN130300

40/105/56

MARKING

The capacitors are marked with the following information:

• Rated capacitance (in μF)

• Tolerance on rated capacitance, code letter in accordance

with IEC 60062 (± 20 %)

• Rated voltage (in V)

• Date code (YYMM)

• Name of manufacturer

• Code for factory of origin

• “-” sign to identify the negative terminal, visible from the

top and side of the capacitor

• Code number

• Climatic category in accordance with IEC 60068

• “LL” for long life grade

SELECTION CHART FOR C

, U

, AND RELEVANT NOMINAL CASE SIZES

(Ø D x L in mm)

(μF)

150

220

330

470

680

1000

1500

2200

3300

(V)

200

35 x 60

35 x 80

35 x 105

50 x 80

50 x 105

250

35 x 60

35 x 80

35 x 105

50 x 80

35 x 105

50 x 105

65 x 105

350

35 x 60

35 x 80

35 x 105

50 x 80

50 x 105

65 x 105

400

35 x 60

35 x 80

50 x 80

50 x 105

65 x 105

76 x 105

76 x 146

450

35 x 60

35 x 80

35 x 105

50 x 80

50 x 105

65 x 105

76 x 105

76 x 146

Revision: 22-Sep-14

Document Number: 28389

For technical questions, contact:

aluminumcaps2@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

222210465332 Related Products

	222210465332	222210467102	222210462682
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 350 V, 3300 uF, CHASSIS MOUNT, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450 V, 1000 uF, CHASSIS MOUNT, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200 V, 6800 uF, CHASSIS MOUNT, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Objectid	2077348498	2077348504	2077348490
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
capacitance	3300 µF	1000 µF	6800 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
ESR	42 mΩ	116 mΩ	22 mΩ
leakage current	2.314 mA	0.904 mA	2.724 mA
Manufacturer's serial number	104PHL-ST	104PHL-ST	104PHL-ST
Installation features	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT
negative tolerance	20%	20%	20%
Number of terminals	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
method of packing	BULK	BULK	BULK
polarity	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%
Rated (DC) voltage (URdc)	350 V	450 V	200 V
ripple current	11200 mA	5900 mA	15200 mA
surface mount	NO	NO	NO
Terminal shape	BINDING POST	BINDING POST	BINDING POST
