203498: DescriptionMOD - JACK MJIMV; File Size37KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

203498 Overview

MOD - JACK MJIMV

Preview

Download Datasheet

View All

3,50 ±0,50 0,138 ±0,020

8,89 0,350

3,05 0,120

21,56 0,849

16,35 0,644

DATE CODE

DATUMSCODE

PART NO.

IDENT-NR.

6,60 0,260

LED 2

LED 1

16,51 0,650

15,95 0,628

RECOMMENDED PANEL CUTOUT

EMPFOHLENER FRONTPLATTEN AUSSCHNITT

16,66 0,656

Proprietary notice pursuant to ISO 16016 to be observed.

MATERIALS AND FINISH

HOUSING: GLASS FILLED POLYESTER UL 94 V-0 BLACK

SHIELDING: Cu ALLOY, PLATED WITH Ni

CONTACTS: PHOSPHOR BRONZE

CONTACT FINISH: Au, 0.8 µm (30 µin) OVER Ni

TERMINAL FINISH: Sn MATTE

LED LENS: EPOXY

MECHANICAL CHARACTERISTICS

DURABILITY: 1000 MATING CYCLES

ELECTRICAL CHARACTERISTICS

CONTACT RESISTANCE: 30 MILLIOHMS MAX

OPERATING TEMPERATURE: 0°C TO 70°C

17,26 0,680

XXXXXX

XXXX RC

NOTE 1: RoHS COMPLIANT; PRINT "RC" WITH DATE CODE

NO.

IDENT.-NR.

203497

LED 2 LEFT

LED 2 LINKS

YELLOW

LED 1 RIGHT

LED 1 RECHTS

GREEN

LED

CODE

Information:

Tolerances

All Dimensions

in mm [in]

Scale

2:1

Only for Information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

23.02.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

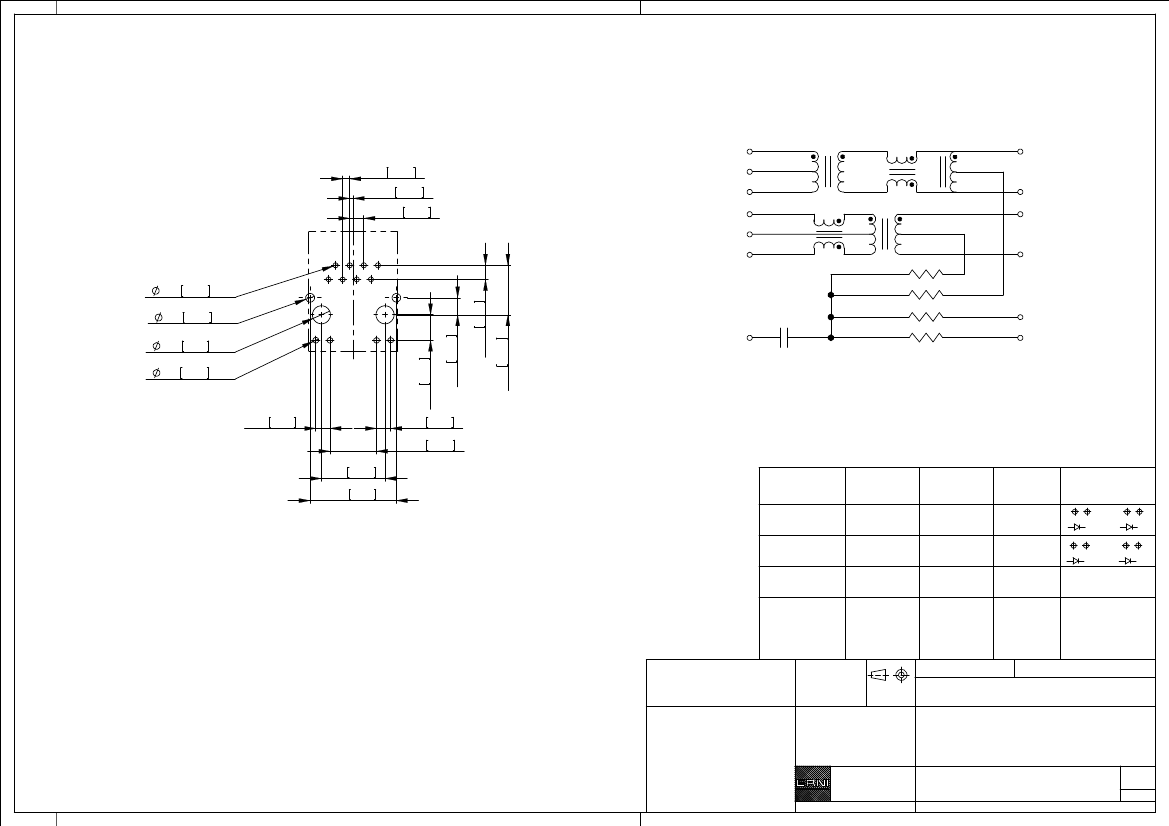

MOD - JACK MJIMV

1x1, 8C8T, VERTICAL, INT. MAG., LED

www.ERNI.com

Class

203498

MJIM

I (1/2)
