RECOMMENDED PANEL CUTOUT
EMPFOHLENER FRONTPLATTEN AUSSCHNITT
0,38 ±0,10 0,01 ±0,00
16,67 0,656
21,59 0,850 MAX
15,88 0,63
3,05 ±0,50 0,12 ±0,02
B
14,72 0,58
10,89 0,43
13,63 0,54
PCB EDGE
LP
L.E.D. 2
1
8
L.E.D. 1
11,43 ±0,13 0,45 ±0,01
NOTE 1: SIDE SHIELD TABS IN REAR 3.05mm (R)
NOTE 2: PANEL GROUND FLANGES BOTH SIDES AND TOP (GF5)
NO.
IDENT. NR.
LED 2 LEFT
LED 2 LINKS
YELLOW
GREEN
GREEN
YELLOW
ORANGE/GREEN
Scale
All Dimensions
in mm
LED 1 RIGHT
LED 1 RECHTS
GREEN
YELLOW
GREEN
YELLOW
ORANGE/GREEN
2:1
LED
CODE
L1
L2
L3
L8
L9
203211
203212
203213
MATERIALS AND FINISH
HOUSING: GLASS FILLED POLYESTER UL 94 V-0 BLACK
SHIELDING: Cu ALLOY, PLATED WITH Ni
CONTACTS: PHOSPHOR BRONZE
CONTACT FINISH: Au, 0.8 µm (30 µin) OVER Ni
TERMINAL FINISH: Sn MATTE
B
Information:
203214
203215
Tolerances
LED LENS: EPOXY
MECHANICAL CHARACTERISTICS
DURABILITY: 1000 MATING CYCLES
ELECTRICAL CHARACTERISTICS
CONTACT RESISTANCE: 30 MILLIOHMS MAX
OPERATING TEMPERATURE: 0°C TO 70°C
Consider protection memo from DIN 34
SCHEMATIC NUMBER: M5B01
All rights reserved.
Only for Information.
To insure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
B
Index
09.06.2008
Date
Designation
Subject to modification without
prior notice.
Drawing will not be updated.
MOD JACK - MJIM
8C10T, 1x1, INT. MAG., LED ALIGNED
www.ERNI.com
Class
203210
MJIM
I (1/2)
A3

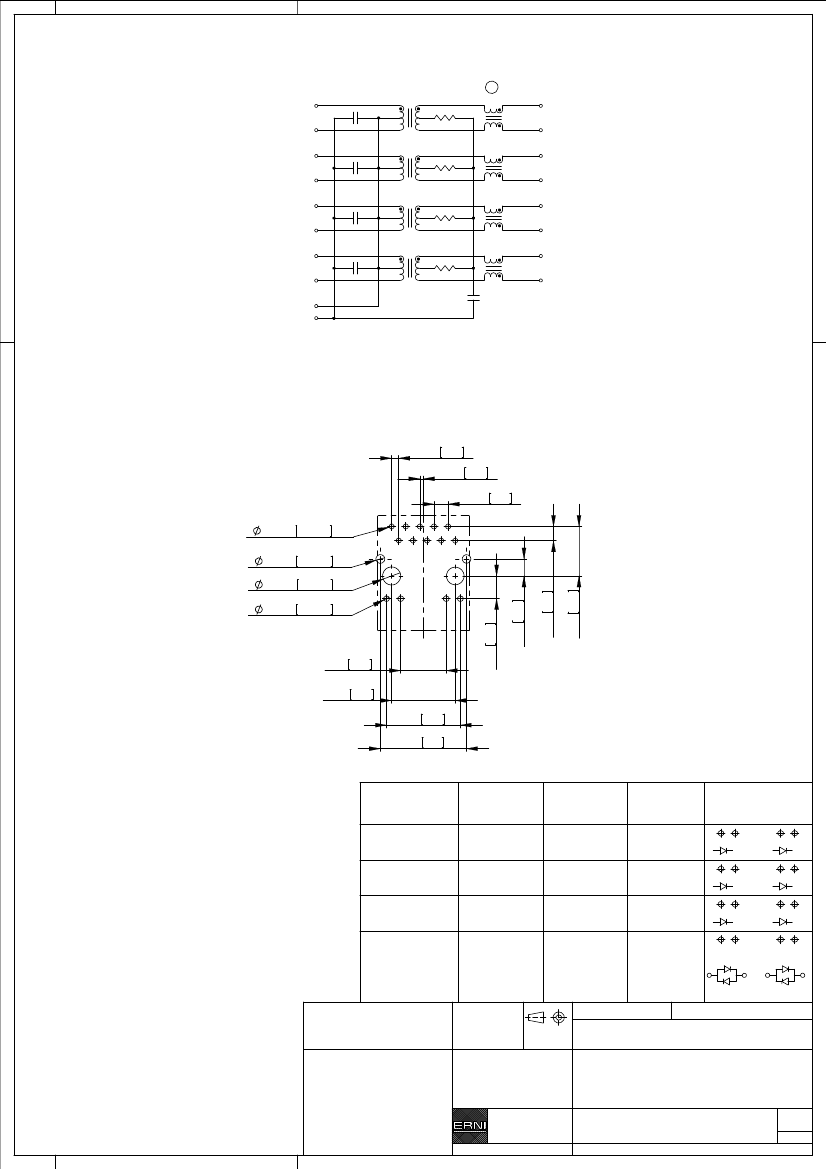

ELECTRICAL SCHEMATICS 1000 BASE T - M5B01
ELEKTRISCHER SCHALTPLAN
PCB
TD0+ P1
TD0- P2
TD1+ P3
TD1- P6
TD2+ P4
TD2- P5
TD3+ P7
TD3- P8
VCC P9
GND P10
1000pF/2KV
4X 0.01 µF
4X 75 Ohms
B
CABLE
J1 MX0+
J2 MX0-
J3 MX1+
J6 MX1-
J4 MX2+
J5 MX2-
J7 MX3+
J8 MX3-
RECOMMENDED PCB LAYOUT (COMPONENT SIDE VIEW)
EMPFOHLENES LEITERPLATTEN-LAYOUT (BESTÜCKUNGSSEITE)
TOL ±0.05 [.002] UNLESS NOTED
1,27 0,05
0,64 0,03
2,54 0,10
0,89 ±0,07 0,04 ±0,00 x10
1,60 ±0,07 0,06 ±0,00 x2
3,25 ±0,07 0,13 ±0,00 x2
1,02 ±0,07 0,04 ±0,00 x4
11 12
4,06 0,16
13 14
3,05 0,12
1
10
8,18 0,32
11,43 0,45
13,26 0,52
15,49 0,61
LED SPECIFICATIONS
LED ANWEISUNG
MAGNETICS SPECIFICATIONS @ 25°C
TURNS RATIO:
INSERTION LOSS:
1-100 MHz
RETURN LOSS:
1-40 MHz
60 MHz
80 MHz
100 MHz
CROSSTALK:
(1-100 MHz)
CMR:
0,1-30 MHz
30-60 MHz
60-100 MHz
ISOLATION
-50 dB TYP
-40 dB TYP
Consider protection memo from DIN 34
COLOR
FARBE
YELLOW
GREEN
RED
Vf
TYP
2.1
2.2
2.25
8,89 0,35
2,54 0,10
Vf
MAX
2.5
2.5
2.5
If
mA
20
20
20
CIRCUIT DIAGRAM
SCHALTPLAN
11 12
11 12
11 12
11 12
G
N
13 14
13 14
13 14
13 14
G
N
1CT:1CT ±3%
OCL(100 KHz, 0.1 V, 8 mA) 350 µH MIN
-1.1 dB MAX
-18 dB MIN
-14 dB MIN
-12 dB MIN
-10 dB MIN
-35 dB TYP
Information:
ORANGE/GREEN
2.05/2.2
2.5
20
Tolerances
All Dimensions
in mm
Scale
2:1
Designation
All rights reserved.
Only for Information.
To insure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
Subject to modification without
prior notice.
Drawing will not be updated.
-35 dB TYP
1500 Vrms
MOD JACK - MJIM
8C10T, 1x1, INT. MAG., LED ALIGNED
www.ERNI.com
Class
203210
MJIM
I (2/2)
A3
