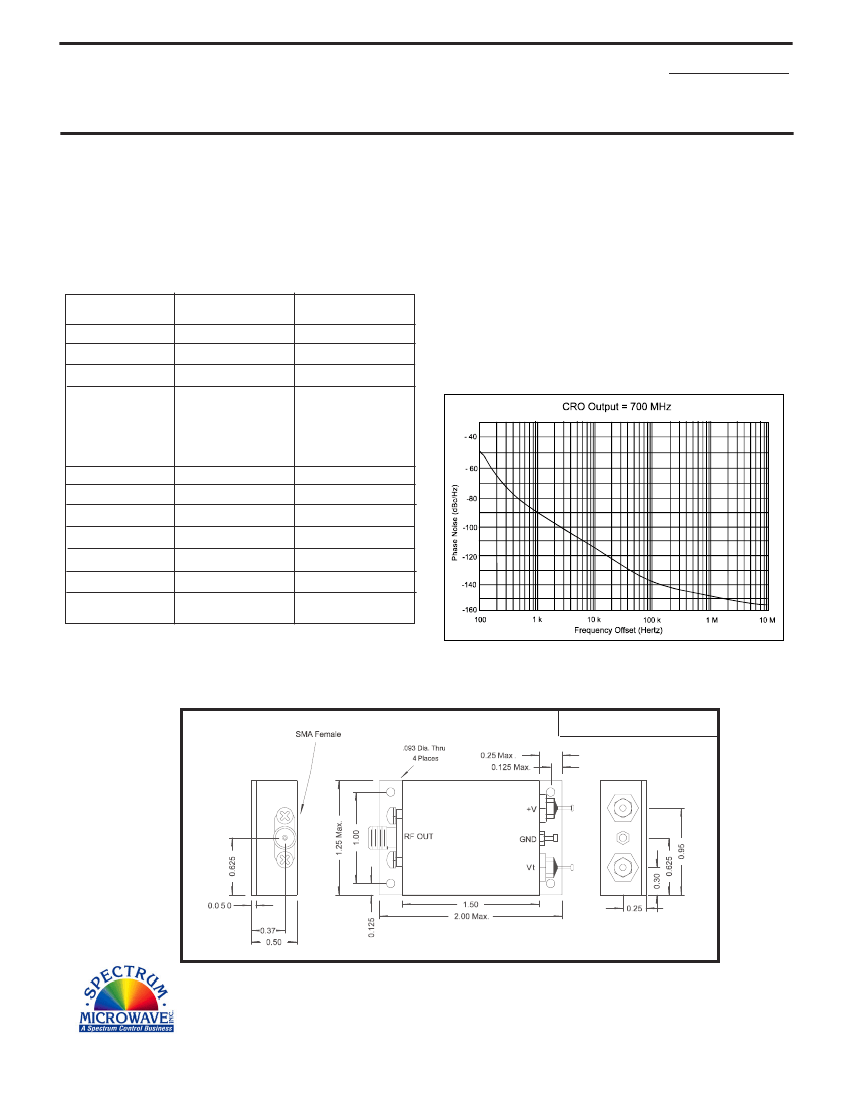

COAXIAL RESONATOR OSCILLATOR

Preview

Download Datasheet

View All

COAXIAL RESONATOR

OSCILLATOR

Features

Series 521

700 - 900 MHz

Spectrum Microwave CROs

produce impressive

frequency stability and phase noise when used in a

properly designed oscillator circuit.

Low Phase Noise Bipolar Transistor

Rugged Construction for Extreme

Environmental Conditions

High Frequency Stability

VoltageTuned

Specifications

CHARACTERISTIC

Frequency

Output Power (dBm)

Spurious (dBc)

Phase Noise (dB)

@ 700 MHz

TYPICAL

Ta= 25

ºC

700 - 900 MHz

+10

-80

-50 dBc/Hz @ 100 Hz

-90 dBc/Hz @ 1 KHz

-114 dBc/Hz @ 10 KHz

-139 dBc/Hz @ 100 KHz

-149 dBc/Hz @ 1 MHz

1.5

-25

+/- .01% / Volt

+/- 0.02%

+/- 0.1%

-55

ºC

2.0

-25

+/- .02% / Volt

+/- 0.03%

+/- 0.15%

+125

ºC

MIN/MAX

Ta = -20

ºC

to +70

ºC

700 - 900 MHz

+13 Max.

-80

Maximum Ratings

Ambient Operating Temperature ............. -55ºC to +100 ºC

Storage Temperature .............................. -62ºC to +125 ºC

Case Temperature ............................................... +125 ºC

DC Voltage ....................................................... +20 Volts

Maximum DC Tuning Voltage............................ +20 Volts

Minimum DC Tuning Voltage................................. 0 Volts

VSWR

Harmonics (dBc)

Frequency Pushing

Frequency Pulling

Temperature Drift

Storage Temperature

Supply Power DC

NOTE: Care should always be taken to effectively ground

the case of each unit.

Mechanical Outline

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

9/23/08

www.SpectrumMicrowave.com
