324049

Description
16.8 mm2, COPPER ALLOY, TIN FINISH, RING TERMINAL
CategoryThe connector
File Size30KB,1 Pages
ManufacturerERNI
Websitehttp://www.erni.com
Download Datasheet Parametric View All

324049 Online Shopping

Suppliers Part Number Price MOQ In stock
324049 - - View Buy Now

324049 Overview

16.8 mm2, COPPER ALLOY, TIN FINISH, RING TERMINAL

324049 Parametric

Parameter NameAttribute value
EU RoHS regulationsYes
China RoHS regulationsYes
stateActive
erminal_and_terminal_block_typeRING TERMINAL
Manufacturer Series324049
Terminal male and femaleFEMALE
Wire cross section16.8 mm2
Wire gauge6 AWG

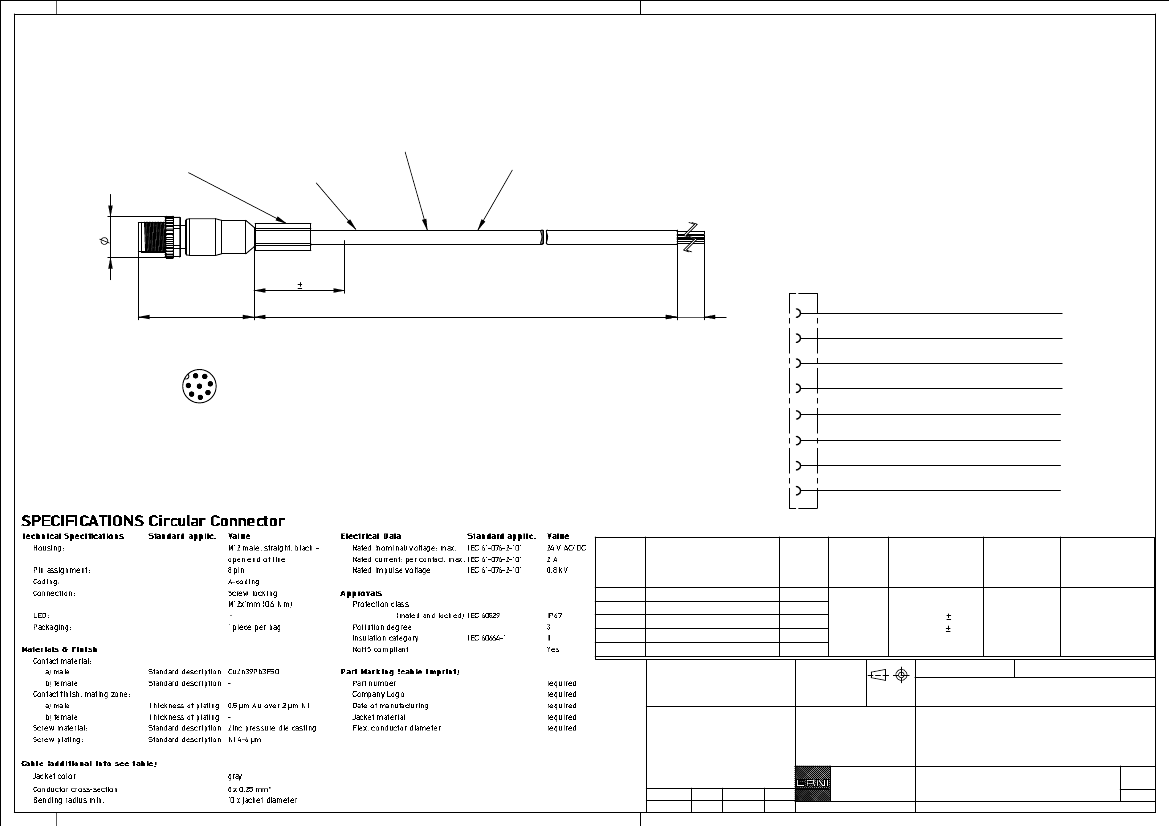

TECHNISCHE SKIZZE /
Technical sketch
BAUTEILE / FERTIGUNGSHINWEISE
Piece parts / Manufacturing notices
- Kabelaufdruck mittels Tintenstrahldrucker entspr. Techn. Skizze
Cable imprint with ink-jet printer see technical sketch
Kabelaufdruck (Bsp.)
Cable imprint (e.g.)
Kennzeichnungsträger
- Gute Chemikalien- und Ölbeständigkeit (Ölbeständigkeit gilt nicht für den
Einsatz mit PVC-Kabel). Beim Einsatz aggressiver Medien ist die
Materialbeständigkeit applikationsbezogen zu überprüfen.
Production date
e.g.: KW03 2009
label holder
ERNI Art.-Nr.
Part No.
Good chemical and oil resistance (parts with PVC-cable are not restistant).
When using agressive media, material resistance based on application
must be checked.
Packaging: 1 piece per bag (PE); ERNI label (refer to No. 254792)
- Verpackung: 1 Stück in PE-Beutel; ERNI-Etikett (Nr. 254792)
15
ERNI XXXXXX PUR 8x0,25 032009
STROMLAUFPLAN /
Schematic diagram
75 25
42
See table
60
1
2
1
2
3
4
8
5
7
6
Litze braun
Litze weiss
Litze blau
Litze schwarz
Litze grau
Litze pink
Litze violett
Litze orange
flexible conductor brown
flexible conductor white
flexible conductor blue
flesible conductor black
flexible conductor gray
flexible conductor pink
flexible conductor violet
flexible conductor orange
3
Ansicht: Steckgesicht; Kontaktbelegung /
View: mating face; pin assignment
4
5
6
7
8
Artikel-Nr.
Part No.
Leitungslänge (A)
Cable length (A)
Kupfer-
Kabelmantel
gewicht
Außendurchmesser
Copper
weight
65 g
Jacket
material
Jacket diameter
Aderisolation
Wire isolation
Zul. Temp.-Bereich
für Kabel
Permissable temp.
for cable
225040
1.500
+100
mm [59.55
+4
in]
3.000
+100
mm [118.1
+4
in]
5.000
+/-1,5%
[196,88 +/-5%]
7.500
+/-1,5%
[295,28 +/- 5%]
10.000
+/-1,5%
[393,70 +/- 5%]
Information:
PUR,
(UL/CSA)
6,0 mm 5%
[0.185 in 5%]
TPM
-25... +80 °C
(permanently
installed)
-20... +80 °C
(movably mounted)
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
Tolerances
All Dimensions
in mm [in]
Scale
1:1
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
-
Index
02.02.2009
Date
Designation
Subject to modification without
prior notice.
Drawing will not be updated.
CCCS M12, 8pin / pigtail
A-coding
www.ERNI.com
Class
324049
CCCS
I (1/1)
A3
