Features
■
Compact design, long life and high
■
■
■
■
CO
M
T
reliability
Vertical and horizontal mount versions
Flatted and knurled shaft styles
Variety of LED colors available
Bushing and bushingless options
*R
oH
S

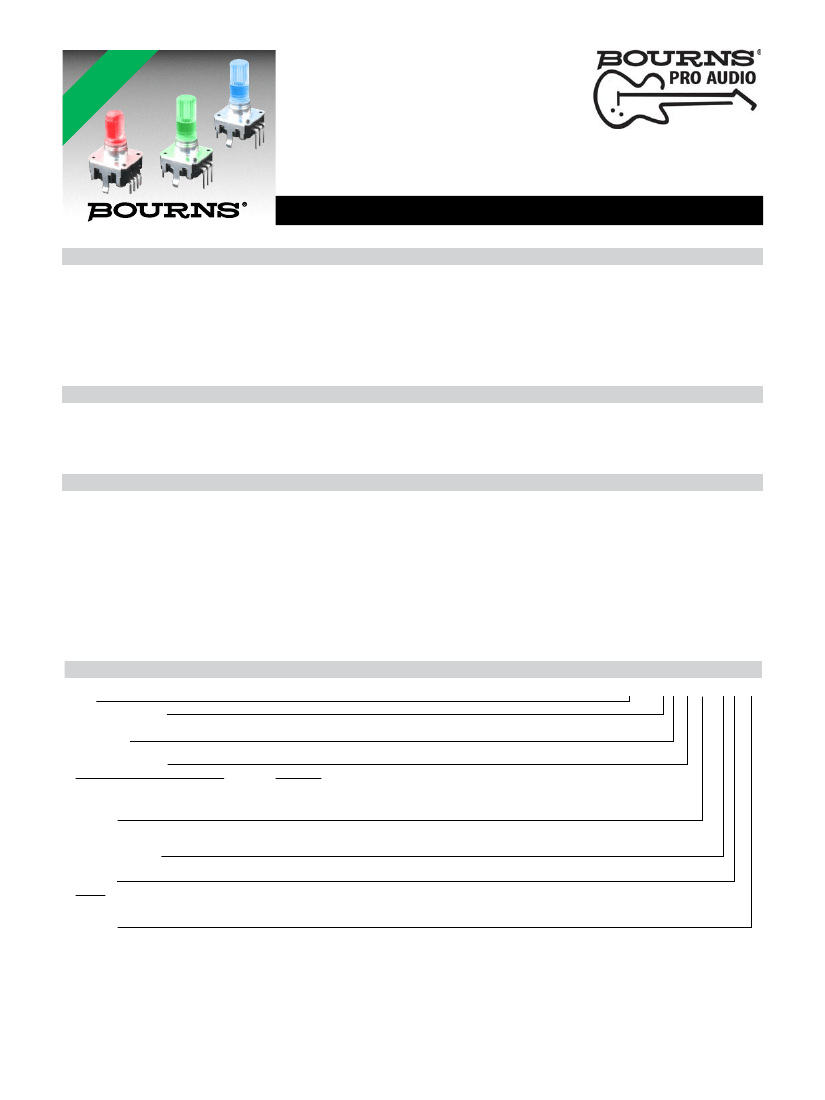

PEL12S - 12 mm Encoder with Illuminated Shaft
Electrical Characteristics
Output .....................................................................................................................................................................................2-bit quadrature code
Closed Circuit Resistance ........................................................................................................................................................... 3 ohms maximum
Contact Rating .............................................................................................................................................................................. 0.5 mA @ 5 VDC
Insulation Resistance ....................................................................................................................................................100 megohms @ 250 VDC
Dielectric Withstanding Voltage
Sea Level ................................................................................................................................................................................ 300 VAC minimum
Electrical Travel ......................................................................................................................................................................................Continuous
Contact Bounce (15 RPM).........................................................................................................................................................2.0 ms. maximum**
RPM (Operating) ............................................................................................................................................................................ 100 maximum**
Environmental Characteristics
Operating Temperature Range .......................................................................................................................-10 °C to +70 °C (+14 °F to +158 °F)
Storage Temperature Range .......................................................................................................................... -40 °C to +85 °C (-40 °F to +185 °F)
Operating Humidity ..................................................................................................................................................................... 25 % to 85 % R.H.
Rotational Life..................................................................................................................................................................... 30,000 cycles minimum
IP Rating ...........................................................................................................................................................................................................IP 40
Mechanical Characteristics
Mechanical Angle .......................................................................................................................................................................... 360 ° continuous
Detent Torque ..................................................................................................................................................30 to 200 g-cm (0.42 to 2.77 oz.-in.)
Running Torque ...................................................................................................................................................... 50 g-cm (0.69 oz-in.) maximum
Shaft Strength (Push) ...................................................................................................................................................................... 5 kgf (11.0 lbs.)
Shaft Strength (Pull) ...................................................................................................................................................................... 10 kgf (22.0 lbs.)
Weight ............................................................................................................................................................................... 3 gm (0.1 oz.) maximum
Terminals .................................................................................................................................................................. Printed circuit board terminals
Soldering Condition
Wave Soldering ..................................................................... Sn95.5/Ag2.8/Cu0.7 solder with no-clean flux: 260 °C max. for 5 ± 1 seconds
Hand Soldering .................................................................................................................................................................. Not recommended
Hardware ...............................................................................................................................................................................No hardware supplied
How To Order

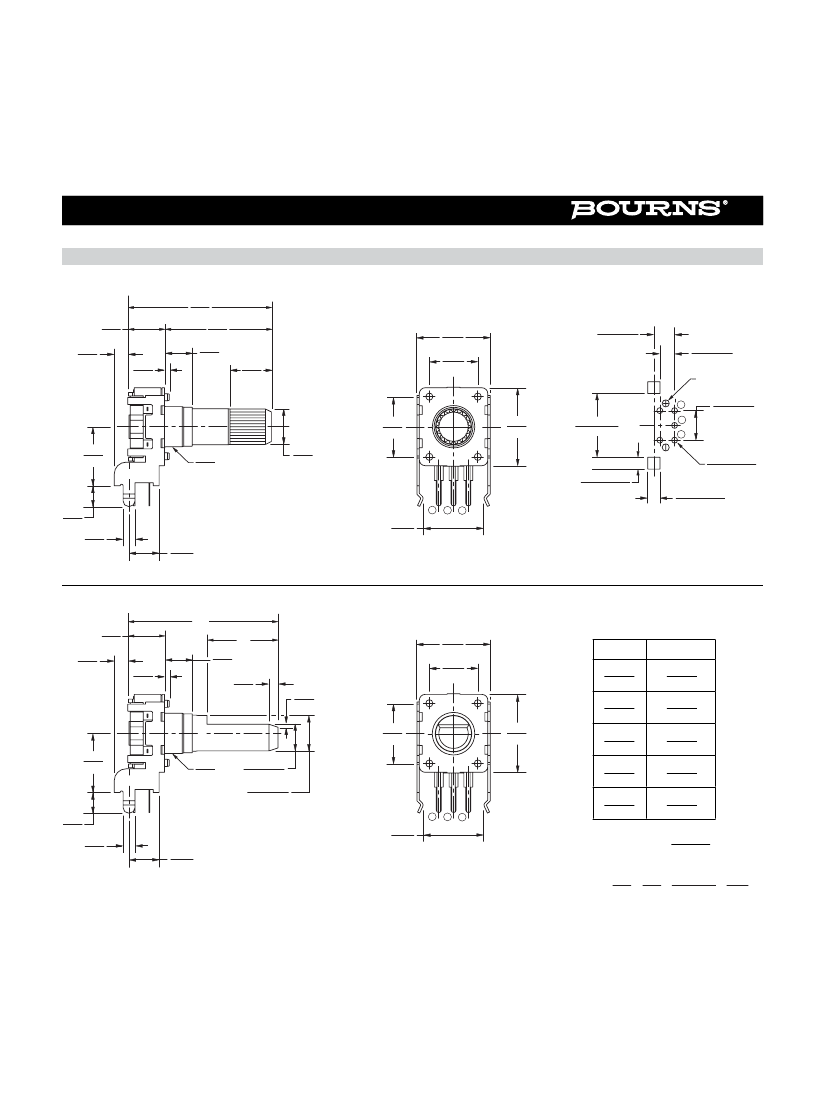

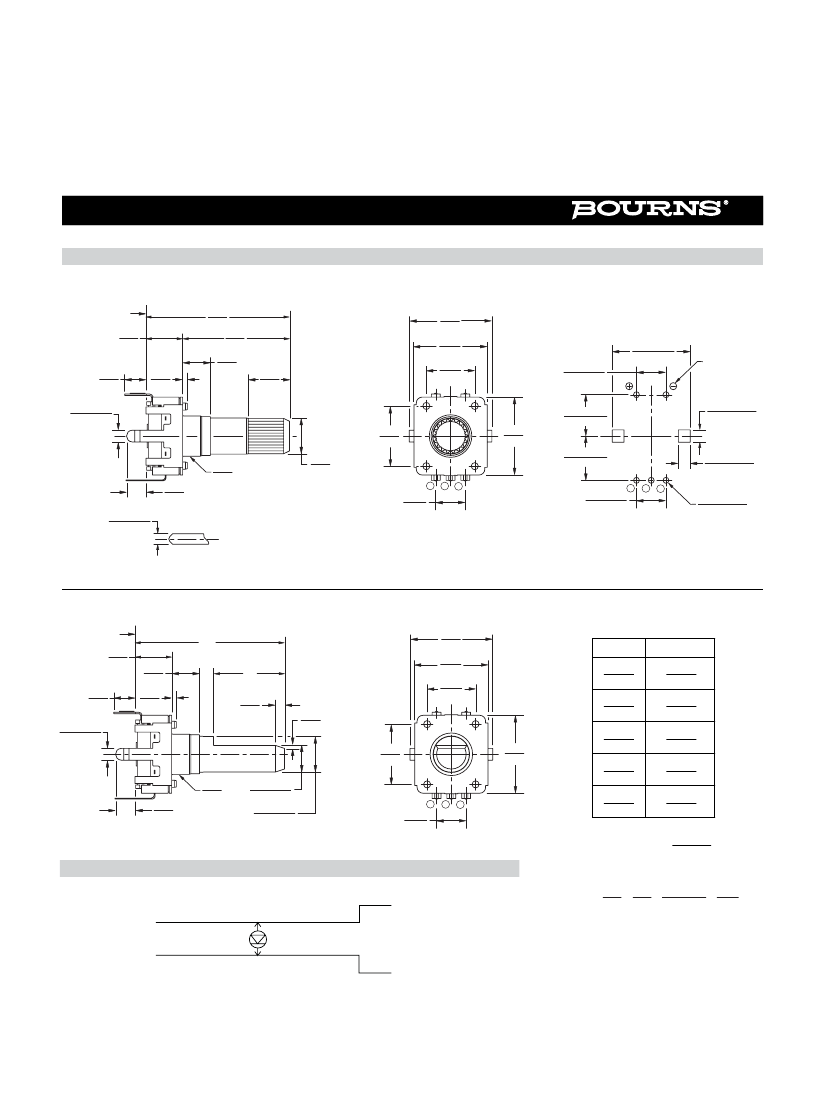

PEL12S - 4 0 20 F - N 1 024
Model
Terminal Configuration
2 = Vertical Mount/Side Exit PC Pin
4 = Horizontal Mount/Rear Exit PC Pin
Detent Option
0 = No Detents
2 = 24 Detents
Standard Shaft Length
Flatted:
Knurled:
15 = 15.0 mm
25 = 25.0 mm
24 = 24.0 mm
17 = 17.5 mm
30 = 30.0 mm
20 = 20.0 mm
Shaft Style
F = Insulated Flatted Shaft
S = Insulated Knurled Shaft (18 Teeth)
G = Insulated Flatted Shaft w/Bushing***
T = Insulated Knurled Shaft (18 Teeth) w/Bushing
Switch Configuration
N = No Switch
LED Color
Single:
1 = Red
3 = Blue
5 = White
2 = Green
4 = Orange
Resolution
024 = 24 Pulses per 360 ° Rotation
*** Available in 17.5, 20 and 25 mm shaft lengths.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
**Devices are tested using standard noise reduction filters. For optimum performance, designers should use noise reduction filters in their circuits.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
