HDBaseT HDMI over
Cat.5 Extender
H/W Version: 1

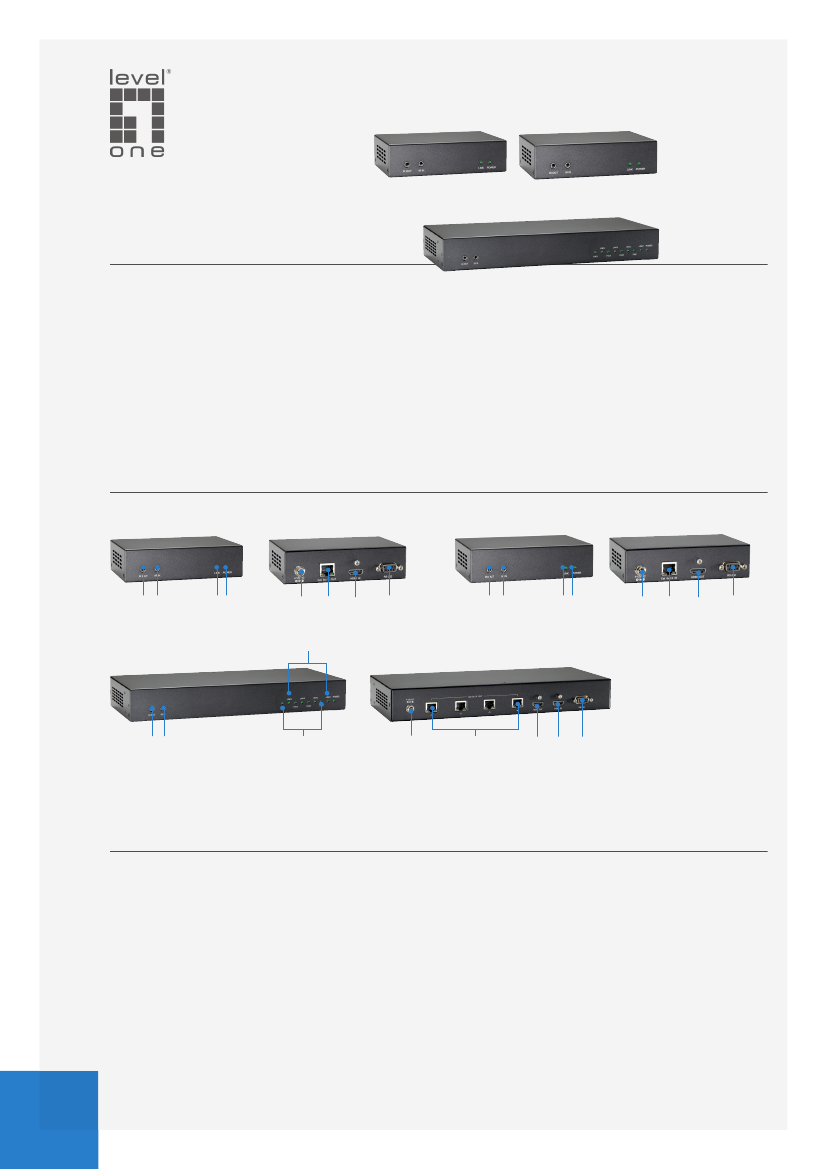

The HVE-92 series is a HDMI extension solution
supports HDBaseT technology which transmits HDMI
signal and multi-channel audio at resolution Ultra HD
4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD up to
100m via Cat5e or Cat6 cable.
The series of products are embedded with EDID
priority management of HDMI outputs supports
EDID Hotplug refreshing function. These products
also provide Bi-Directional RS-232 and IR to control
HVE-9211PT / HVE-9211T
HVE-9200
HVE-9200P
HVE-9211R
HVE-9211PR
HVE-9214T
HVE-9214PT
the connected devices from either source or display
location.
All the features are made to simplify installation
and reduce costs, but at the same time providing
exceptional video and audio quality. The HVE-92 series
is the perfect solution for Digital Signage, trade shows,
home theater installations, medical facilities, and
other public exhibitions.
HVE-9211R / HVE-9211PR
1 2
34
5
3
6
7
8
1 2
94
5
10
11
8
HVE-9214PT / HVE-9214T
12
1.
2.
3.
4.
IR Cable Out
IR Cable In
Rx Link Active
Power Indicator
12
5
6
11 7
8
11. HDMI Out
12. PoE Link
5. Power In
6. RJ-45 Out / PoE Out
(HVE-9211PT / 9214PT)
7. HDMI In
8. RS-232 Port
9. Tx Link Active
10. RJ-45 In / PoE In
(HVE-9211PR)
Key Features
-
-
-
-
-
-
-
-
-
-
-
IEEE 802.3af PoE compliant to simplify deployment and installation (only for the devices with PoE support)
Simple Plug and Play installation
Built-in EDID Hotplug Detection
EDID priority management of HDMI outputs
Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
Bi-Directional RS-232 pass through & IR Control
Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
HDMI and HDCP complaint
Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
Supports 3D, CEC & Lip Sync pass-through
Screw-in power socket for added safety
2
www.level1.com
I
one world_one brand_one level_
3
Technical Specifications
Model No.
Product Name
HVE-9200
HVE-9211T
HDMI
over Cat.5
Transmitter,
HDBaseT,
100m
HVE-9211R
HDMI over
Cat.5
Receiver,
HDBaseT,
100m
HVE-9200P
HVE-9211PT HVE-9211PR
HDMI
HDMI over
over Cat.5
Cat.5
Transmitter,
Receiver,
HDBaseT,
HDBaseT,
100m, 802.3af 100m, 802.3af
PoE
PoE
HDMI Type-A Female x 1
PoE RJ-45 x 1
RS-232 ×1
RS-232 ×1
3.5mm IR Jack ×1 3.5mm IR Jack ×1
Power Jack x1
Power Jack x1
PoE RJ-45 x 1
HDMI Type-A Female x 1
3.5mm IR Jack ×1 3.5mm IR Jack ×1
HVE-9214T
HVE-9214PT
HDMI over Cat.5
HDMI over Cat.5
Transmitter,
Transmitter, HDBaseT,
HDBaseT, 100m, 4
100m, 4 Channel
Channel Outputs Outputs, 802.3af PoE
Input
Output
HDMI Type-A Female x 1
RJ-45 x 1
RS-232 ×1
RS-232 ×1
3.5mm IR Jack ×1 3.5mm IR Jack ×1
Power Jack x1
Power Jack x1
RJ-45 x 1
HDMI Type-A Female x 1
3.5mm IR Jack ×1 3.5mm IR Jack ×1
48bit
DC 12V/1A
200mA
Metal
125 x 85 x 40mm
Deep Color
Power Supply
Power Consumption
Casing
Dimensions
Resolution
Distance
Video Bandwidth
IR Bandwidth
RS-232 Baud Rate
HDMI Type-A Female x 1
RS-232 ×1
3.5mm IR Jack ×1
Power Jack x1
RJ-45 x 4
HDMI Type-A Female x 1
3.5mm IR Jack ×1
48bit
48bit
36bit
48bit
DC 12V/2A
PoE
DC 12V/6.6A
DC 12V/1A
1110mA
1110mA
5000mA
400mA
Metal
Metal
Metal
Metal
300 x 160 x 44mm
125 x 85 x 40mm 125 x 85 x 40mm 125 x 85 x 40mm
Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD
up to 100m (with Cat.5e or Cat.6 cable)
10.2Gbps
38kHz
115200bps
HDMI Type-A Female x 1
RS-232 ×1
3.5mm IR Jack ×1
Power Jack x1
PoE RJ-45 x 4
HDMI Type-A Female x 1
3.5mm IR Jack ×1
36bit
DC 12V/6.6A
5000mA
Metal
300 x 160 x 44mm

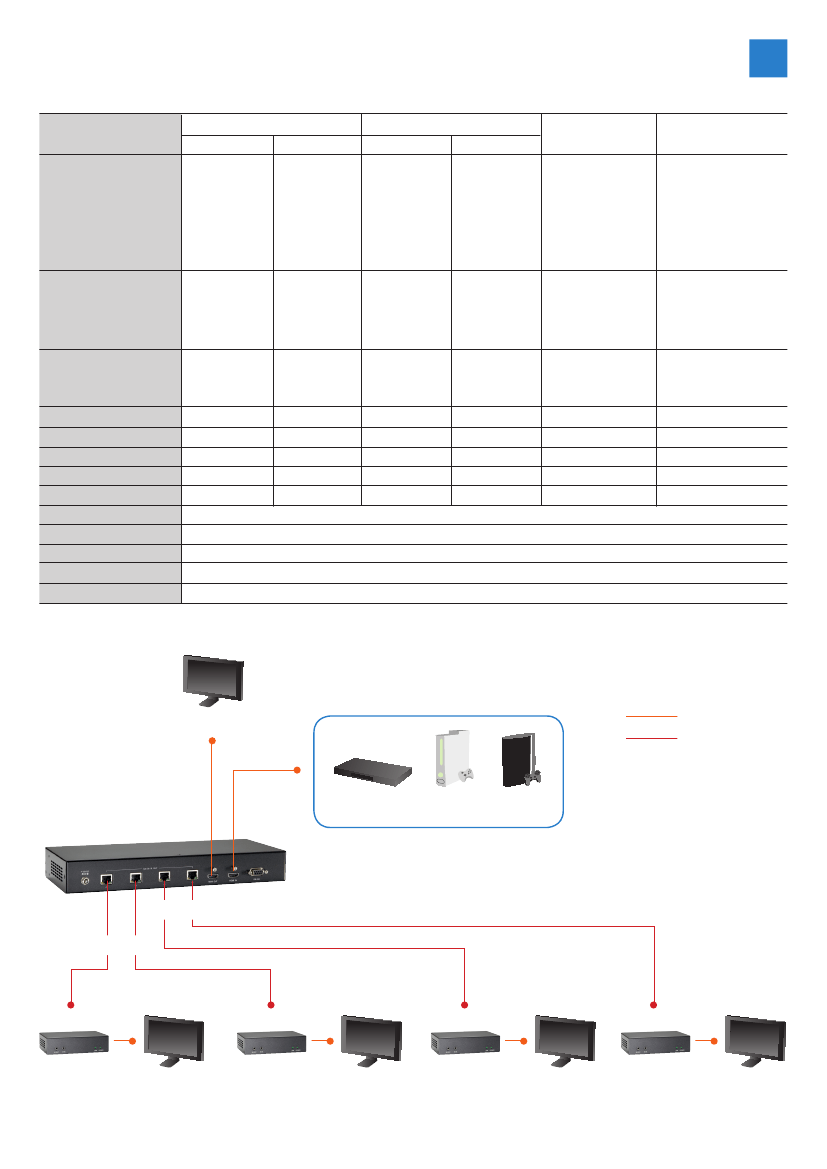

Prodouct Diagram
HDMI display
HDMI Cable
PoE Cable
HDMI source
HVE-9214PT
XBox
PS3
up to 100m
up to 100m
HVE-9211PR
HDMI display
HVE-9211PR
HDMI display
HVE-9211PR
HDMI display
HVE-9211PR
HDMI display
Order Information
HVE-9200:
HDMI over Cat.5 Extender Kit, HDBaseT, 100m
HVE-9200P:
HDMI over Cat.5 Extender Kit, HDBaseT, 100m, 802.3af PoE
HVE-9211R:
HDMI over Cat.5 Receiver, HDBaseT, 100m
HVE-9211PR:
HDMI over Cat.5 Receiver, HDBaseT, 100m, 802.3af PoE
HVE-9214T:
HDMI over Cat.5 Transmitter, HDBaseT, 100m, 4 Channel Outputs
HVE-9214PT:
HDMI over Cat.5 Transmitter, HDBaseT, 100m, 4 Channel Outputs, 802.3af PoE
Package Contents
HVE-9200:
Transmitter Unit (HVE-9211T) x1, Receiver Unit (HVE-9211R) x1, IR Remote Control x 2
(Transmitter and Receiver), Locking DC 12V 1A Power Adapter x 2, AC Power Cord x 2, User Manual x 1
HVE-9200P:
Transmitter Unit (HVE-9211PT) x1, Receiver Unit (HVE-9211PR) x1, IR Remote Control x 2
(Transmitter and Receiver), Locking DC 12V 2A Power Adapter x 1, (Rx powered by PoE), AC Power Cord x 1,
User Manual x1
HVE-9211R:
HDBaseT 100m Receiver x 1, IR Remote Control x 1, Locking DC 12V 1A Power Adapter x 1,
AC Power Cord x 1, User Manual x 1
HVE-9211PR:
HDBaseT 100m Receiver x 1, IR Remote Control x 1, User Manual x 1
HVE-9214T:
HVE-9214T x 1, IR Remote Control x 1, Locking DC Power Adapter x 1, AC Power Cord x 1,
User Manual x 1
HVE-9214PT:
HVE-9214PT x 1, IR Remote Control x 1, Locking DC Power Adapter x 1, AC Power Cord x 1,
User Manual x 1
All mentioned brand names are registered trademarks and property of their owners. Technical specifications are subject to change without notice.
© Copyright Digital Data Communications GmbH. All Rights Reserved.
4
V1.0
