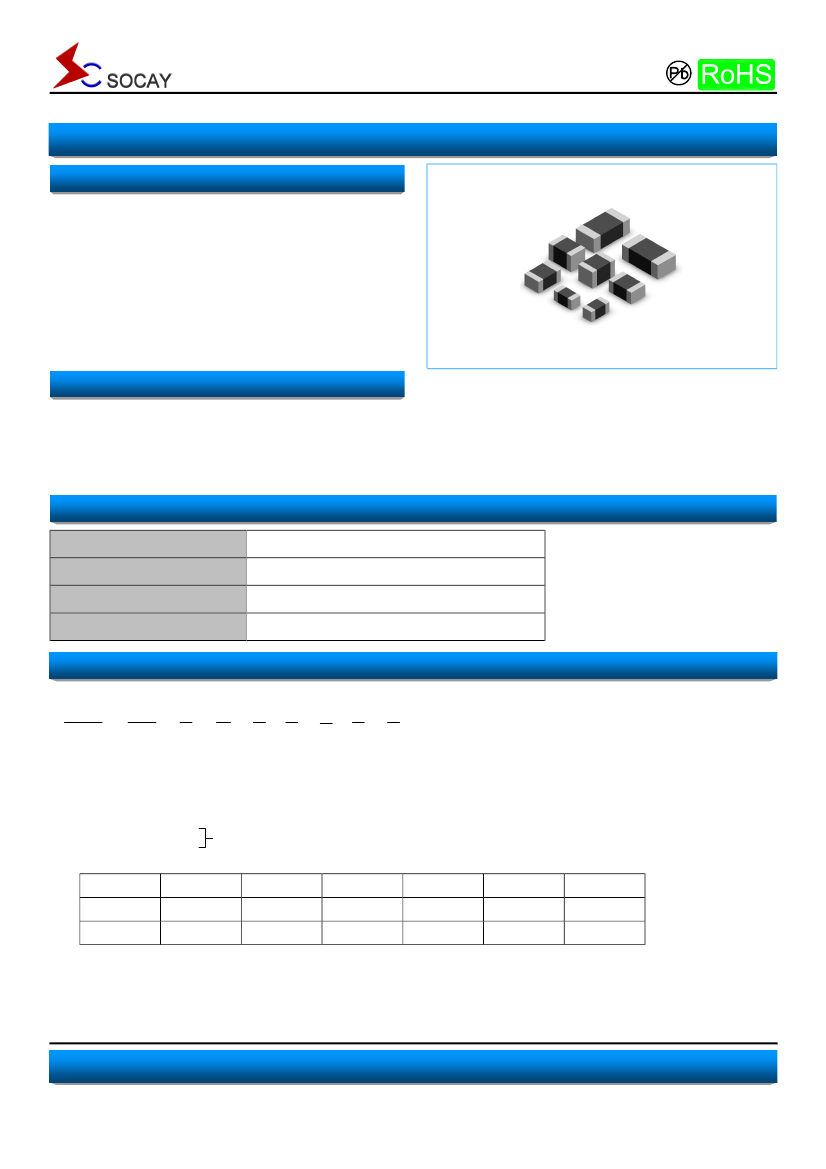

Chip Ferrite Bead for Automotive Applications
SCGB-W SCHB-W & SCPB-W Series
Features
u
u
u
u
u
u
u
Monolithic inorganic material construction
Closed magnetic circuit avoids crosstalk
SMD Type & suitable for reflow and wave soldering
Available in various sizes
Excellent solderability and heat resistance
High reliability
Effectively filtering capability over a wide range of
frequency
Qualified based on AEC-Q200
Applications
u
Automotive etc.
General Technical Data
Operating temperature range
Storage Condition
Storage Time
Soldering method
-40 ~ +125ºC
Less than 40℃ and 70% RH
6 months(Size:1005), 12 months(Size:1608 above)
Reflow or Wave Soldering
Part Numbering
SCGB
(1)
1
2
4
5
6
1608
(2)
W
(3)
12
(4)
1
(5)
H
(6)
P
(7)
F
(8)
-
(9)
Series Name
Size Code: the first two digitals : length(mm), the last two digitals : width(mm)
Impedance(Ω),
±25%
Fixed Decimal Point
Rated Current Cod
A=50mA
H=500mA
P=2500mA
B=80mA
I=600mA
Q=3000mA
C=100mA
J=700mA
R=4000mA
D=150mA
K=800mA
U=5000mA
E=200mA
L=1000mA
W=6000mA
F=300mA
M=1500mA
G=400mA
N=2000mA
3 W: for Automotive
e.g.: 600=60
Ω,
121=120Ω
7
8
9
Packaging:
P - Embossed paper tape, 7" reel
T - Embossed plastic tape, 7" reel
F-Lead-Free for whole chip
Soldering : Green Parts: S- Soldering Lead-Free
Material Code
SOCAY Electronics Co., Ltd.
Revision February 13, 2014
www.socay.com
1/7
@ SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Chip Ferrite Bead for Automotive Applications
SCGB-W SCHB-W & SCPB-W Series
Electrical Characteristics
Qualified based on AEC-Q200
n
Chip Ferrite Bead
Impedance (Ω)
±25%
120
240
600
1000
1000
1800
Test Freq.
(MHz)
100
100
100
100
100
100
DCR (Ω)
(Max.)
0.25
0.35
0.65
1.00
0.90
1.40
Rated Current
(mA)
500
300
200
200
200
200
SCGB1005-W Series
Part Number
SCGB1005W121HPF
SCGB1005W241FPF
SCGB1005W601EPFB
SCGB1005W102EPF
SCGB1005W102EPFB
SCGB1005W182EPFB
SCGB1608-W Series
Part Number
SCGB1608W121HPF
SCGB1608W221HPF
SCGB1608W471HPF
SCGB1608W601HPF
SCGB1608W102GPF
SCGB1608W182APF
SCGB1608W222APF
SCGB1608W252APF
Impedance (Ω)
±25%
120
220
470
600
1000
1800
2200
2500
Test Freq.
(MHz)
100
100
100
100
100
100
100
100
DCR (Ω)
(Max.)
0.18
0.25
0.35
0.38
0.50
1.50
1.50
1.50
Rated Current
(mA)
500
500
500
500
400
50
50
50
SCGB2012-W Series
Part Number
SCGB2012W121EPF
SCGB2012W151EPF
SCGB2012W221EPF
SCGB2012W601EPF
SCGB2012W102EPF
Impedance (Ω)
±25%
120
150
220
600
1000
Test Freq.
(MHz)
100
100
100
100
100
DCR (Ω)
(Max.)
0.15
0.15
0.20
0.30
0.45
Rated Current
(mA)
200
200
200
200
200
SCGB3216-W Series
Part Number
SCGB3216W601ETF
Impedance (Ω)
±25%
600
Test Freq.
(MHz)
100
DCR (Ω)
(Max.)
0.90
Rated Current
(mA)
200
SOCAY Electronics Co., Ltd.
Revision February 13, 2014
www.socay.com
2/7
@ SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Chip Ferrite Bead for Automotive Applications
SCGB-W SCHB-W & SCPB-W Series
Electrical Characteristics (Continue)
Qualified based on AEC-Q200
n
Chip Ferrite Bead For High Speed
Impedance (Ω)
±25%
75
Test Freq.
(MHz)
100
DCR (Ω)
(Max.)
0.40
Rated Current
(mA)
300
SCHB1005-W Series
Part Number
SCHB1005W750FPF
SCHB1608-W Series
Part Number
SCHB1608W750HPF
SCHB1608W121EPF
SCHB1608W241EPF
SCHB1608W601EPF
SCHB1608W102CPF
Impedance (Ω)
±25%
75
120
240
600
1000
Test Freq.
(MHz)
100
100
100
100
100
DCR (Ω)
(Max.)
0.30
0.40
0.45
0.65
0.85
Rated Current
(mA)
500
200
200
200
100
SCHB2012-W Series
Part Number
SCHB2012W121EBPF
SCHB2012W151EBPF
SCHB2012W221EBPF
SCHB2012W601EBPF
SCHB2012W222EBPF
Impedance (Ω)
±25%
120
150
220
600
2200
Test Freq.
(MHz)
100
100
100
100
100
DCR (Ω)
(Max.)
0.25
0.25
0.25
0.35
0.60
Rated Current
(mA)
200
200
200
200
200
SOCAY Electronics Co., Ltd.
Revision February 13, 2014
www.socay.com
3/7
@ SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Chip Ferrite Bead for Automotive Applications
SCGB-W SCHB-W & SCPB-W Series
Electrical Characteristics (Continue)
Qualified based on AEC-Q200
n
High Current Chip Ferrite Bead
Part Number
SCPB1005W100LPF
Impedance (Ω)
±25%
10
Test Freq.
(MHz)
100
DCR (Ω)
(Max.)
0.05
Rated Current
(mA)
1000
SCPB1005-W Series
SCPB1608-W Series
Part Number
SCPB1608W300LPF
SCPB1608W600LPF
SCPB1608W121NPF
SCPB1608W181MPF
SCPB1608W221MPF
SCPB1608W301MPF
SCPB1608W471LPF
Impedance (Ω)
±25%
30
60
120
180
220
300
470
Test Freq.
(MHz)
100
100
100
100
100
100
100
DCR (Ω)
(Max.)
0.05
0.10
0.05
0.09
0.10
0.15
0.20
Rated Current
(mA)
1000
1000
2000
1500
1500
1500
1000
SCPB2012-W Series
Part Number
SCPB2012W310QPF
SCPB2012W600QPF
SCPB2012W221NPF
SCPB2012W331MPF
Impedance (Ω)
±25%
31
60
220
330
Test Freq.
(MHz)
100
100
100
100
DCR (Ω)
(Max.)
0.015
0.026
0.050
0.090
Rated Current
(mA)
3000
3000
2000
1500
SCPB3216-W Series
Part Number
SCPB3216W500QTF
SCPB3216W121QTF
SCPB3216W601MTF
Impedance (Ω)
±25%
50
120
600
Test Freq.
(MHz)
100
100
100
DCR (Ω)
(Max.)
0.025
0.026
0.090
Rated Current
(mA)
3000
3000
1500
SCPB4516-W Series
Part Number
SCPB4516W600WTF
Impedance (Ω)
±25%
60
Test Freq.
(MHz)
100
DCR (Ω)
(Max.)
0.010
Rated Current
(mA)
6000
** For special part number which is not shown in the above table, please refer to appendix.
SOCAY Electronics Co., Ltd.
Revision February 13, 2014
www.socay.com
4/7
@ SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Chip Ferrite Bead for Automotive Applications
SCGB-W SCHB-W & SCPB-W Series

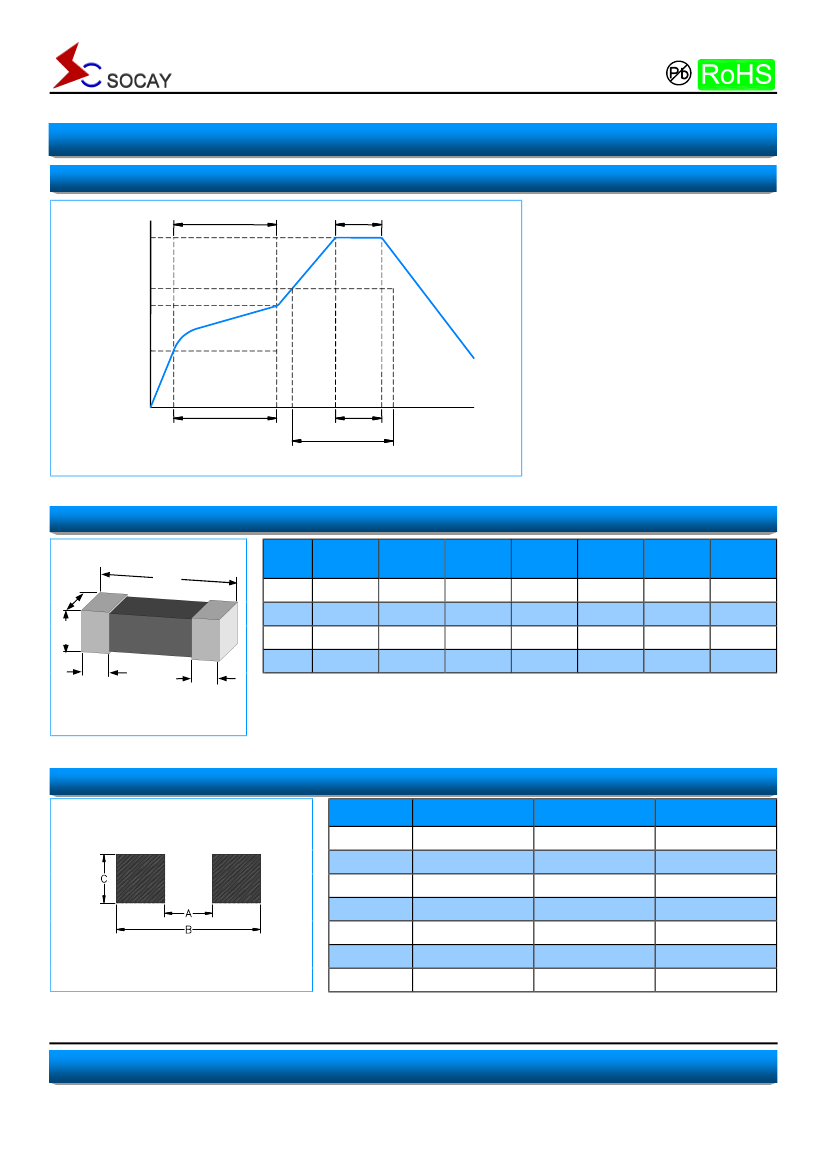

Recommended Soldering Conditions
Pre-heating
260
Soldering
Qualified based on AEC-Q200
Temperature (
℃
)
217
200
150
25
60~120 Second
≥30
Second
60~150 Second
Time (sec.)
For lead free solder
Construction & Dimensions
Unit: mm
L
W
Symbol
L
W
1005
1608
2012
3216
3225
4516
4532
(EIA 0402) (EIA 0603) (EIA 0805) (EIA 1206) (EIA 1210) (EIA 1806) (EIA 1812)
1.00±0.10 1.60±0.15 2.00±0.20 3.20±0.20 3.20±0.20 4.50±0.25 4.50±0.25
0.50±0.10 0.80±0.15 1.25±0.20 1.60±0.20 2.50±0.20 1.60±0.20 3.20±0.25
0.50±0.10 0.80±0.15 0.90±0.20 1.10±0.20 1.30±0.20
1.0±0.20
1.50±0.25
T
T
E
E
E
0.25±0.10 0.30±0.20 0.50±0.30 0.50±0.30 0.50±0.30 0.60±0.40 0.60±0.40
Recommended Pad Layout
Unit: mm
Size
1005
1608
2012
3216
3225
4516
4532
A
0.40~0.60
0.50~0.70
1.00~1.20
2.00~2.40
2.10~2.30
3.40~3.70
3.40~3.70
B
1.60~2.60
2.10~3.10
3.00~4.00
4.20~5.20
4.20~5.20
6.30~7.30
6.30~7.30
C
0.40~0.70
0.65~0.95
0.80~1.10
1.00~1.40
2.20~2.50
1.30~1.70
2.90~3.20
