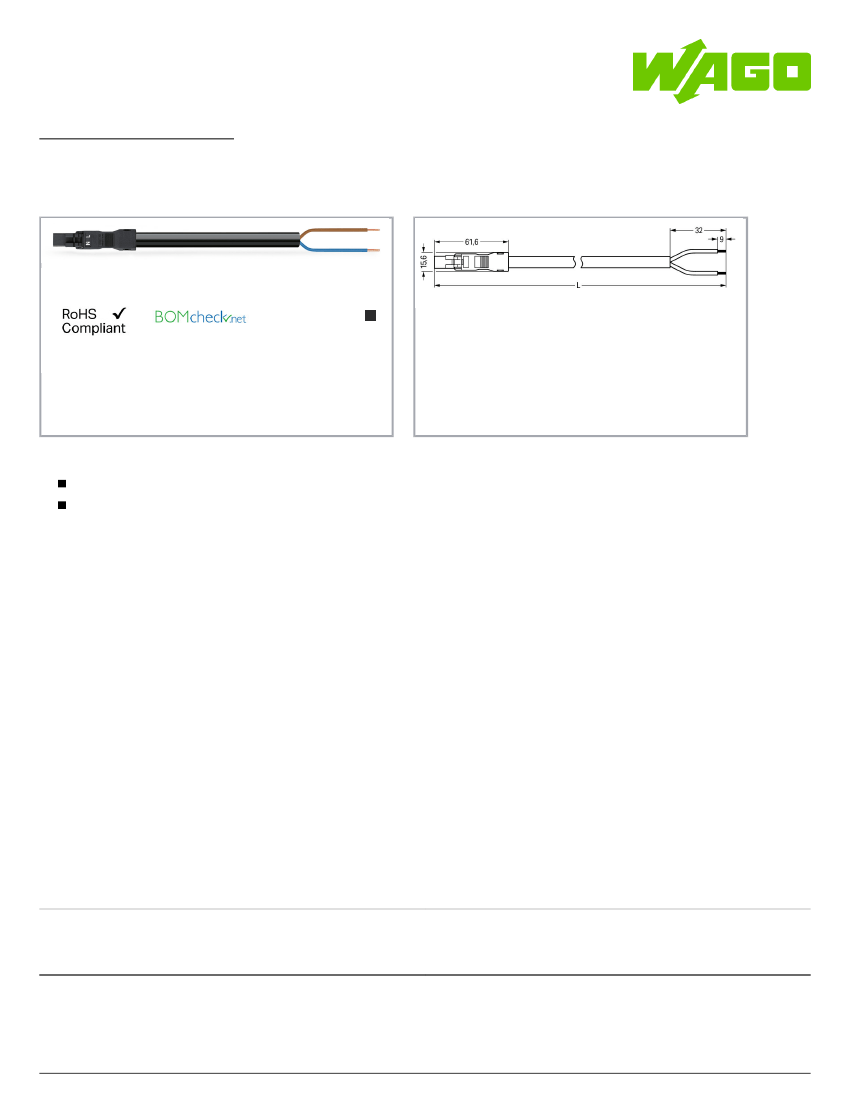

Data sheet | Item number: 891-8992/216-401
pre-assembled connecting cable; Eca; Plug/open-ended; 2-pole; Cod. A;
H05Z1Z1-F 2 x 1,50 mm²; 4m; 1,50 mm²; black
www.wago.com/891-8992_216-401
Color:
Item description
Protected against mismating and maintenance-free
Compact design with 4.4 mm pole spacing
Note:
Cables with a different fire class can be found in the eShop.
Note on mismating protection:
All WINSTA
®
components are 100% protected against mismating when:
a.) plugging different numbers of poles
b.) plugging while rotated 180
c.) plugging while laterally staggered
d.) plugging one pole
Safety information 1:
Application note for the U.S. market (USR): Some versions may also be used for current interruption in accordance with the UL certificate in select
applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office.
Data
Electrical data
Note on Contact Resistance
approx. 1 mΩ of contact resistance approx. 0.25 mΩ contact
transition plug/socket
Ratings per IEC/EN 60664-1
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
22.04.2020 Page 1/4
Data sheet | Item number: 891-8992/216-401
www.wago.com/891-8992_216-401
Ratings per IEC/EN 60664-1
Ratings per
Rated voltage (III / 3)
Rated impulse voltage (III / 3)
Rated current
Legend (ratings)
IEC/EN 60664-1
250
V
4
kV
16
A
(III / 3) ≙ Overvoltage category III / Pollution degree 3
Approvals per UL 1977
Rated voltage per UL 1977 (factory wiring only)
Rated current per UL 1977 (factory wiring only)
600
V
14
A
Connection data
No. of poles
Total number of potentials
Conductor preparation
Cable diameter
Cross section of single conductor
Strip length
Connection type
2
2
tip-bonded
6,8 … 8,6 mm
1.5
mm²
32
mm
Plug - Free end
Geometrical Data
Pin spacing
Total length
4,4 mm / 0.173 inch
4
m
Mechanical data
Coding
Mating force of a plug-in connection
Retention force of a plug-in connection
Unmating force of a plug-in connection
Number of mating cycles
200, without resistive load
100, with resistive load I
N
= 16 A, tested (1.5mm²/AWG 16)
A
approx. 20 … 70 N (depending on pole number)
when locked: > 80N
when unlocked: approx. 20 … 70 N (depending on pole number)
Connection type
Type of cable assembly
Plug - Free end
Connecting cable
Type of cable
H05Z1Z1-F 2x1.5
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
22.04.2020 Page 2/4
Data sheet | Item number: 891-8992/216-401
www.wago.com/891-8992_216-401
Type of cable
Marking
Protection class
Note on protection class
Potential marking
Application
H05Z1Z1-F 2x1.5
LN
IP20
IP40 when mated
LN
General mains applications
Plug connection
Mismating protection
Locking of plug-in connection
Locking lever
Yes
locking lever
retrofittable
Material Data
Color
Insulating material
Reaction to fire class per EN 50575
Contact material
Fire load
Connector color
Printing color of mating face
Strain relief color
Printing color of strain relief
Color of sheathed cable
Printing color of sheathed cable
Halogen-free
Weight
black
Polyamide 66 (PA 66)
E
ca
Copper or copper alloy (surface-treated)
7.071
MJ
black
white
black
white
black
white
Yes
352
g
Environmental Requirements
Processing temperature
Continuous operating temperature
Note on Continuous Service Temperature
-5 … +40 °C
-35 … +85 °C
PVC cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C
Commercial data
Packaging type
Country of origin
not packed
PL
GTIN
4055143392013
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
22.04.2020 Page 3/4
Data sheet | Item number: 891-8992/216-401
www.wago.com/891-8992_216-401
GTIN
Customs Tariff No.
4055143392013
85444290900
Approvals / Certificates
Country specific Approvals
Logo
Approval
KEMA/KEUR
DEKRA Certification B.V.
Additional Approval Text
EN 61535
Certificate
name
2179129.02
Counterpart
Downloads
Documentation
Bid Text
891-8992/216-401
GAEB X81 - Datei
891-8992/216-401
doc - Datei
Feb 19, 2019
xml
3.1 kB
doc
25.1 kB
Download
Nov 24, 2014
Download
CAD/CAE-Data
CAE data
WSCAD Universe 891-8992/216-401
URL
Download
Installation Notes
Product family
<i>WINSTA</i>® MINI
