Spec Sheet
CERAMIC CAPACITORS
Medium-high Voltage Multilayer Ceramic Capacitors
HMK212BJ224MG-T
Features
Item Summary
100V, X5R, 0.22μF, ±20%, 0805
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 3000pcs
Products characteristics table
CaseSize (EIA/JIS)
Rated Voltage (max)
Capacitance
Capacitance Tolerance
Resistance
Dielectric Loss Tangent
Temperature Characteristics (EIA/JIS)
Temperature Range (EIA/JIS)
Capacitance Change (EIA/JIS)
RoHS Compliance
Halogen Free
Soldering Method
0805/2012
100V
0.22μF
±20%
100 MΩ・μF min.
3.5%MAX
X5R/B
-55 to +85℃/-25 to +85℃
±15/±10%
Yes
Yes
Reflow
External Dimensions
L
W
T
e
2.0mm ±0.10
1.25mm ±0.10
1.25mm ±0.10
0.5mm ±0.25
2015.01.07
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

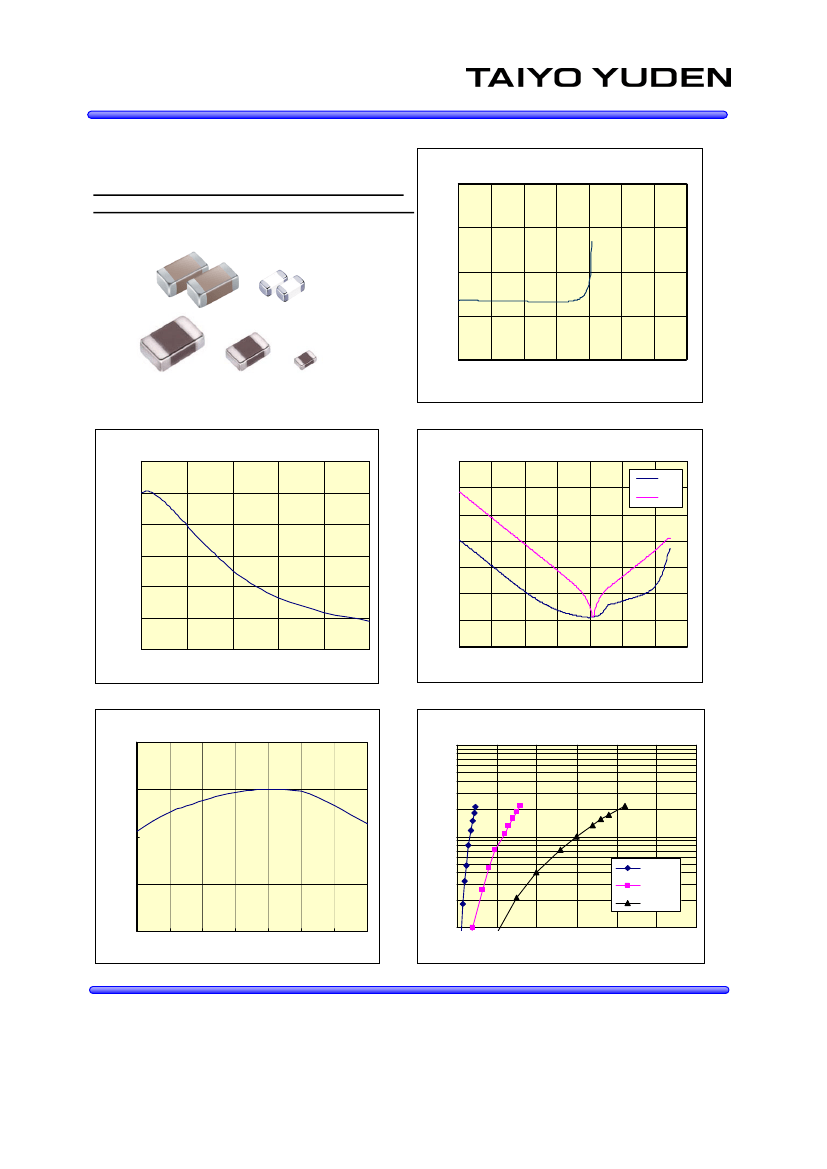

Multi Layer Ceramic Capacitor
○HMK212BJ224MG
100V 2012 B/X5R 0.22uF +/-20% t=1.35mmMAX
100V 0805 B/X5R 0.22uF +/-20% t=0.053inchMAX
Capacitance[uF] .
100
-Electrical Characteristics Data-
Jan-2011
RoHS compliance product
HMK212BJ224MG
Capacitance Freq.
10
1
0.1
0.01
0.001
0.01
0.1
1
10
100
1000 10000
Frequency[MHz]
20
0
-20
HMK212BJ224MG
DC Bias Char.
10000
1000
100
10
1
0.1
0.01
0.001
0.001
HMK212BJ224MG
Impedance,ESR Freq.
ESR
Z
-40
-60
-80
-100
0
20
Z,ESR[OHM] .
dC/C[%] .
DC Bias Voltage[V]
40
60
80
100
0.01
0.1
1
10
100
1000 10000
Frequency[MHz]
10
HMK2127BJ224MG
Capacitance Temp.
100
HMK212BJ224MG
Ripple Current
dTemp.[degreeC] .
0
dC/C[%]
-10
10
10kHz
100kHz
1M Hz
-20
-30
-55
-35
-15
1
Temperature[degreeC]
5
25
45
65
85
0
0.5
Ripple Current[Arms]
1
1.5
2
2.5
3
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification
