Compact Pre-wired Photomicrosensor with Built-in Amplifier (Non-modulated)
EE-SX91
CSM_EE-SX91_DS_E_3_1
Meeting Customer Needs with Compact
Sensors that Mount with M3 Screws
• Both light-ON and dark-ON outputs provided.
• A compact size and choice of five models for a wide
range of applications.
• Compact NPN and PNP output models.
• Mount using M3 or M2 screws.
• Indicator is visible in many directions for installation
in any location.
• Maximum load current of 100 mA.
• Models with connectors simplify wiring and maintenance.
• Flexible robot cables are standard on all models.
Be sure to read
Safety Precautions
on
page 6.

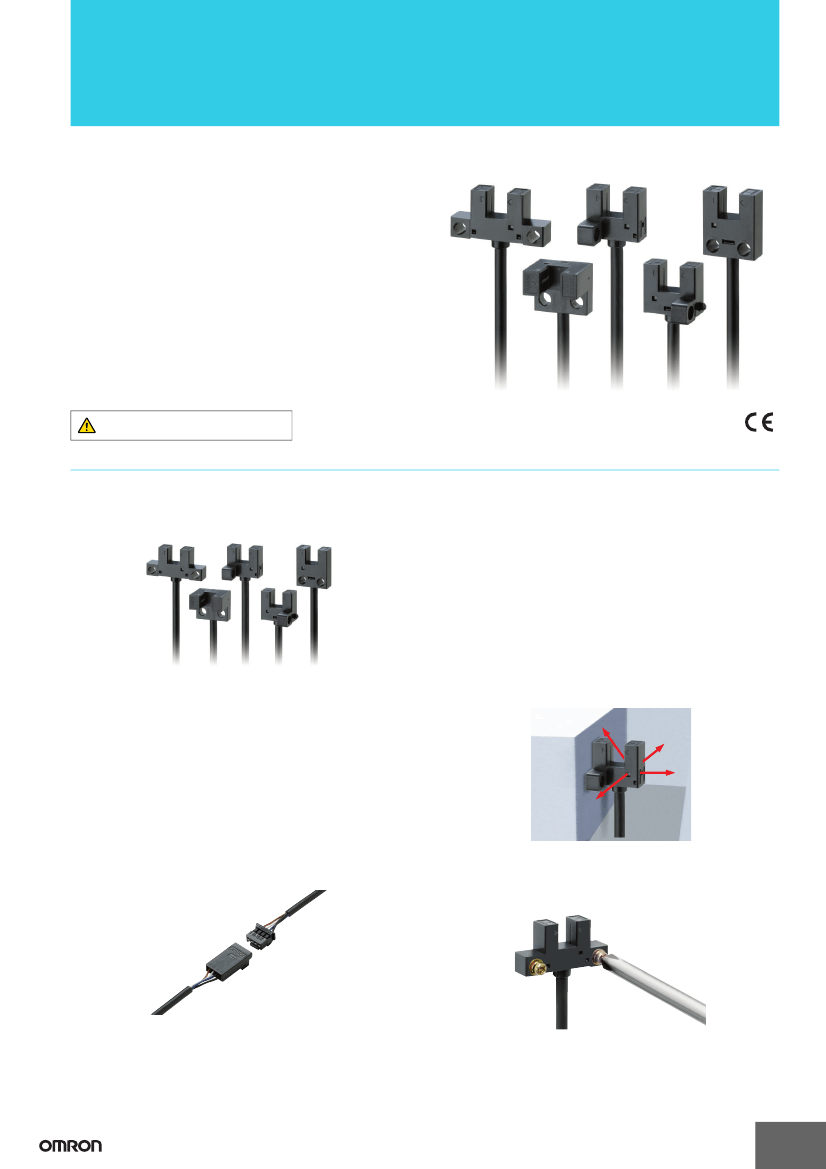

Features
A Compact Size and Choice of Five Models
for a Wide Range of Applications
Select any of five models to minimize the space required.
Flexible Robot Cables: Standard on All
Models
Robot Cables are effective for moving parts, and are provided as
standard equipment with all models.
Both Light-ON and Dark-ON Outputs
Both light-ON and dark-ON outputs are provided on all models,
allowing outputs to be switched by simply changing the wiring
according to the application.
Indicator Visible from Many Directions for
Installation in Any Location
Compact NPN and PNP Output Models
Both NPN and PNP output models are available for use according to
system requirements.
The light indicator can be checked from up to four directions.
Maximum Load Current of 100 mA
Output control of up to 100 mA is supported for either NPN or PNP
outputs.
Models with Connectors Simplify Wiring and
Maintenance
Using models with connectors allows wiring to be used as it is, with
no need to replace anything but sensors.
Mount Using M3 or M2 Screws
The EE-SX91 can be mounted using M3 or M2 screws, so it can
easily replace an existing compact sensor mounted with M2 screws.
1
EE-SX91

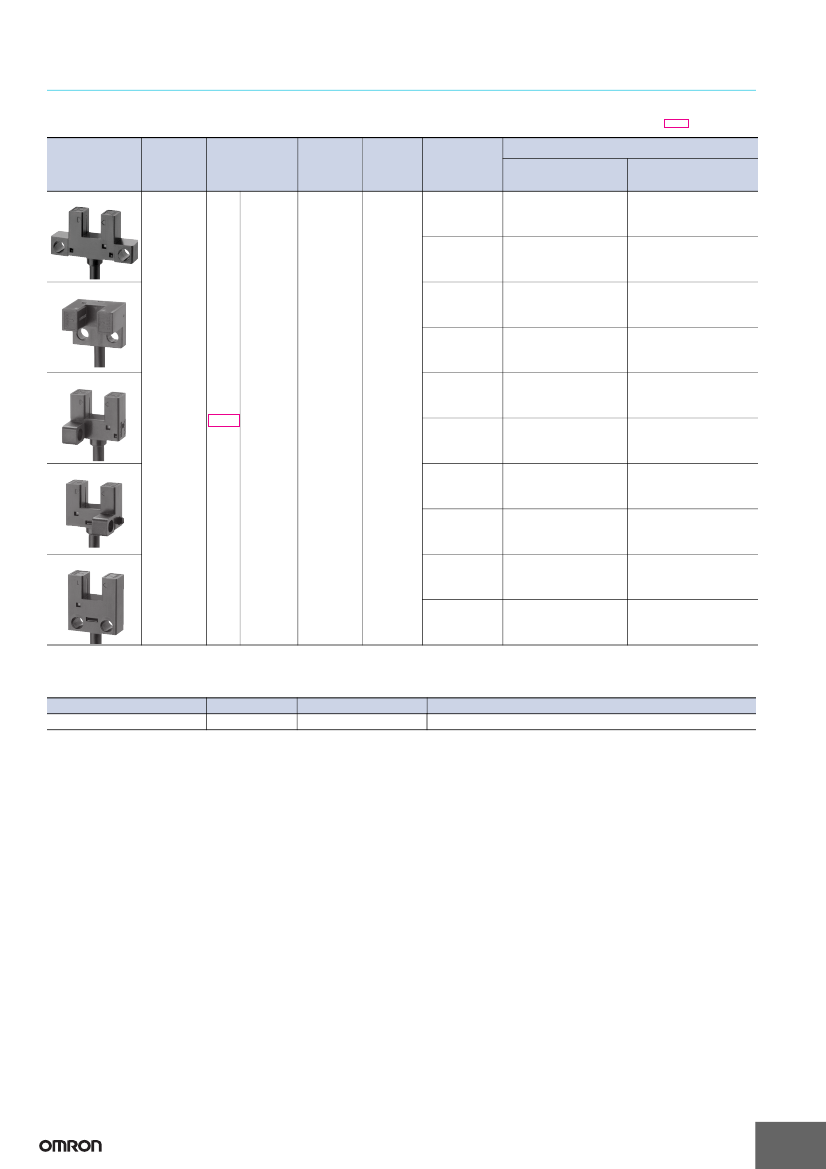

Ordering Information
List of Models
Models with Robot Cables
Appearance
Standard
Sensing
method
Sensing
distance
Output
configura-
tion
Indicator
mode
Connecting
method
(Cable
length)
Pre-wired
models (1 m)
Models with
connectors
(0.3 m)
L-shaped
Pre-wired
models (1 m)
Models with
connectors
(0.3 m)
F-shaped
Through-
beam type
(with slot)
Pre-wired
models (1 m)
Models with
connectors
(0.3 m)
Pre-wired
models (1 m)
Models with
connectors
(0.3 m)
U-shaped
Pre-wired
models (1 m)
Models with
connectors
(0.3 m)
Model
NPN output
PNP output
Infrared light
EE-SX910-R 1M
EE-SX910P-R 1M
EE-SX910-C1J-R 0.3M EE-SX910P-C1J-R 0.3M
EE-SX911-R 1M
EE-SX911P-R 1M
EE-SX911-C1J-R 0.3M EE-SX911P-C1J-R 0.3M
5 mm
(slot width)
Light-ON
Dark-ON
(2 outputs)
Lit when
light is
incident
EE-SX912-R 1M
EE-SX912P-R 1M
EE-SX912-C1J-R 0.3M EE-SX912P-C1J-R 0.3M
R-shaped
EE-SX913-R 1M
EE-SX913P-R 1M
EE-SX913-C1J-R 0.3M EE-SX913P-C1J-R 0.3M
E-SX914-R 1M
EE-SX914P-R 1M
EE-SX914-C1J-R 0.3M EE-SX914P-C1J-R 0.3M
Accessories (Order Separately)
Connector with Robot Cable
Type
Connector with Cable
Cable length
2m
Model
EE-1016-R
Remarks
Connector with lock, AWG26, 4-core Robot Cable
2
EE-SX91

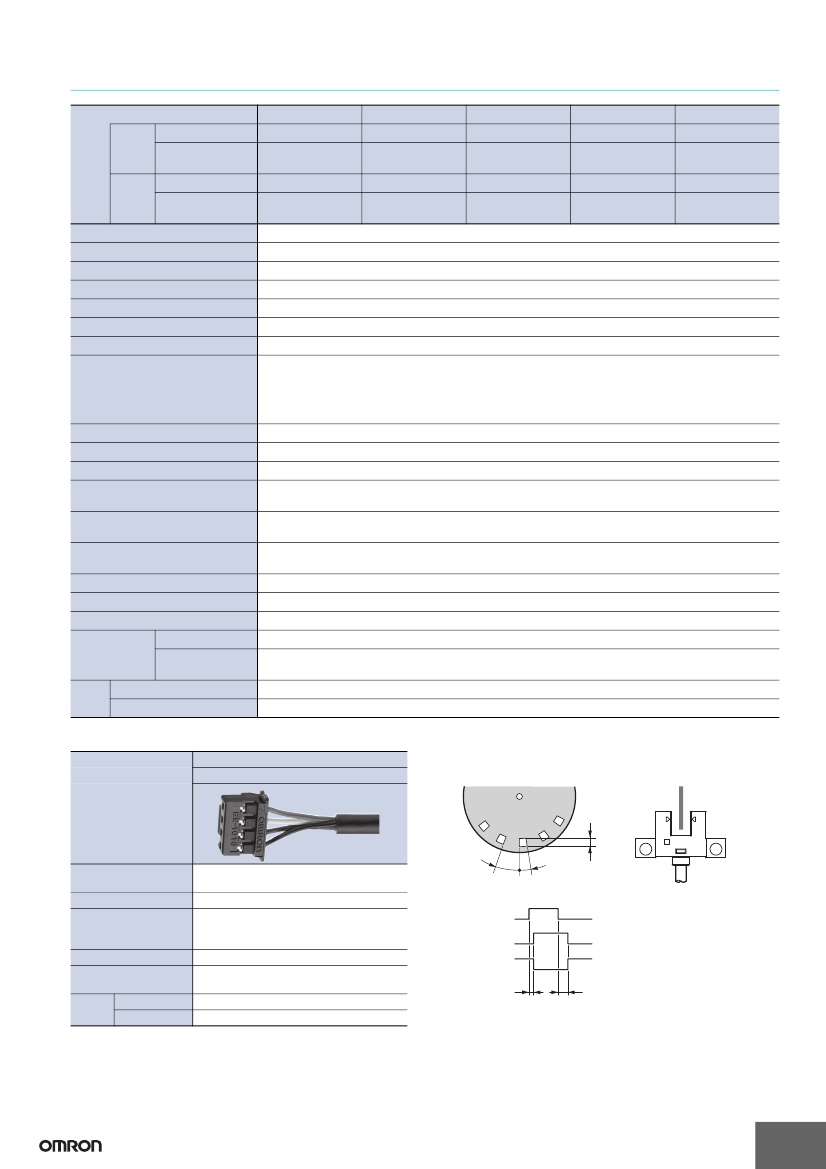

Ratings and Specifications
Type
NPN
mod-
els
PNP
mod-
els
Models with con-
nectors
Models with con-
nectors
Standard
L-shaped
EE-SX911-R
EE-SX911-C1J-R
EE-SX911P-R
F-shaped
EE-SX912-R
EE-SX912-C1J-R
EE-SX912P-R
R-shaped
EE-SX913-R
EE-SX913-C1J-R
EE-SX913P-R
U-shaped
EE-SX914-R
EE-SX914-C1J-R
EE-SX914P-R
Pre-wired models EE-SX910-R
EE-SX910-C1J-R
Pre-wired models EE-SX910P-R
Item
EE-SX910P-C1J-R EE-SX911P-C1J-R EE-SX912P-C1J-R EE-SX913P-C1J-R EE-SX914P-C1J-R
5 mm (slot width)
Opaque: 1.2
×
0.8 mm min.
0.025 mm max.
GaAs infrared LED with a peak wavelength of 940 nm
Light indicator (red LED)
5 to 24 VDC
±10%,
ripple (p-p): 10% max.
15 mA max.
Load power supply voltage: 5 to 24 VDC
Load current: 100 mA max.
OFF current: 0.5 mA max.
100 mA load current with a residual voltage of 1.0 V max.
5 mA load current with a residual voltage of 0.4 V max.
Power supply reverse polarity protection; output reverse polarity protection
3 kHz min. (8 kHz average) Light incident: 15
µs
average; light interrupted: 40
µs
average*
1,000 lx max. with fluorescent light on the surface of the receiver
Operating:
−25
to 55°C
Storage:
−30
to 80°C (with no icing or condensation)
Operating: 5% to 85%
Storage:
5% to 95% (with no icing or condensation)
10 to 2,000 Hz
0.75-mm single amplitude for 2.5 h (15-min periods, 10 cycles) each in X, Y, and Z directions
500 m/s
2
for 3 times each in X, Y, and Z directions
IEC60529 IP50
Pre-wired Models (standard cable length: 1 m), Models with Connectors (standard cable length: 0.3 m)
Sensing distance
Sensing object
Differential distance
Light source
Indicator
Supply voltage
Current consumption
Control output
Protection circuits
Response frequency
Ambient illumination
Ambient temperature range
Ambient humidity range
Vibration resistance (Destruction)
Shock resistance (Destruction)
Degree of protection
Connecting method
Pre-wired Models
Approx. 17 g
Weight
(packed state) Models with Con-
Approx. 7 g
nectors
Mate- Case/cover
rials Emitter/receiver
Polybutylene phthalate (PBT)
Polycarbonate (PC)
Applicable Connector
Product Connector with Robot Cable
Model EE-1016-R
* The response frequency was measured by detecting the following rotating
disk. The response times for light incidence and light interruption are shown in
the timing chart.
Disk
Appearance
Item
Contact resistance
Insertion strength
Surplus strength
(housing holding
strength)
Cable length
Ambient temperature
range
Mate- Housing
rials
Contact
25 mΩ max.
(at 10 mA DC and 20 mV max.)
20 N max.
Light incident
Light interrupted
2 mm
1 mm
t=0.2 mm
2 mm
15 N min.
2m
−25
to 85°C
Nylon
Phosphor bronze
OUT1 output ON
OFF
transistor
OUT2 output ON
OFF
transistor
15
µs
avg.
40
µs
avg.
3
EE-SX91
Engineering Data (Typical)
Sensing Position Characteristics
EE-SX910
EE-SX910
EE-SX911
Dark-ON
d
Insertion
direction
Dark-ON
Dark-ON
Insertion
direction
d
d
Insertion direction
Light-ON
0
1
2
3
4
5
6
Distance d (mm)
Light-ON
0
1
2
3
4
5
6
Distance d (mm)
Light-ON
0
1
2
3
4
5
6
Distance d (mm)
Repeated Sensing Position Characteristics
EE-SX910
Dark-ON
d=±0.002
d
Light-ON
3.14
3.16
3.18
3.2
Distance d (mm)
Vcc = 24 V, No. of repetitions: 20, Ta = 25°C
(Differential distance = 0.025 mm max.)
Note: The data applies to dark status. Operation may be affected by external light
interference or light coming through the sensing object.
4
EE-SX91
I/O Circuit Diagrams
Output
type
Model
Output transistor
operation status
Timing charts
Light incident
Light interrupted
Output circuit
Connector pin
arrangement
for models with
connectors
EE-SX910-R
EE-SX910-C1J-R
EE-SX911-R
EE-SX911-C1J-R
NPN
EE-SX912-R
output
EE-SX912-C1J-R
EE-SX913-R
EE-SX913-C1J-R
EE-SX914-R
EE-SX914-C1J-R
EE-SX910P-R
EE-SX910P-C1J-R
EE-SX911P-R
EE-SX911P-C1J-R
PNP
EE-SX912P-R
output
EE-SX912P-C1J-R
EE-SX913P-R
EE-SX913P-C1J-R
EE-SX914P-R
EE-SX914P-C1J-R
Light
indicator
Light indicator
ON
(red)
OFF
1
Brown
1
2
OUT1 Load 1
(Black)
4
Load 2
OUT2
(White)
5 to 24 VDC
Main
circuit
2
3
4
Output 1
transistor
ON
OFF
3
(Blue)
OUT1: Light-ON
OUT2: Dark-ON
Load 1 Operates
(e.g., relay) Releases
Light
indicator
Output 2
transistor
ON
OFF
1
(Brown)
OUT1
(Black)
OUT2
(White)
Connector pin
arrangement
for models with
connectors
1
2
5 to
24 VDC
Load 1
3
4
4
Main
circuit
2
Load 2 Operates
(e.g., relay) Releases
Load 2
3
(Blue)
5
