SAB-C504-2R40M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> SAB-C504-2R40M

SAB-C504-2R40M: Description8-Bit CMOS Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size967KB，49 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

SAB-C504-2R40M Overview

8-Bit CMOS Microcontroller

SAB-C504-2R40M Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
ECCN code	3A991.A.2
Has ADC	YES
Address bus width	16
bit size	8
maximum clock frequency	40 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQFP-G44
Number of I/O lines	32
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	YES
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
ROM programmability	MROM
speed	40 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.25 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

Microcomputer Components

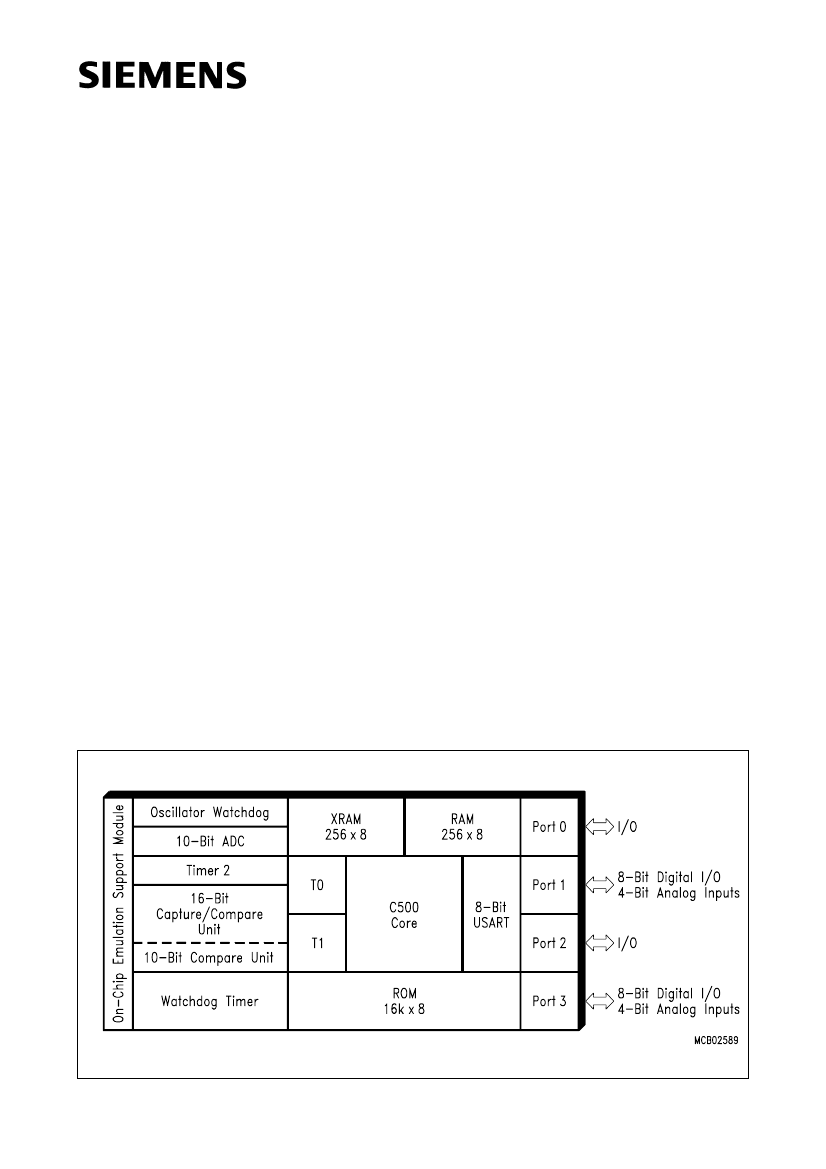

8-Bit CMOS Microcontroller

C504

Data Sheet 05.96

C504

Revision History:

Previous Version:

Current Version: 05.96

Page

Subjects (major changes since last revision)

(in previous ( i n

new

Version)

Edition 05.96

This edition was realized using the software system FrameMaker

Published by Siemens AG,

Bereich Halbleiter, Marketing-

Kommunikation, Balanstraße 73,

81541 München

Siemens AG 1996.

Attention please!

As far as patents or other rights of third parties are concerned, liability is only assumed for components, not for applications, processes

and circuits implemented within components or assemblies.

The information describes the type of component and shall not be considered as assured characteristics.

Terms of delivery and rights to change design reserved.

For questions on technology, delivery and prices please contact the Semiconductor Group Offices in Germany or the Siemens Companies

and Representatives worldwide (see address list).

Due to technical requirements components may contain dangerous substances. For information on the types in question please contact

your nearest Siemens Office, Semiconductor Group.

Siemens AG is an approved CECC manufacturer.

Packing

Please use the recycling operators known to you. We can also help you – get in touch with your nearest sales office. By agreement we

will take packing material back, if it is sorted. You must bear the costs of transport.

For packing material that is returned to us unsorted or which we are not obliged to accept, we shall have to invoice you for any costs in-

curred.

Components used in life-support devices or systems must be expressly authorized for such purpose!

Critical components

of the Semiconductor Group of Siemens AG, may only be used in life-support devices or systems

with the express

written approval of the Semiconductor Group of Siemens AG.

1 A critical component is a component used in a life-support device or system whose failure can reasonably be expected to cause the

failure of that life-support device or system, or to affect its safety or effectiveness of that device or system.

2 Life support devices or systems are intended (a) to be implanted in the human body, or (b) to support and/or maintain and sustain hu-

man life. If they fail, it is reasonable to assume that the health of the user may be endangered.
