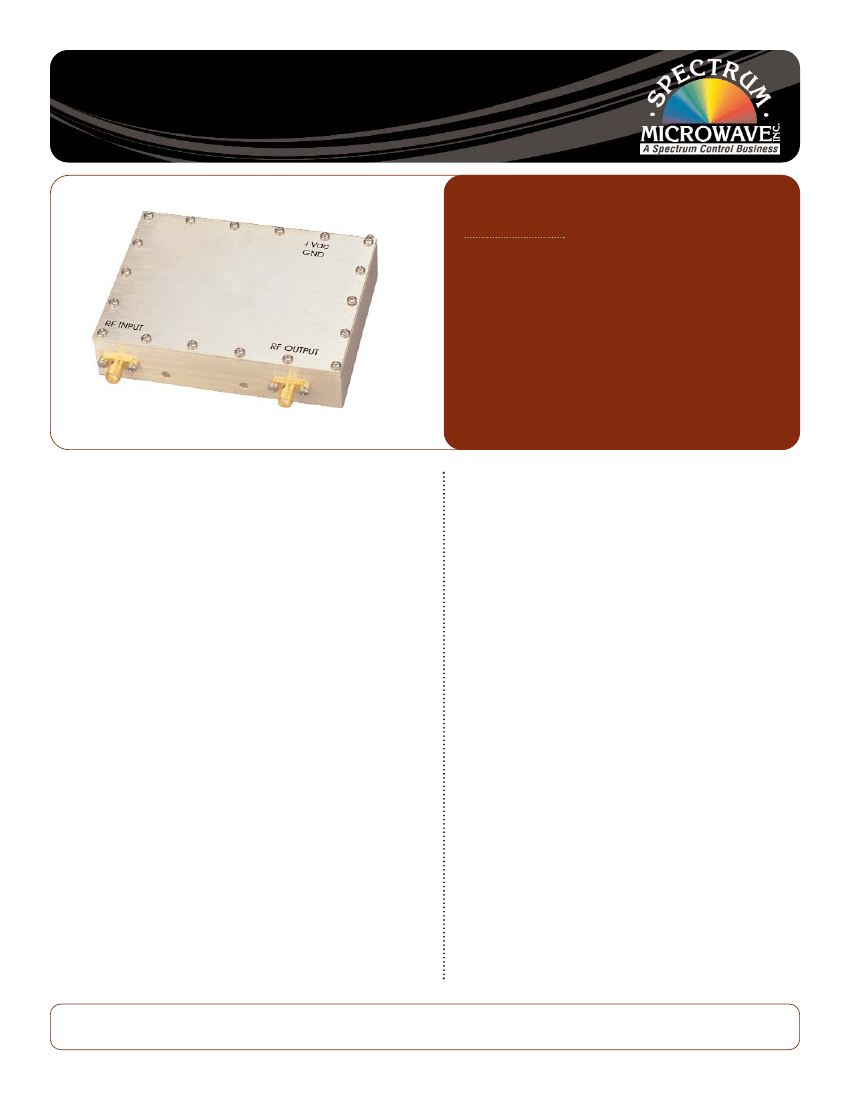

Frequency Multiplier (x15)
Model BXMF1013 (600 - 700 MHz)
Features
•
•
•
•
Excellent Harmonic Performance: -50 dBc
High Input Threshold: +17 dBm
Low Sub-Harmonic Content: -60 dBc
Environmental Screening Available
Description
Spectrum Microwave offers a complete line of low noise,
odd order SRD frequency multipliers, which exhibit excel-
lent phase noise performance. The input signal is ampli-
fied, multiplied, and filtered at X Band. Filtering in this
series of multipliers is accomplished through a very narrow,
high Q bandpass filter.
All internal semiconductors are housed in rugged, hermeti-
cally sealed packages to ensure excellent performance
over military environmental conditions.
Additive phase noise testing is performed on each device
to ensure low phase noise/jitter performance.
Typical Specifications
Input Frequency
Input Level
Output Frequency
Output Level
Bandwidth
Switching Speed
Harmonics
Sub-Harmonics
DC Power
Temp Range
600 to 700 MHz
+17 dBm
9 - 10.5 GHz
+3 dBm
2%
90 nsec
-50 dBc
-60 dBc
+15 V @ 110 mA
-5 V @ 1 mA
0oC to +75oC
All specifications above measured at 25 oC
Applications
•
•
•
•
Synthesizer Building Block
SIGINT
ELINT
EW
Dimensions and Connections
2” L x 3.5” W x 1” H
Revision: 11/26/2012
