AHP-1083HTT-A1-1010: Description8.4 â SVGA HMI Touch Panel Computer With Onboard Intel Atom D2550 1.86 GHz Processor 2G RAM; File Size285KB，2 Pages; ManufacturerAAEON; Websitehttp://www.aaeon.com

Download Datasheet Compare View All

AHP-1083HTT-A1-1010 Overview

8.4 â SVGA HMI Touch Panel Computer With Onboard Intel Atom D2550 1.86 GHz Processor 2G RAM

Preview

Download Datasheet

View All

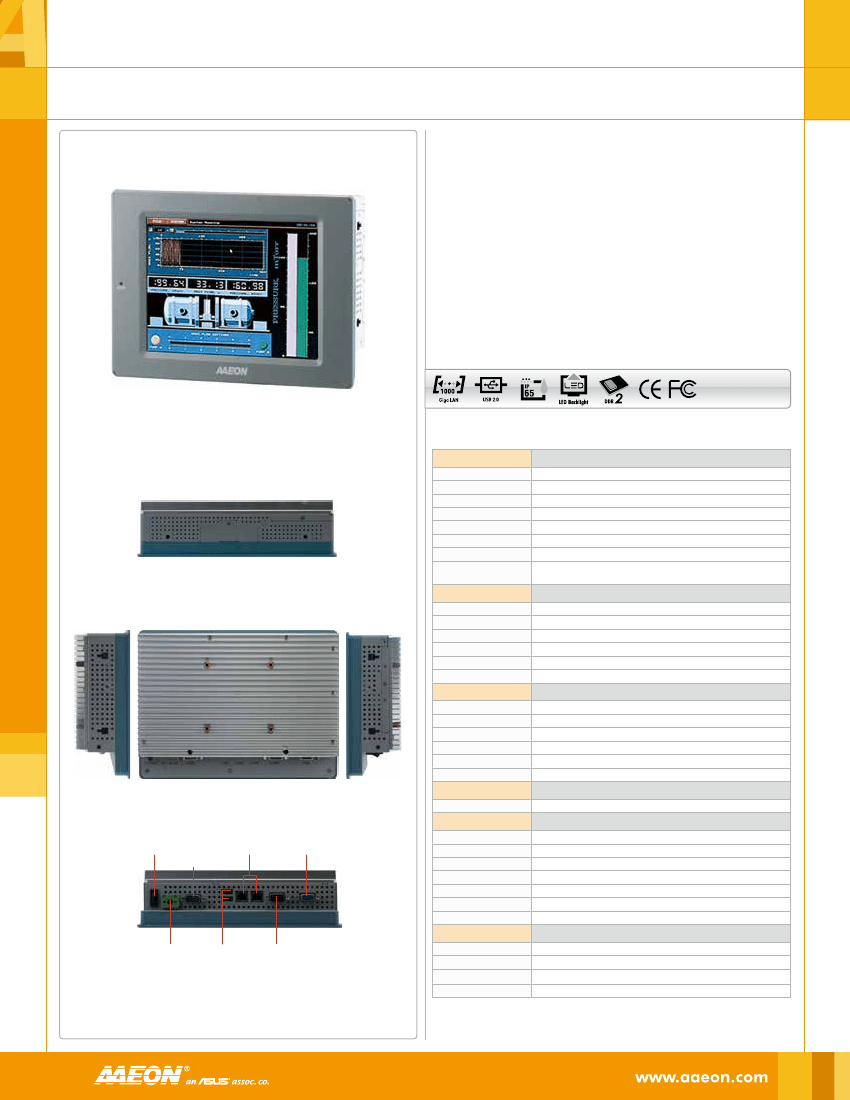

AHP-1083

01

Industrial HMI Touch Panel Solutions

Power Button

RS-232

LAN x 2

VGA

DC 12V input

USB x 2

RS-232/422/485

8.4 ” SVGA HMI Touch Panel Computer With Onboard Intel® Atom™ D2550 1.86 GHz Processor 2G RAM

Features

■

Intel® Atom™ D2550

1.86GHz Onboard

■

8.4” 450 Nits SVGA LED Backlight

■

Fanless Operation

■

IP-65 Front Bezel

Specifications

System

Processor

System Memory

LCD/CRT Controller

Ethernet

I/O Port

Storage Disk Drive

Expansion Slot

OS support

Intel® Atom™ D2550, 1.86GHz

204-Pin DDR3 800/1066 SODIMM x 1, max to 4G, Default is 2G inside

Intel® NM10

10/100/1000Base-TX, RJ-45 x 2

USB2.0 x 2, RS-232 x 1, RS-232/422/485 x 1, LAN x 2, VGA x 1

2.5" SATA Hard Disk Drive /CFast™ Slot (Internal)

Mini-PCI x 1

WinCE 6.0, Windows® XP Embedded, Windows® XP, Windows® 7 32-bit ,

Windows® Embedded Standard 7, Linux Fedora

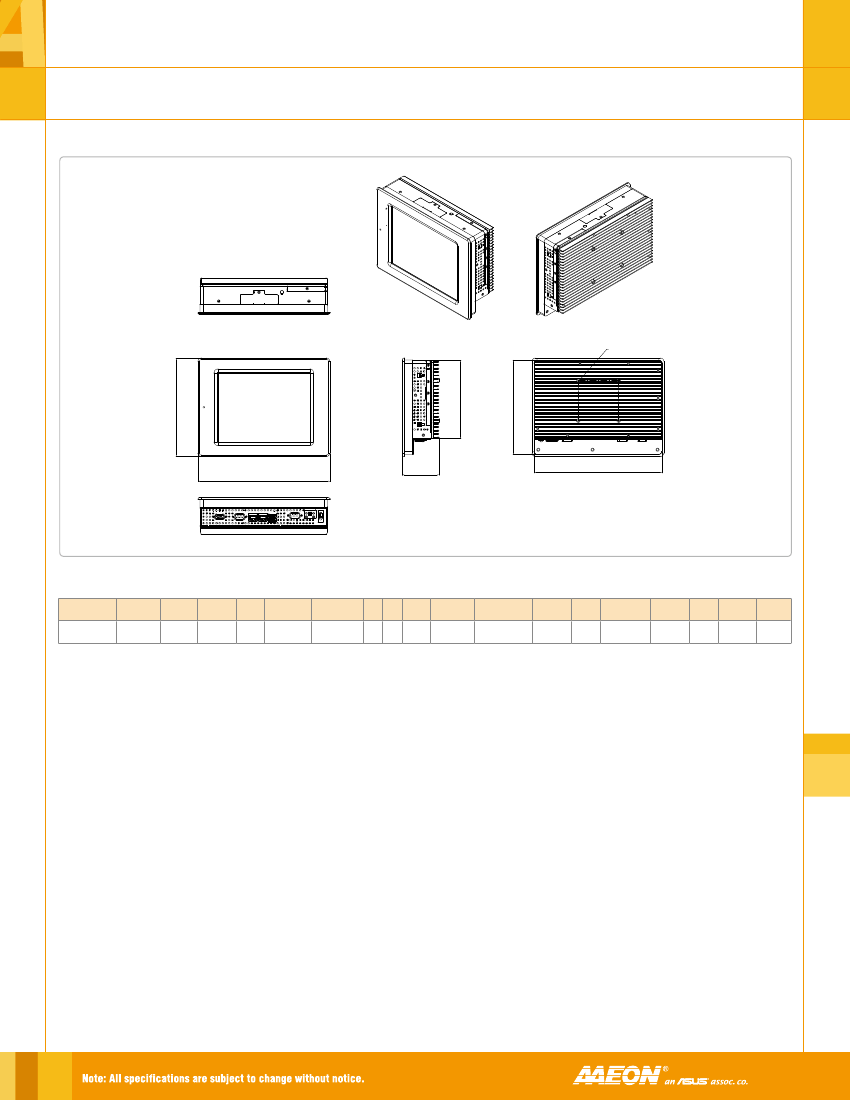

Mechanical

Construction

Color

Mounting

Dimension

Gross Weight

Net Weight

IP-65 certified Plastic front panel, Aluminum back panel

Front Panel: Gray, Back panel: Light Gray

VESA 75/ Panel

9.65“ x 7.2“ x 1.97“ (245mm x 183mm x50mm)

4.4 lb (2 Kg)

3.3 lb (1.5 Kg)

Environmental

Operating Temperature

Storage Temperature

Storage Humidity

Vibration

Shock

EMC

32°F ~ 122°F (0°C ~ 50°C)

-4°F ~ 158°F (-20°C ~ 70°C)

5%~90% @40°C, non-condensing

1 g rms/ 5~ 500Hz/ operation – With HDD

20 G peak acceleration (11 msec. duration)

CE/FCC class A

Power Supply

DC input

DC 12V w/ 2-pin terminal block

LCD

Display Type

Max Resolution

Max. Colors

Luminance

Viewing Angle

Back Light

Back Light MTBF (hours)

8.4" TFT-LCD

800 x 600

262K

450 cd/m

2

160°(H), 140°(V)

LED

50,000

Touchscreen

Type

Resolution

Light Transmission

Life time

5-wire,Analog Resistive

2048 x 2048

>80%

35 Million activations

01-7
