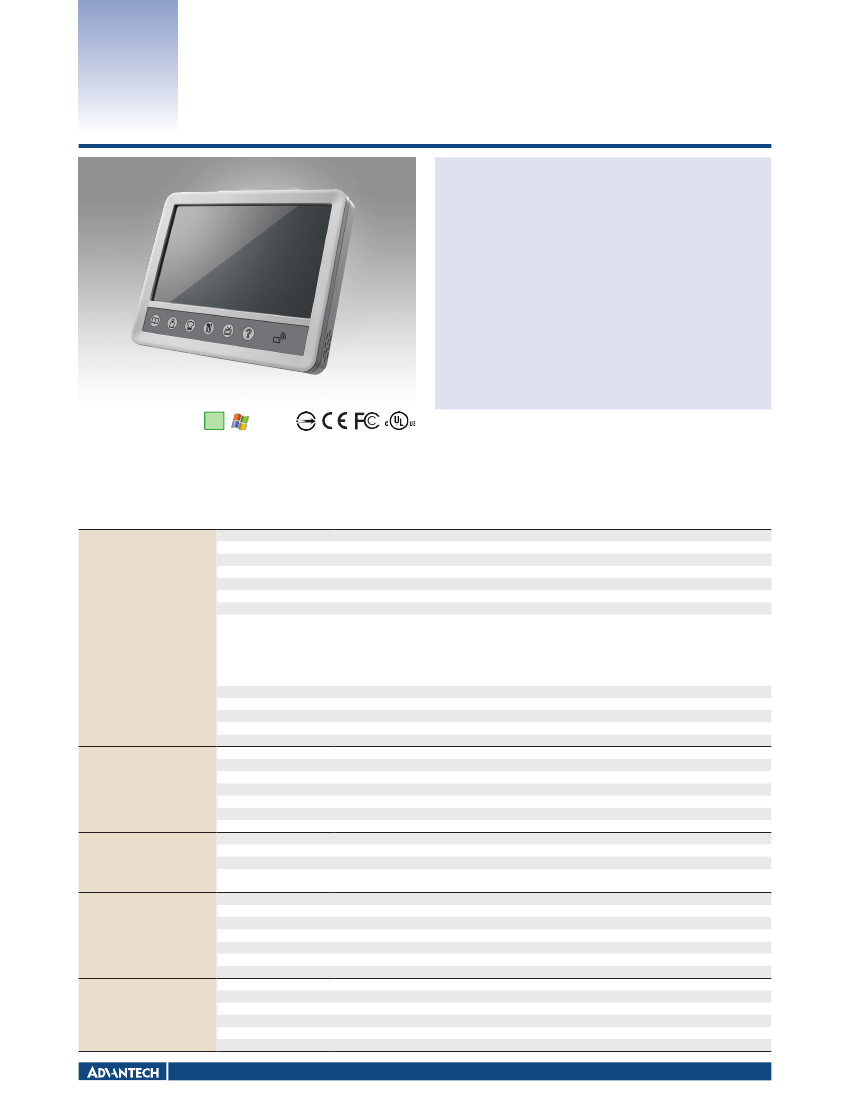

UTC-W101B

10.1" Ubiquitous Touch Computer with

Intel

Atom™ Cedar Trail Processor

Features

Fanless Intel

Atom™ CedarTrail + NM10

Low Power Consumption attributed to Intel

Atom™ CedarTrail Architecture

Providing Natural Viewing Experience with 16:9 10.1" WSXGA Display

Instant Function Access through front programmable Capacitive Touch

Hotkeys (Build-in 6 Hotkeys)

Top Cover Modules designed for varied applications needs, such as

programmable LED or camera module

New integrated RFID sensor at front empowers all kind of iServices

application (NFC ready)

Front panel complies with IP65/NEMA4 protection standard

VESA 75mm Mounting Holes for Desktop Stand & Wall-Mount

Dual Certificates applied: ITE EN/UL 60950 & Medical EN/UL 60601-1

RoHS

COMPLIANT

2002/95/EC

Microsoft

Windows

Embedded

Introduction

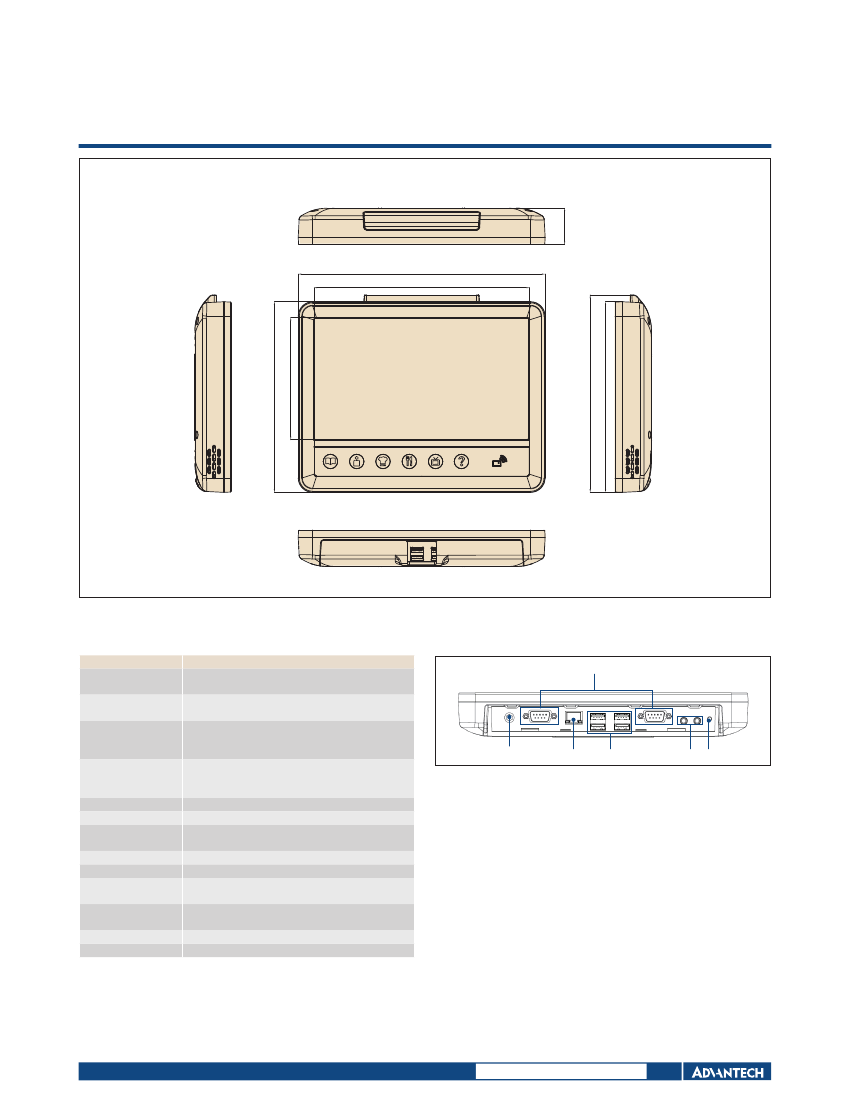

Specifications

UTC-W101B is an Intel

Atom™ based fan-less all-in-one PC with 10.1" wide format resistive touch-based LCD panel. Not only a cost effective, but also a versatile all-in-one solution

to meet the vast demand emerging from market. Hot keys on bezel provide Instant function access, simple and elegant industrial design perfectly blended into eServices scenarios.

CPU

Chipset

L2 Cache

DMI

Memory

Storage

Network (LAN)

Processor System

I/O Ports

Environmental Specifications

Power Supply

Stereo Speaker

Microphone

Bus expansion

Dimensions (W X H X D)

Weight

Operating Temperature

Relative Humidity

Vibration

Shock

EMC

Safety

Front Panel Protection

Power Input Voltage

Power Input Current

Power Adapter

Power consumption

Size/Type

Max.Resolution

Max. Color

Pixel Pitch (mm)

Brightness (cd/m

)

View Angle

Backlight MTBF

Type

Resolutions

Light Transmission

Controller

Software Driver

Durability (Touches)

LCD Display

Touch Screen

Intel

Atom™ CedarTrail N2800 1.86GHz

Intel

Atom™ CedarTrail N2800 1.86GHz + NM10

1 MB

2.5 GT/S

DDR3 1067 204 pin SO-DIMM x1 slot (Built-in 1GB, up to 4GB)

Supports 1 x Mini SATA (Built-in 16G mSATA SSD)

1 x Gigabit Ethernet ports, Wake on LAN, boot from LAN and LAN teaming supported

2 x RS-232 COM ports (isolated)

4 x USB V2.0 ports

Mic-in/Line-out

2 x Power switch(one locates at the I/O ports, the other one locates at the rear of machine)

1 x Gigabit Ethernet Ports (isolated)

1 x RFID Sensor hidden @ Front Panel (optional, NFC capable)

1W x 2

Built-in microphone x 1

Support Mini PCIe x 1

258 x 199 x 38.3mm (10.16" x 7.83" x 1.51")

2.47 kg (5.4 Ibs)

0 ~ 40° C (32 ~ 104° F)

10 ~ 95% @ 40° C non-condensing

10 G peak acceleration (11 msec. duration)

BSMI, CE, FCC Class B, CCC

CB, CE, UL, CCC, UL 60601-1. IEC/EN60601-1 Certified (Optional), BSMI

IP65/NEMA 4 compliant

12 V

~ 19 V

5 A ~ 2.1 A

AC to DC,DC 19 V/40 W (Optional)

Typical 14 W

Max 18 W

10.1" TFT LCD with LED backlight

1024 x 600

262K

0.2175 (H) x 0.2088 (V)

200

90° (45(L), 45(R), 20(U), 45(Down))

10,000 hrs

Analog Resistive 5 wires

Continuous

80 %

RS-232

Windows 7/ WES7/ Linux

36 million

Panel PCs

All product specifications are subject to change without notice

Last updated : 7-Jan-2014
