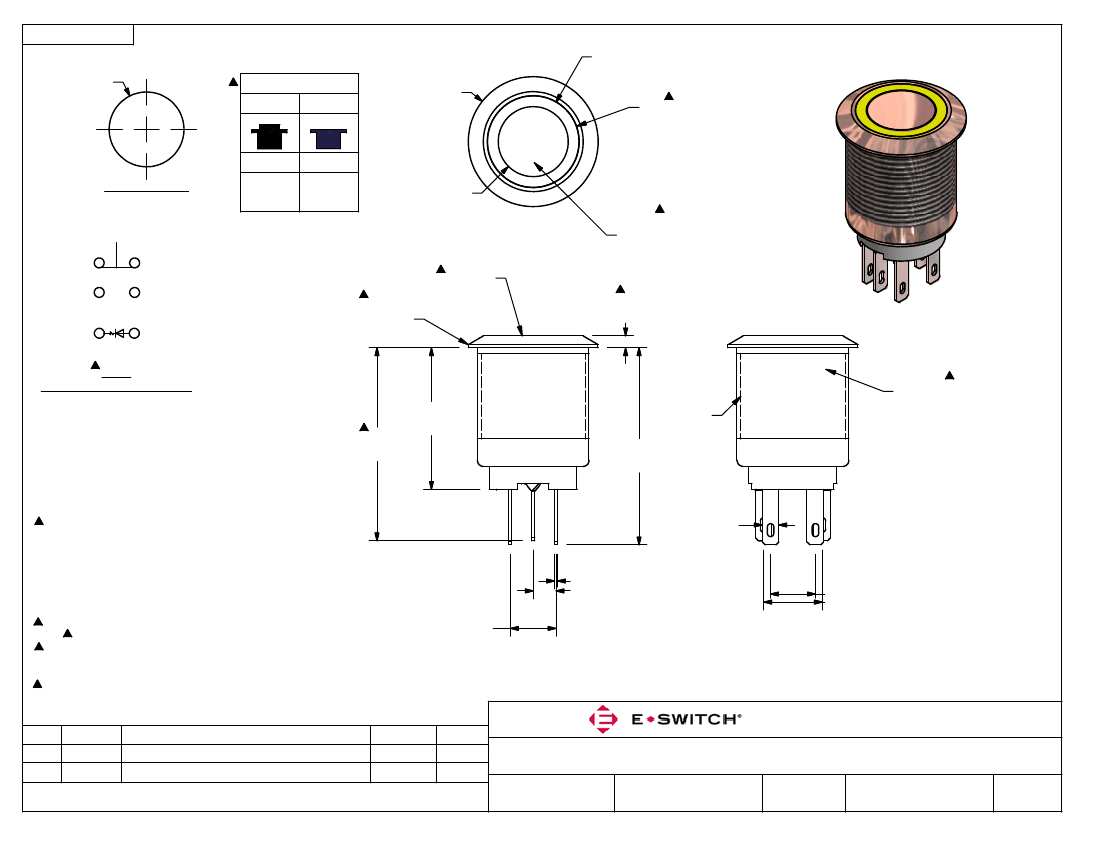

SHEET 1 OF 1
19.00
15.50
[.610 in]
[.748 in]
SWITCH FUNCTION
POS. 1
POS. 2
22.00
[.866 in]
RING ILLUMINATION
ON
PANEL CUTOUT
MAX. PANEL THICKNESS
11.0mm [.433]
1-2
(ON)
3-4
12.00
[.472 in]
(ON) = MOMENTARY
ACTUATOR FINISH
MACHINE FINISH
STAINLESS STEEL
FLAT ACTUATOR
1
4
_
2
3
+
BODY FINISH
MACHINE FINISH
STAINLESS STEEL
2.00
[.079 in]
YELLOW
SPDT
CONTACT CONFIGURATION
24.00
.50
[.945
.020
in]
M19x1.0
33.40
.50
[1.315
.020
in]
NOTE 15
HARDWARE SUPPLIED
32.70
.50
[1.287
.020
in]
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A 48VDC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 MΩ MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20°C to 55°C
11. TRAVEL: 2.8mm
12. DENOTES CRITICAL PARAMETER.
13. LAMP VOLTAGE: 24V
14. INGRESS PROTECTION: IP65
15. HARDWARE SUPPLIED: O-RING AND HEXNUT
16. ILLUMINATION COLOR: YELLOW
17. 2011/65/EU (ROHS) COMPLIANT.
B
A
REV
21613
20824
PCR NO
CORRECTED COLOR ERROR
RELEASE FOR PRODUCTION
DESCRIPTION
4
+
1
2.80
[.110 in] (+)
.50
3.85
[.020 in]
[.152 in]
1
3
(-)
7.60
9.90
[.299 in]
[.390 in]
7.70
[.303 in]
10/14/14
10/16/12
DATE
AS
EBP
BY
TITLE
SCALE
PV4F2Y0SS-355
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
10/16/2012
DR
EBP
52-PV4F2Y0SS355
